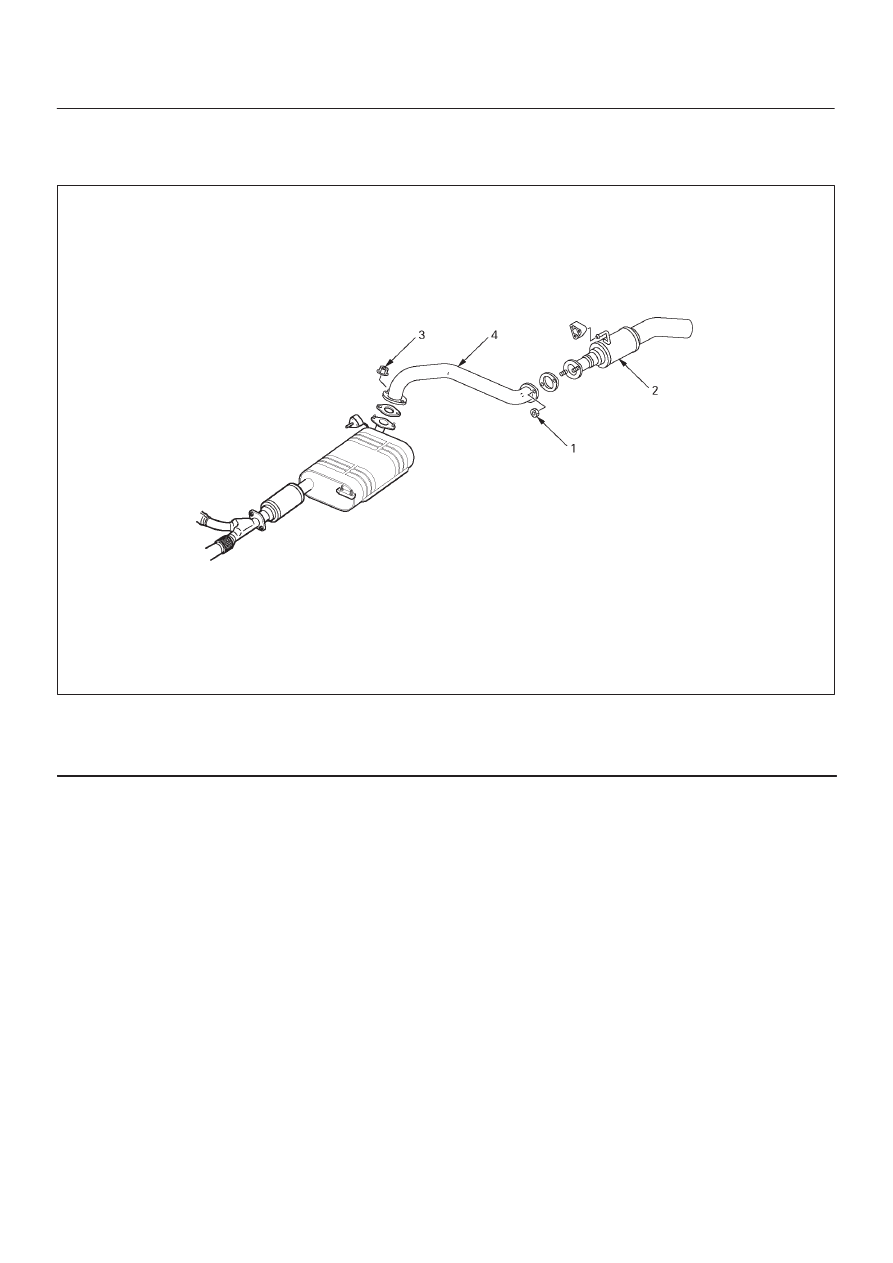

6F–8 ENGINE EXHAUST Rear Exhaust pipe Rear Exhaust pipe and Associated Parts 150R200022 Legend (1) Tail Pipe Fixing Nuts (3) Rear Exhaust Pipe Fixing Nuts Removal 1. Disconnect battery ground cable. stands. 3. Remove tail pipe fixing nuts (1), then remove the tail pipe (2). 4. Remove rear exhaust pipe fixing nuts (3), then remove the rear exhaust pipe (4). Installation 1. Install the rear exhaust pipe (4) and tighten two nuts (3) on exhaust silencer to specified torque. Nuts: 43 N·m (4.4 kg·m/32 lbft) 2. Install the tail pipe (2) and tighten two nuts (1) on rear exhaust pipe to specified torque. Nuts: 57 N·m (5.8 kg·m/42 lb ft) |
