Isuzu Trooper (1998-2002 year). Manual - part 135

4B2–27

DRIVE LINE CONTROL SYSTEM (TOD)

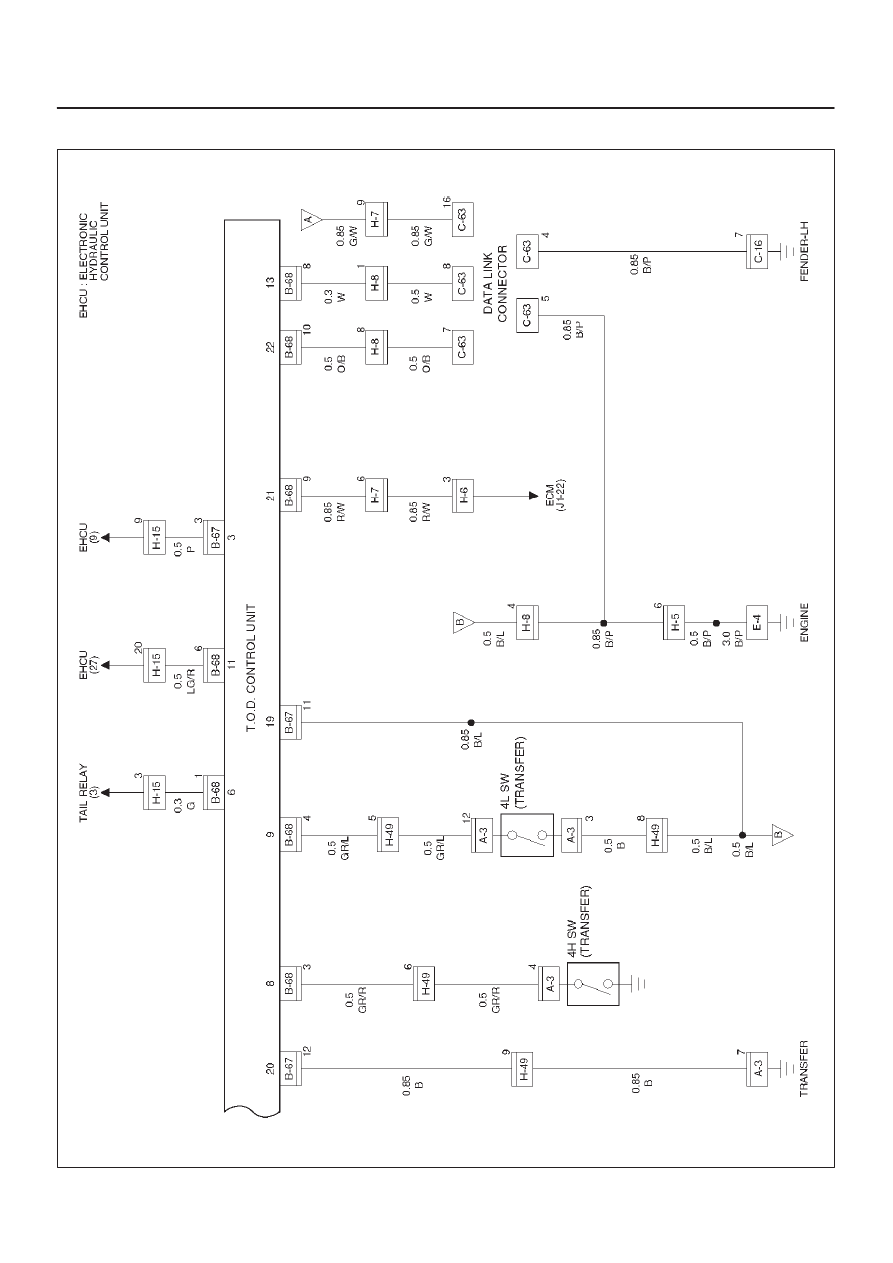

Circuit Diagram–3 (RHD 4JX1)

D04RY00046

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–28

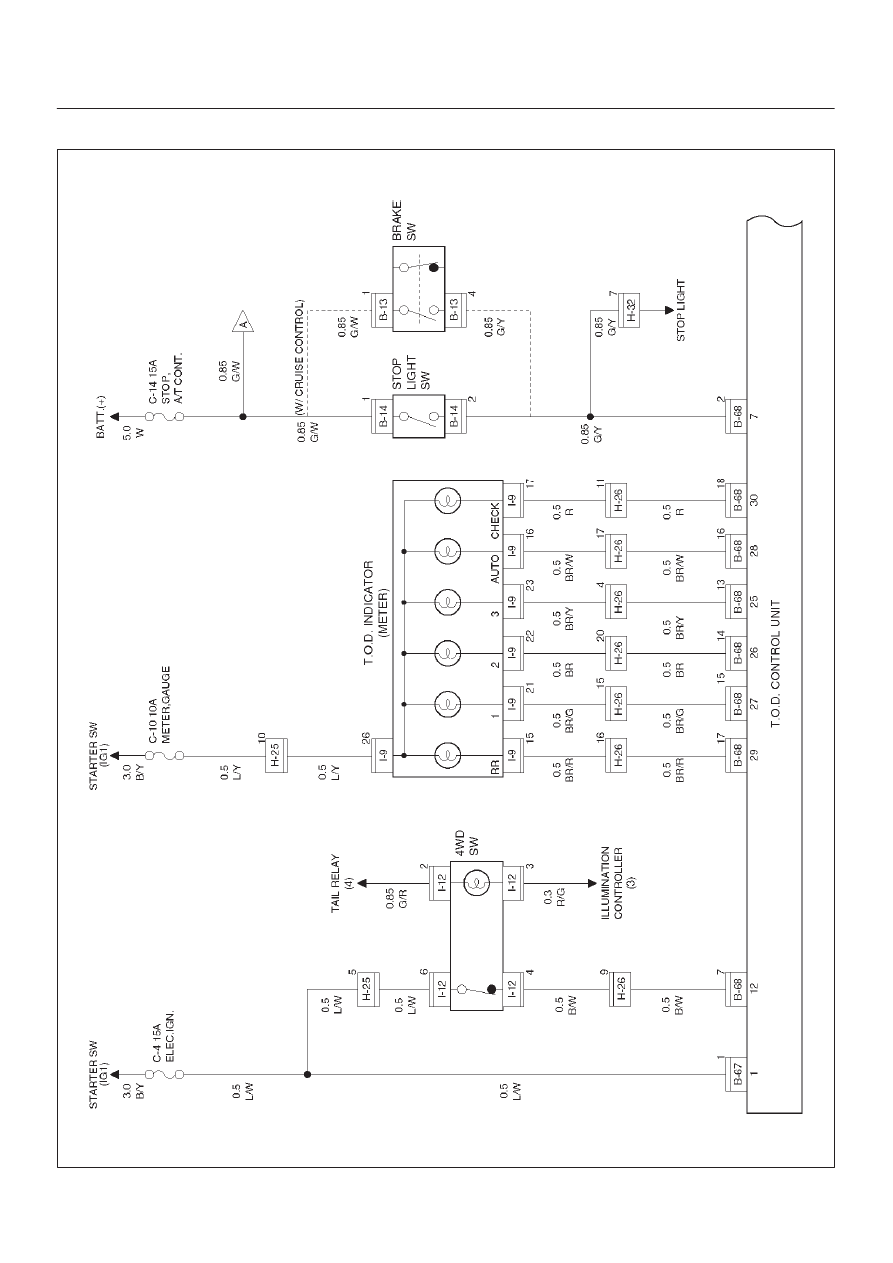

Circuit Diagram–1 (LHD 6VE1)

D04RY00047

4B2–29

DRIVE LINE CONTROL SYSTEM (TOD)

Circuit Diagram–2 (LHD 6VE1)

D04RY00048

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–30

Circuit Diagram–3 (LHD 6VE1)

D04RY00049
