Isuzu Trooper (1998-2002 year). Manual - part 134





4B2–23

DRIVE LINE CONTROL SYSTEM (TOD)

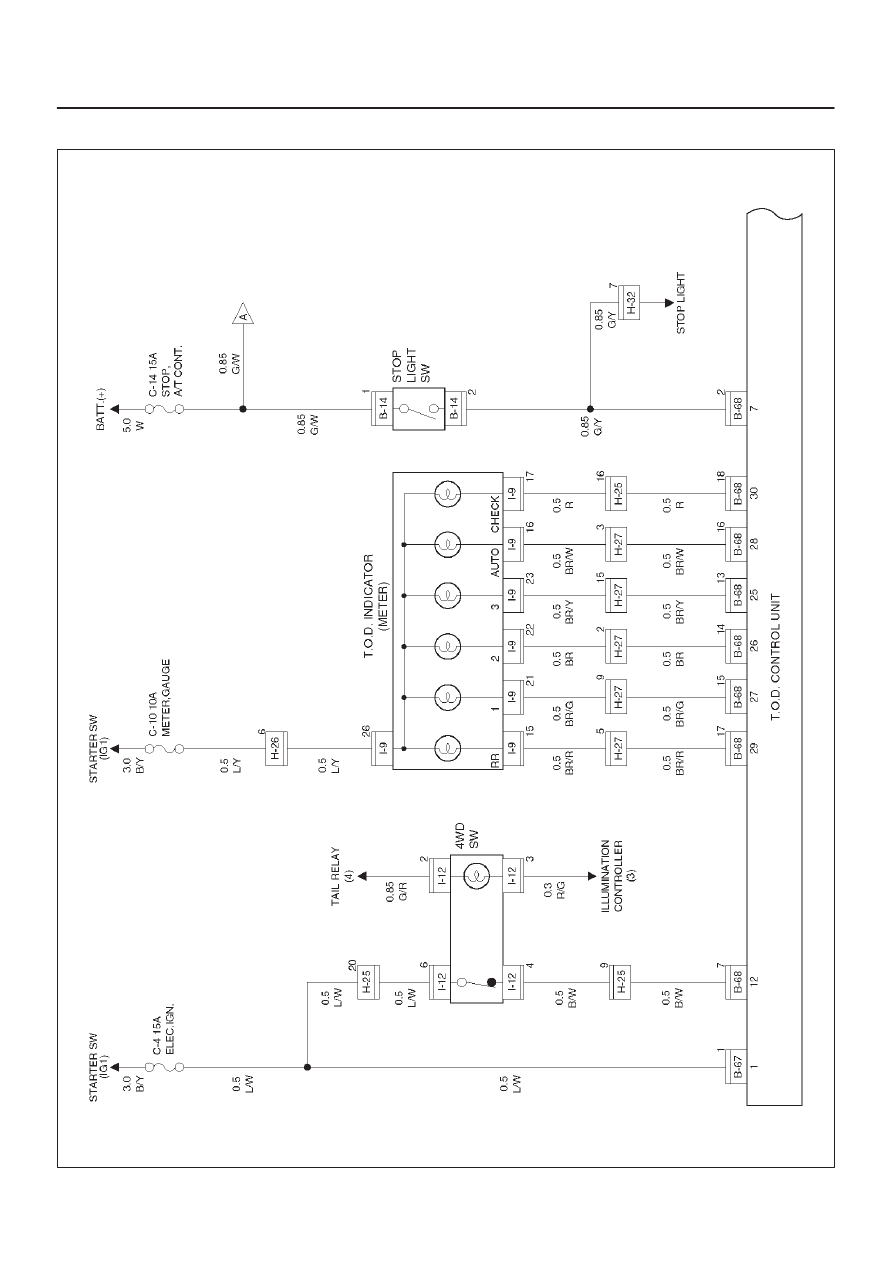

Circuit Diagram–2 (RHD 6VE1)

D04RY00042

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–24

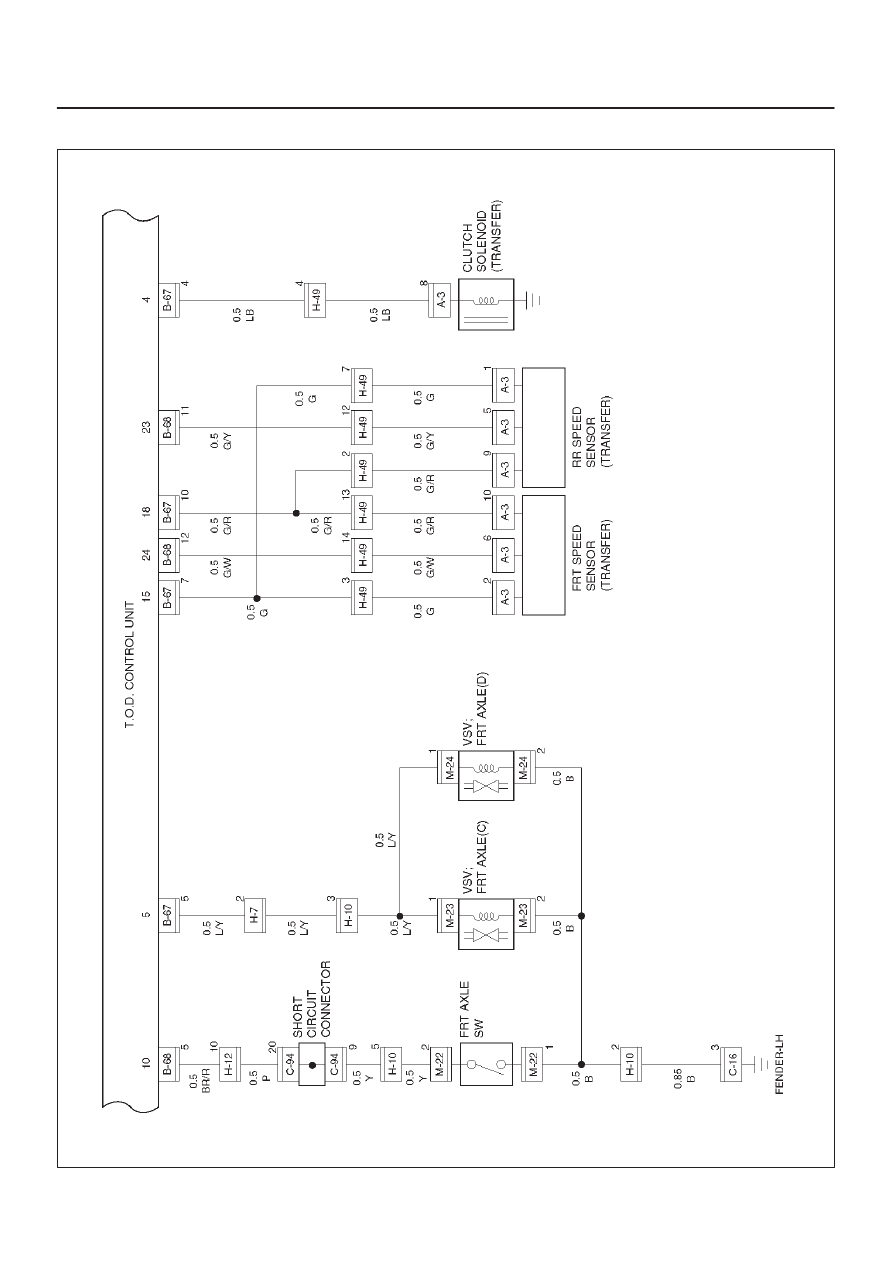

Circuit Diagram–3 (RHD 6VE1)

D04RY00043

4B2–25

DRIVE LINE CONTROL SYSTEM (TOD)

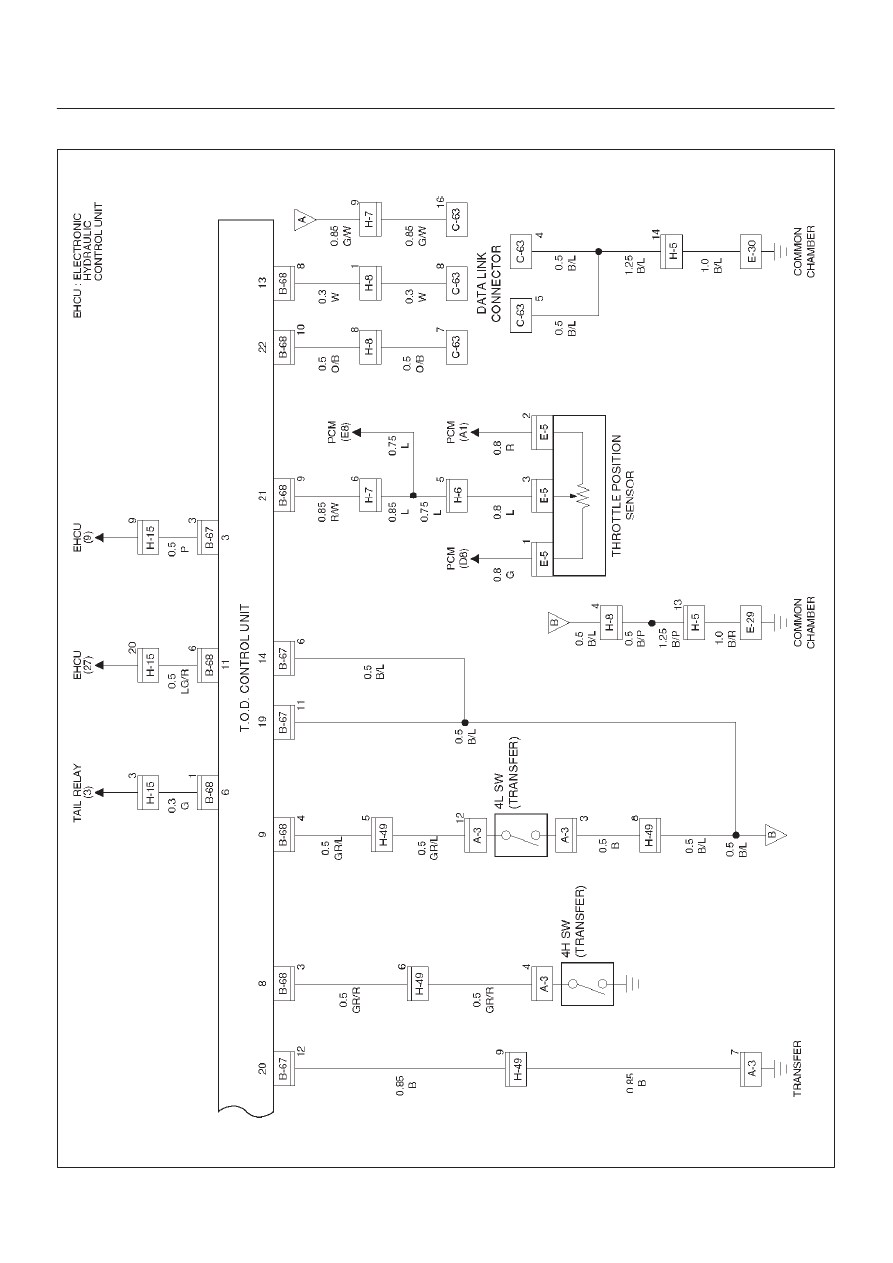

Circuit Diagram–1 (RHD 4JX1)

D04RY00044

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–26

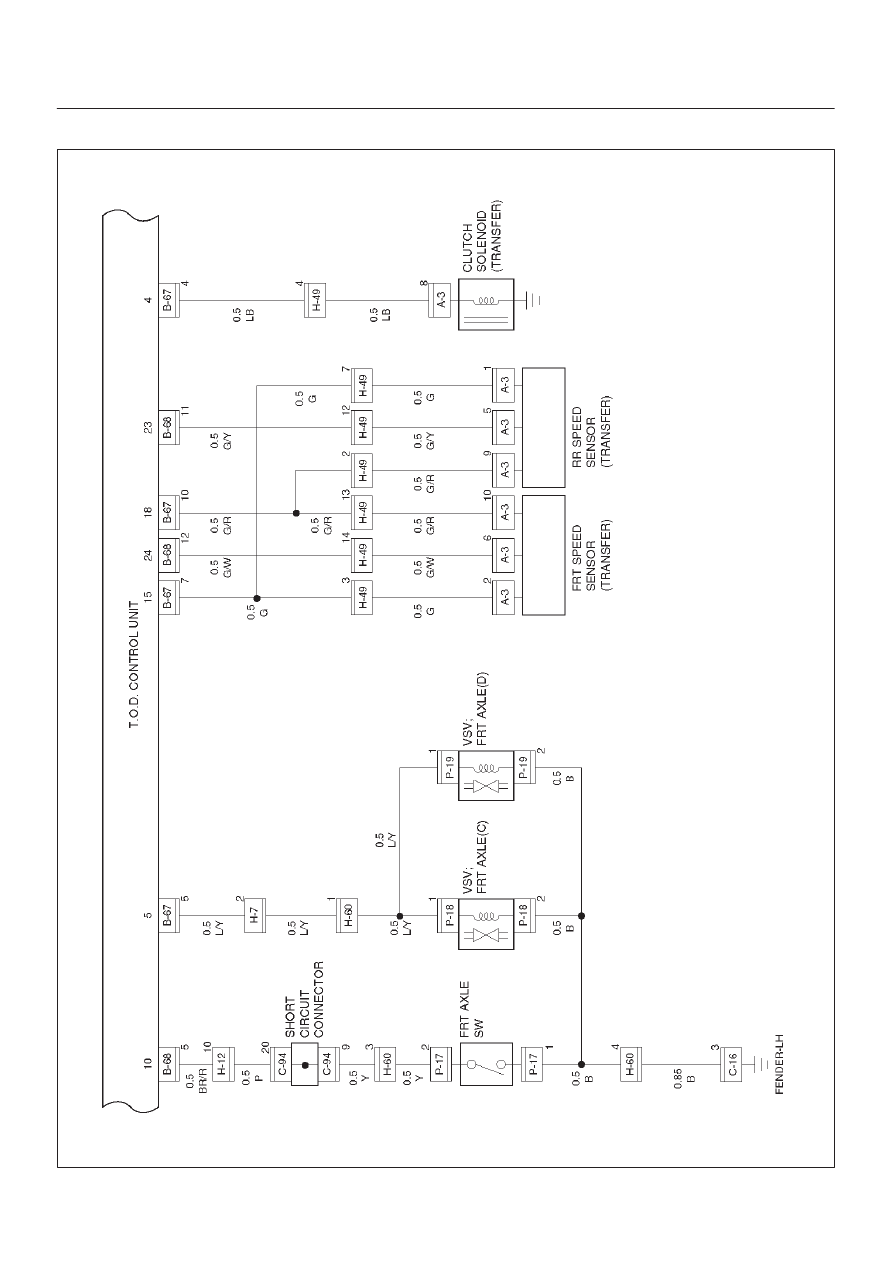

Circuit Diagram–2 (RHD 4JX1)

D04RY00045
