BRAKES  5-23

BRAKE LINE (HOSES AND PIPES)

•

Inspect all hoses and pipes for wear, bending, chafing,

cracks, dents, or any other damage.

Make necessary correction or parts replacement if these

abnormal conditions are found through inspection.

•

All hoses, pipes and joints can be damaged easily.

Do not allow the hose to become excessively twisted and

bent when working with then, and pay special attention to all

the brake lines not to damage them when repairing or

replacing other parts (axle, suspension, etc).

•

Inspection for leakage should be performed by depressing

the brake pedal fully.

If leakage is apparent at the circumference of joints,

retighten or replace these parts.

This procedure must be performed whenever brake lines

are installed.

•

After disconnecting the hoses and pipes, cap or tape the

openings to prevent entry of foreign material.

5-24  BRAKES

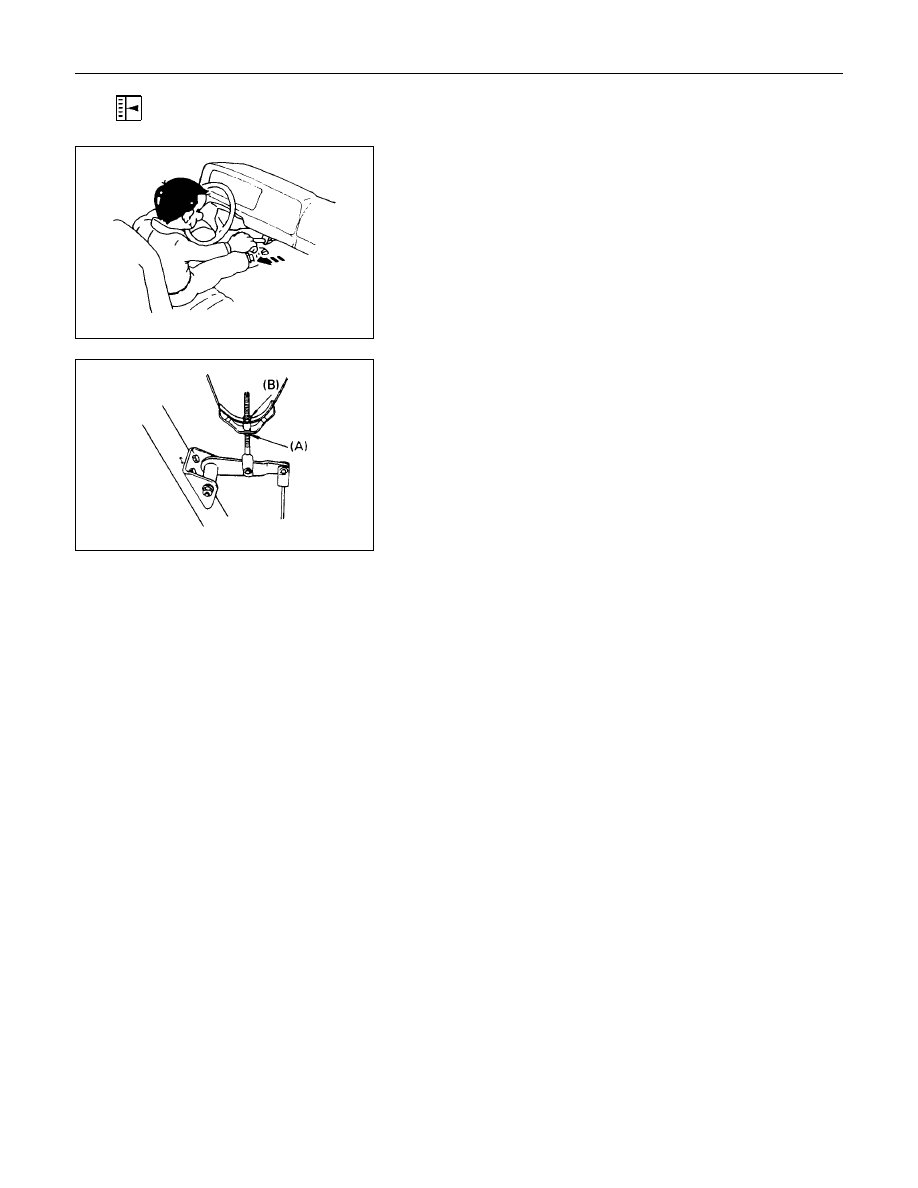

  ADJUSTMENT PROCEDURE OF SERVICE AND PARKING BRAKE

Stem type

All brakes are self-adjusting.
Brake are adjusted by repeated stepping on the brake pedal.
The parking brake adjustment should be performed as follows:
1. Release the parking brake lever fully.

2. Loosen the lock nut (A).

3. Repeat stepping the brake pedal firmly and releasing it until

the rear brake auto-adjuster completes the function.

4. Rotate the adjust nut (B) until all slack disappears from the

cable.

5. Set the lock nut.
The parking brake lever travel is normal when the lever comes
out 9 to 11 notches when pulled with a force of 30 kg (66 lbs.).

BRAKES  5-25

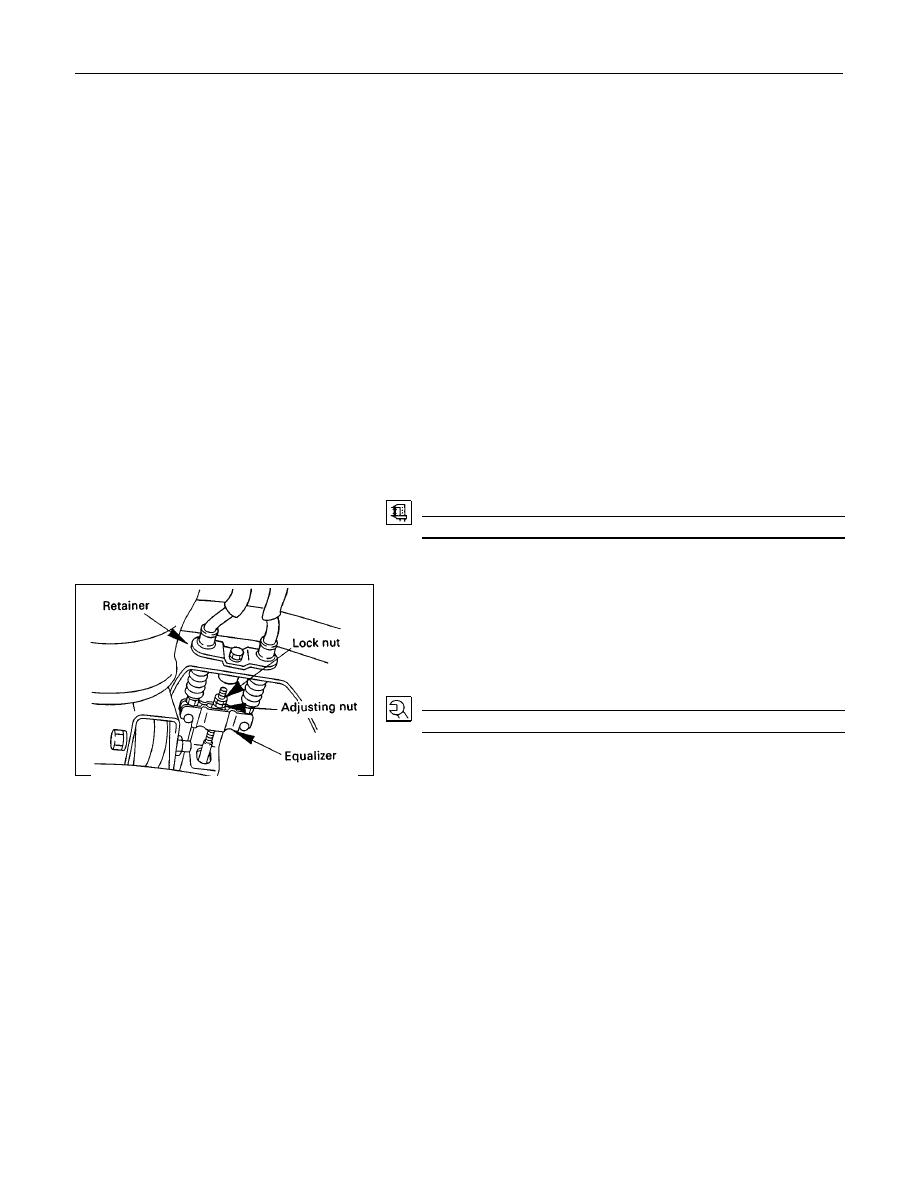

Floor mount type

All brakes are self-adjusting.
Brakes are adjusted by repeated stepping on the brake pedal.
(After stepping on the pedal and releasing it, the rear auto-
adjuster, in the rear brake, produces a clicking sound.
the same operation should be repeated until the sound
disappears.)
Take the following steps after overhauling the rear brake
assembly.
1. Move the parking brake lever to its fully released position.

2. Parking cable must be loosened sufficiently.

(Loosen the adjust nut and the lock nut.)

3. Repeat stepping on the brake pedal firmly, and releasing it

until the clicking sound can no longer be heard.

If the difference between the brake drum inside diameter of

the brake shoes is adjusted to be 0.5 mm, the number of

times for depressing the brake pedal can be reduced.

4. Remove the drum.

Measure the brake drum inside diameter and diameter and

diameter of the brake shoes.

Shoe Clearance

mm(in)

0.25 - 0.40 (0.0098 - 0.0157)

If incorrect, check the brake auto-adjusting system.

5. Turn the equalizer nut so that the parking brake lever

travels 6 or 7 notches when pulled up with a force 30 kg (66

lbs.).

6. Make sure there is not brake dragging and tighten the cable

lock nut.

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

8 - 18 (0.8 - 1.8 / 5.8 - 13)

5-26  BRAKES

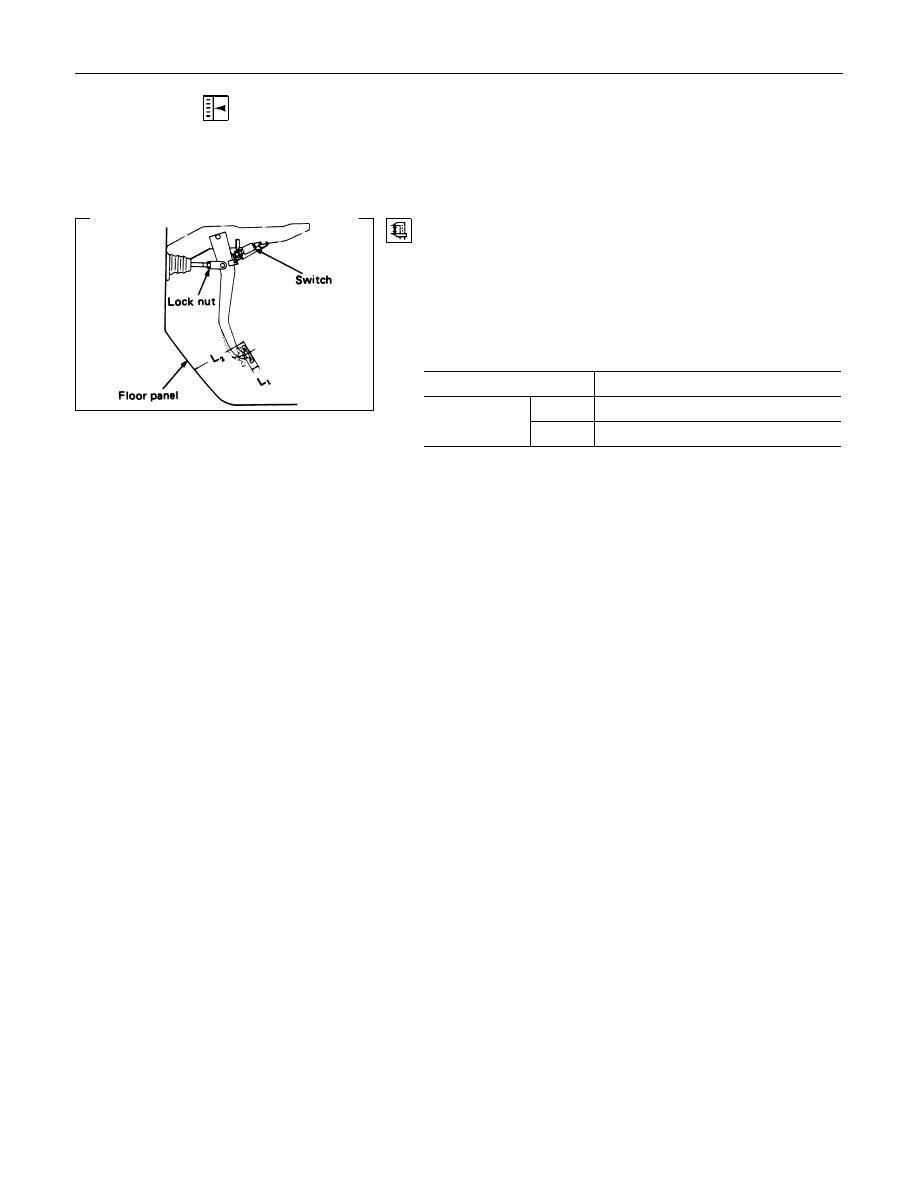

  ADJUSTMENT PROCEDURE OF BRAKE PEDAL

The push rod serves as the brake pedal stopper when the
pedal is fully released.
Brake pedal height adjustment should be performed as follows.

Brake Pedal - Height

Measure the brake pedal height after making sure the pedal is
fully returned by the pedal return spring.
Note:
Pedal height (L2) must be measured after starting the
engine and increasing the revolution several times by
stepping on the accelerator pedal.

mm(in)

Pedal free play (L1)

6-10 (0.23 - 0.39)

LHD

174-184 (6.85-7.24)

RHD

193-203 (7.60 7.99)

Height (L2)

Note:
Pedal free play must be measured after turning off the
engine and stepping on the brake pedal firmly five times or
more.
If the measured value deviates from the above range, adjust
the brake pedal as follows:
a) Disconnect the stop lamp switch.

b) Loosen the lock nut on the push rod.

c) Adjust the brake pedal to the specified height by rotating the

push rod in the appropriate direction.
