4C1-78  FRONT WHEEL DRIVE

  REASSEMBLY

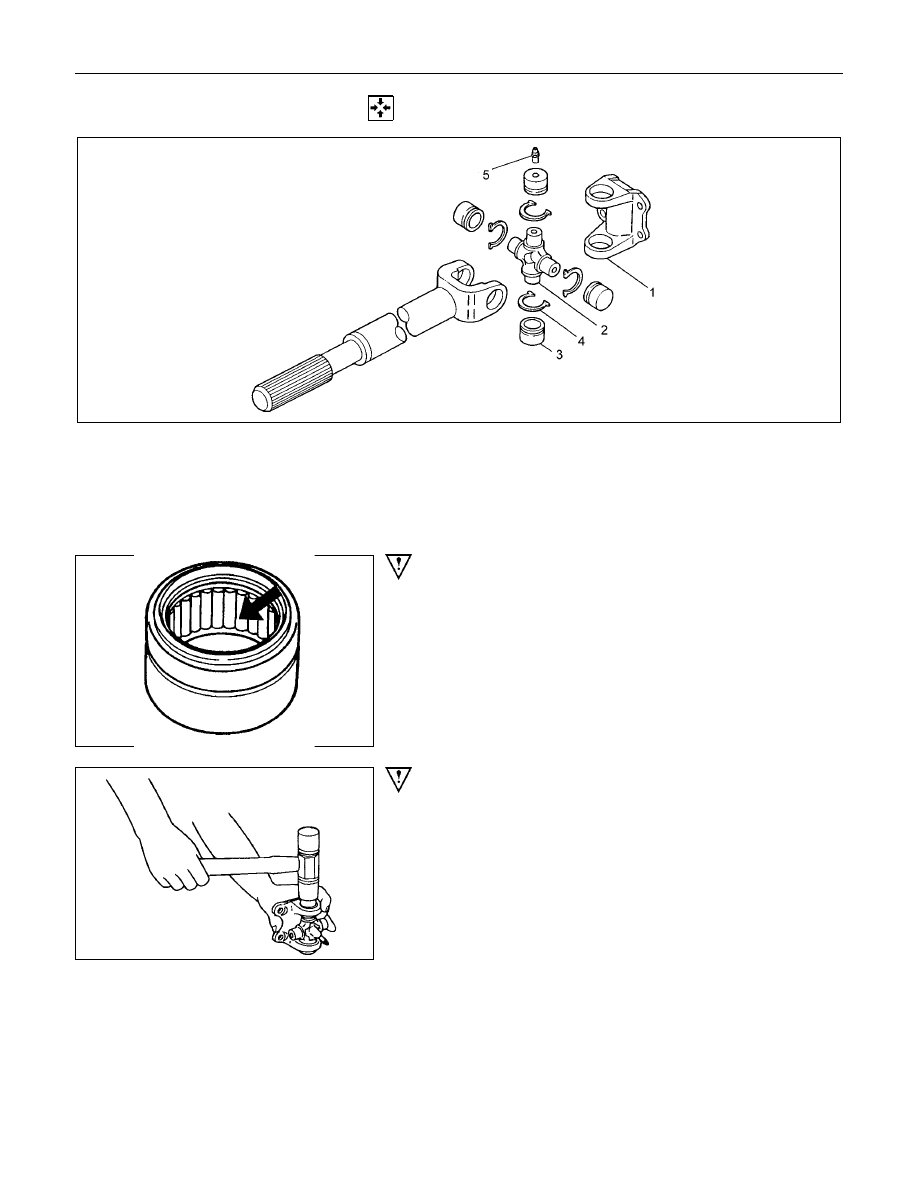

Reassembly Steps

1. Flange yoke
2. Spider

▲

3. Needle roller bearing

4. Snap ring
5. Grease Fitting

Important Operations

3. Needle roller bearing

(1) Install spider to flange yoke. Be sure to install the spider by

aligning the setting marks made during disassembly.

(2) Apply a molybdenum-disulfide grease or a multi-purpose

type grease NLGI No.2 to inside of the bearing cap.

Grease Amount: Approx. 1.2g (0.042 oz)

(3) Using either  mallet (or copper hammer) or a press, install

the needle roller bearing into the yoke so that the snap ring

can be installed in its groove.

CAUTION:
The needle roller bearing cannot be installed smoothly if it
is set at an incorrect angle with the flange and excessive
hammering will damage the needle roller bearing.

FRONT WHEEL DRIVE  4C1-79

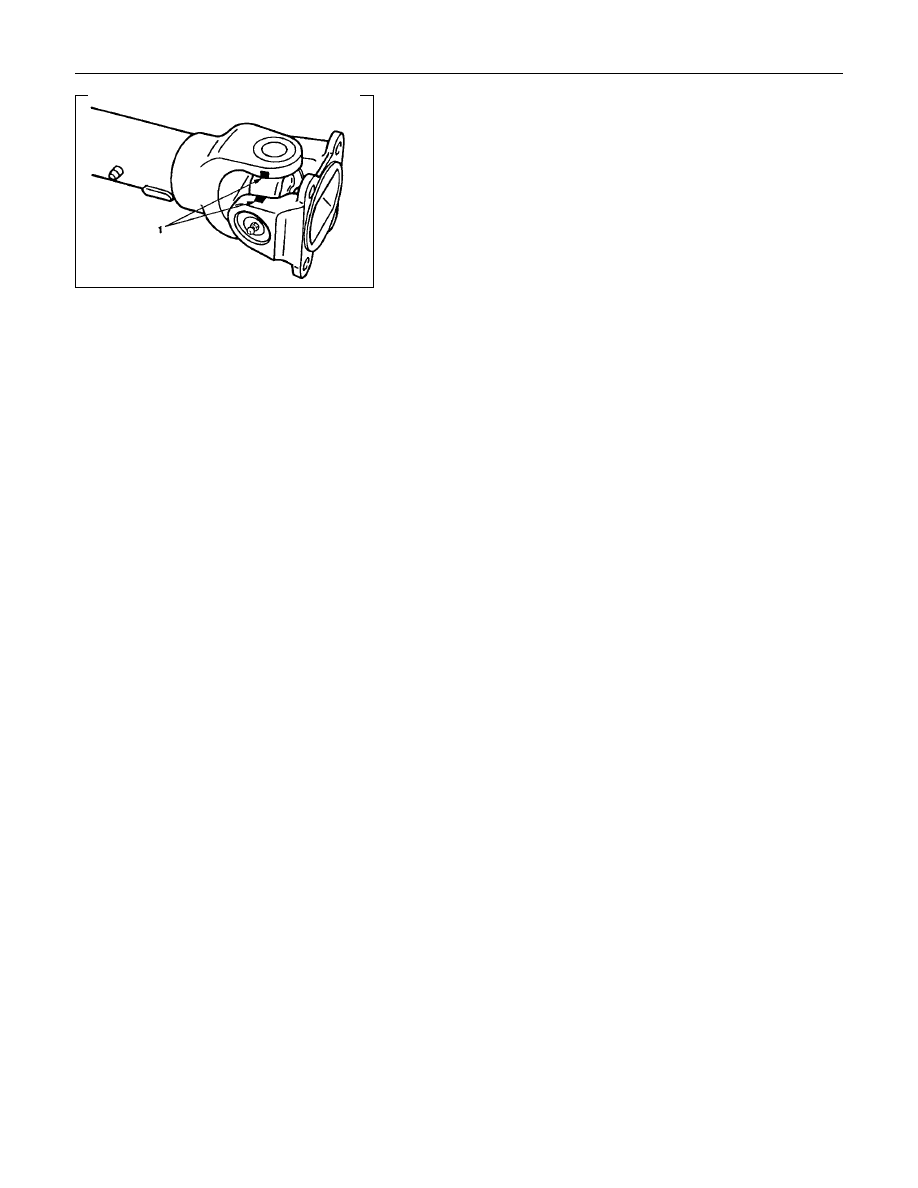

(4) Align setting marks (1) and join the yokes.

(5) Install snap ring.

NOTE:
Discard used snap rings and install new ones.
When the bearing cap is in position, select and attach a snap
ring of suitable thickness so that the end play of the spider pin
is held within 0.1mm (0.004 in).

T/F side for Type - A and B

Snap ring thickness and Identification color

1.5mm (0.059 in); Blue

1.53mm (0.060 in); White

1.59mm (0.063 in); Yellow

1.62mm (0.064 in); Green

1.68mm (0.066 in); Not colored

Axle side for Type - A

1.44mm (0.057 in); Not colored

1.49mm (0.059 in); Not colored

1.54mm (0.061 in); Not colored

NOTE:

Be sure to use snap rings of the same thickness on both sides.

4C1-80  FRONT WHEEL DRIVE

TROUBLESHOOTING

Refer to this Section to quickly diagnose and repair front axle problems.  Each troubleshooting chart has three
headings arranged from left to right.

(1) Checkpoint   (2) Trouble Cause   (3) Countermeasure

This Section is divided into ten sub-sections:

4

×

2 Model

1. Wanders and pulls

2. Front wheel shimmy

4

×

4 Model

1. Oil leak at front axle

2. Oil leak at pinion shaft

3. Noises in front axle drive shaft joint

4. Noises in front axle

5. Wanders and pulls

6. Front wheel shimmy

7. Automatic locking free wheel hub

1) Does not lock or locks only on one side

2) Does not freewheel or freewheels only to one side

3) Noises in automatic locking free wheel hub

Propeller shaft

1. Noise

2. Vibration

FRONT WHEEL DRIVE  4C1-81

4

×

2 Model

1.  WANDERS AND PULLS

Checkpoint

Trouble Cause

Countermeasure

Adjust the wheel bearing

preload

Too tight

NG

Suspension

Tighten or replace

Replace or adjust the inflation

Adjust the steering gear out of

adjustment or replace

Adjust the front alignment

Front or rear suspension parts

loose or broken

Tire

Worn or improperly inflated

Incorrect or broken

Front alignment

Incorrect

Steering linkage

Steering gear out of

adjustment

Tighten or replace

Loose or worn

OK

NG

NG

NG

NG

NG

OK

OK

OK

OK

Wheel bearing preload
