REAR AXLE  4B-61

3) Axle Case to Inside Brake Drum Leakage

Checkpoint

Trouble Cause

Countermeasure

Replace the oil seal

Worn or defective oil seal

NG

Oil seal

4B-62  REAR AXLE

4.  POWER NOT BEING TRANSMITTED TO THE WHEELS

(PROPELLER SHAFT OPERATION IS NORMAL)

Checkpoint

Trouble Cause

Countermeasure

Replace the rear axle shaft

Broken rear axle shaft

NG

Replace the drive pinion and

the ring gear as a set

Drive pinion and ring gear

Broken drive pinion and/or ring

gear

Replace the differential gears

and/or the spider

Differential cage gears

Broken differential cage gears

and/or spider

NG

NG

OK

OK

Rear axle shaft

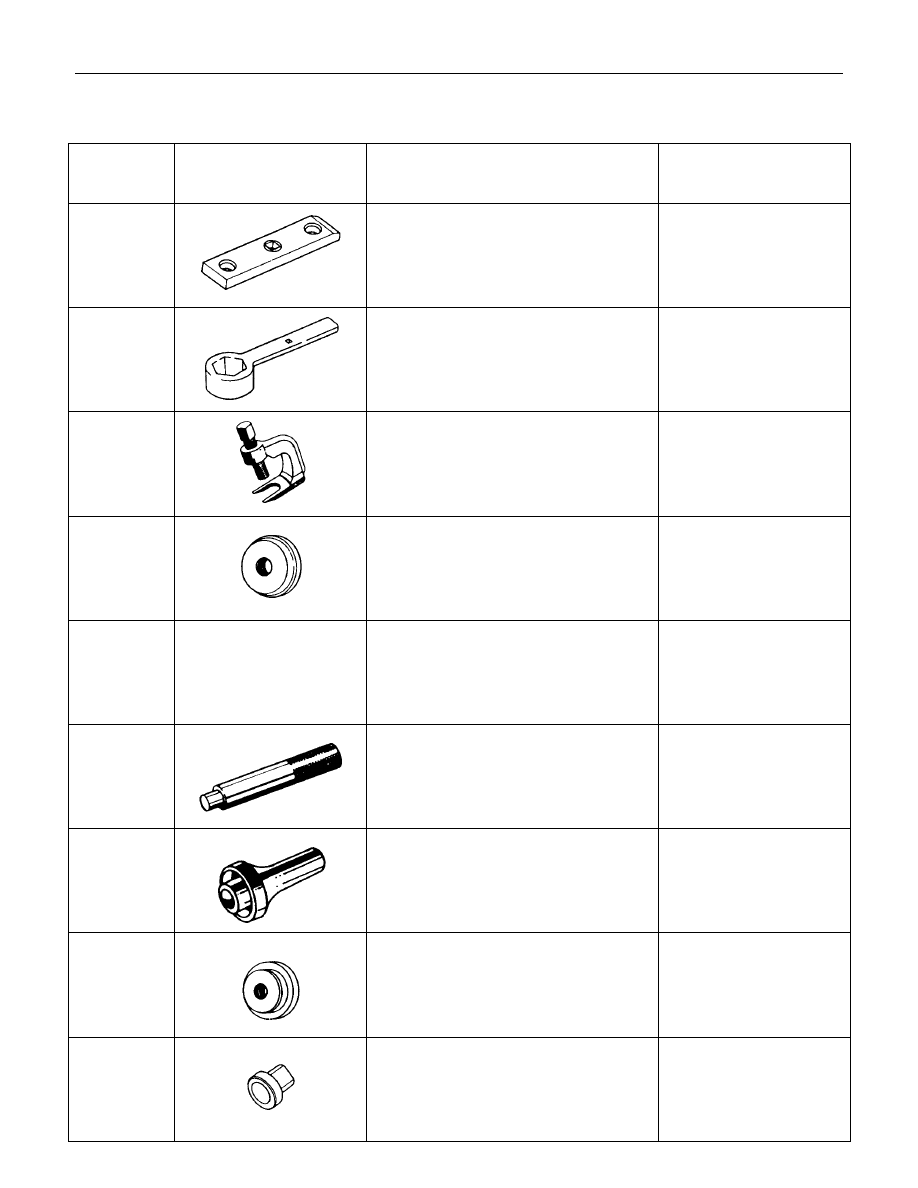

REAR AXLE  4B-63

SPECIAL SERVICE TOOL

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

RAL-1

5-8840-2003-0

(J-24246)

Axle shaft bearing nut

remover & installer

RAL-2

5-8840-2329-0

Axle shaft bearing nut

remover & installer

(Heavy-Duty type)

RAL-3

5-8840-0079-0

(J-6627-A)

Wheel pin remover

RAL-4

5-8522-1268-0

(J-24259)

Axle shaft bearing outer

race installer (for 194mm)





5-8840-2201-0

194mm (H/D), 220mm

OTL-1

5-8840-0007-0

(J-8092)

Driver handle

RAL-35

9-8522-1269-0

(J-24255)

Bearing holder oil seal

installer (for 194mm)

RAL-11

5-8840-2202-0

Bearing holder oil seal

installer (for 194mm H/D,

220mm)

RAL-6

9-8522-1271-0

(J-8609-01)

Axle shaft bearing installer

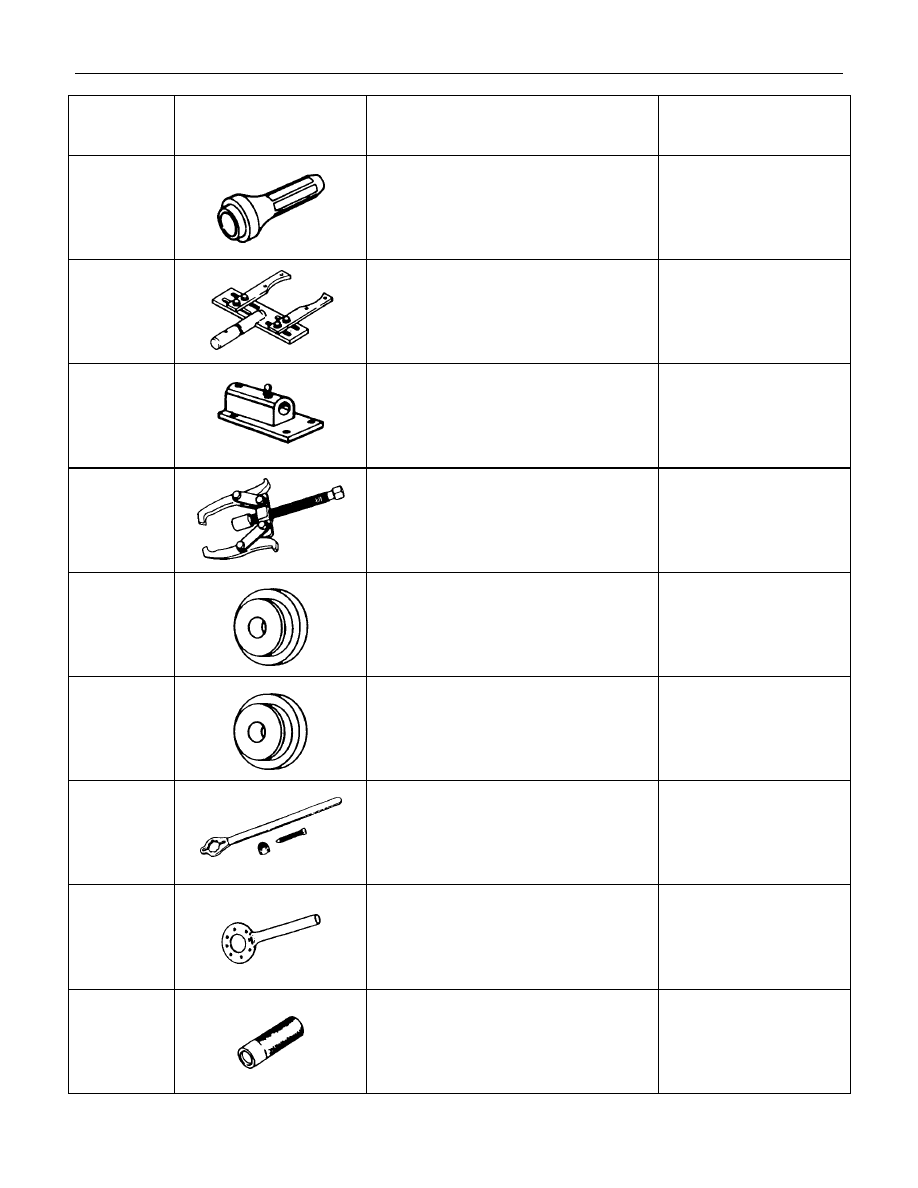

4B-64  REAR AXLE

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

RAL-34

9-8522-1272-0

(J-24254)

Axle case oil seal installer

(for 194mm)

RAL-41

5-8840-0275-0

(J-37264)

Differential holding fixture

RAL-40

5-8840-0003-0

(J-3289-20)

Holding fixture base

RAL-44

5-8840-0013-0

(J-22888)

Side bearing puller

RAL-9

9-8521-1743-0

(J-8107-2)

Side bearing plug adapter

(for 194mm)

RAL-10

5-8840-2196-0

(J-8107-4)

Side bearing plug adapter

(for 220mm)

RAL-50

5-8840-0133-0

(J-8614-01)

Pinion flange holder

(for 194mm)

RAL-51

5-8840-2157-0

(J-37211)

Pinion flange holder

(for 220mm)

RAL-53

9-8521-5032-0

Final pinion spindle
