REAR AXLE  4B-25

(FOR RING SIZE 220 mm)

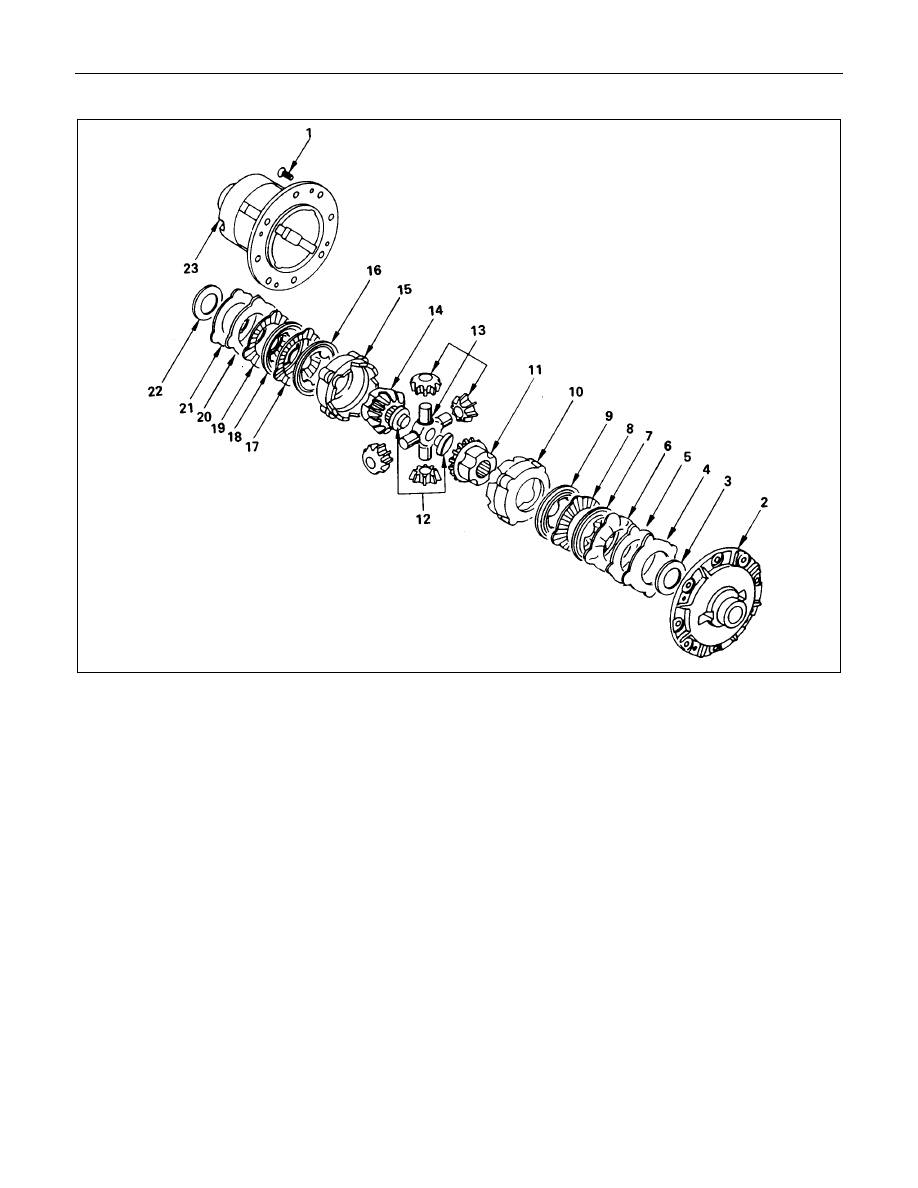

Disassembly Steps

▲

1. Bolt
2. Differential cage cover
3. Thrust washer
4. Bellve disc
5. Bellve disc
6. Friction plate
7. Friction disc
8. Friction plate
9. Friction disc

10. Pressure ring
11. Side gear
12. Thrust block

13. Pinion gear and pinion spider
14. Side gear
15. Pressure ring
16. Friction disc
17. Friction plate
18. Friction disc
19. Friction plate
20. Bellve disc
21. Bellve disc
22. Thrust washer
23. Thrust washer

4B-26  REAR AXLE

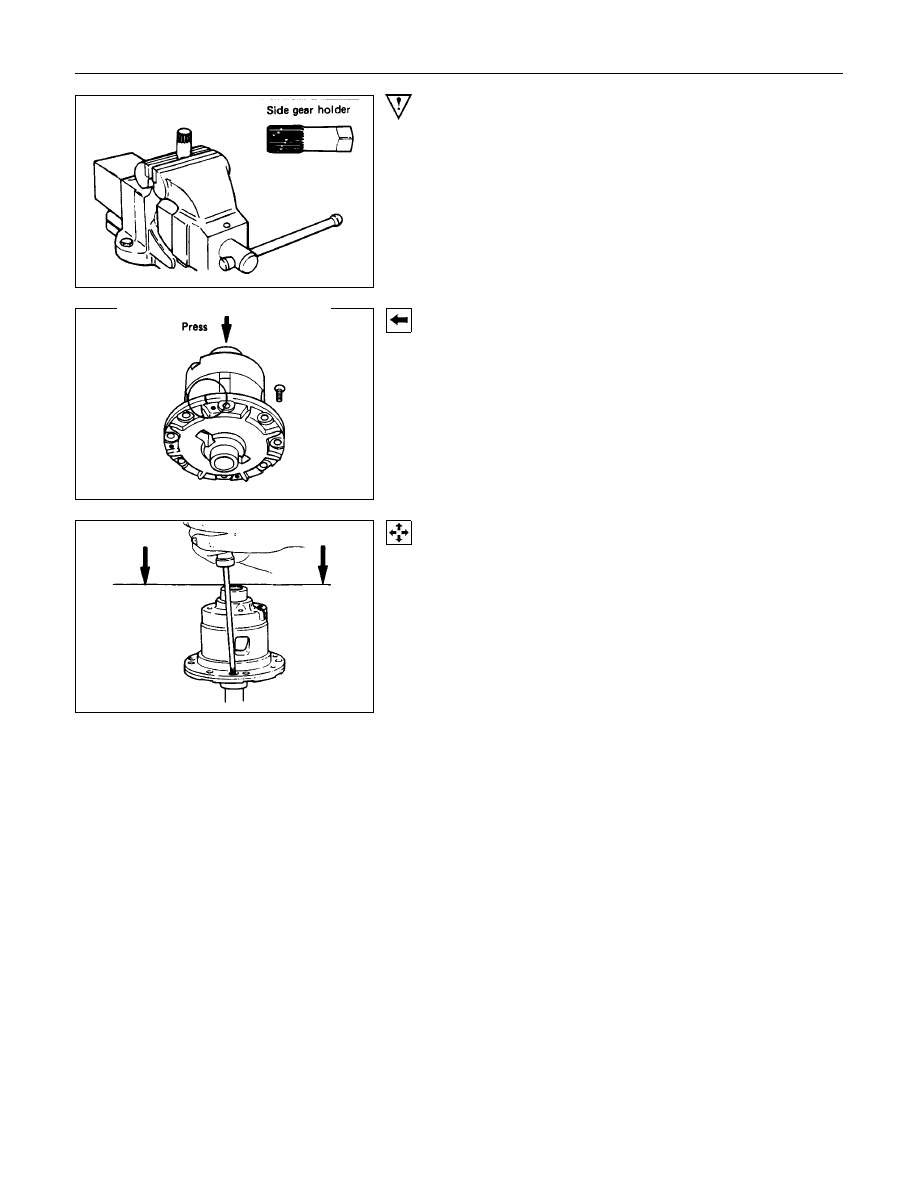

Important Operations

•

Prepare a side gear holder (An axle shaft must be used) as

shown in the left figure, clamp it with a stock vice, and set a

differential.

1. Bolt
Apply a setting mark to the differential cage cover and
differential cage a remove the bolt using the press.

•

When the differential cage is pressed down with the press,

loosen the four bolts fixing the differential cage evenly and

remove them, and then disconnect the differential cage.

REAR AXLE  4B-27

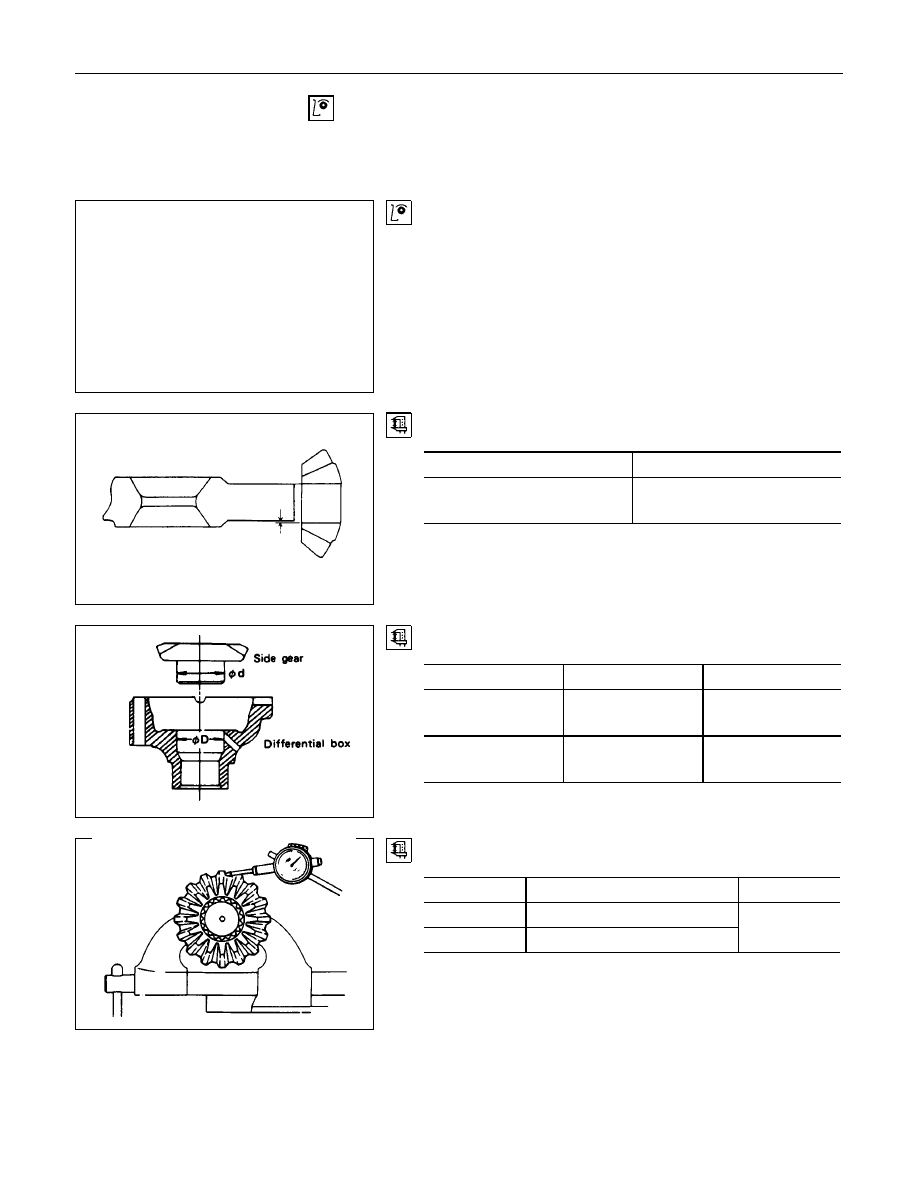

  INSPECTION AND REPAIR

Make all necessary adjustments, repairs, and part replacements if wear, damage, or other problems are discovered
during inspection.

•

 Gear

•

 Bearing

•

 Differential box

•

 Drive pinion

Visual Check

Inspect the following parts for wear, damage or other abnormal
conditions.

Clearance between pinion gear and cross pin:
194 mm and 220 mm

mm(in)

Standard

Limit

0.06 - 0.12

(0.002 - 0.005)

0.2 (0.008)

Clearance between side gear and differential cage.

mm(in)

Standard

Limit

194 mm

0.03 - 0.10

(0.001 - 0.004)

0.15 (0.006)

220 mm

0.05 - 0.11

(0.002 - 0.004)

0.15 (0.006)

Play in splines between the side gear and axle shafts.

mm(in)

Standard

Limit

194 mm

0.08 - 0.36 (0.003 - 0.014)

220 mm

0.08 - 0.38 (0.003 - 0.015)

0.5 (0.02)

4B-28  REAR AXLE

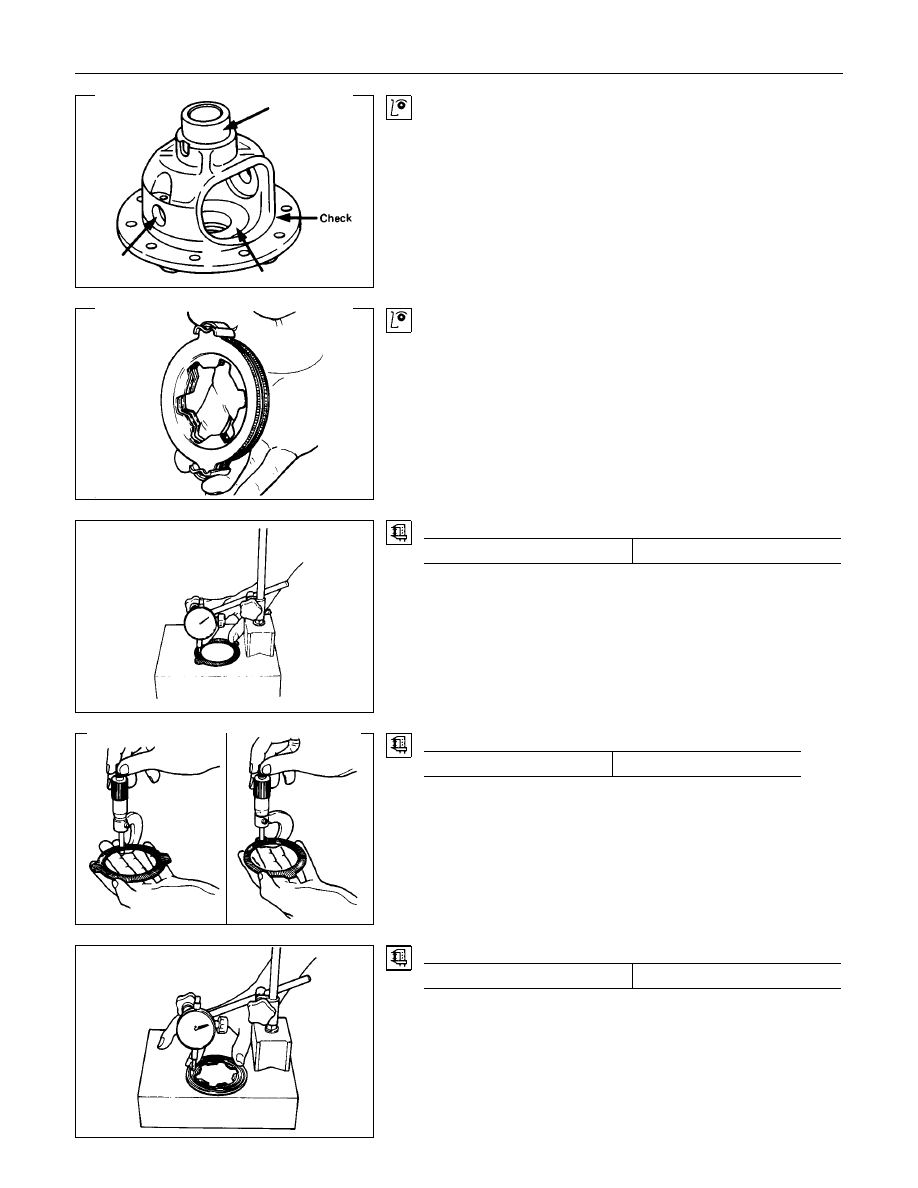

Differential cage

Check the ring gear the side gear fitting faces and the cross pin
hole for scores or roughness.  Correct as necessary.  Slight
scores or roughness may be corrected with an oil stone or fine
sand paper.

<LSD FOR 194 mm>

Friction disc and plate assembly.
Check the parts for damage or other abnormal conditions.

Check the friction plate for distortion.

Limit

mm(in)

0.07 (0.0027)

Check the friction plate for wear.

Limit (A - B)

mm(in)

0.1 (0.0039)

Note : A = Non-sliding face thickness

B = Sliding face thickness

Check the friction disc for distortion.

Limit

mm(in)

0.07 (0.0027)
