Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 945





REAR AXLE  4B-17

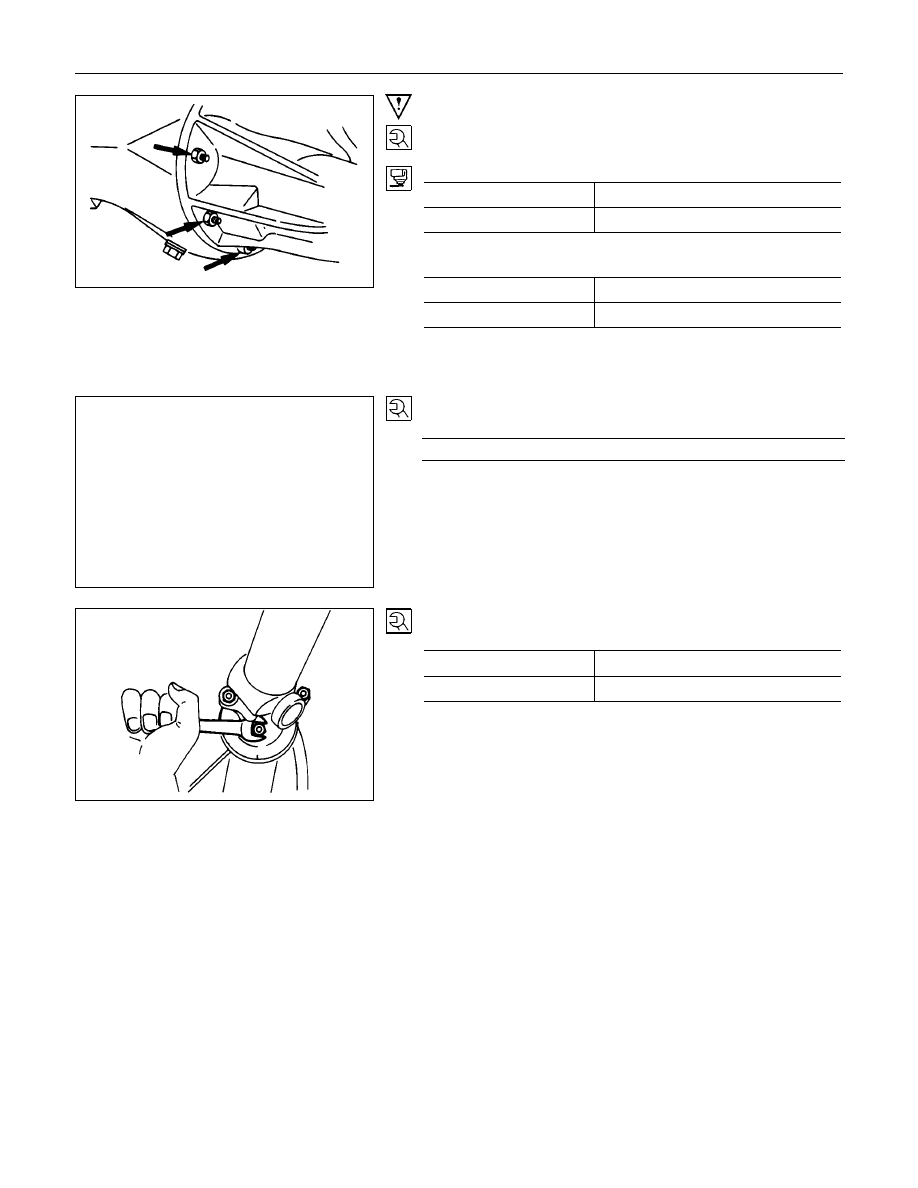

Important Operations - Installation

3. Differential Assembly

(194 mm)

Torque

N

m (kgf

m/lb

ft)

NUT

37.3

±

 3.9 (3.8

±

 0.4/27

±

 2.9)

BOLT

24.5

±

 5 (2.5

±

 0.5/18

±

 3.6)

(220 mm)
Torque

N

m (kgf

m/lb

ft)

NUT

44

±

 14.7 (4.5

±

 1.5/32.5

±

 10.8)

BOLT

63.8

±

 5 (6.5

±

 0.5/47

±

 3.6)

Apply the recommended liquid gasket or its equivalent to the
sealing side of the axle case and the carrier.

To install the axle shaft assembly, follow
the reassembly procedure outline in the
“Rear axle shaft” section.

2. Axle Shaft

Torque

N

m (kgf

m/lb

ft)

73.6

±

 5 (7.5

±

 0.5/54.2

±

 3.6)

1. Propeller Shaft

Torque

N

m (kgf

m/lb

ft)

194 mm

35.3

±

 2.9 (3.6

±

 0.3/26

±

 2.2)

220 mm

62.8

±

 3.9 (6.4

±

 0.4/46.3

±

 2.9)

4B-18  REAR AXLE

  DISASSEMBLY

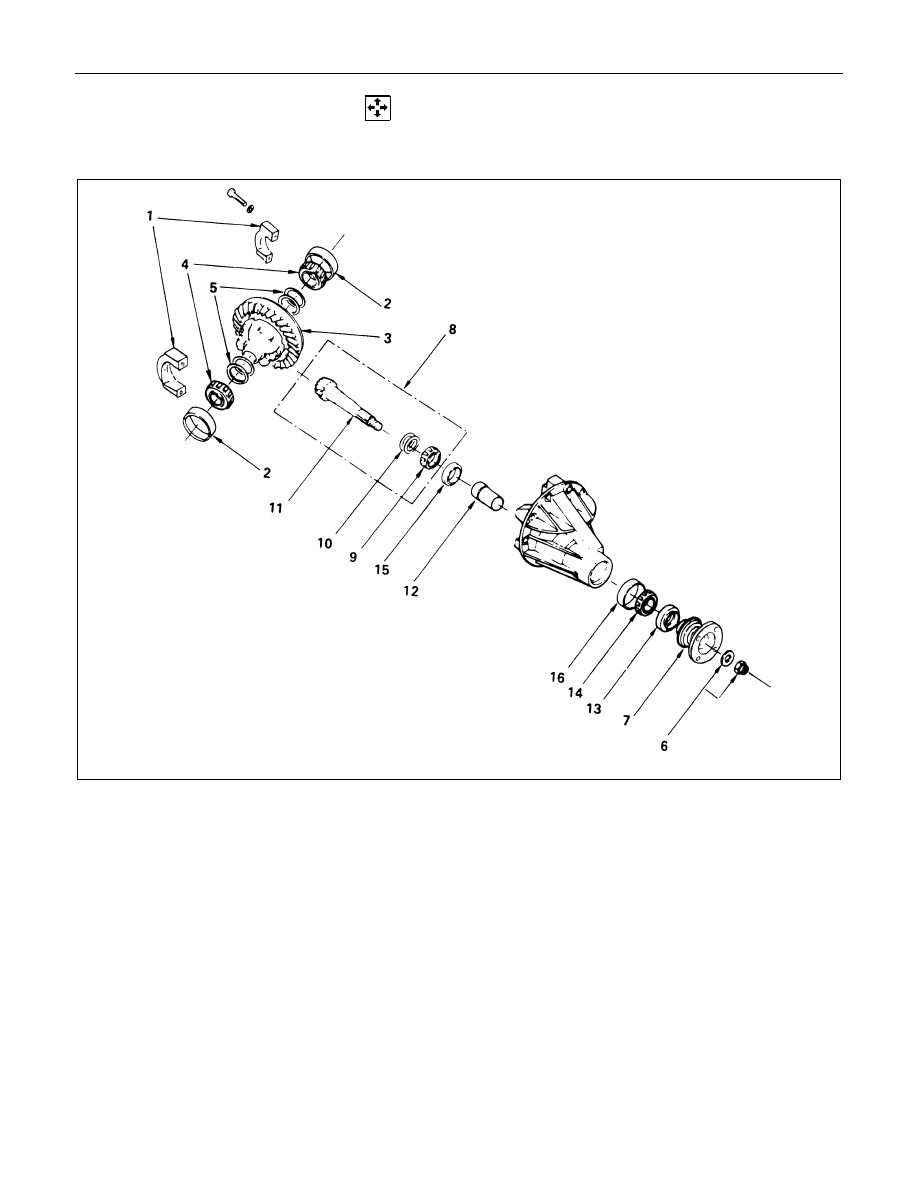

MAJOR COMPONENTS

Disassembly Steps

1. Side bearing cap

2. Side bearing outer race
3. Differential cage assembly and ring gear

4. Side bearing

5. Backlash and side bearing preload

adjusting shim

6. Flange nut and washer
7. Flange assembly

8. Drive pinion shaft assembly

9. Inner bearing

10. Pinion depth adjusting shim
11. Drive pinion shaft
12. Collapsible spacer
13. Oil seal
14. Outer bearing

15. Inner bearing outer race

16. Outer bearing outer race

REAR AXLE  4B-19

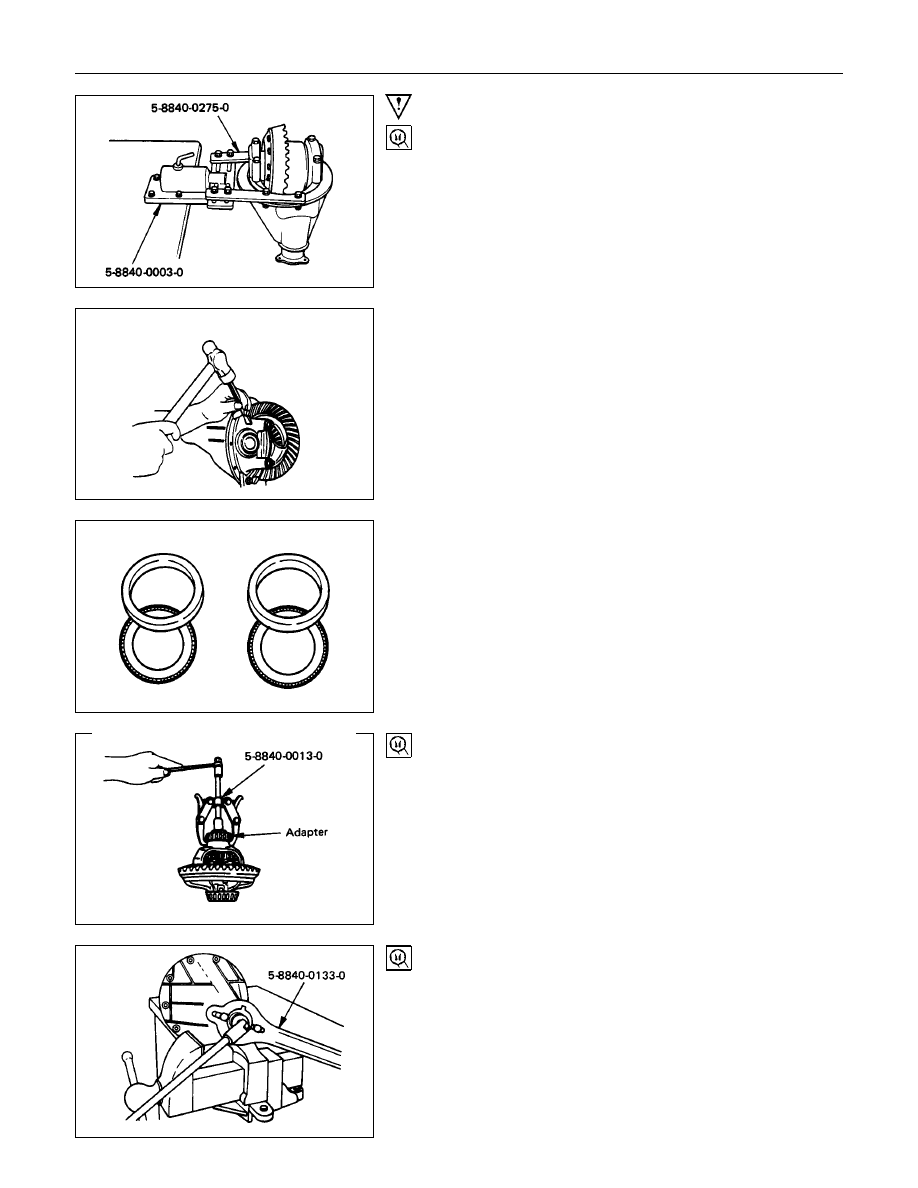

Important Operations

Before disassembling, make a pattern check using the method
described later in this section under "Gear Tooth Contact
Pattern Check and Adjustments".  This check will help
determine what service should be performaed on the
differential components.
On some bench operations, it may be advantageous to use a
holding fixture and a holding fixture base.
Tool 5-8840-0275-0 (J-37264) and 5-8840-0003-0 (J-3289-20)
are available tools that work well for this purpose.

1. Bearing Cap
Apply an alignment mark to the side bearing cap and
differential carrier.

2. Side Bearing Outer Race
After removal, keep the right and left side bearing assemblies
separate to maintain inner and outer race combinations.

4. Side Bearing

5. Backlash and Side Bearing Preload Adjusting Shim
Remover : 5-8840-0013-0 (J-22888)
Adapter : 9-8521-1743-0 (J-8107-2) (194 mm)

5-8840-2196-0 (J-8107-4) (220 mm)

Carefully record the thickness of each side bearing and each
shim pack.  Keep them separated and in order for later
reassembly.

6. Flange nut and washer (194 mm)
Holder : 5-8840-0133-0

(J-8614-01)

4B-20  REAR AXLE

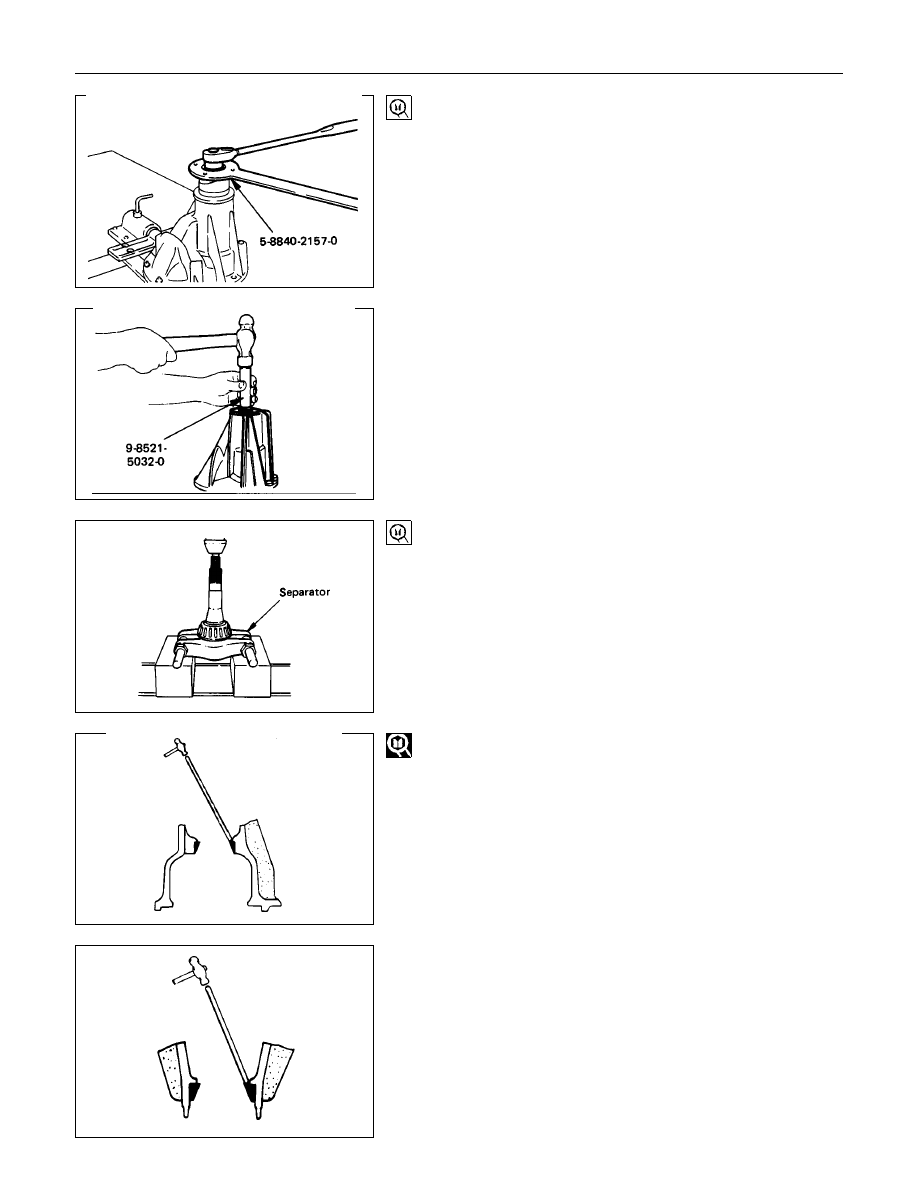

Flange Nut and Washer (220 mm)

Holder : 5-8840-2157-0

(J-37221)

8. Drive Pinion Shaft Assembly
Hold a soft metal rod against the end of the drive pinion.  Drive
out the pinion from the carrier by tapping the hammer against
the metal rod.
Installer : 9-8521-5032-0

9. Inner Bearing
Remove the pinion bearing using a separator and a press.
Separator : 5-8840-0015-0 (194 mm)

(J-22912-01)

: 5-8840-2197-0 (220 mm)

(J-37452)

Inner bearing outer

race

15.Inner Bearing Outer Race

16.Outer Bearing Outer Race
Remove the inner bearing outer race and the outer bearing
outer race by using a brass bar and a hammer.

Other bearing outer

race
