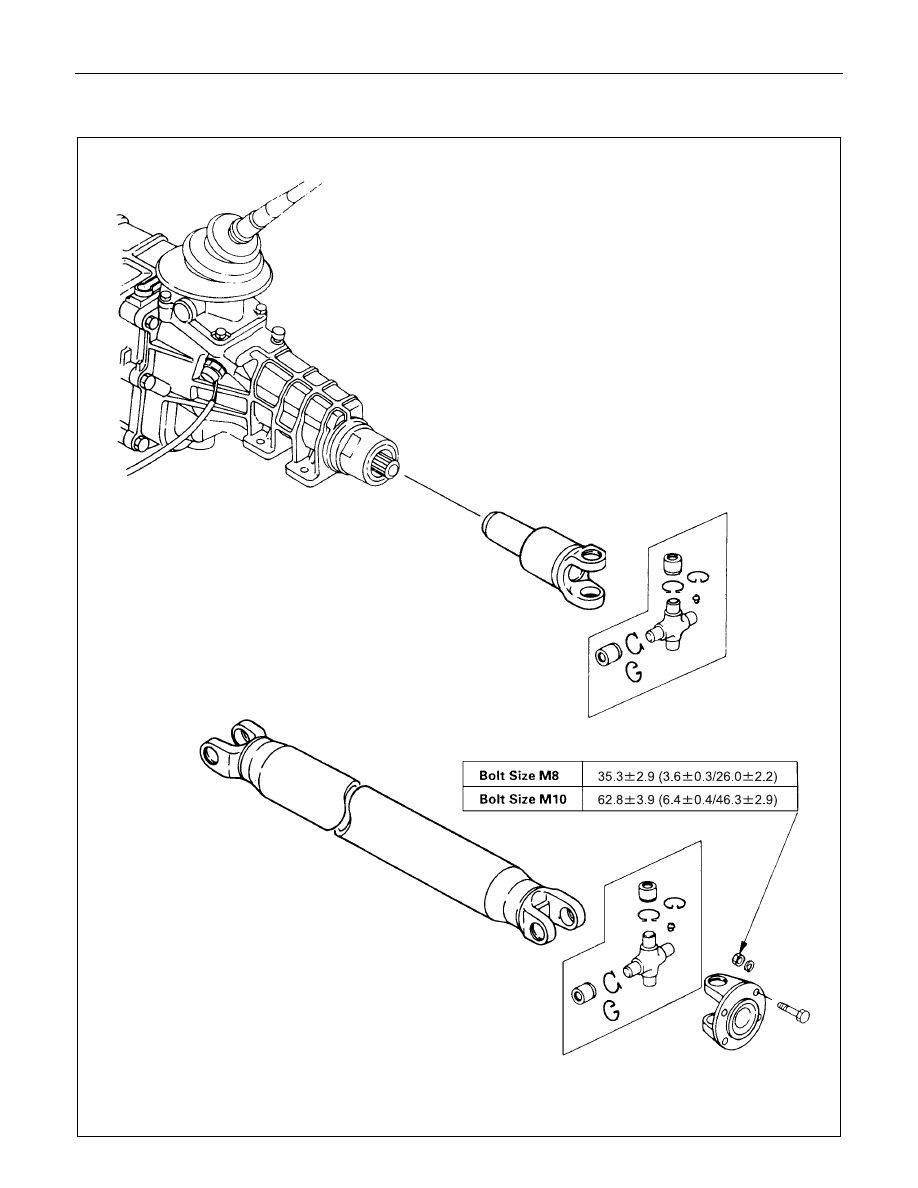

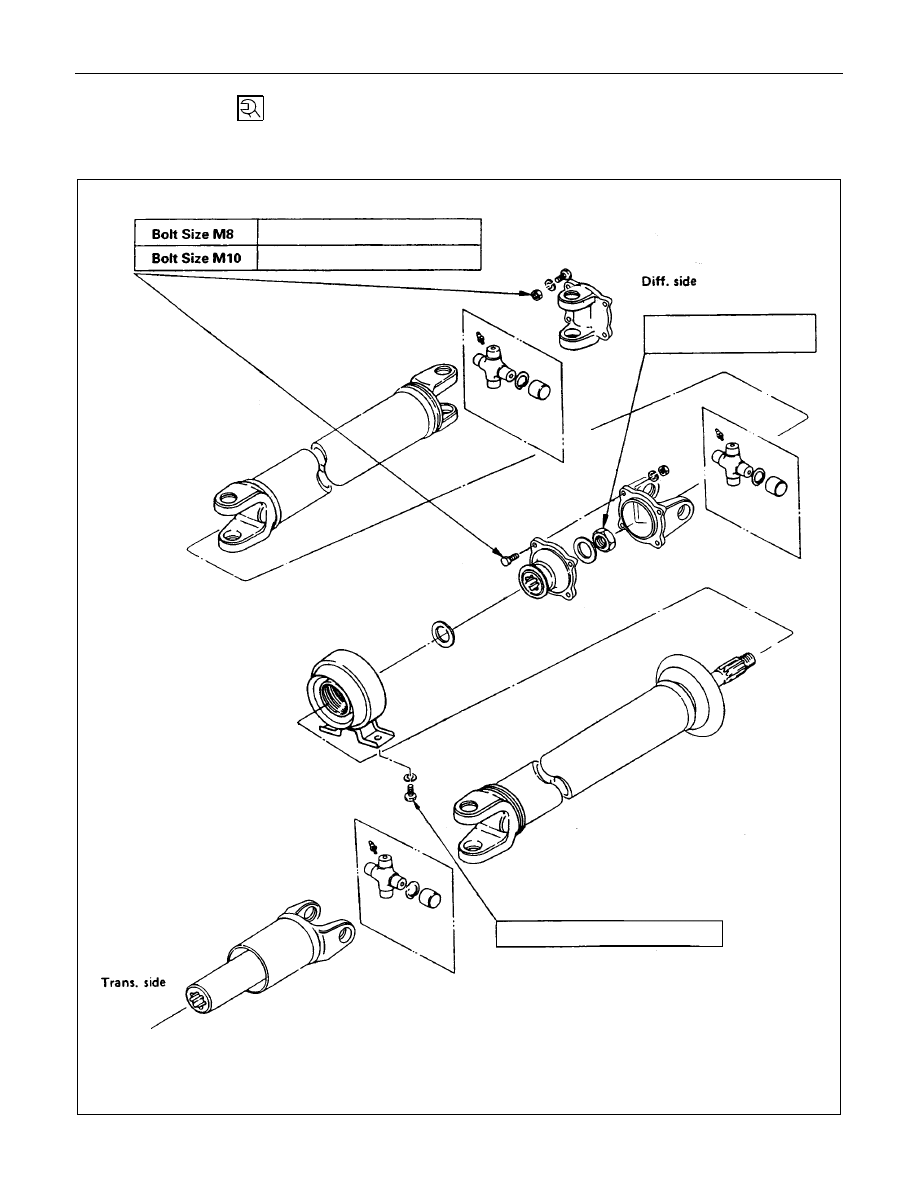

PROPELLER SHAFT 4A-3
4
×
4 Model
mm(in)
Short Wheel Base
Engine Model
C22NE
Transmission Type
5M/T
(MSG)
←
←
←
(MUA)
Rear Axle
194mm
220mm
←
Type
←
←
←
Outside Diameter
mm
63.5
68.9
68.9
(in)
(2.50)
(2.71)
(2.71)
Inside Diameter
mm
60.3
64.9
64.9
(in)
(2.37)
(2.56)
(2.56)

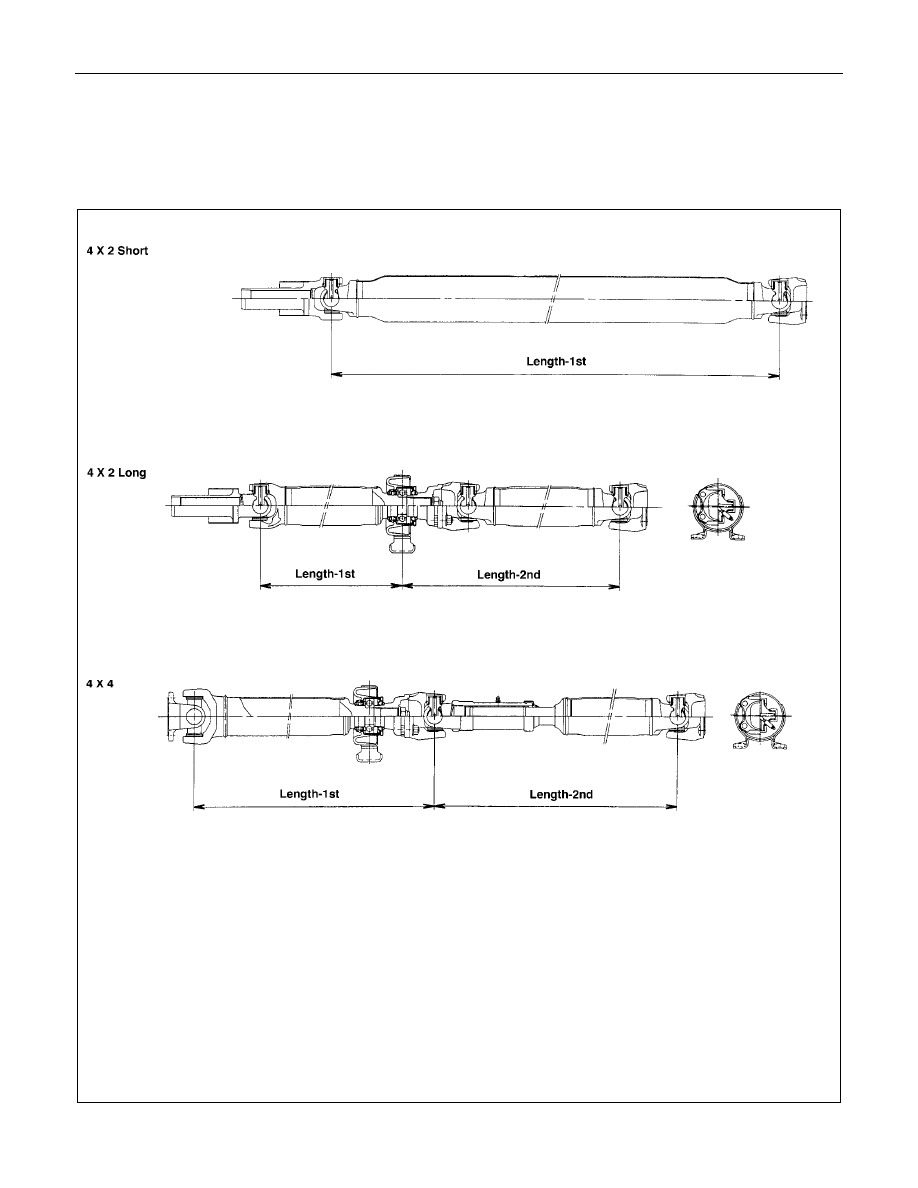

Length
1st
mm
581.5
581.5
527.5
(in)
(22.89)
(22.89)
(20.77)
2nd
mm
608
583
583
(in)
(23.94)
(22.95)
(22.95)
Spline Outside
mm
29.87
29.87
29.87
Diameter
(in)
(1.18)
(1.18)
(1.18)
Fix Bolt Size
M8
M10
M10
Long Wheel Base
Engine Model
20SE
C22NE
Transmission Type
5M/T
(MSG)
←
←
←
(MUA)
Rear Axle
194mm
220mm
←
Type
OBS
←
←
Outside Diameter
mm
63.5
63.5
68.9
(in)
(2.50)
(2.50)
(2.71)
Inside Diameter
mm
60.3
60.3
64.9
(in)
(2.37)
(2.37)
(2.56)
Length
1st
mm
581.5
581.5
527.5
(in)
(22.89)
(22.89)
(20.77)
2nd
mm
949
949
924
(in)
(37.36)
(37.36)
(36.37)
Spline Outside
mm
29.87
29.87
29.87
Diameter
(in)
(1.18)
(1.18)
(1.18)
Fix Bolt Size
M8
M8
M10
* OBS - Outboard Slip (Spline Engagement To T/M)
IBS - Inboard Slip (Spline Travel at Joint Center)
