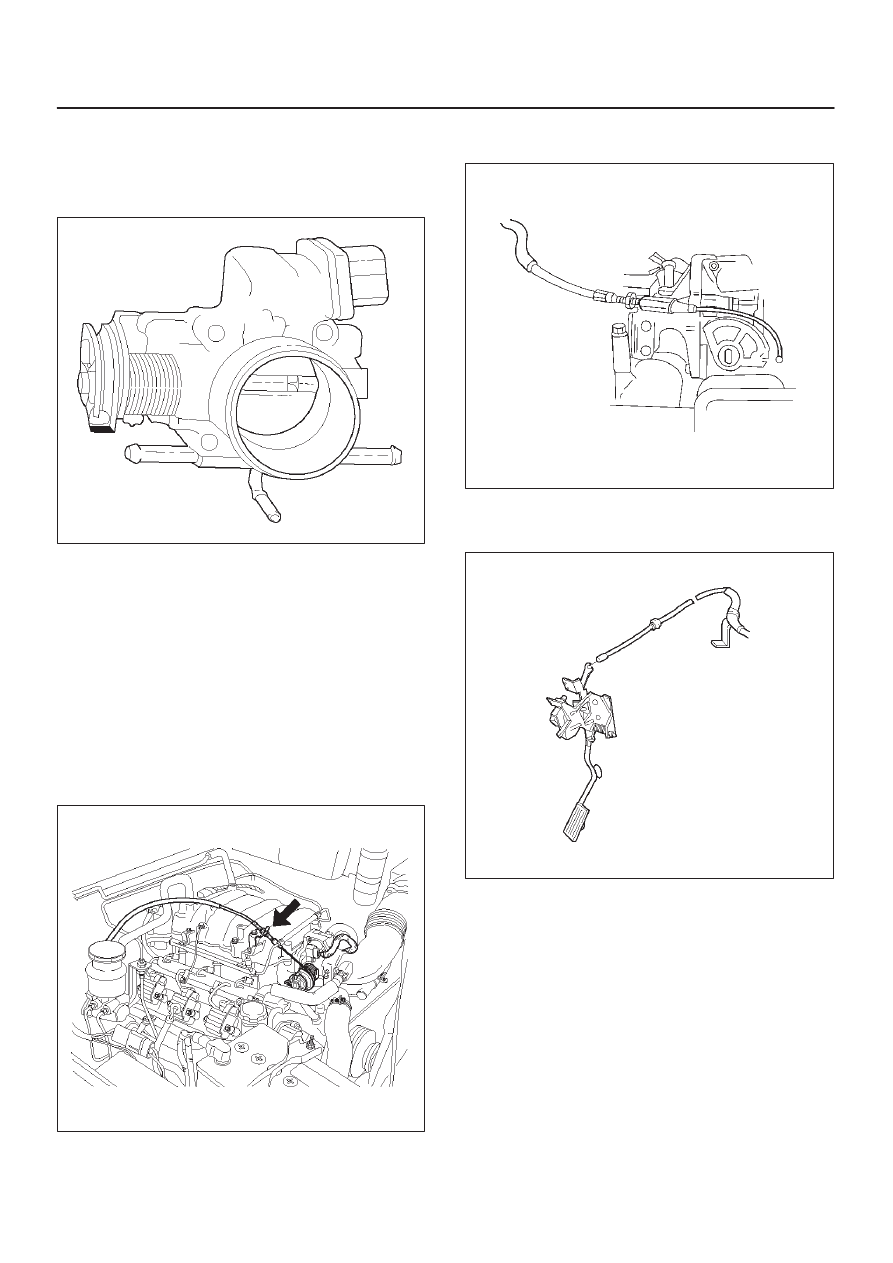

6E–229

3.2L ENGINE DRIVEABILITY AND EMISSIONS

Installation Procedure

1. Install the IAC valve on the throttle body with the bolts.

Tighten

D

Tighten the bolts to 1 N·m (0.1 kg·m/9 lb in.).

060RW063

2. Connect the IAC valve electrical connector.
3. Install the negative battery cable.

Common Chamber

Removal and Installation Prodedure

Refer to Common Chamber in Engine Mechanical.

Accelerator Cable Assembly

Removal Procedure

1. Loosen the nut on the cable bracket mounting on the

common chamber.

101RW005

2. Remove the accelerator control cable (on the throttle

valve end).

101RW006

3. Remove the accelerator control cable (on the

accelerator pedal end).

TS23982

4. Remove the grommet.

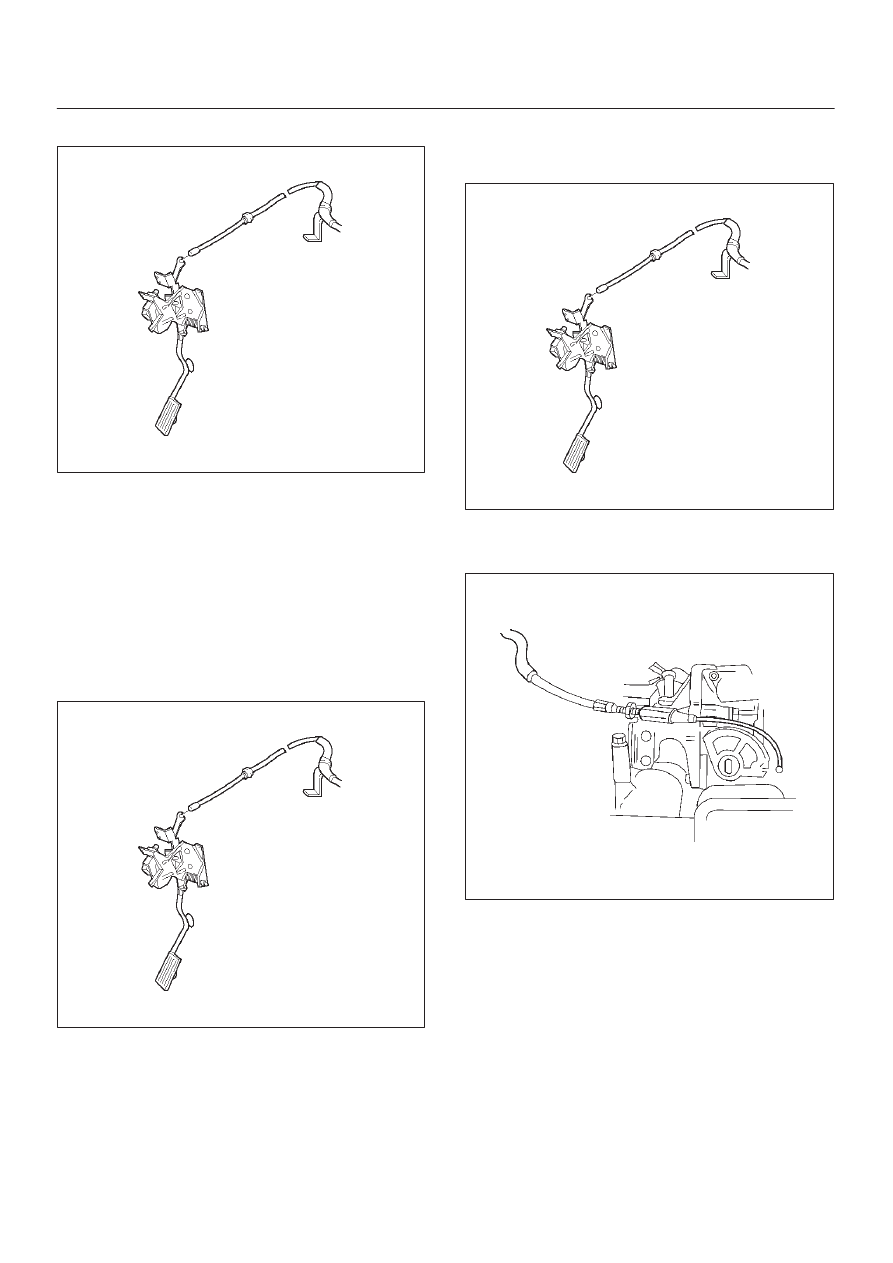

6E–230 3.2L ENGINE DRIVEABILITY AND EMISSIONS

5. Remove the accelerator control cable.

TS23983

Inspection Procedure

Check the following items, and replace the control cable if
any abnormality is found:

D

The control cable should move smoothly.

D

The control cable should not be bent or kinked.

D

The control cable should be free of damage and
corrosion.

Installation Procedure

1. Install the accelerator control cable.

TS23983

2. Install the grommet.
3. Install the accelerator control cable (on the

accelerator pedal end).

TS23982

4. Install the accelerator control cable (on the throttle

valve end).

101RW006

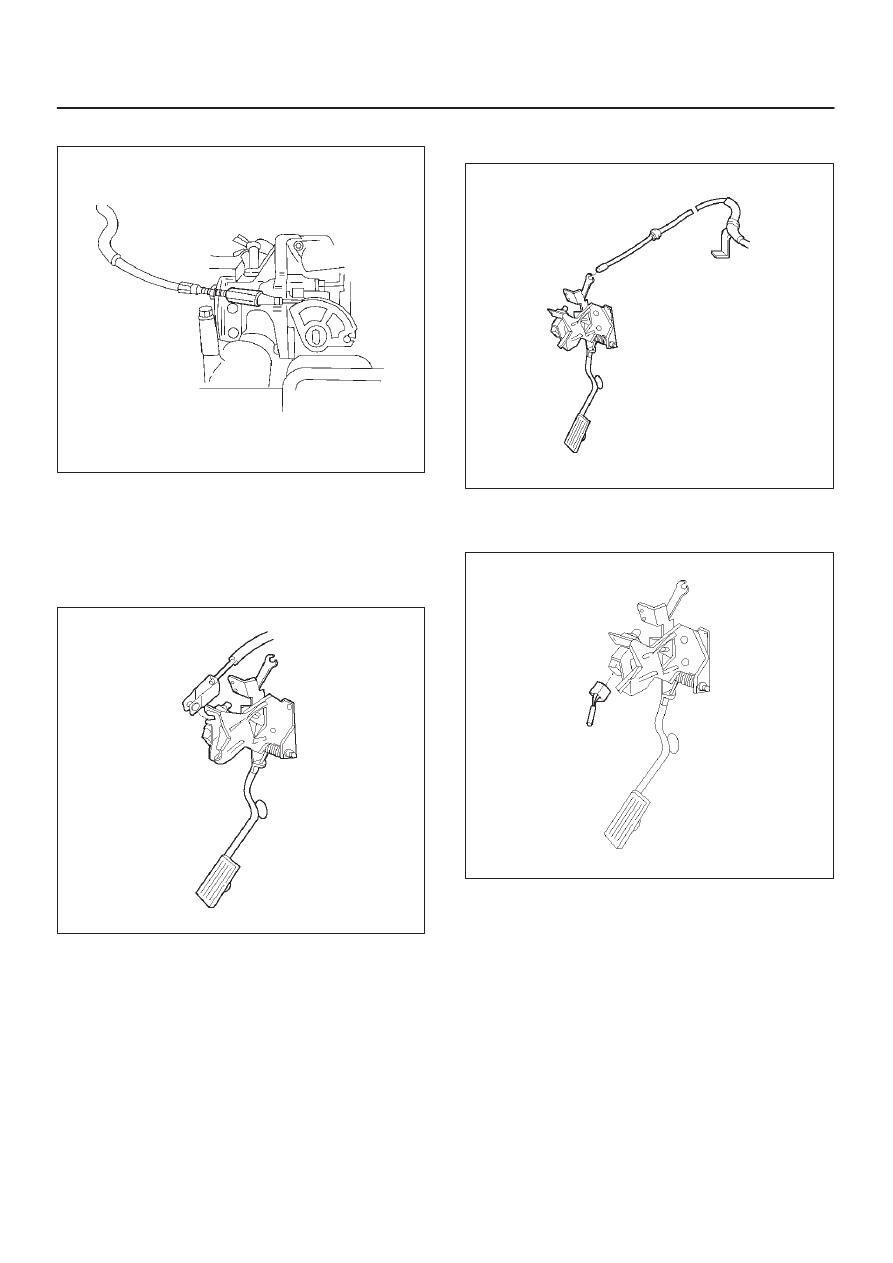

6E–231

3.2L ENGINE DRIVEABILITY AND EMISSIONS

5. Install the nut.

101RW007

Accelerator Pedal Replacement

Removal Procedure

1. Disconnect the cruise control cable from the

accelerator pedal assembly.

TS24053

2. Disconnect the accelerator pedal control cable from

the accelerator pedal assembly.

TS24054

3. Disconnect the wiring harness from the kick-down

switch.

TS24038

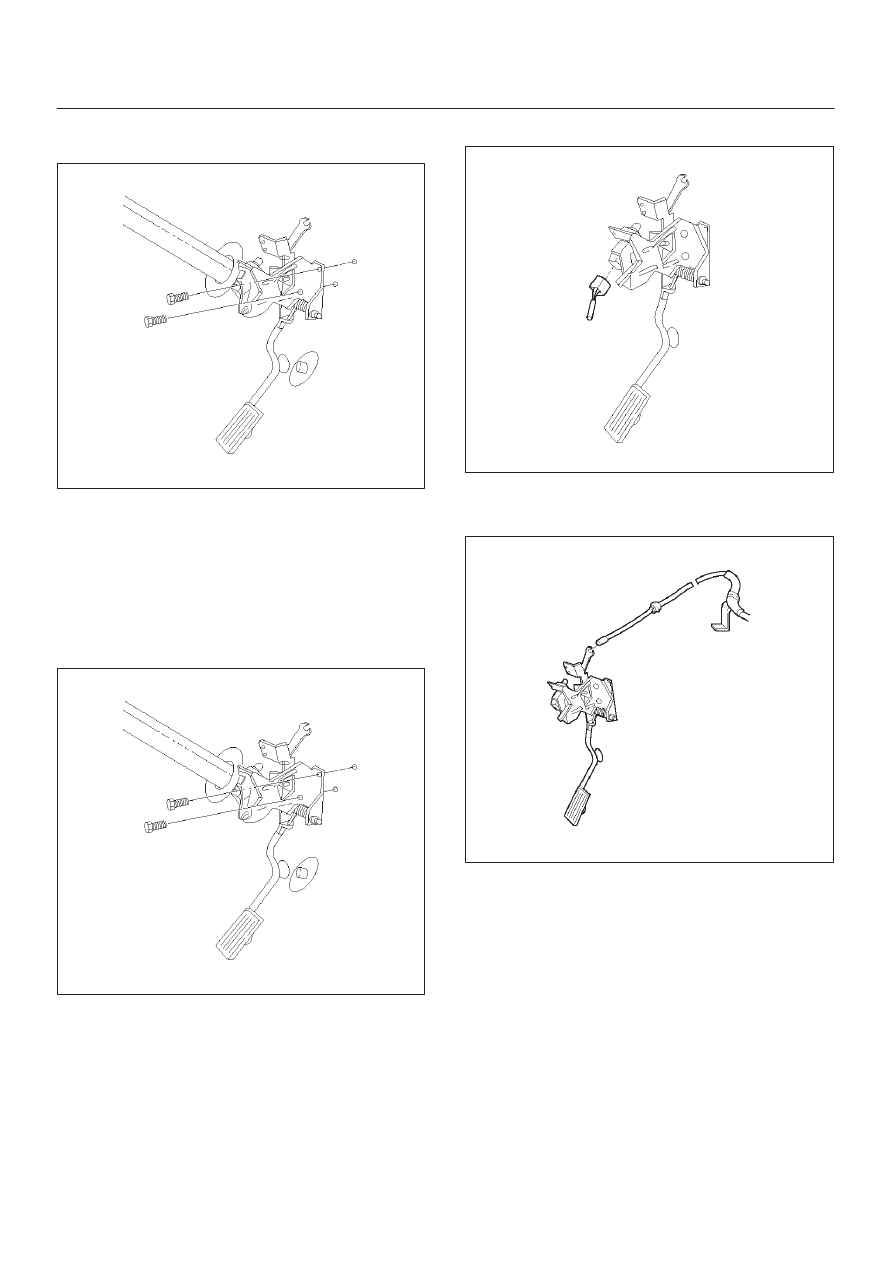

6E–232 3.2L ENGINE DRIVEABILITY AND EMISSIONS

4. Remove the two screws from the accelerator pedal

assembly.

TS24055

5. Remove the accelerator pedal assembly from the

bulkhead.

Installation Procedure

1. Install the accelerator pedal assembly on the

bulkhead.

2. Install the two screws to the accelerator pedal

assembly.

TS24055

3. Connect the wiring harness to the kick-down switch.

TS24038

4. Connect the accelerator pedal control cable to the

accelerator pedal assembly.

TS24054
