Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 821

6E–13

3.2L ENGINE DRIVEABILITY AND EMISSIONS

Component Locators

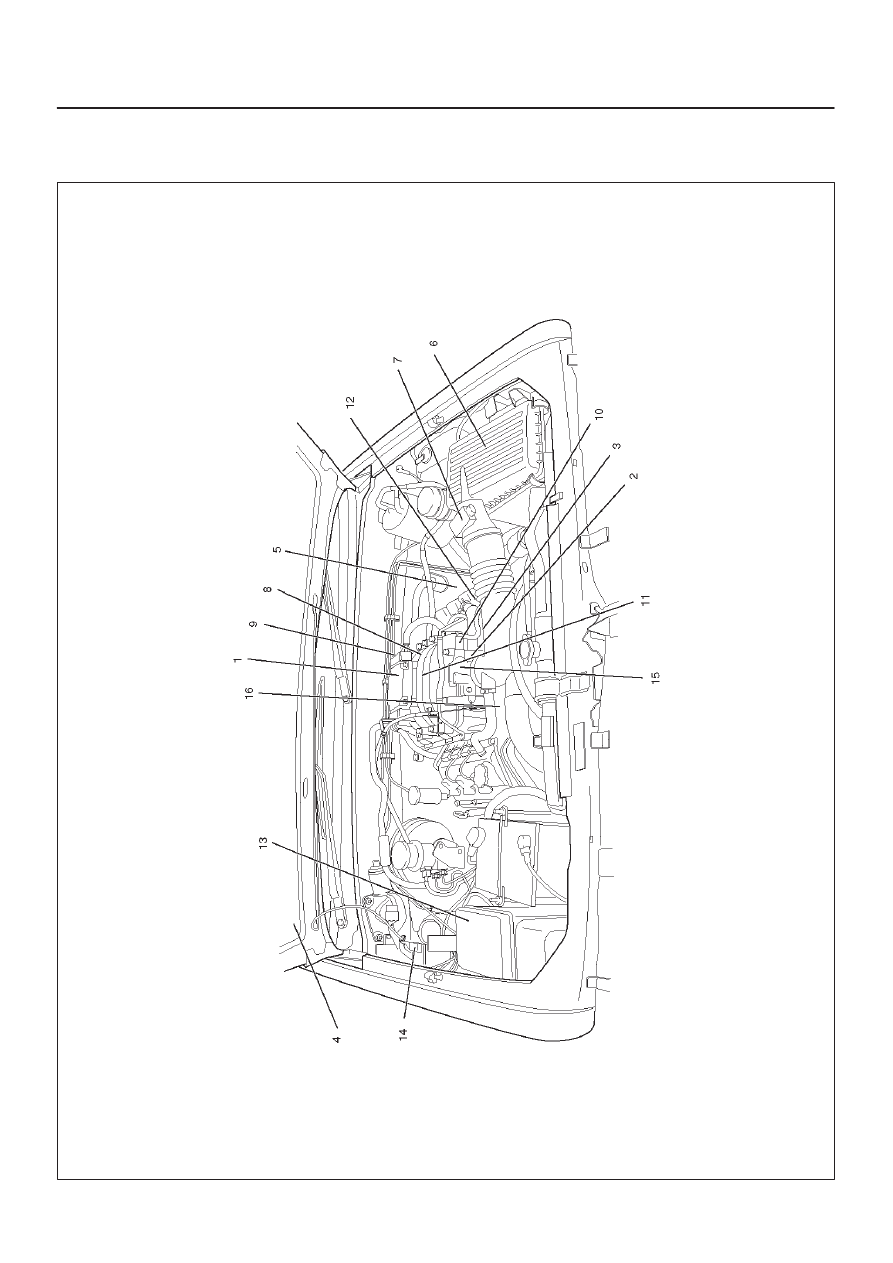

Engine Component Locator

060RW061

6E–14

3.2L ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Engine Control Modul

On the Common Chamber

2

Throttle Position (TP) Sensor

On the right of the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilator (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Camshaft Position (CMP) Sensor

On the rear right side at the left of the cylinder
head cover

9

Fuel Pressure Regulator

Rear right side of the engine

10

Idle Air Control (IAC) Valve

On the left of the throttle body

11

Common Chamber

Top of the engine

12

EVAP Canister Purge Valve

Bolted to the front of the coolant pipe

13

Fuse/Relay Box

Along the inside of the right fender

14

Barometric Pressure (BARO) Sensor

Along the inside of the right fender

15

Throttle Body

Between the intake air duct and the upper
intake manifold

16

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body

6E–15

3.2L ENGINE DRIVEABILITY AND EMISSIONS

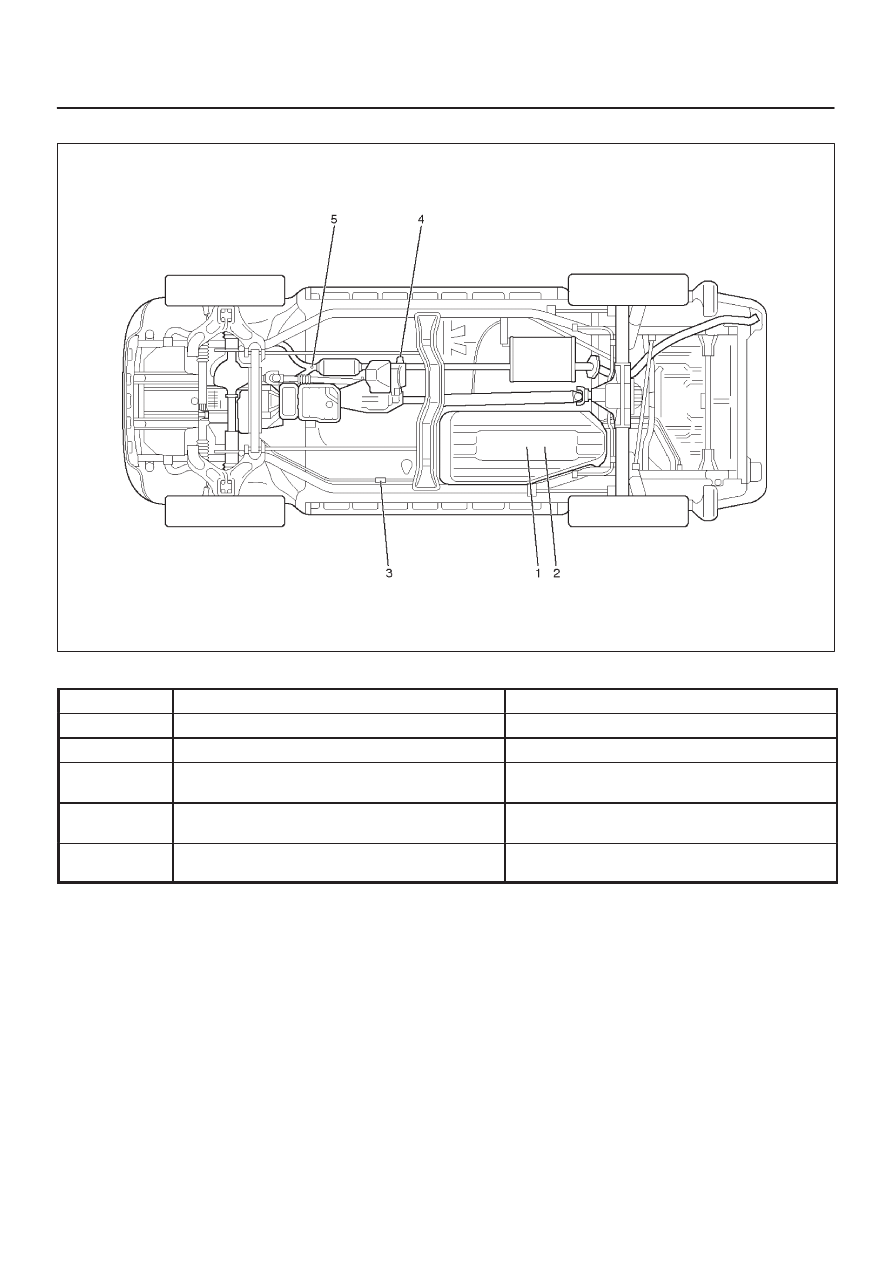

Undercarriage Component Locator

060RW060

Undercarriage Component Locator Table

Number

Name

Location

1

Fuel Pump Assembly

Installed in the top of the fuel tank

2

Fuel Gauge Unit

Installed in the top of the fuel tank

3

Fuel Filter

Located along the inside of the right frame rail,
ahead of the fuel tank

4

Vehicle Speed Sensor (VSS)

Protrudes from the transmission housing, just
ahead of the propeller shaft

5

Heated Oxygen Sensor

Threaded into the exhaust pipe behind the
converter

6E–16

3.2L ENGINE DRIVEABILITY AND EMISSIONS

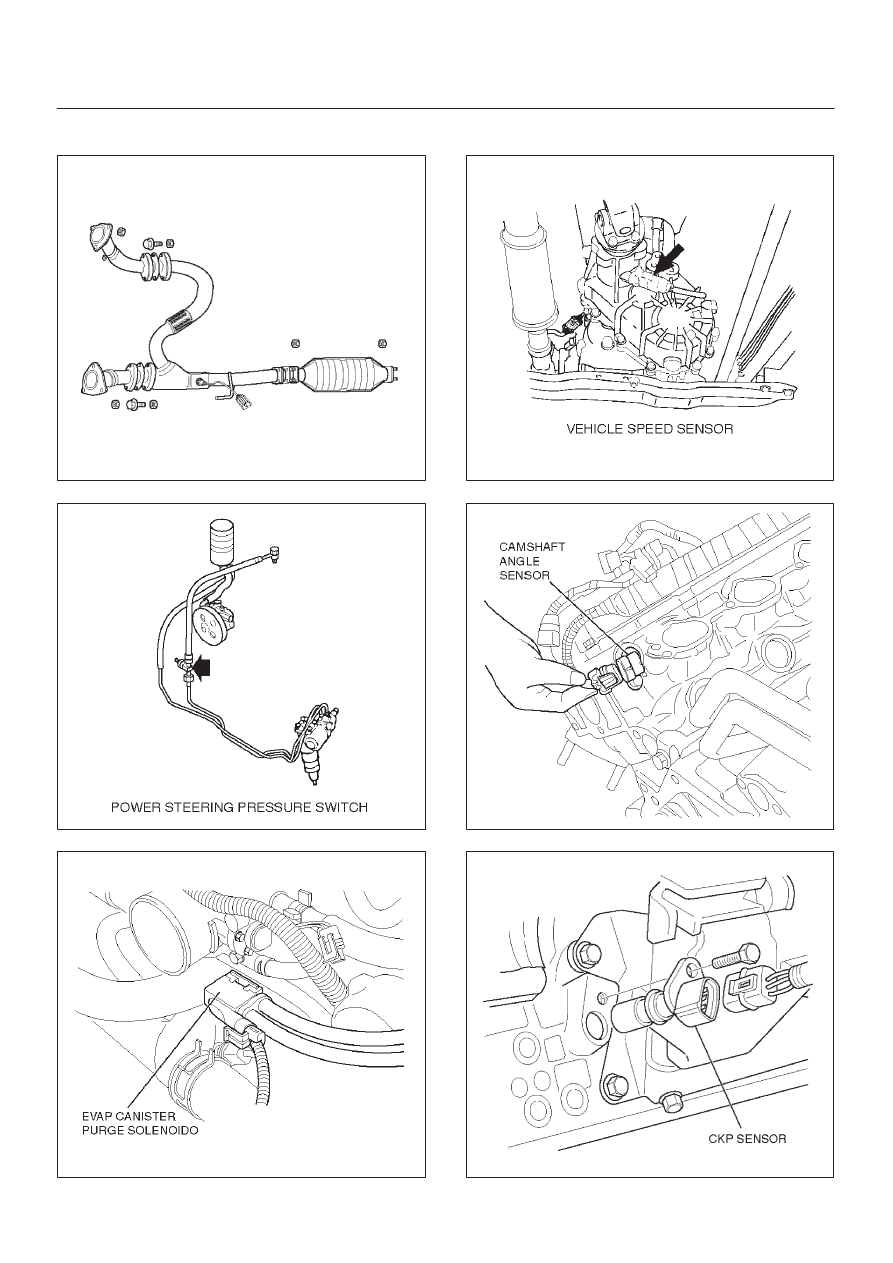

Sensors and Miscellaneous Component Locators

060RW107

T321066

014RW141

T321067

014RW125

060RW111
