6E–5

3.2L ENGINE DRIVEABILITY AND EMISSIONS

Diagrams and Schematics

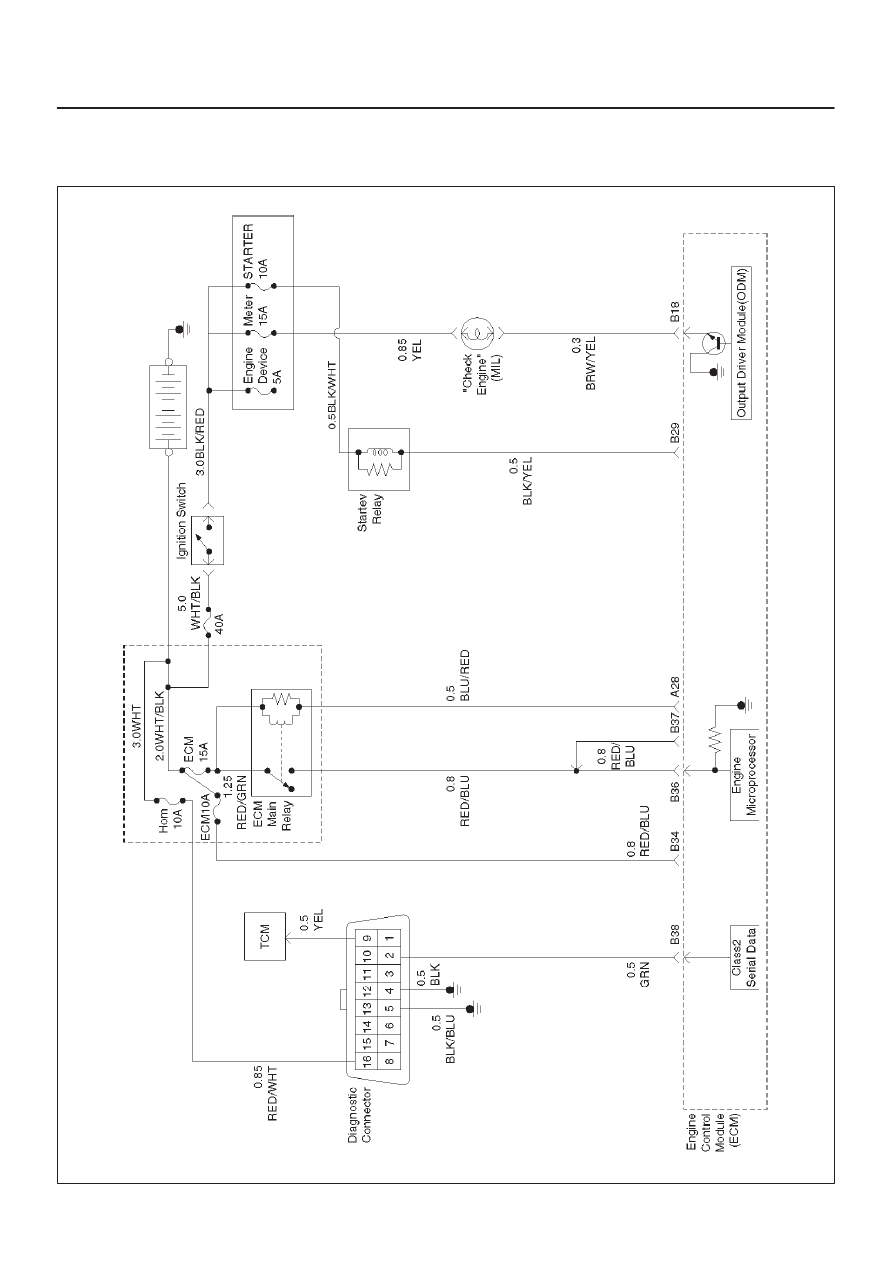

ECM Wiring Diagram (1 of 6)

060RW038

6E–6

3.2L ENGINE DRIVEABILITY AND EMISSIONS

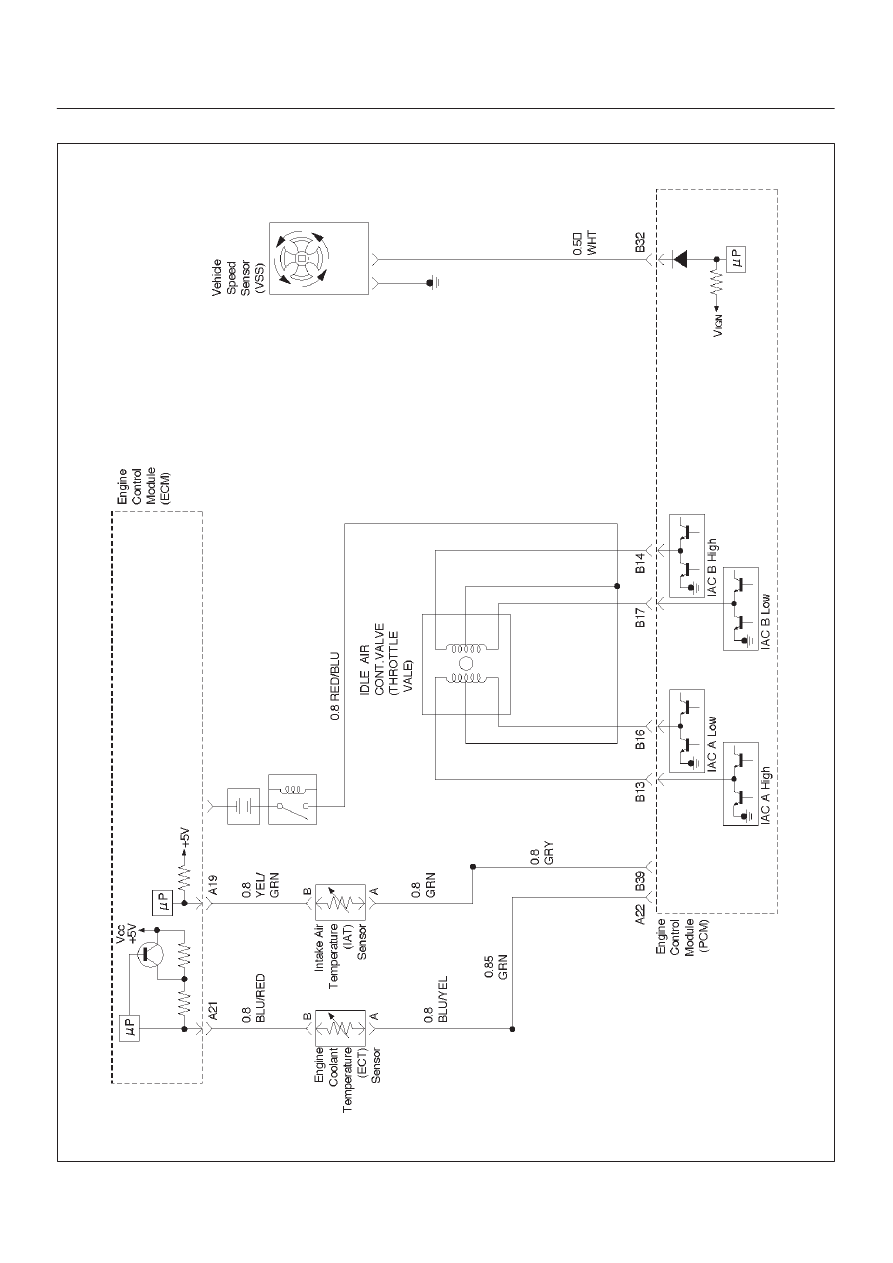

ECM Wiring Diagram (2 of 6)

060RW039

6E–7

3.2L ENGINE DRIVEABILITY AND EMISSIONS

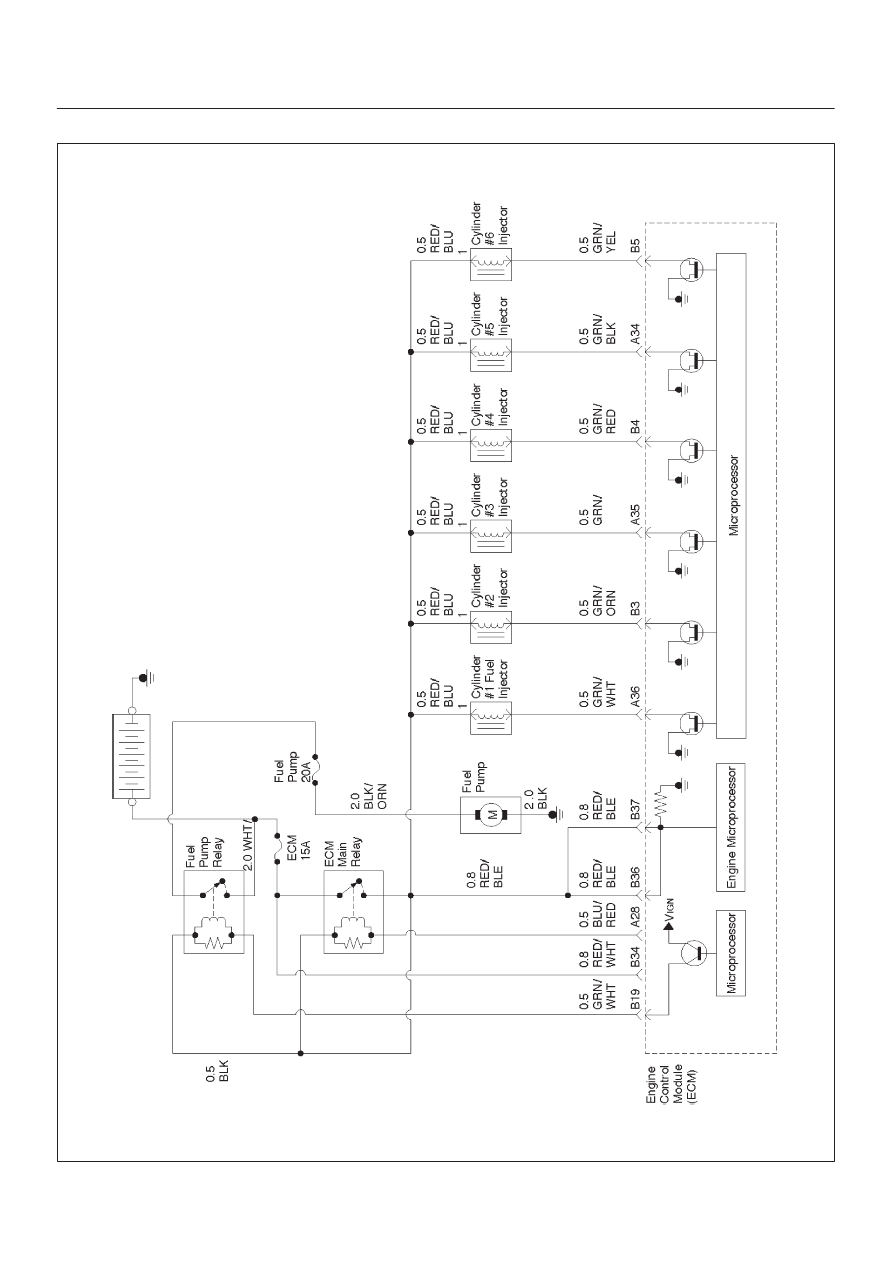

ECM Wiring Diagram (3 of 6)

060RW036

6E–8

3.2L ENGINE DRIVEABILITY AND EMISSIONS

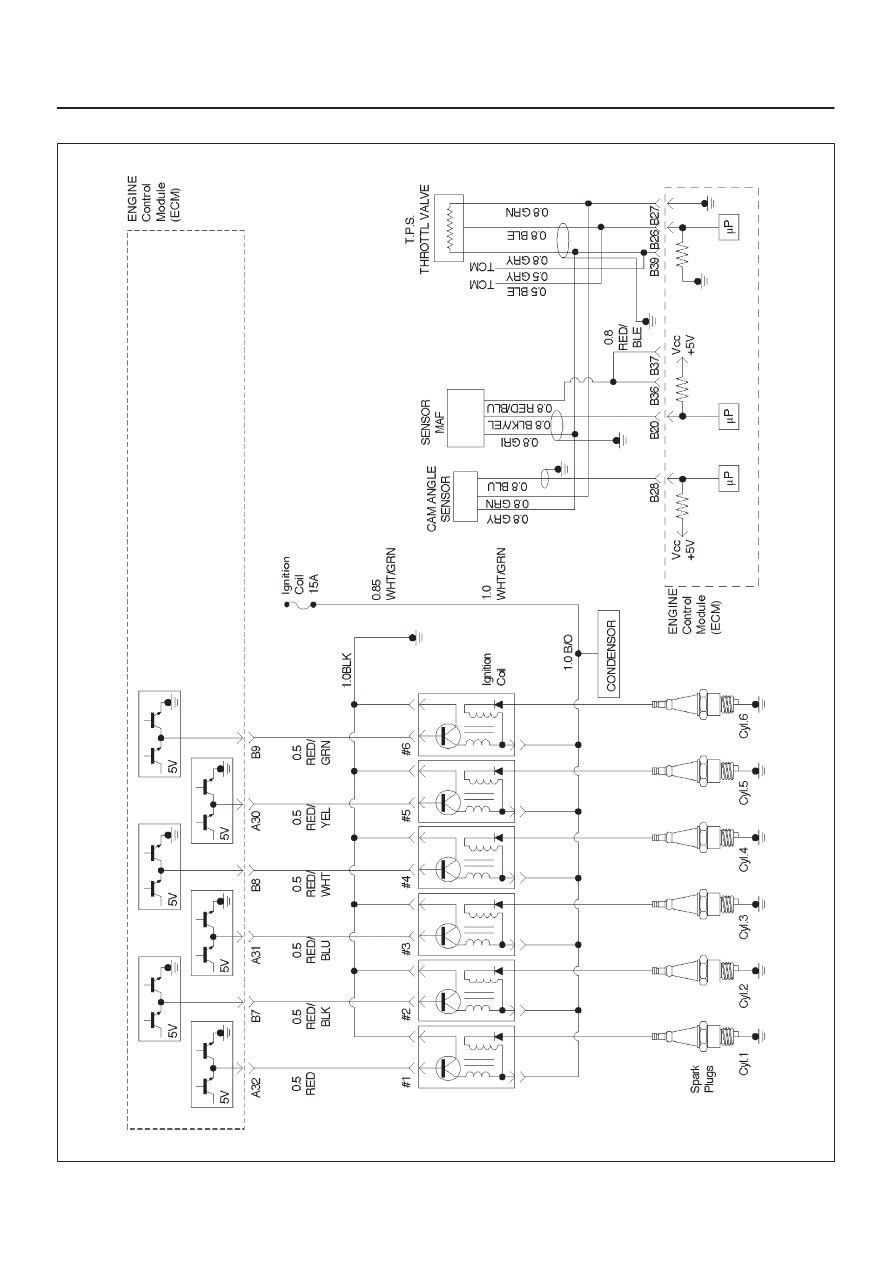

ECM Wiring Diagram (4 of 6)

060RW037
