Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 815





6D3–14 STARTING AND CHARGING SYSTEM (6VD1 3.2L)

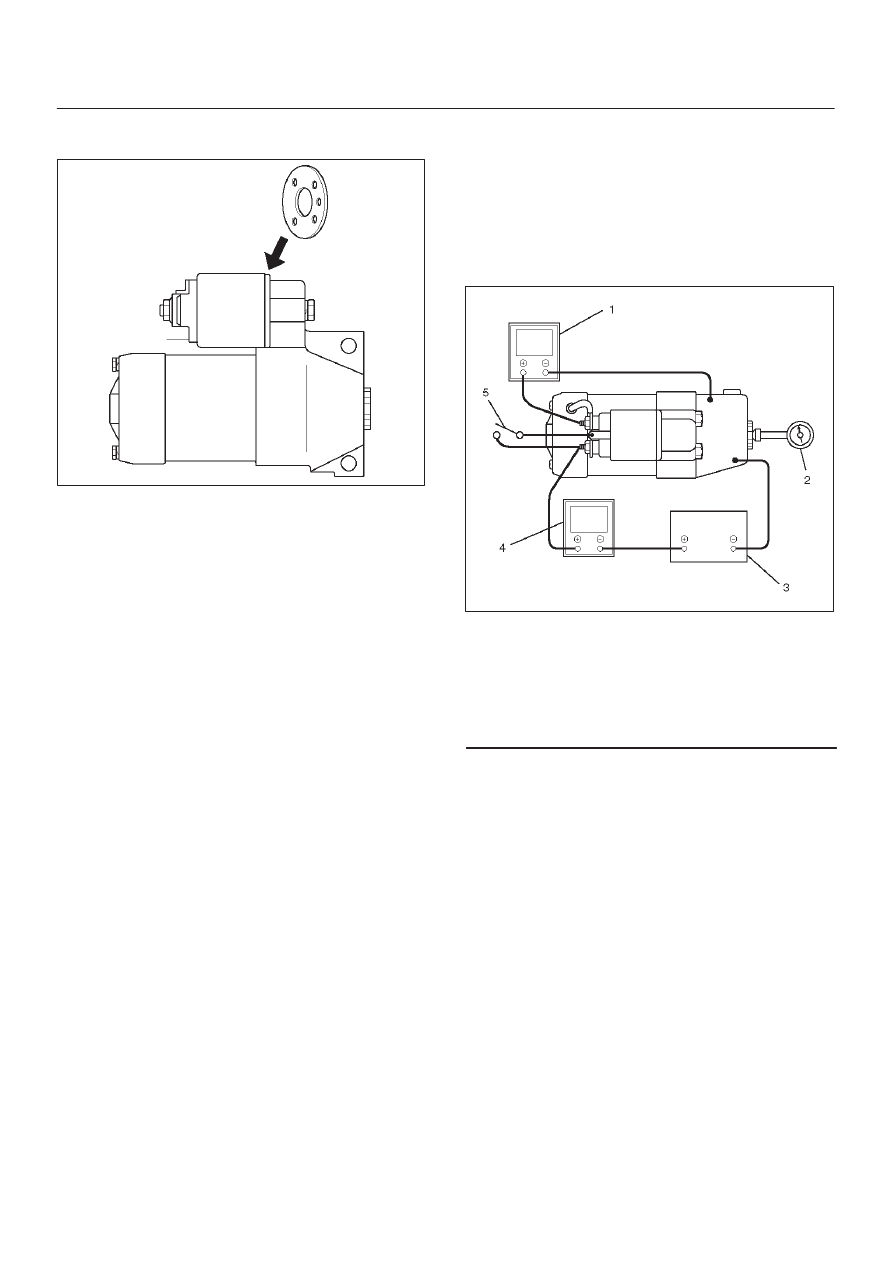

If the measured value is out of standard, insert dust cover,
or disassemble and adjust.

065RW019

Characteristic Test

For easily confirming the characteristics, conduct the no
load test as follows:
Rating as short as 30 seconds requires rapid testing.
Fix the starter on the test bench, and wire as shown in
illustration. When the switch is closed, the current flows
and the starter runs under no load. At this time, measure
current, voltage and speed to check if they satisfy the
standard.

065RW020

Legend

(1) Volt Meter
(2) Tachometer
(3) Battery
(4) Ammeter
(5) Switch

6D3–15

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Main Data and Specifications

General Specifications

Model

HITACHI GD002350

Rating

Voltage

12 V

Output

1.4 Kw

Time

30 sec

Number of teeth of pinion

9

Rotating direction(as viewed from pinion)

Clockwise

Weight(approx.)

34 N

No–load characteristics

Voltage /Current

11V/90A or less

Speed

2700rpm or more

Load characteristics

Voltage/current

8.4V/250A

Torque

7.3N·m(64lb·in.) or more

Speed

1200rpm or more

Locking characteristics

Voltage/current

3V/750A or less

Torque

19N·m(14lb·in) or more

6D3–16 STARTING AND CHARGING SYSTEM (6VD1 3.2L)

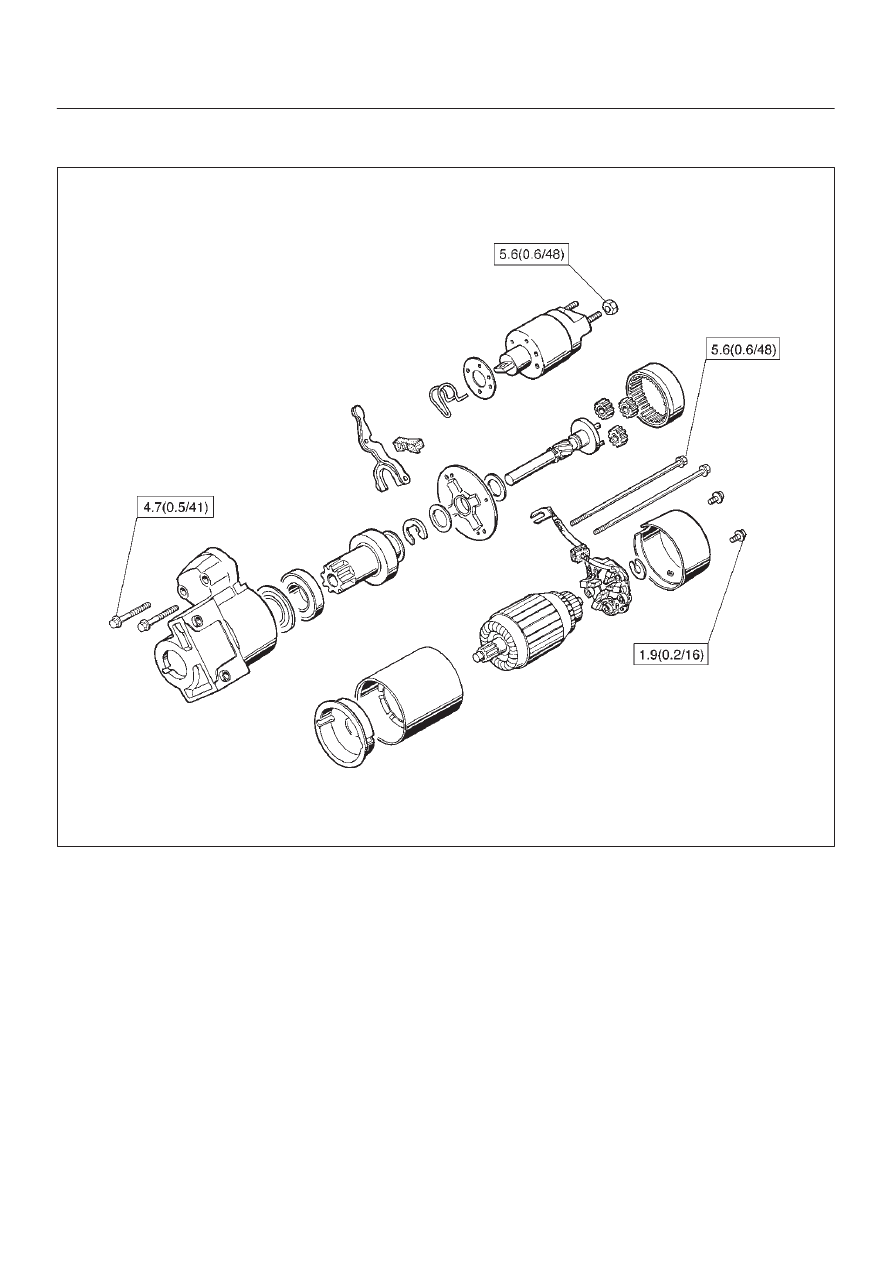

Torque Specifications

N·m (kg·m/ lb·in)

E06RW044

6D3–17

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Charging System

General Description

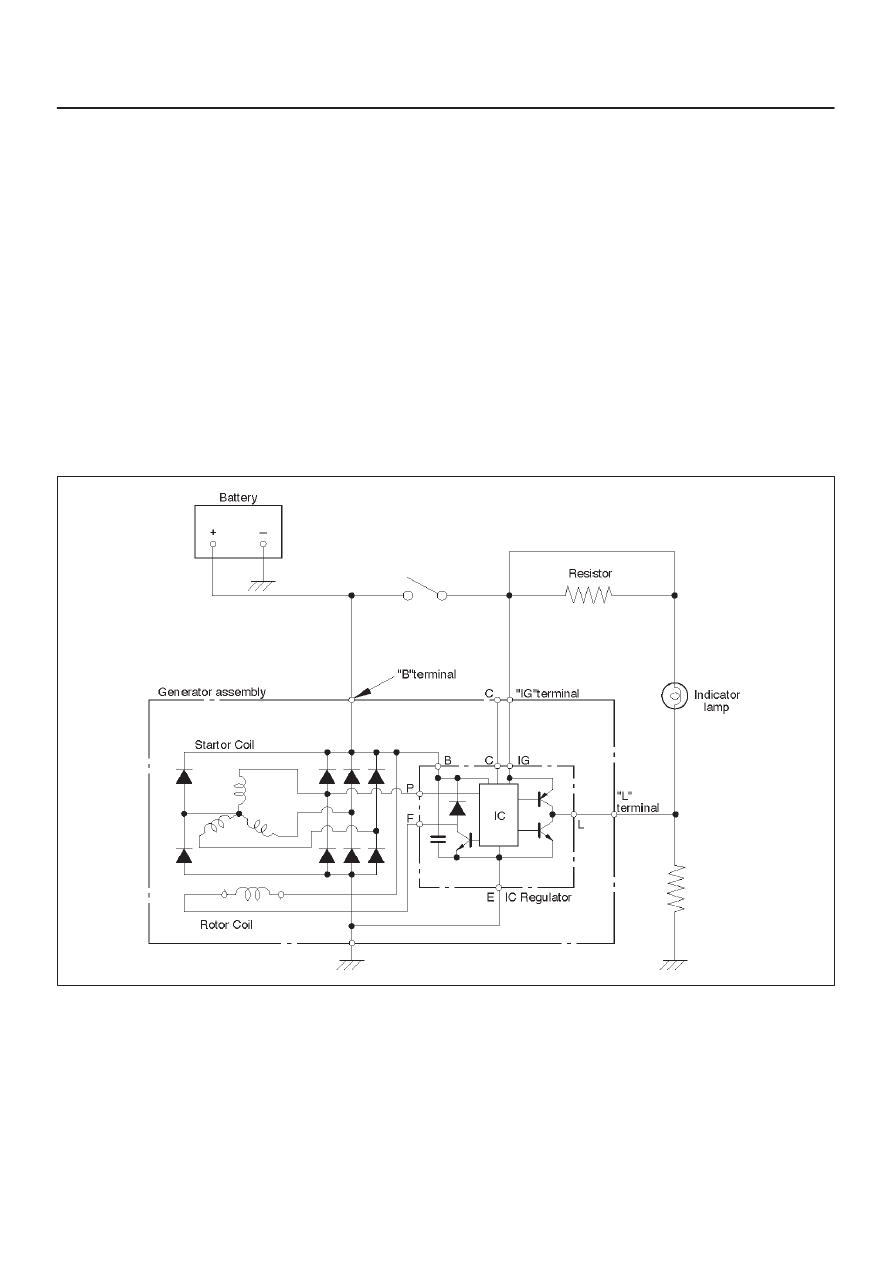

The IC integral regulator charging system and its main
components are connected as shown in illustration.
The regulator is a solid state type and it is mounted along
with the brush holder assembly inside the generator
installed on the rear end cover.
The generator does not require particular maintenance
such as voltage adjustment.
The rectifier connected to the stator coil has eight diodes
to transform AC voltage into DC voltage.
This DC voltage is connected to the output terminal of
generator.

General On–Vehicle Inspection

The operating condition of charging system is indicated
by the charge warning lamp. The warning lamp comes on
when the starter switch is turned to “ON” position. The
charging system operates normally if the lamp goes off
when the engine starts.
If the warning lamp shows abnormality or if undercharged
or overcharged battery condition is suspected, perform
diagnosis by checking the charging system as follows:

1. Check visually the belt and wiring connector.
2. With the engine stopped, turn the stator switch to

“ON” position and observe the warning lamp.
If lamp does not come on:
Disconnect wiring connector from generator, and
ground the terminal “L” on connector side.
If lamp comes on:
Repair or replace the generator.

F06RW009
