501

Retainer, 4th clutch

502

Plate, 4th clutch (steel)

503

Plate assembly, 4th clutch (lined)

504

Retainer & ball assembly, check valve

505

Seal, O-ring/turbine shaft

506

Shaft, turbine

508

Ring, oil seal/turbine shaft

510

Housing, overrun clutch

513

Piston, overrun clutch

514

Spring, overrun clutch release

515

Retainer, release spring/overrun clutch

516

Roller assembly, overdrive clutch

517

Cam, overdrive roller clutch

518

Ring, snap/overrun clutch hub

519

Gear, overdrive sun

521

Plate, overrun clutch (steel)

522

Plate assembly, overrun clutch (lined)

523

Plate, backing/overrun clutch

524

Ring, snap/overrun clutch housing

525

Carrier assembly, overdrive complete

526

Ring, snap/turbine shaft/carrier

527

Bearing assembly, thrust

528

Gear, overdrive internal

529

Washer, thrust/internal gear/support

530

Ring, snap/adapter/4th clutch spring

531

Retainer & spring assembly, 4th clutch

532

Piston, 4th clutch

533

Seal, 4th clutch piston (inner)

534

Seal, 4th clutch piston (outer)

7A1 – 208 AUTOMATIC TRANSMISSION (4L30-E)

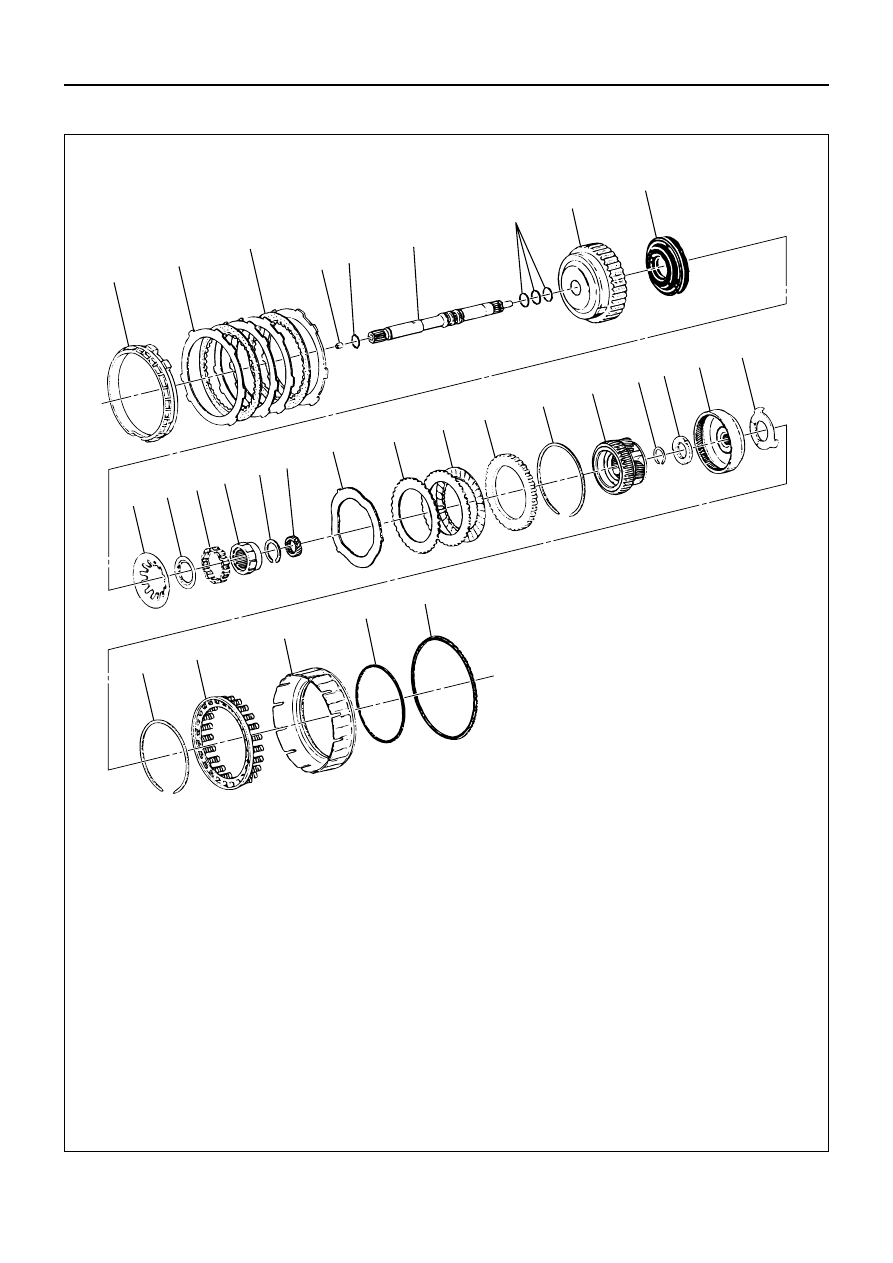

OVERDRIVE INTERNAL COMPONENTS

252RW003

501

502

503

504

505

514

515

516

517

518

519

530

531

532

533

534

521

520

522

523

524

525

526

527

528

529

506

508

510

513

AUTOMATIC TRANSMISSION (4L30-E)  7A1 – 209

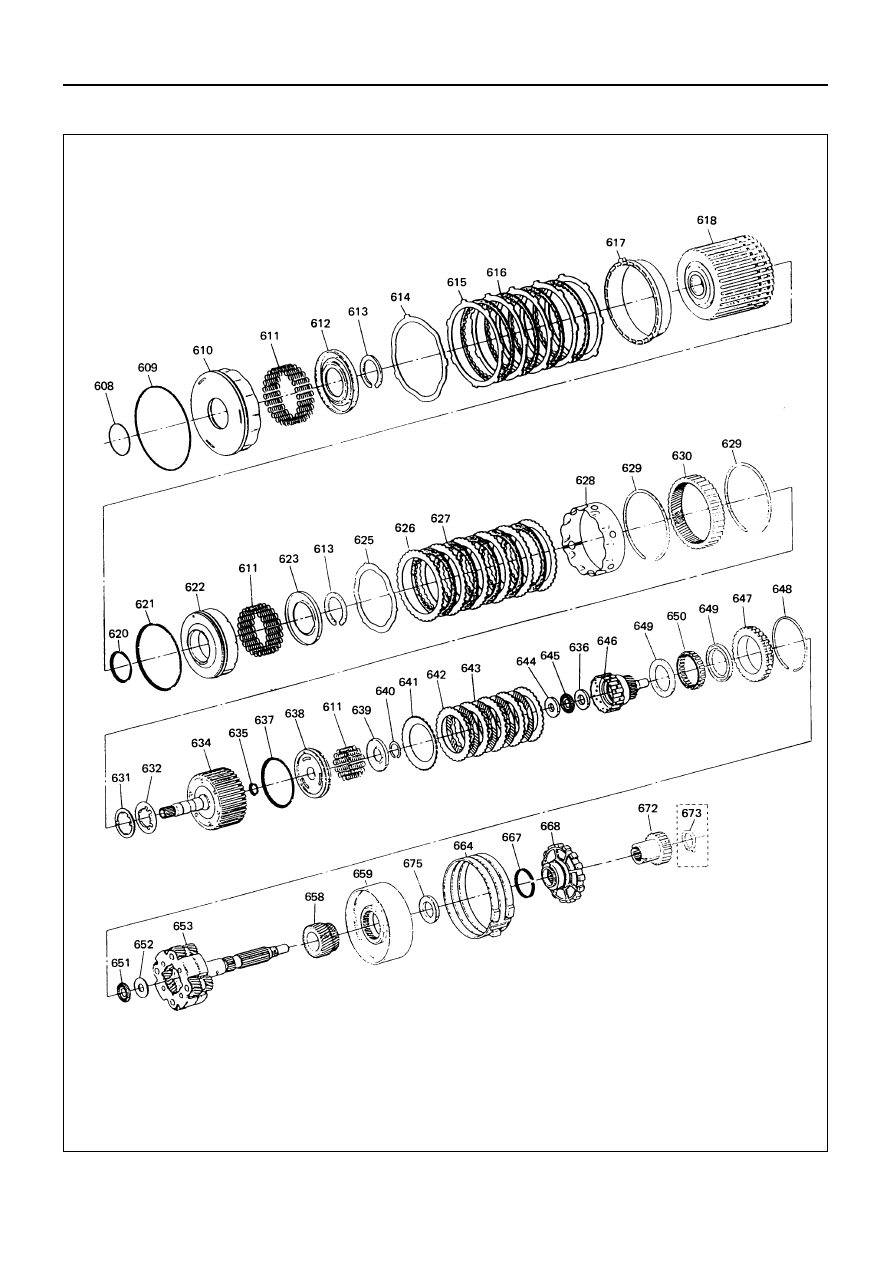

INTERNAL COMPONENTS

7A1 – 210 AUTOMATIC TRANSMISSION (4L30-E)

608

Seal, reverse clutch piston (inner)

609

Seal, reverse clutch piston (outer)

610

Piston, reverse clutch

611

Spring, piston clutch

612

Seat, spring/reverse clutch

613

Ring, Retaining

614

Plate, waved/reverse clutch

615

Plate, reverse clutch (steel)

616

Plate assembly, reverse clutch (lined)

617

Plate, reverse clutch pressure/selective

618

Drum assembly, 2nd clutch

620

Seal, 2nd clutch piston (Inner)

621

Seal, 2nd clutch piston (Outer)

622

Piston, 2nd clutch

623

Seat, spring/2nd clutch

625

Plate, waved/2nd clutch

626

Plate, 2nd clutch (Steel)

627

Plate assembly, 2nd clutch (Lined)

628

Spacer, 2nd clutch

629

Ring, retaining

630

Gear, ring

631

Washer, thrust/2nd clutch/3rd clutch

632

Thrust washer, clutch hub

634

Drum assembly, 3rd clutch

635

Seal, 3rd clutch piston (Inner)

636

Washer, retaining

637

Seal, 3rd clutch piston (Outer)

638

Piston 3rd clutch

639

Seat, spring/3rd clutch

640

Ring, retaining

641

Plate, spring cushion/3rd clutch

642

Plate, 3rd clutch (Steel)

643

Plate assembly, 3rd clutch (Lined)

644

Washer, thrust/input sun

645

Bearing, input shaft/gear assembly

646

Gear assembly, input sun

647

Race assembly, sprag

648

Ring, retaining/sprag

649

Ring, retaining

650

Cage assembly, sprag

651

Bearing, output shaft/input sun

652

Washer, output shaft/input sun

653

Carrier assembly, planetary

658

Gear, reaction sun

659

Drum, reaction sun

664

Band assembly, brake

667

Seal, ring/wheel parking lock

668

Wheel, parking lock

672

Wheel, speedo

673

Ring, retaining

675

Bearing, thrust assembly

INTERNAL COMPONENTS

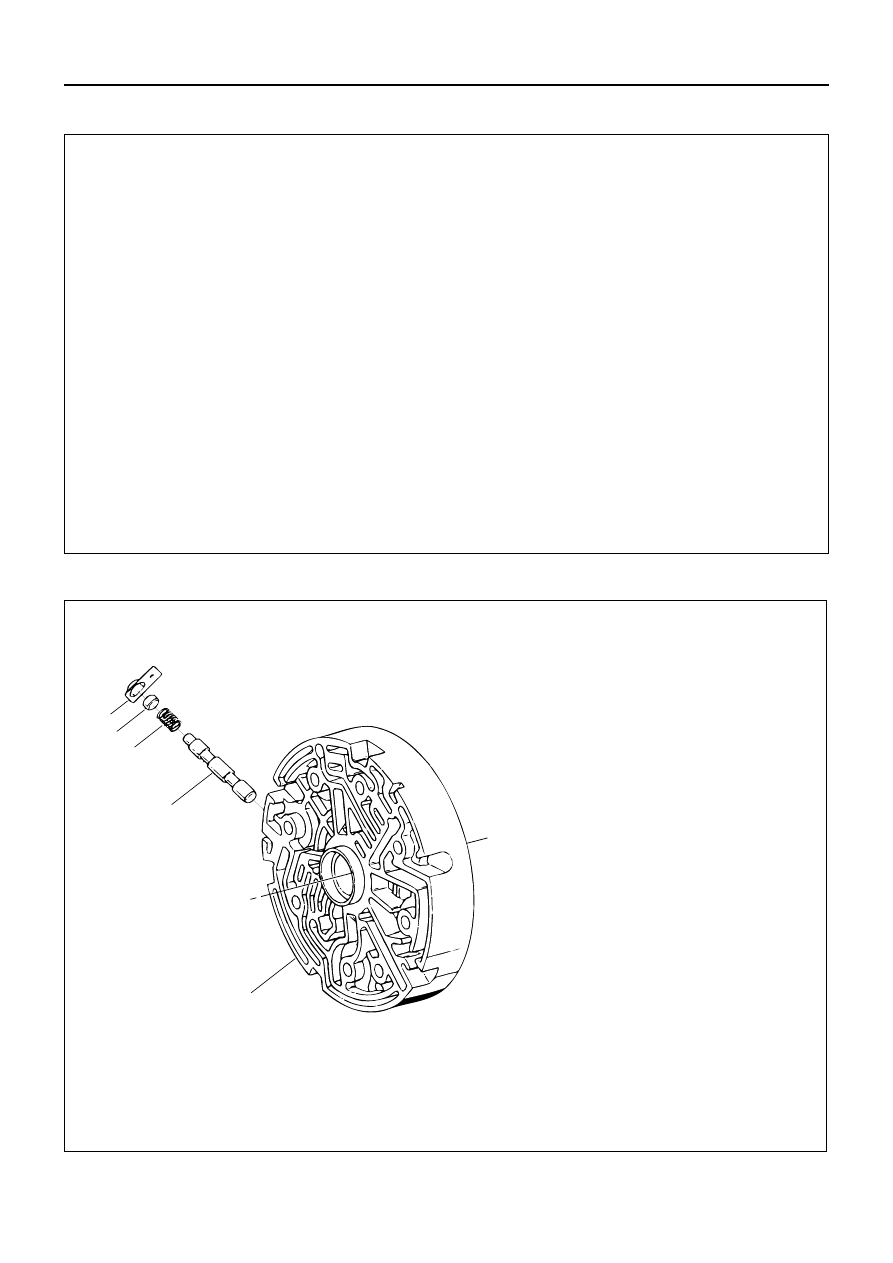

CENTER SUPPORT ASSEMBLY

701

Center support

702

Retainer plate

703

Plug, lockout

704

Spring, overrun lockout

705

Valve, overrun lockout

702

703

704

705

701

TF4L3-WE-889AR

You are requested to order this manual using the
manual number that is shown above.

This manual is applicable for vehicles in the
Australia.
