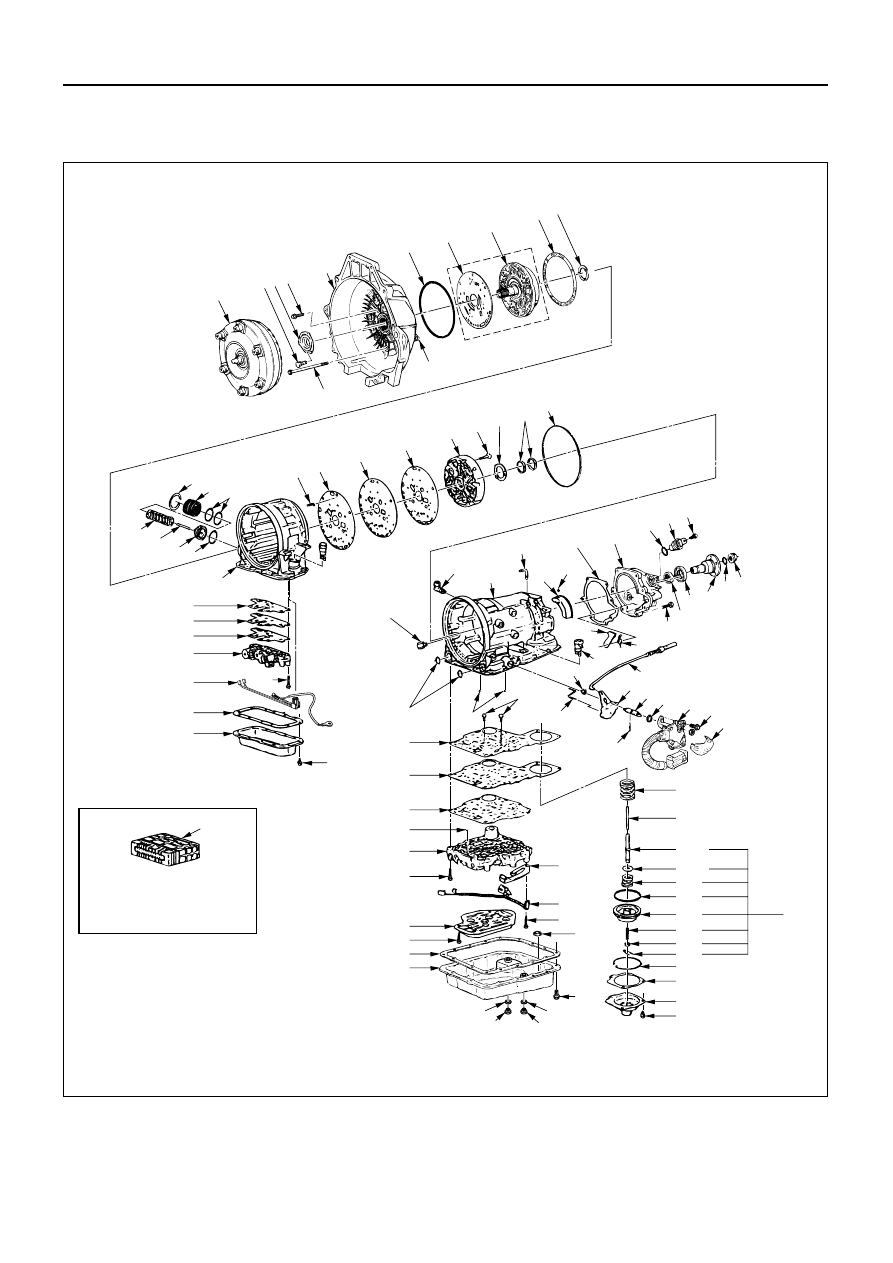

7A1 – 204 AUTOMATIC TRANSMISSION (4L30-E)
13. Piston
1)

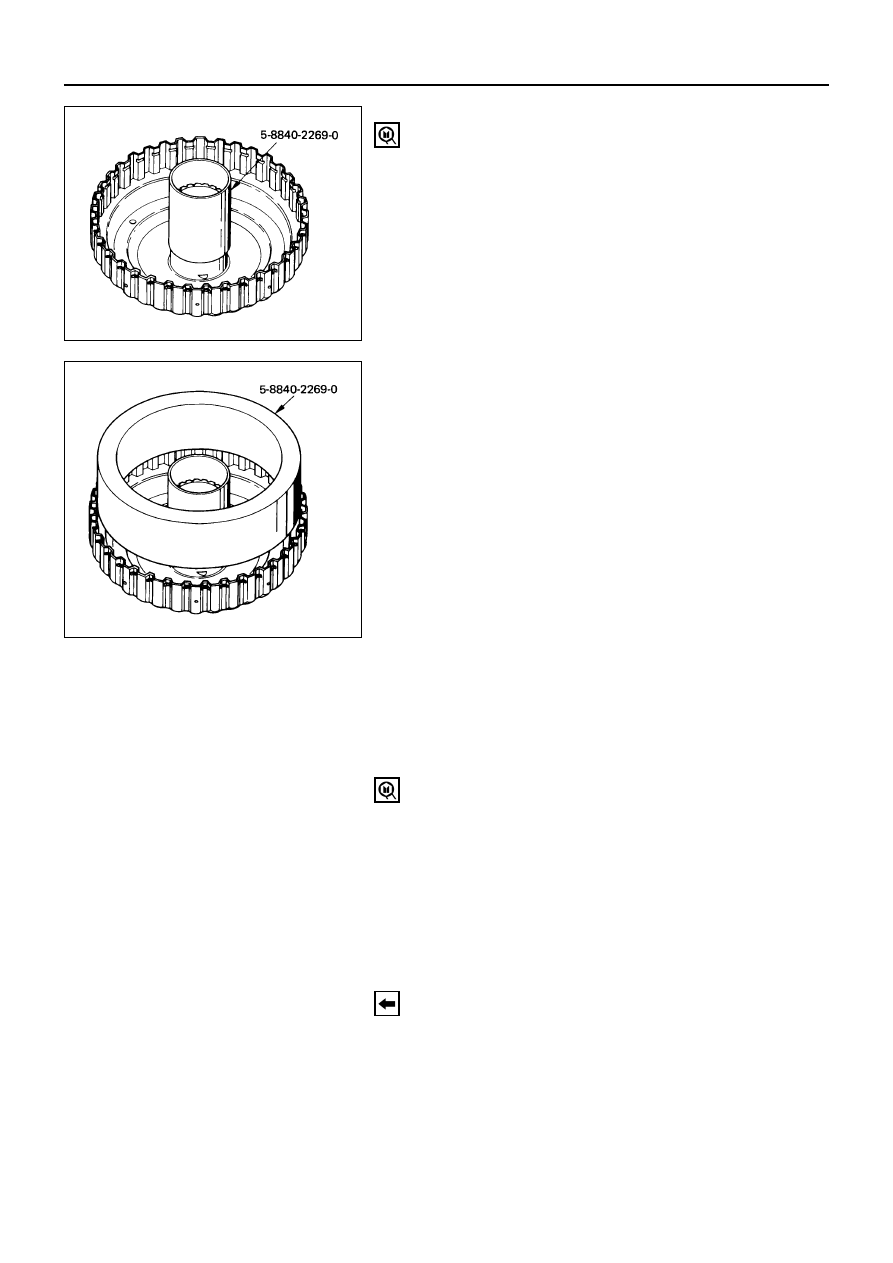

Install the inner installer on the drum.
2) Pre-install piston into outer installer.
3) Install overrun clutch piston assembly. Use the
outer installer while pushing piston into drum.
Installer: 5-8840-2269-0 (J-38555)
12. Diaphragm Spring
11. Overrun Clutch Release Spring Retainer
10. Roller Clutch Assembly
9. Overrun Roller Clutch Cam
8. Snap Ring
1) Place snap ring loosely on spring retainer.
2) Hold the compressor in a vise. Compress piston
return spring with compressor.
3) Set snap ring in ring groove.
Compressor: 5-8840-2275-0 (J-23327-91)
7. Clutch Plates
Install clutch plates, start with steel plate and
alternate with lined plates.
6. Backing Plate
5. Snap Ring
4. Turbine Shaft
3. Sun Gear
Overdrive sun gear, countersink pointing downwards.
2. Overdrive Carrier Assembly
Complete overdrive carrier assembly.
NOTE:
Turn the assembly in a counter-clockwise direction
only until roller clutch enters the outer race. After
assembly, rotate the assembly and listen for loose
rollers.
1. Snap ring
