AUTOMATIC TRANSMISSION (AW30-40LE)  7A-137



Removal Steps







9. Rear

mounting

nut

10. 3rd crossmember
11.  Oil level gauge and tube
12. Starter
13. Breather hose
14.  Engine – transmission bolt
15. Transmission assembly

1.  Center console, rear console, select

lever assembly, and transfer control
lever (4×4)

2.  Transfer protector (4×4)
3.  Rear propeller shaft
4.  Front propeller shaft (4×4)
5. Exhaust

pipe

6. Harness

connector

7.  ATF cooler pipe and clamp
8. Under cover and flex plate-torque

converter bolt



Installaiton Steps

To install, follow the removal steps in reverse
order.









REMOVAL

Preparation:

・  Remove engine hood.

・  Disconnect negative (-) battery cable.

1. Center console, rear console, select lever

assembly, and transfer control lever (4×

×

×

×4)

・  Disconnect the control rod from the select lever

assembly.

2. Transfer

protector

(4×

×

×

×4)





3. Rear

propeller

shaft

Disconnect the center bearing bracket, and remove
rear propeller shaft.

4.  Front propeller shaft (4×

×

×

×4)

5. Exhaust

pipe

6. Harness

connector

Disconnect the engine harness connectors from the
transmission side.

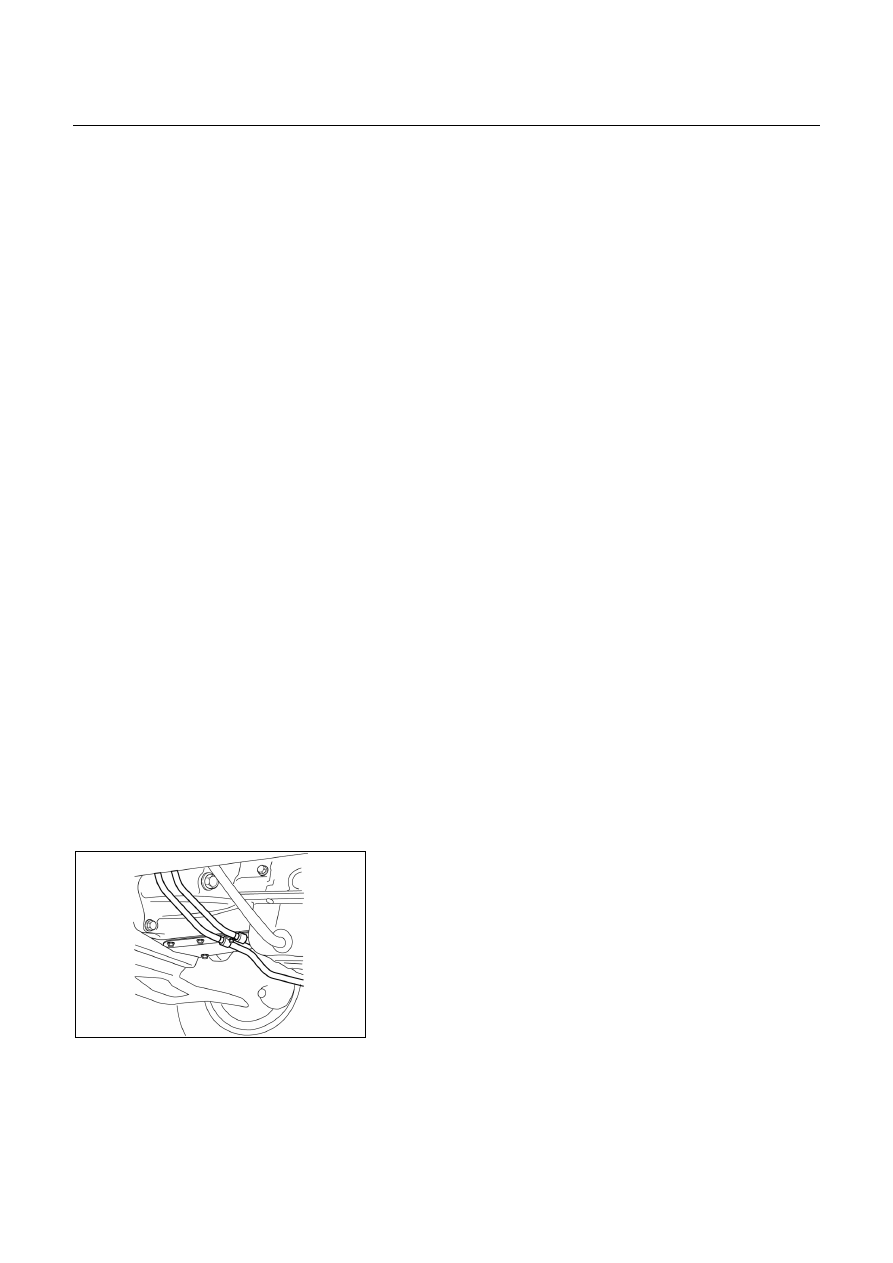

253LV001



7.  ATF cooler pipe and clamp

・  Disconnect two ATF cooler pipes from A/T side.

・  Remove oil pipe clamp from the under cover and

torque converter housing side.



7A-138  AUTOMATIC TRANSMISSION (AW30-40LE)

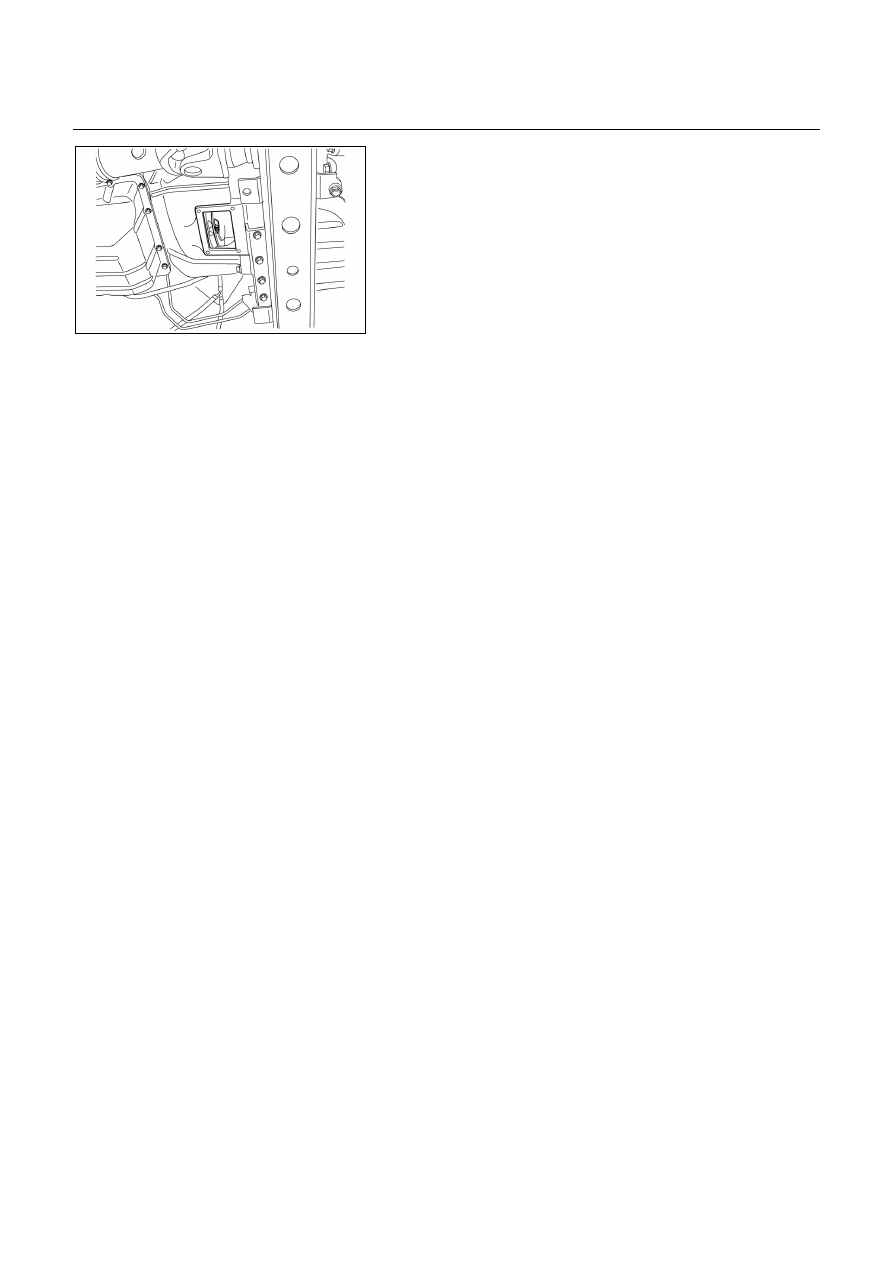

240RW037



8.  Under cover and flex plate-torque converter bolt

・  Remove the under cover.

・  Turn the crankshaft to gain access to each bolt.

Remove the six torque converter fixing bolts.

NOTE:
New fixing bolts should be replaced for
reassembly.


9.  Rear mounting nut

・  Support transmission with a jack.

・  Remove two rear mounting nuts from the 3rd

crossmember.

・  If necessary, remove the rear mounting from the

transmission.

10. 3rd crossmember
11.  Oil level gauge and tube
12. Starter

・  Remove the mounting bolts, and pull the starter

toward the front of the vehicle.

Lay the starter alongside the engine.

13. Breather hose
14. Engine-transmission bolt

・  Remove engine-transmission fixing bolts.

15. Transmission assembly

・  If necessary, remove the transfer case from the

transmission assembly. (4×4)
Refer to Section 4 “DRIVE LINE/AXLE” for removal
and installation.

NOTE:
Keep the oil pan positioned down.
Be careful not to let the torque converter slide out.





AUTOMATIC TRANSMISSION (AW30-40LE)  7A-139



INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following points;
1. Torque



Rear mounting to
crossmember

41 N・m (4.2 kg・m/30 Ib・ft)



Rear mounting to
transmission

41 N・m (4.2 kg・m/30 Ib・ft)



Torque converter bolt

29 N・m (3.0 kg・m/22 Ib・ft)



ATF cooler pipe to
elbow

44 N・m (4.5 kg・m/33 Ib・ft)



Exhaust pipe flange to
flange

43 N・m (4.4 kg・m/32 Ib・ft)



Exhaust pipe to exhaust
manifold

67 N・m (6.8 kg・m/4.9 Ib・ft)



Rear propeller shaft bolt

63 N・m (6.4 kg・m/46 Ib・ft)



Center bearing retainer
bolt

69 N・m (7.0 kg・m/51 Ib・ft)



Front propeller shaft bolt 63 N・m (6.4 kg・m/46 Ib・ft)



3rd crossmember bolt

76 N・m (7.8 kg・m/56 Ib・ft)



Under cover bolt

6 N・m (0.6 kg・m/52 Ib・in)







7A-140  AUTOMATIC TRANSMISSION (AW30-40LE)

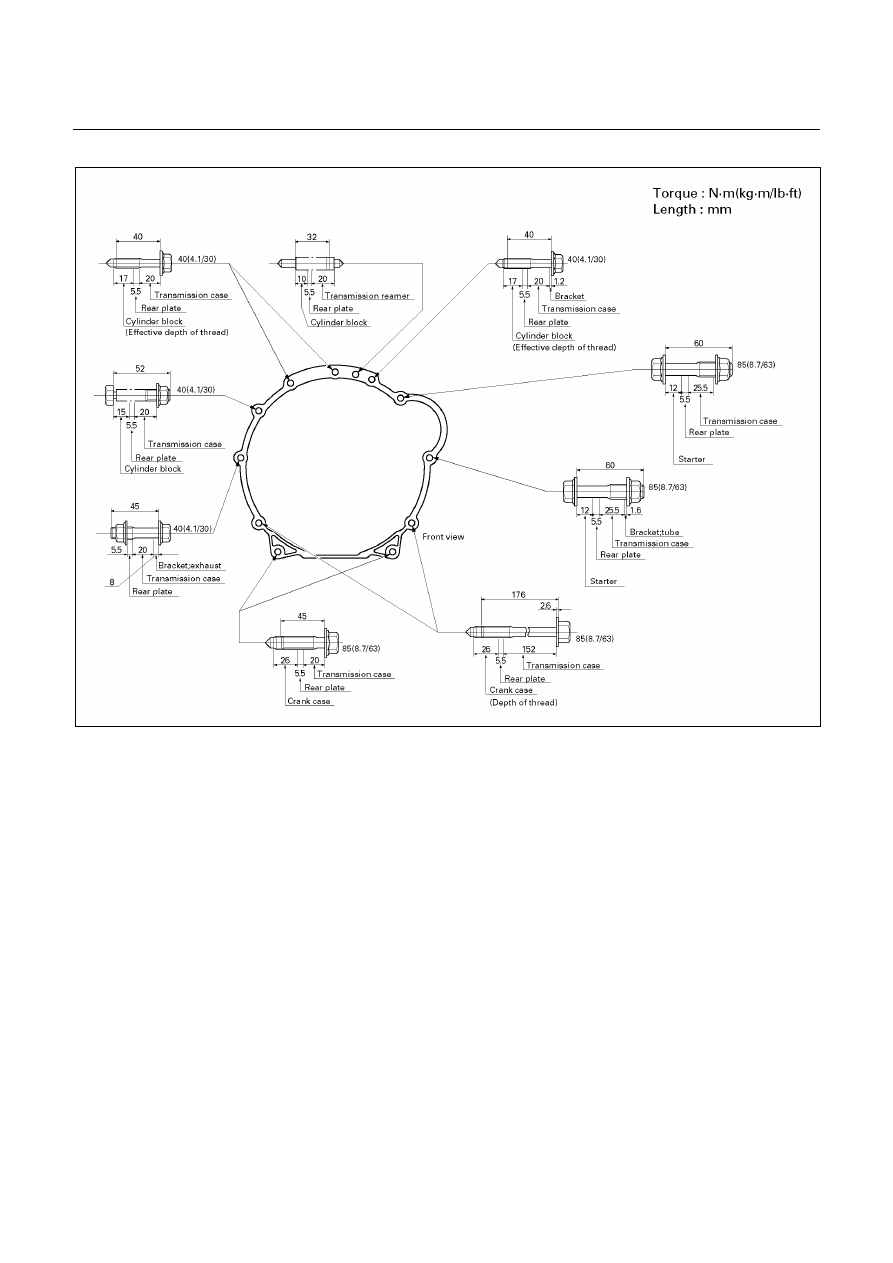

Engine – Transmission Bolt Torque (’02 TFR/S)



E07R200019
