AUTOMATIC TRANSMISSION (AW30-40LE) 7A-133

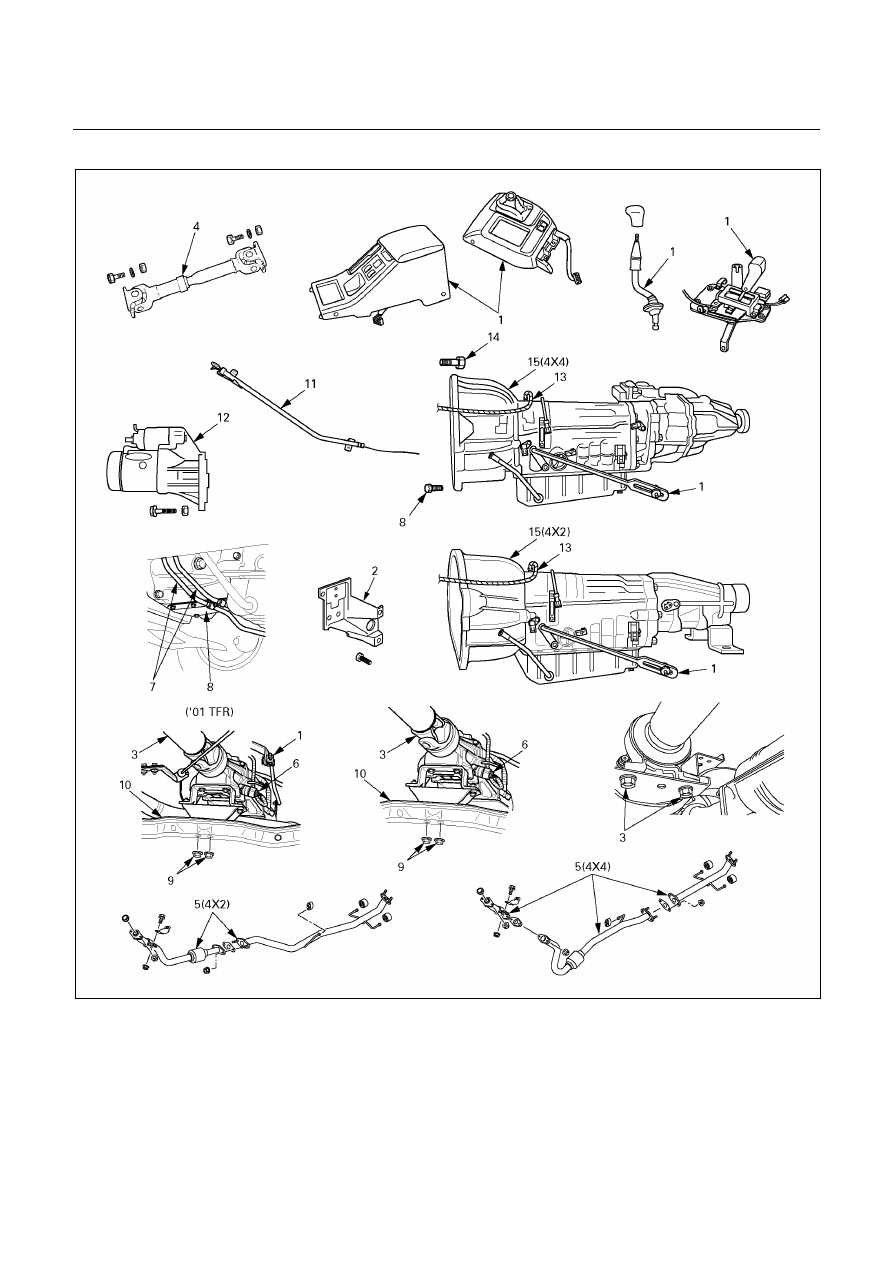

18. Transmission assembly
NOTE:
Keep the oil pan positioned down.
Be careful not to let the torque converter slide out.
INSTALLATION
To install, follow the removal steps in reverse order, noting
the following point;
1. Torque
Rear mounting to 3rd
crossmember
50 N･m (5.1 kg･m/37 Ib･ft)
Torque converter bolt
29 N･m (3.0 kg･m/22 Ib･ft)
ATF cooler pipe to
transmission
44 N･m (4.5 kg･m/33 Ib･ft)
Exhaust pipe flange to
flange
43 N･m (4.4 kg･m/32 Ib･ft)
3rd crossmember to flame
76 N･m (7.8 kg･m/56 Ib･ft)
Front propeller shaft bolt
63 N･m (6.4 kg･m/46 Ib･ft)
Rear propeller shaft bolt
63 N･m (6.4 kg･m/46 Ib･ft)
Under cover bolt
6 N･m (0.6 kg･m/52 Ib･in)
Transfer protector
37 N･m (3.8 kg･m/27 Ib･ft)
