5. Reset Function



1. Select

“Body” and F4 “Additional Functions”.

2. Select

“Reset Engine Control Module”

3.

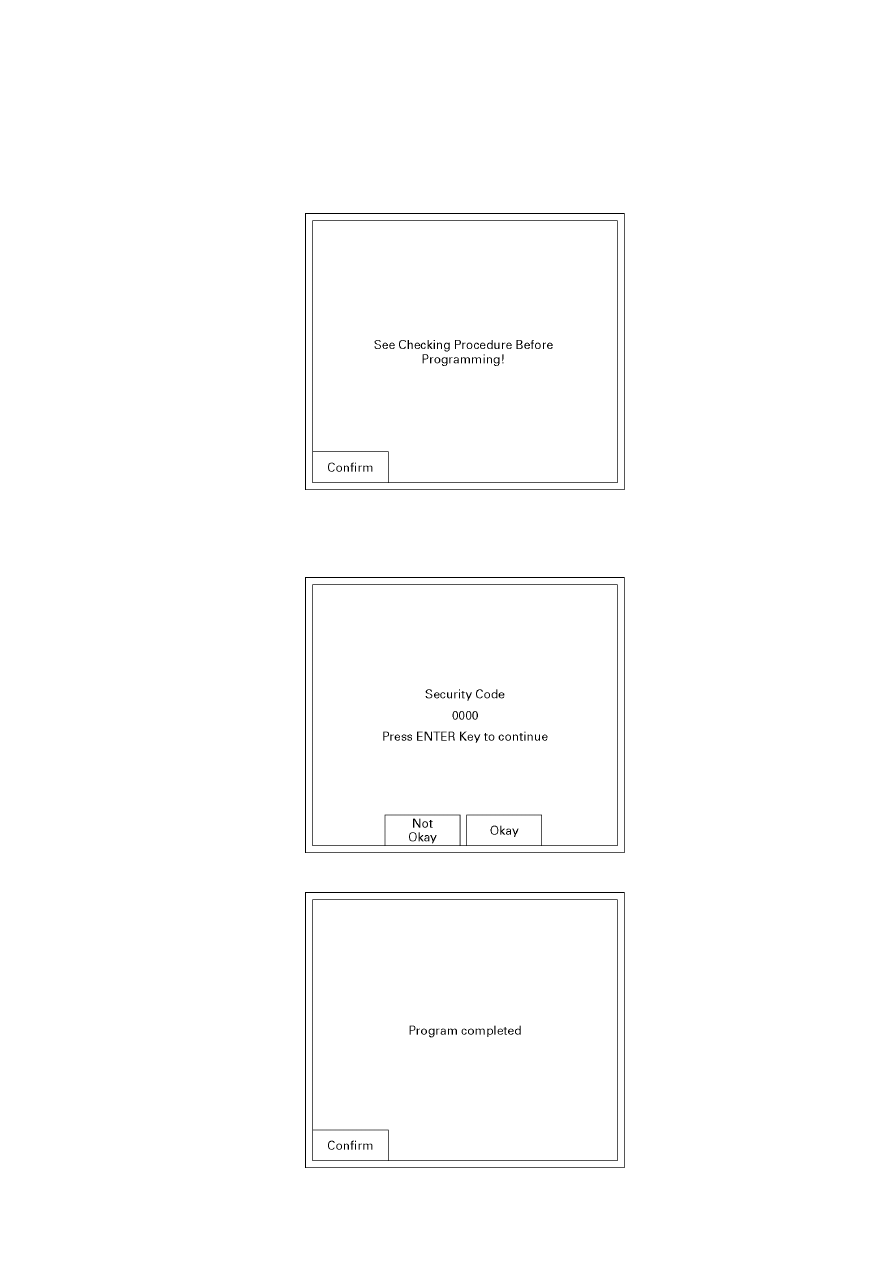

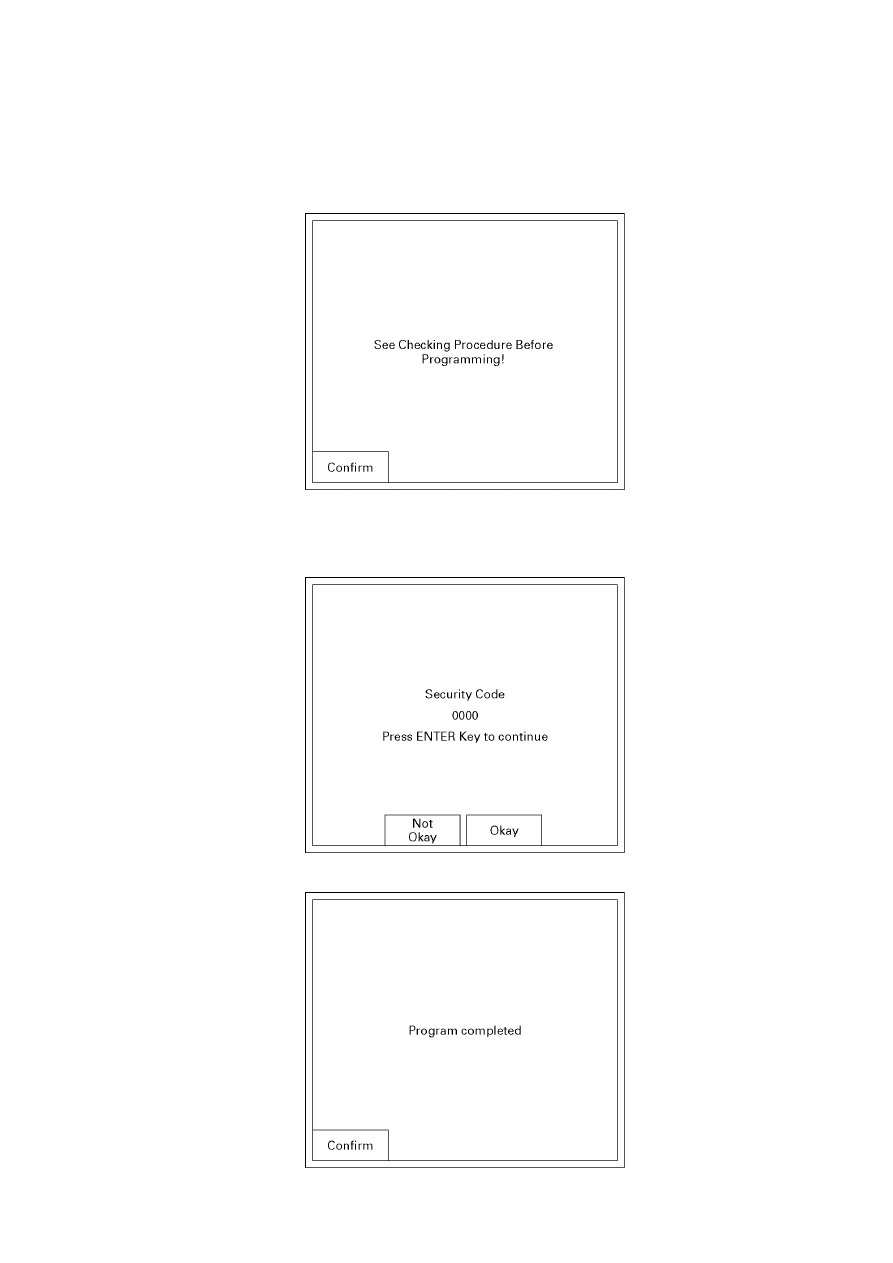

The following screen shows up.



4.

Confirm the following screen shows up.

5.

Input the security code, then press the soft key of “Not Okay” or “Okay”.

6.

The following screen shows up.



7.

Programming is completed.





8.

When the procedure is completed waits 10 seconds and then turn the Key on.

The fail lamp begins to flash.

9.

Turn the ignition on, then engine dose not run.

10.

Reset is completed.







6. Programming ICU, ECM


l Program ICU

1. Select

“Body” and “immobilizer”.

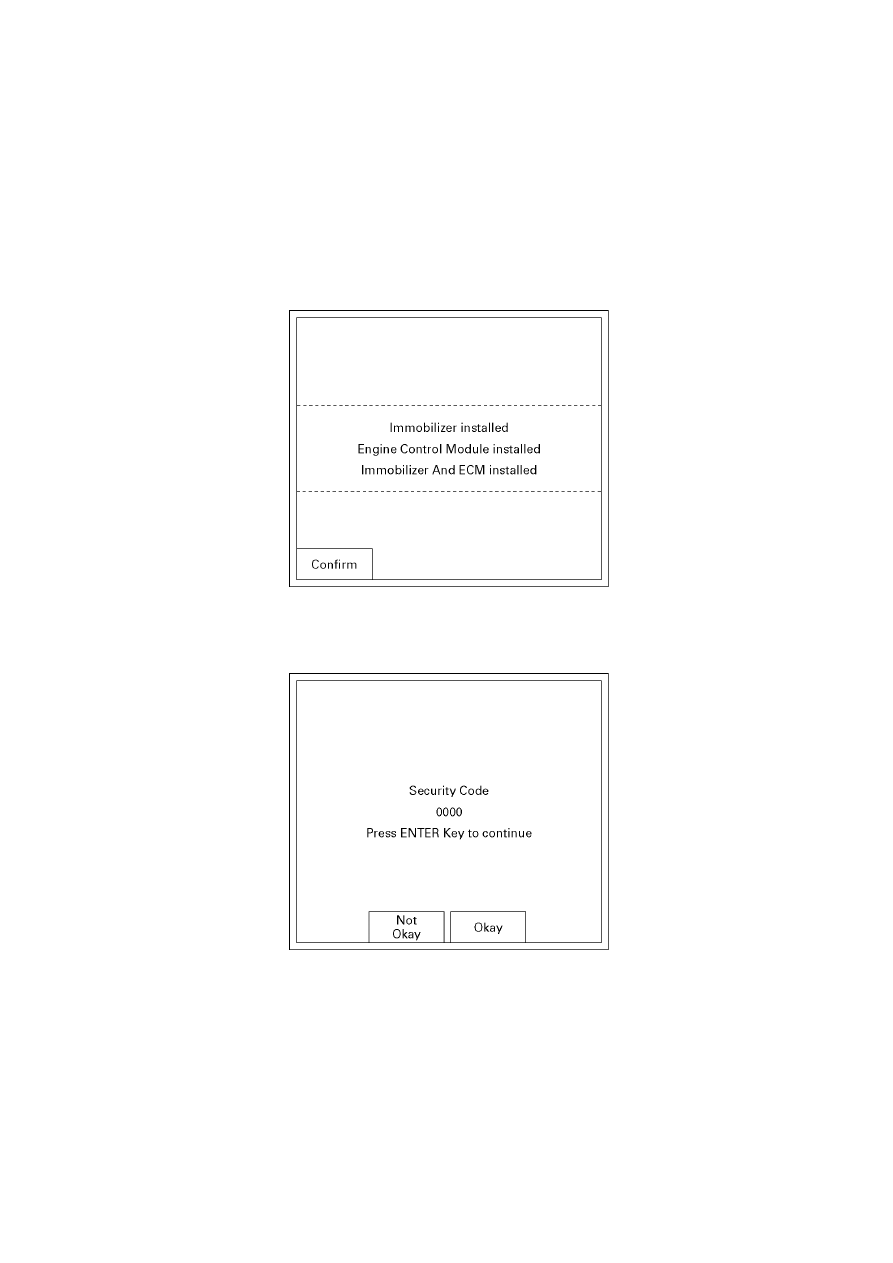

2.  See immobilizer status on the display of Tech-2.

3.  Enter the security code.

4.  See ECM status.

5.  Input a program option, by moving the cursor on the selection, then press “Enter”.







6.  Input the security code, then press the soft key of “Okay” or “Not Okay”.

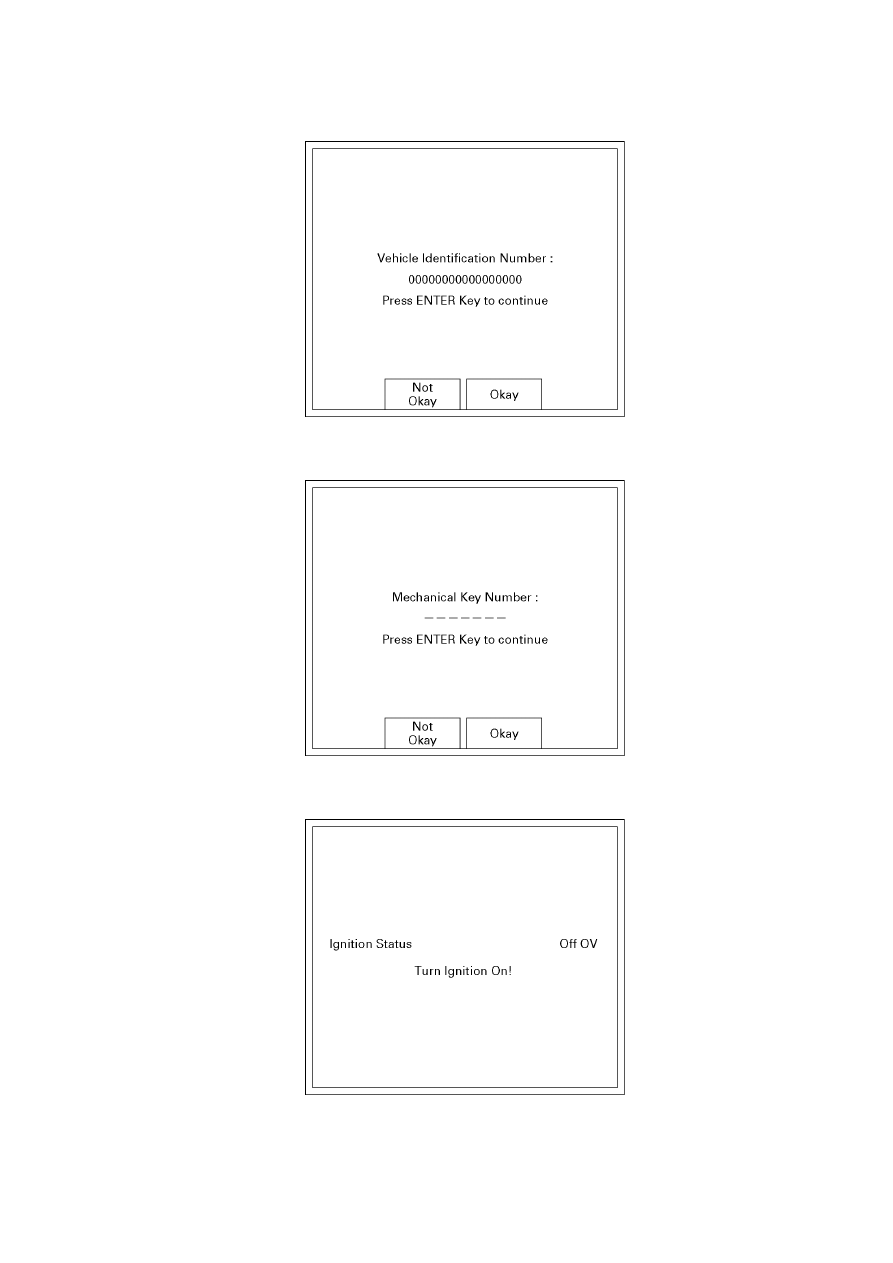

7. Enter

VIN.





8.  Enter Mechanical key number.





9.  Turn ON ignition.









10.  Select an engine system.
