2. Getting started (Tech-2 Operation)



Operate Tech-2 to get the following screen as start.


l Select “Body” in System Selection Menu.

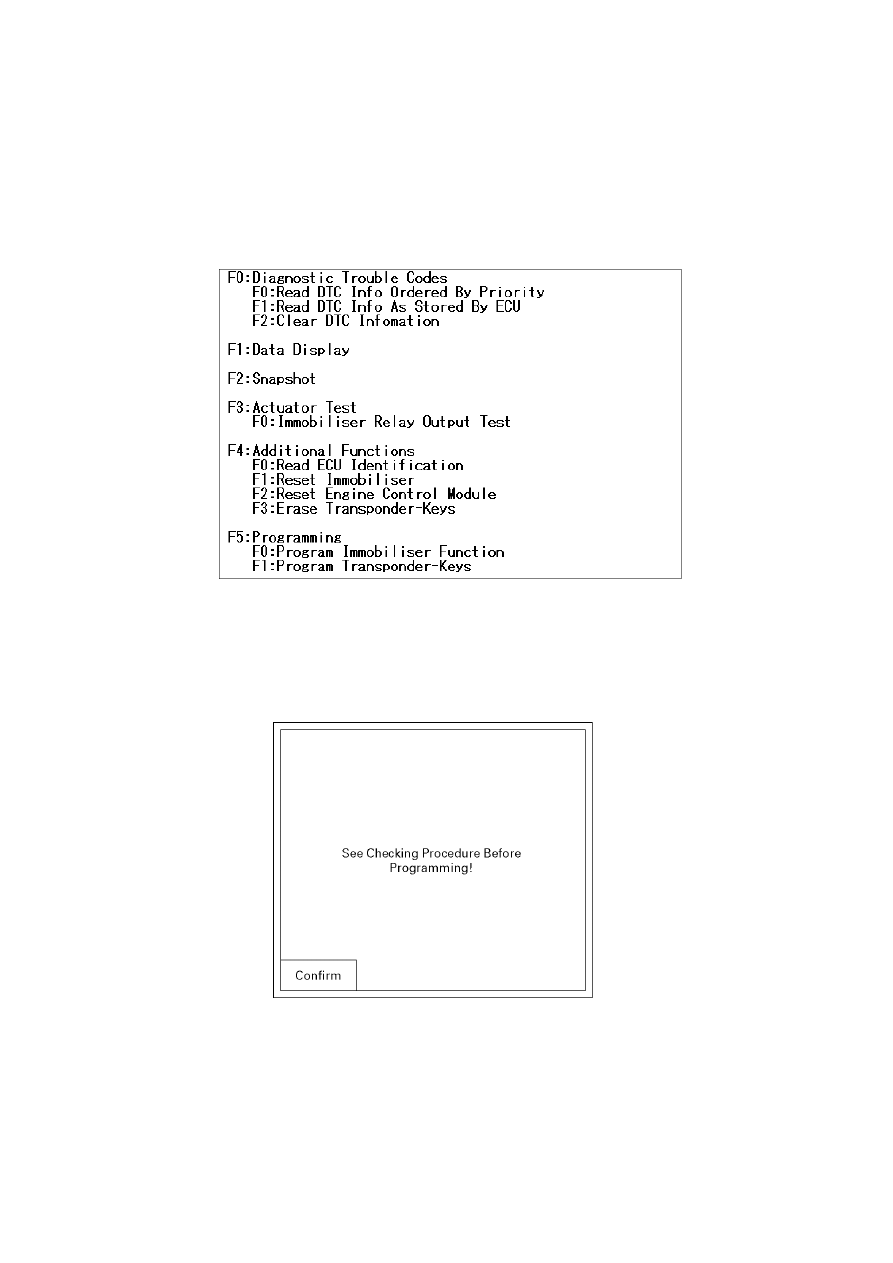

l The following table shows.






Notes:



Before going to programming process, Tech-2 indicates instruction as follows.





3. Transponder



If a transponder key is lost;

If a transponder key is lost, all transponder keys in the immobilizer control system must be

erased. Transponder keys can be ordered via the "Your proper organization name such as Parts

and accessory department" as previously by providing the mechanical key number.

The mechanical key number is provided on the car pass.

Thereafter, existing and new transponder keys are programmed consecutively using Tech-2. The

vehicle can then no longer be started using lost key.



5 transponder keys can be provided:

Each transponder has different Identifications. If a customer wants more than 2 transponder

keys, maximum 5 transponder keys can be provided by additional programming by Tech-2.



lf a new ignition key with different mechanical key number needs to be installed; If installation of

an ignition lock with a different mechanism key number is necessary (an ignition lock which

belongs to the mechanical key number has to be ordered first), all transponder keys must first be

erased and the two transponder keys which belong to the ignition lock that is now installed must

be programmed.

The new mechanical key number must be programmed now into the immobilizer. The mechanical

key number in the car pass is to be changed as well.





Transponder program



1.

Connect Tech-2, select "Body" and "Immobilizer".

2.

Select program Transponder (TP) - Key mode.

3.

See immobilizer status on Tech-2 screen, and enter security code. If the status does not

allow the programming, only immobilizer status is displayed.

4.

Insert Non-programmed Transponder-key and press soft key of "Confirm".



5.

"Turn On ignition key", is displayed if the ignition is off.

6.

The transponder status is displayed if the status does not allow the programming.

7.

When programming starts "Programming Transponder - key!" is displayed.

8.

Turn off Ignition key.

9.

Turn On Ignition.

10.

If the programming was not successful, the transponder status is only displayed.

11.

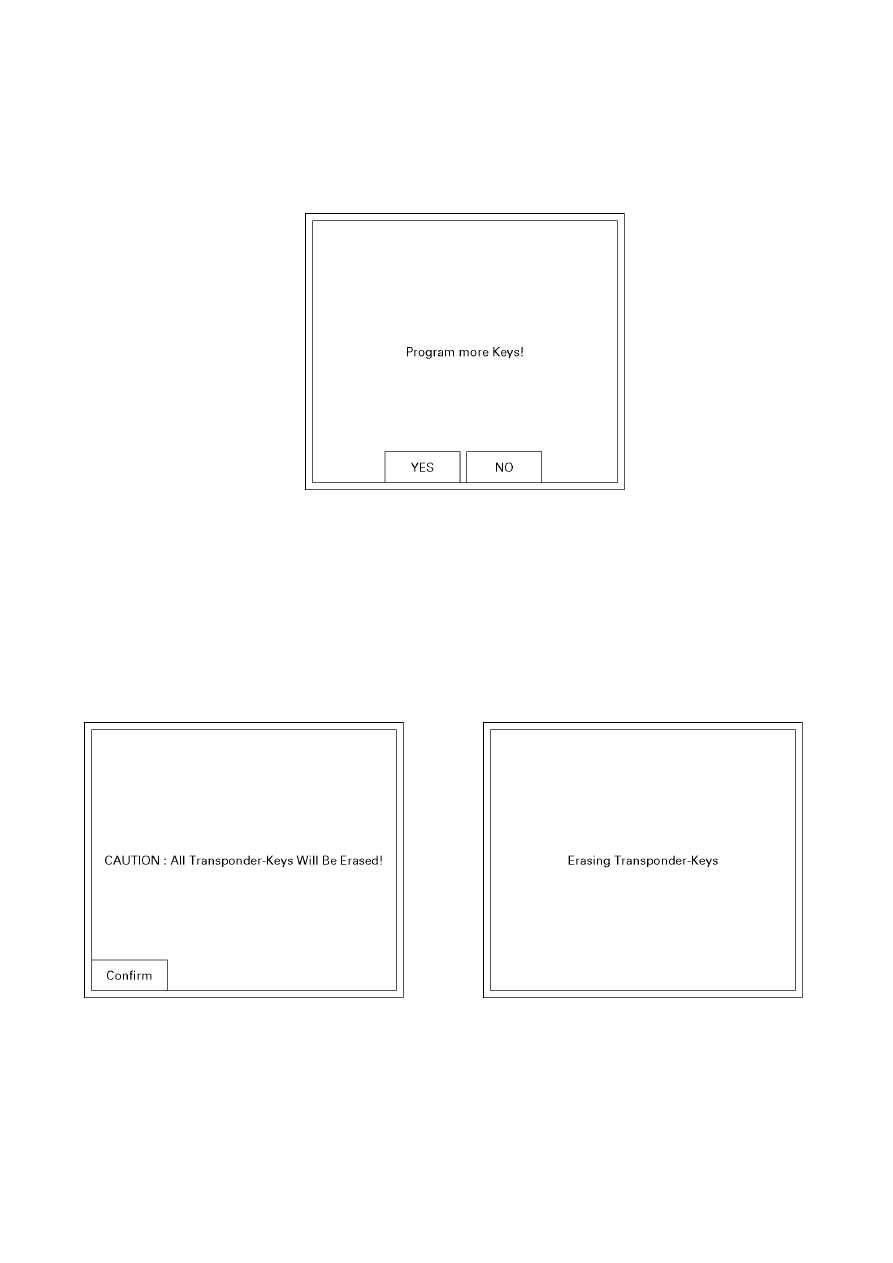

To program more illustration press soft key





12.

See programming result.



Erase transponder key



1.

Select Erase Transponder (TP) - Key mode.

2.

See immobilizer status on Tech-2 screen and type security code. If the status dose not

allow the programming, only immobilizer status is displayed.

3.

See illustration of caution.

    CAUTION







            Erase





4.

See programming result on display.







4. Reset Immobilizer ICU (Immobilizer Control Unit)



1. Select

“Body” and “Immobilizer”.

2. Select

“Additional Function” and “Reset Immobilizer”.

3.

Enter the security code and press Confirm.

4.

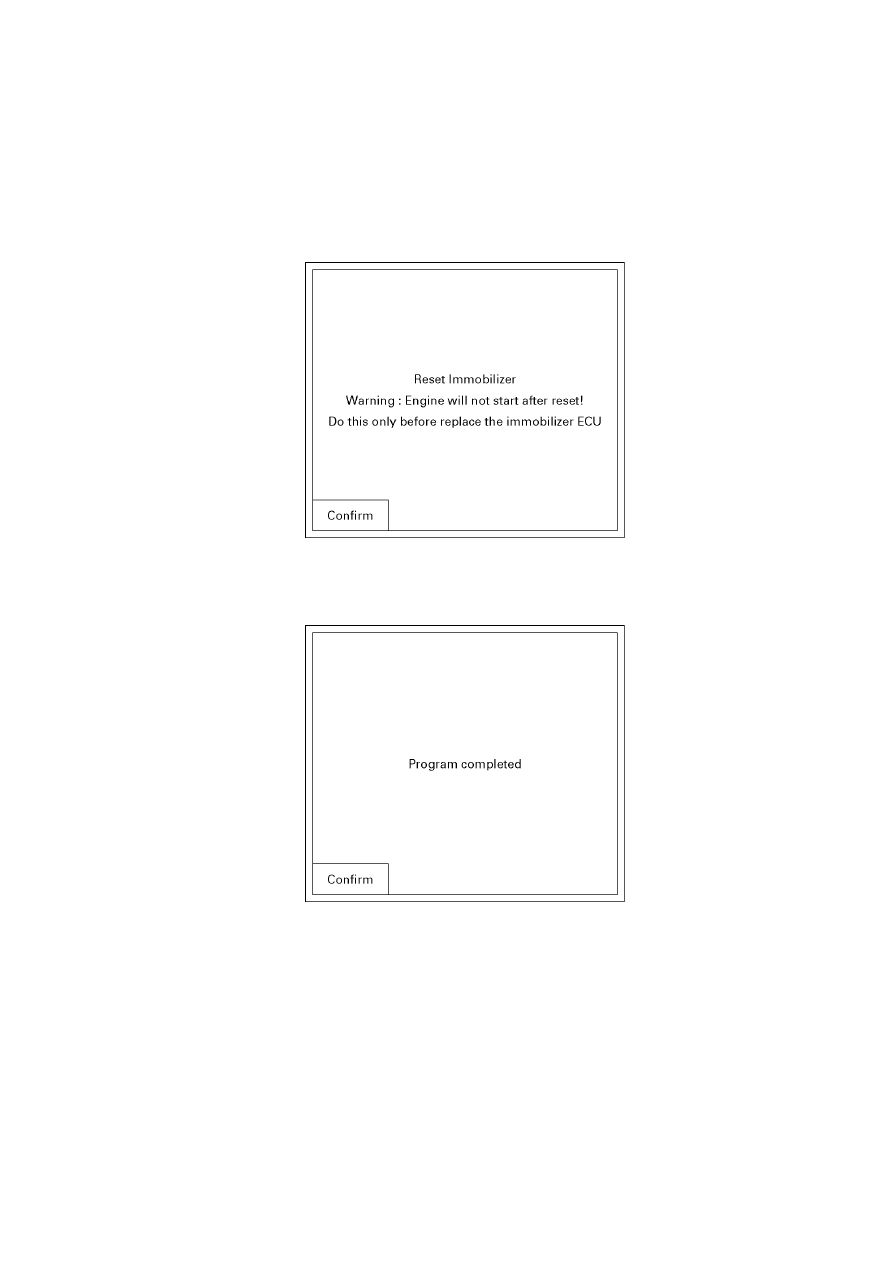

Reset Immobilizer screen shows up with warning. See the following screen.







5.

When reset is completed, the following screen shows up.
