ENGINE DRIVEABILITY AND EMISSIONS

6E–177

Check any accessory parts which may cause electric
interference or magnetic interference.
Was the problem found?

—

Remove the

accessory parts

and verify repair

Go to Step 14

Substitute a known good CKP sensor and recheck.
Was the problem solved?

—

Go to Step 15

Go to Step 16

Replace the CKP sensor.
Was the problem solved?

—

Verify repair

Go to Step 16

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 17

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

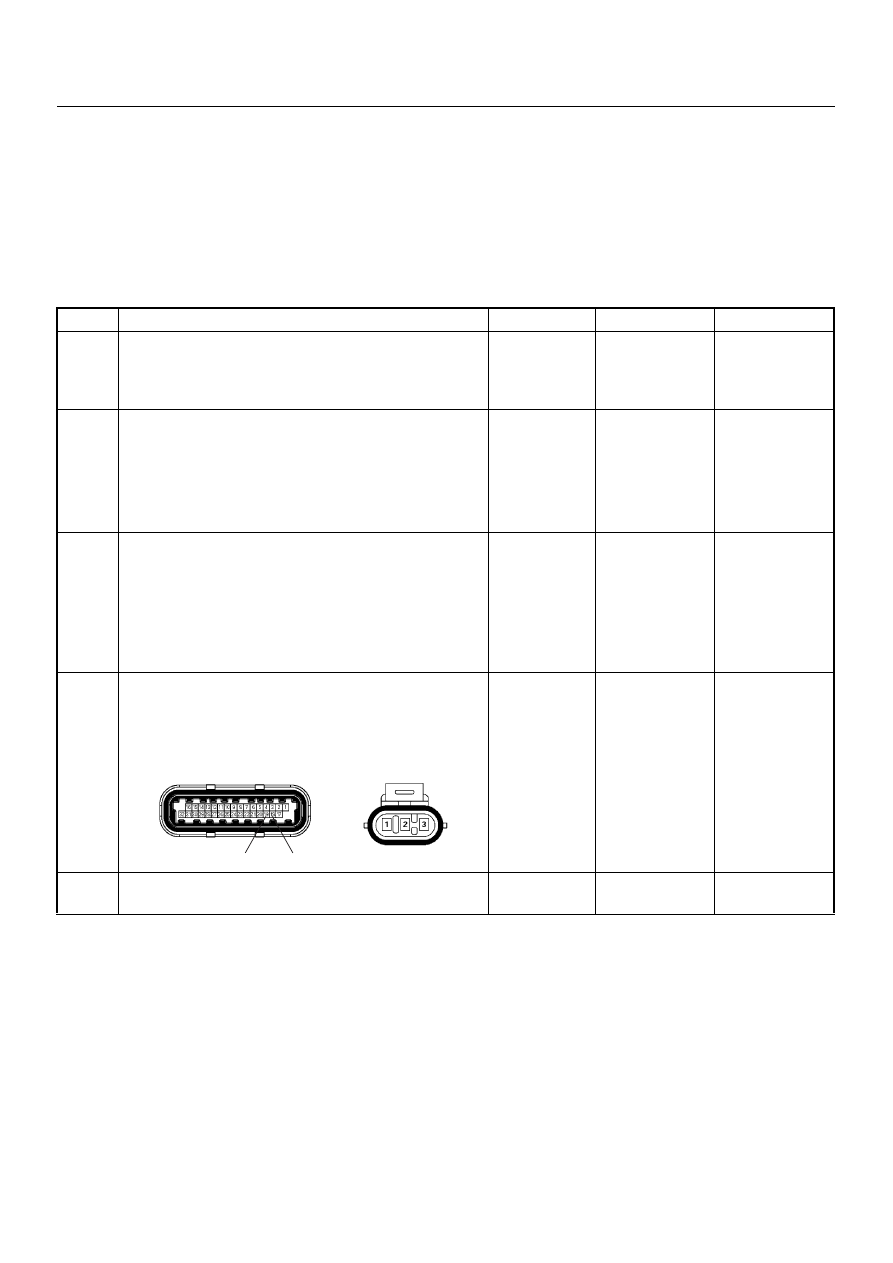

Step

Action

Value(s)

Yes

6E–178

ENGINE DRIVEABILITY AND EMISSIONS

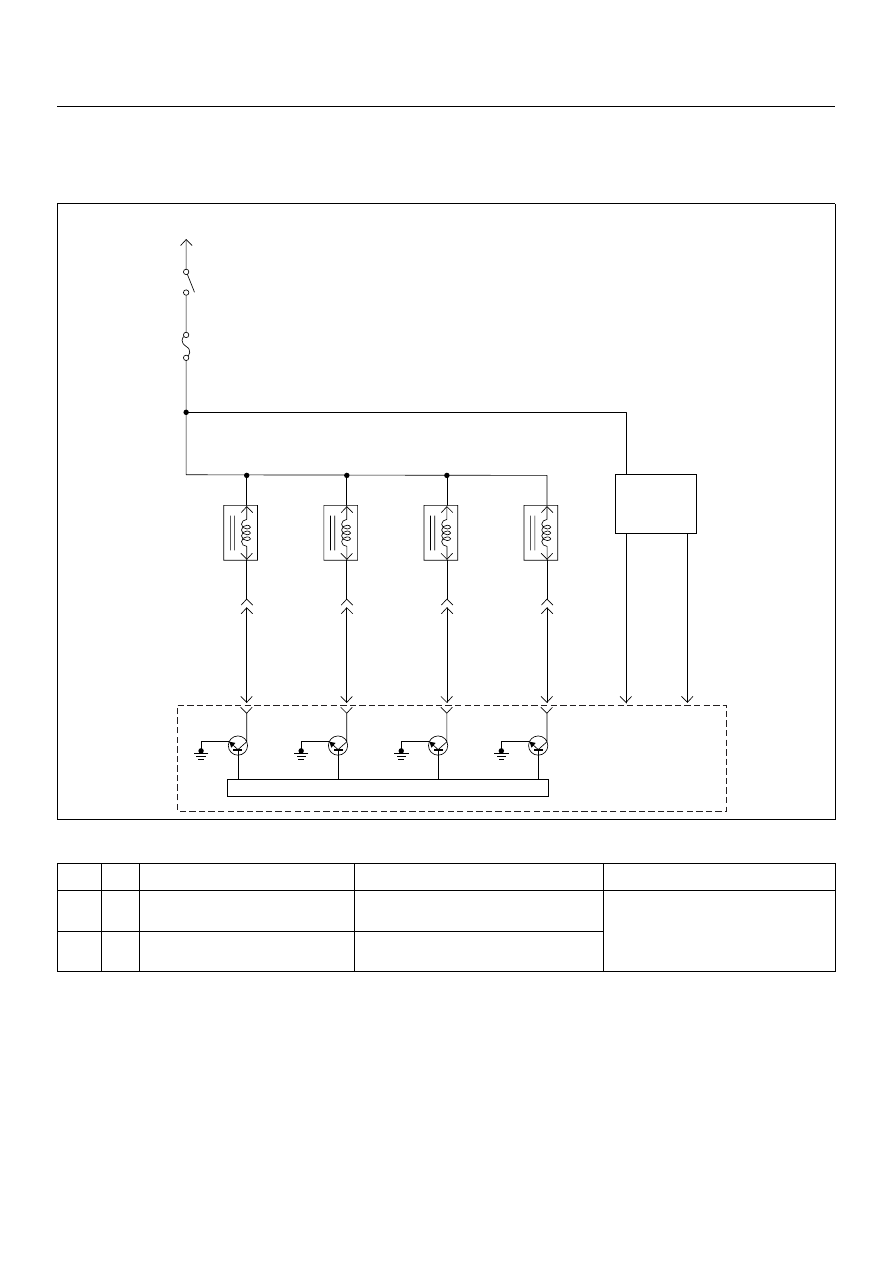

DIAGNOSTIC TROUBLE CODE (DTC) P0351 IGNITION 1 CONTROL CIRCUIT

DIAGNOSTIC TROUBLE CODE (DTC) P0352 IGNITION 2 CONTROL CIRCUIT

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The ignition control circuit provides a zero volt or a 5 volt
signal to the ignition control module. The normal circuit
voltage is zero volts. When the module receives the 5
volt signal from the ECM, it provides a ground path for
the B+ voltage supplied to the ignition primary coil.
When the ECM turns off the 5 volts to the module, the
module will remove the ground path of the ignition
primary coils; causing the magnetic field produces a
voltage in the secondary coils which fires the spark
plug.

The circuit between the ECM and the ignition control
module is monitored for an open circuit, short to voltage,
and short to ground. When the ECM detects a problem
in the ignition control circuit, it will set DTC P0351 or
P0352.

Diagnostic Aids

Check for the following conditions:

• Poor connection at the ECM - Inspect the harness

connectors for backed-out terminals, improper

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0351

Ignition 1 Control Circuit

#2 or #3cylinder ignition signals are not
detected consecutively.

No fail-safe function.

P0352

Ignition 2 Control Circuit

#1 or #4 cylinder ignition signals are not
detected consecutively.

Battery Voltage

PNK/
BLU

Injector
#1
Cylinder

Injector
#2
Cylinder

Injector
#3
Cylinder

Injector
#4
Cylinder

J1-9

BLU/
BLK

J1-22

BLU/
WHT

J1-8

COIL
MODULE

BLU/
YEL

J1-11

0.85
GRN

J1-19

0.85
BLU

J1-18

µP

IGN
Switch

IGN
Fuse
15A

Engine
Control
Module
(ECM)

ENGINE DRIVEABILITY AND EMISSIONS

6E–179

mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.

• Damaged harness - Inspect the wiring harness for

damage; Open circuits, shorts to ground, or shorts to
Voltage. If the harness appears to be OK, observe

the Tech 2 display related to DTC P0351 or P0352
while moving the connector and wiring related to the
ignition system. A change in the display will indicate
the location of the fault.

Diagnostic Trouble Code (DTC) P0351 Ignition 1 Control Circuit

Diagnostic Trouble Code (DTC) P0352 Ignition 2 Control Circuit

Step

Action

Value(s)

Yes

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P0351 or P0352 stored as “Present
Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P0351 or P0352 stored in this ignition
cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

Check for poor/faulty connection at the ignition coil
module or ECM connector. If a poor/faulty connection
is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

Visually check the ignition coil module.
Was the problem found?

—

Go to Step 12

Go to Step 6

E-60(J1)

E-18

6E–180

ENGINE DRIVEABILITY AND EMISSIONS

Using the DVM and check the ignition coil module
signal circuit for the affected coil.

1. Ignition “On”, engine “Off”.

2. Disconnect the ignition coil module connector.

3. Check the circuit for short to battery voltage circuit

for the affected coil.

Was the DVM indicated battery voltage?

—

Repair faulty

harness and

verify repair

Go to Step 7

Step

Action

Value(s)

Yes

E-18

Coil 1

E-18

Coil 2
