SNAPSHOT DISPLAY WITH TIS2000

Procedures for transferring and displaying Tech2
snapshot data by using TIS2000 [Snapshot Upload]
function is described below.
Snapshot data can be displayed with [Snapshot Upload]
function included in TIS2000.
By analyzing these data in various methods, trouble
conditions can be checked.
Snapshot data is displayed by executing the three steps
below shown:

1. Record the snapshot data, in Tech2.

2. Transfer the snapshot data to PC.

6E–74

ENGINE DRIVEABILITY AND EMISSIONS

After recording the snapshot in Tech2, transfer the data
from Tech2 to PC by the below procedures.

1. Start TIS2000.

2. Select [Snapshot Upload] on the TIS2000 start

screen.

3. Select [Upload from trouble diagnosis tool (transfer

from diagnosis tester)] or click the corresponding
icon of the tool bar.

4. Select Tech2, and transfer the recorded snapshot

information.

5. Select the transferred snapshot.

6. After ending transfer of the snapshot, data

parameter list is displayed on the screen.

3. Snapshot data is displayed with TIS2000

[Snapshot Upload] function.

Snapshot is stored in the PC hard disk or floppy disk,
and can be displayed any time.
Stored snapshot can be displayed by the below
procedures.

1. Start TIS2000.

2. Select [Snapshot Upload] on the TIS2000 start

screen.

3. Select [Open the existing files] or click the

corresponding icon of the tool bar.

4. Select the transferred snapshot.

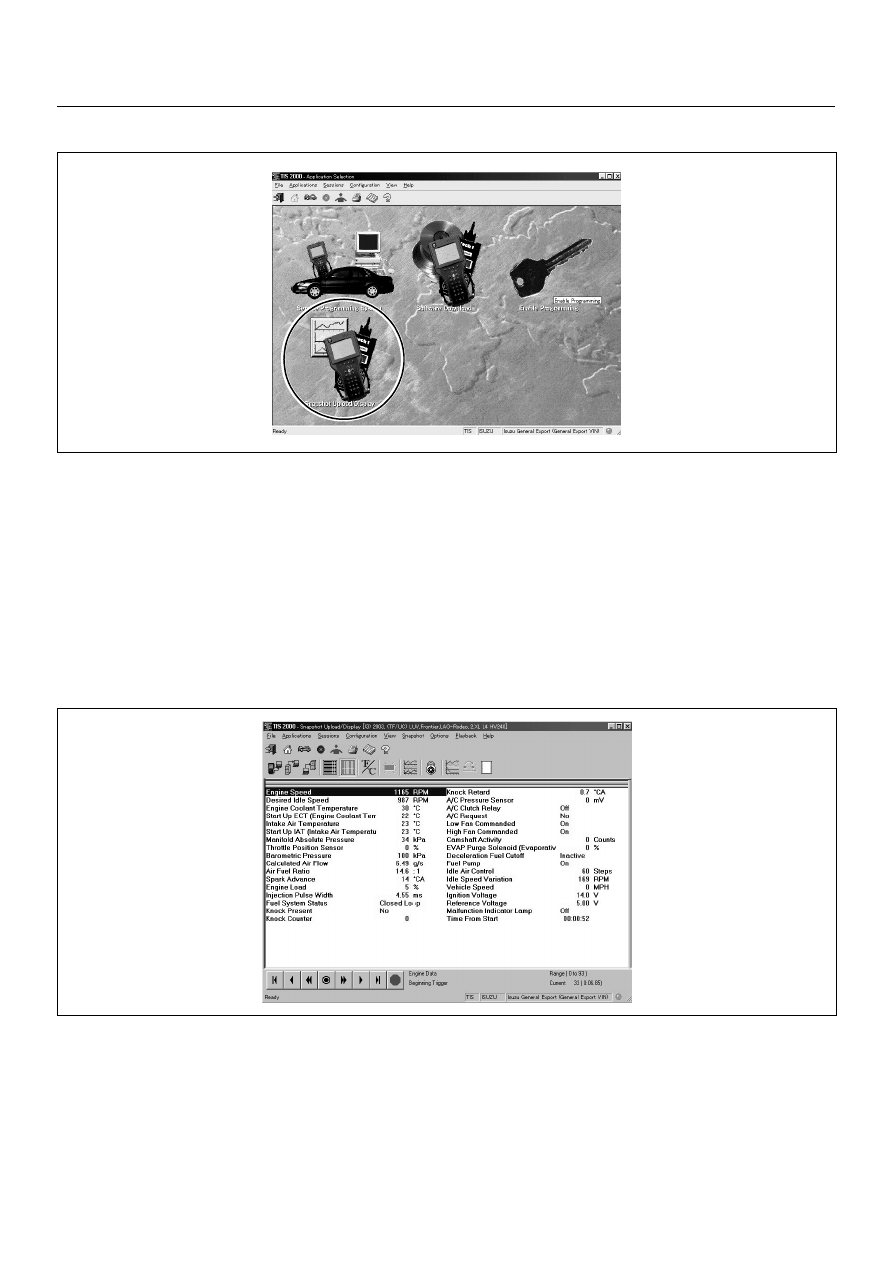

5. Open the snapshot, to display the data parameter

list on the screen.

ENGINE DRIVEABILITY AND EMISSIONS

6E–75

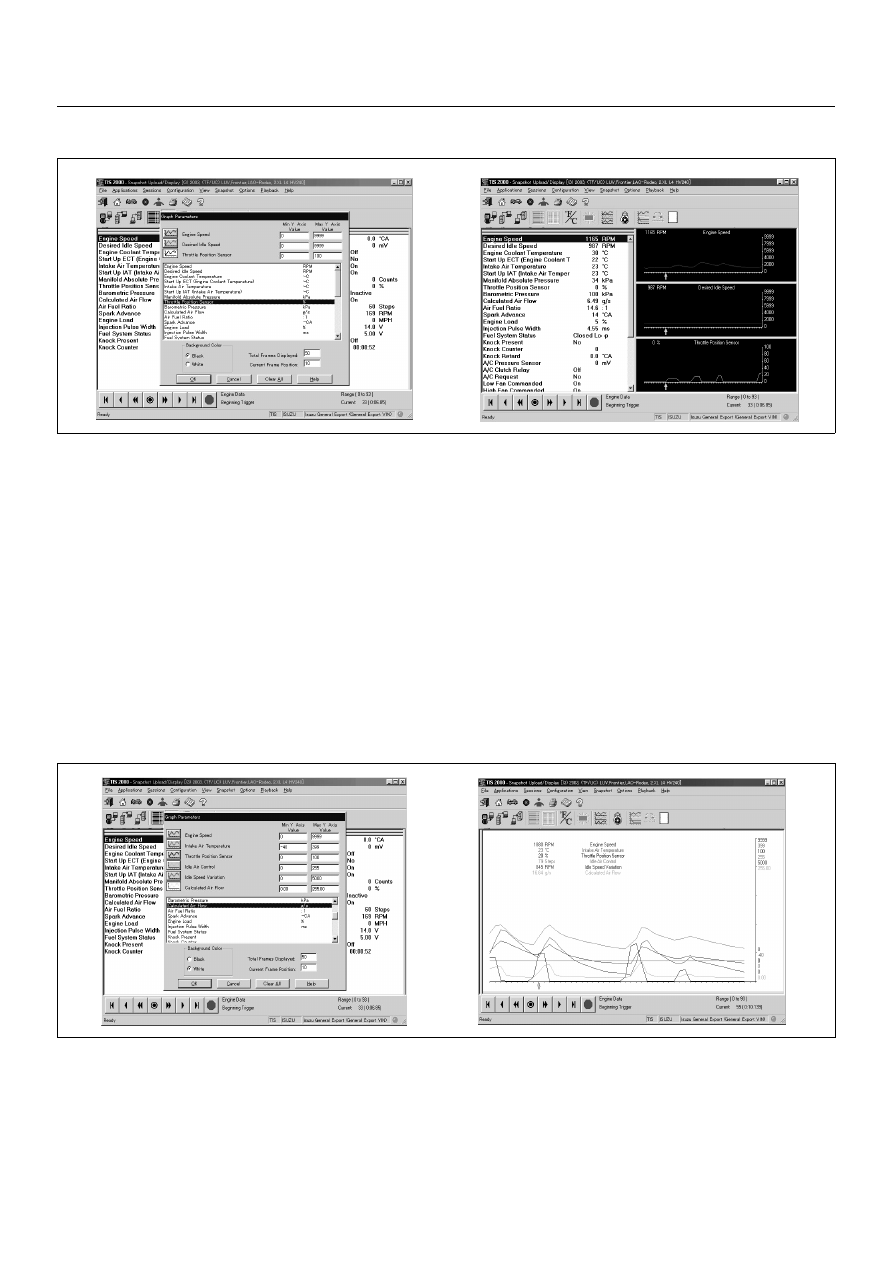

Graph display Values and graphs (Max. 3 graphs):

1. Click the icon for graph display.  [Graph Parameter]

window opens.

2. Click the first graph icon of the window upper part,

and select one parameter from the list of the window
lower part.  Selected parameter is displayed nest to
the graph icon.  Graph division can be selected in
the field on the parameter right side.

3. Repeat the same procedures with the 2nd and 3rd

icons.

4. After selecting all parameters to be displayed (Max.

3 parameters), click [OK] button.

5. Parameter selected is displayed in graph form on

the right of the data parameter on the screen.

6. Graph display can be moved with the navigation

icon.

7. For displaying another parameter by graph, click the

parameter of the list, drug the mouse to the display
screen while pressing the mouse button and release
the mouse button.  New parameter is displayed at
the position of the previous parameter.  For
displaying the graph display screen in full size, move
the cursor upward on the screen.  When the cursor
is changed to the magnifying glass form, click the
screen.  Graph screen is displayed on the whole
screen.

Display of graphs on one screen (Max. 6 graphs):

1. Click the 6 graph icon.  [Graph Parameter] window

opens.

2. Click the graph icon, select the parameter to be

displayed from the list and change divisions
according to necessity.

3. Repeat the same procedures with the graph icons,

from the 2nd to 6th.

4. Click the [OK] button to display.

5. In this case, parameters are displayed only in graph

form.  All parameters are displayed in one graph.

6. The graph display screen can be moved with the

navigation icon.

6E–76

ENGINE DRIVEABILITY AND EMISSIONS

SERVICE PROGRAMMING SYSTEM (SPS)

The procedure to program the control unit by using the
Service Programming System (SPS) software
contained in TIS2000 is explained below.

NOTE:

• If the Engine Control Module (ECM) was

programmed, the Immobiliser System must be linked
to the ECM: Refer to section 11 “Immobiliser System-
ECM replacement” for the ECM/Immobiliser linking
procedure.

Important:  Perform the following checks before
attempting to program the control unit:

• The Tech2 PCMCIA card is programmed with The

latest software release.

• The latest release of TIS2000 is loaded on the PC.

• The vehicle battery is fully charged.

• The control unit to be programmed is connected to

the vehicle.

1. Preparations of TIS 2000

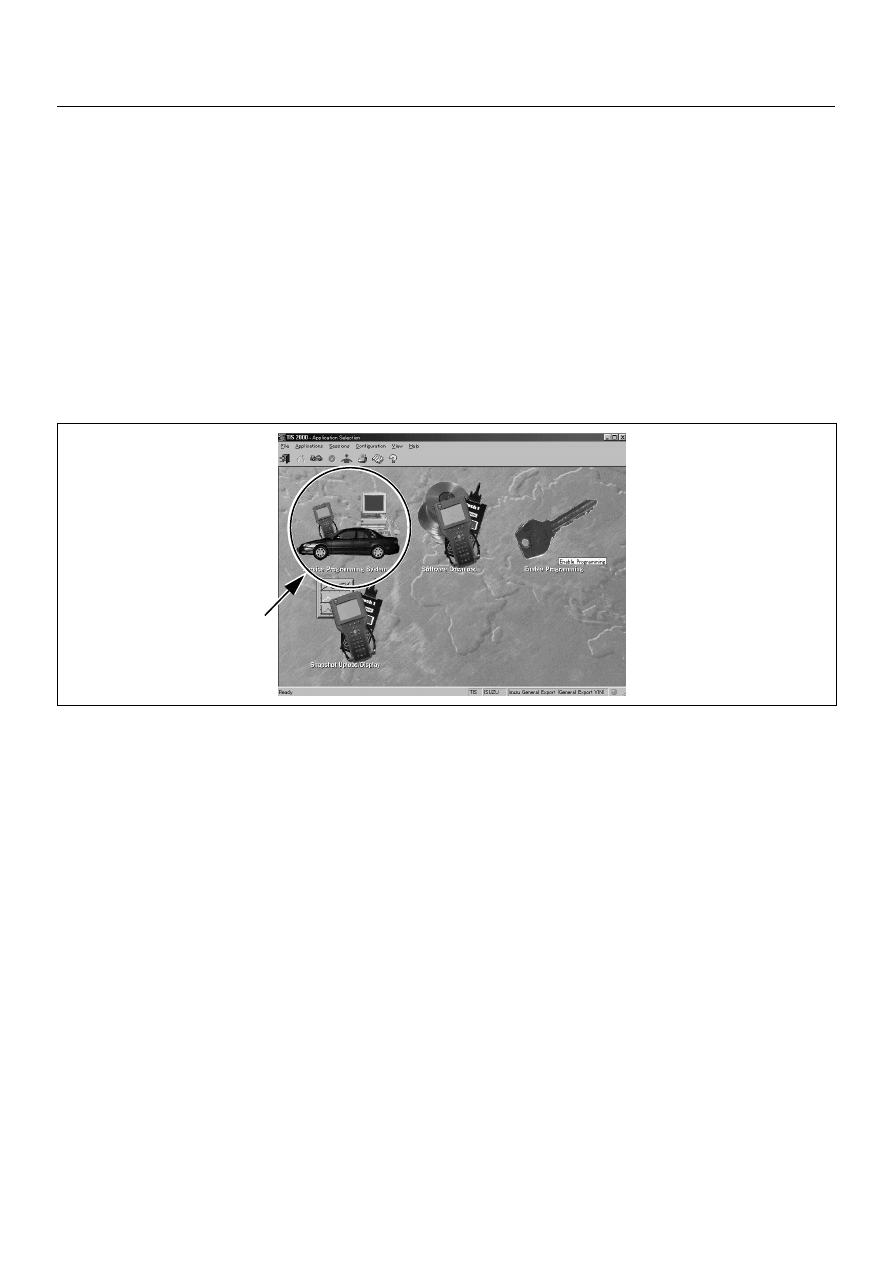

1. Connect Tech 2 to P/C.

2. Check to see if Hardware Key is plugged into Port.

3. Activate TIS 2000 by P/C.

4. On the activating screen of TIS2000, choose

“Service Programming System”

5. On the screen of “Diagnostic Tester and Processing

Program Selection”, choose the one that will comply
with the following.

• Diagnostic tester in use

• New programming by the existing module or new

programming by the replaced/new module.

• Fixing position of the control unit.

6. Upon completion of the selection, push the button of

“Continue”.

2. Demand of Data

1. Connect Tech-2 to the vehicle. When activated by

turning on the power of Tech-2, push the “Enter”
switch.

2. Turn on the ignition switch (without starting the

engine)

3. In the main menu of Diagnostic Tester, push “F1:

Service Programming System (SPS)”.

4. Push “F0: Request Info” of Tech-2.

5. Where vehicle data has been already saved in Tech

2, the existing data come on display. In this instance,
as Tech-2 starts asking whether to keep the data or
to continue obtaining anew data from the control
unit, choose either of them.
