Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 2031





3B-14  STEERING

1. Installation of Tester

Power Steering Tester : 5-8840-0135-0

(J-29877-A)

Adapter; Power Steering Tester :

5-8840-0136-0

(J-33996)

1

Oil Pressure Gauge with Shut off Valve

2

Shut off  Valve

3

Adapter (to steering unit)

4

Adapter (to oil pump)

Installation Procedure;

Disconnect the hose on the outlet side of the pump.
Connect the gauge hose closest to the power steering
gauge shut off valve to the hose on the vehicle.  Connect
the gauge hose furthest from the shut off valve to the
outlet side of the power steering pump.

2. Bleeding

Open stop valve fully.

Refer to air bleeding procedure.

3. Measurement of Fluid Pressure

Open stop valve fully.

Increase engine speed to 1500 rpm.

Measure the fluid pressure when the steering wheel is
turned to lock in both directions.

Fluid Pressure

kg/cm

2

 (psi/kPa)

95 - 100

(1351 - 1422/9316 - 9806) (C22, C20 Series Engine Model)

100 - 105

(1422 - 1493/9806 - 10297) (4J Series Engine Model)

Diagnosis:

(1) When pressure is higher than Specified pressure, the valve

within the oil pump is defective.

(2) When the pressure is lower than Specified pressure.

Return steering wheel to straight-ahead position.

Close stop valve completely.

Hold engine running at 1500 rpm, and take reading of
the pressure gauge.

Fluid Pressure

kg/cm

2

 (psi/kPa)

Possible trouble

95 - 100

(1351 -1422/9316 - 9806)

(C22, C20 Series Engine Model)

100 - 105

(1422 - 1493/9806 - 10297)

(4J Series Engine Model)

Lower than 95 (1351/9316)

(C22, C20 Series Engine Model)

Lower than 100 (1422/9806)

(4J Series Engine Model)

Oil pump

Steering unit

STEERING  3B-15

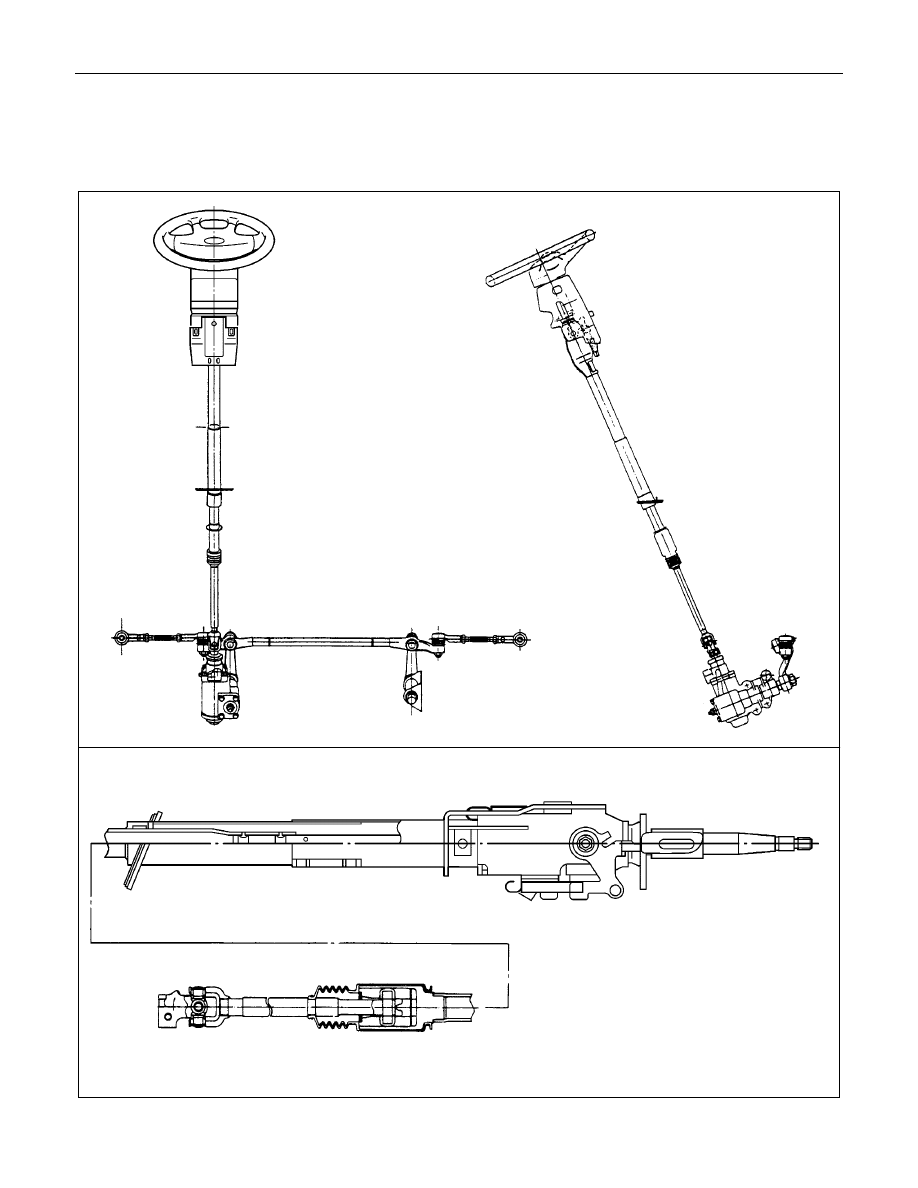

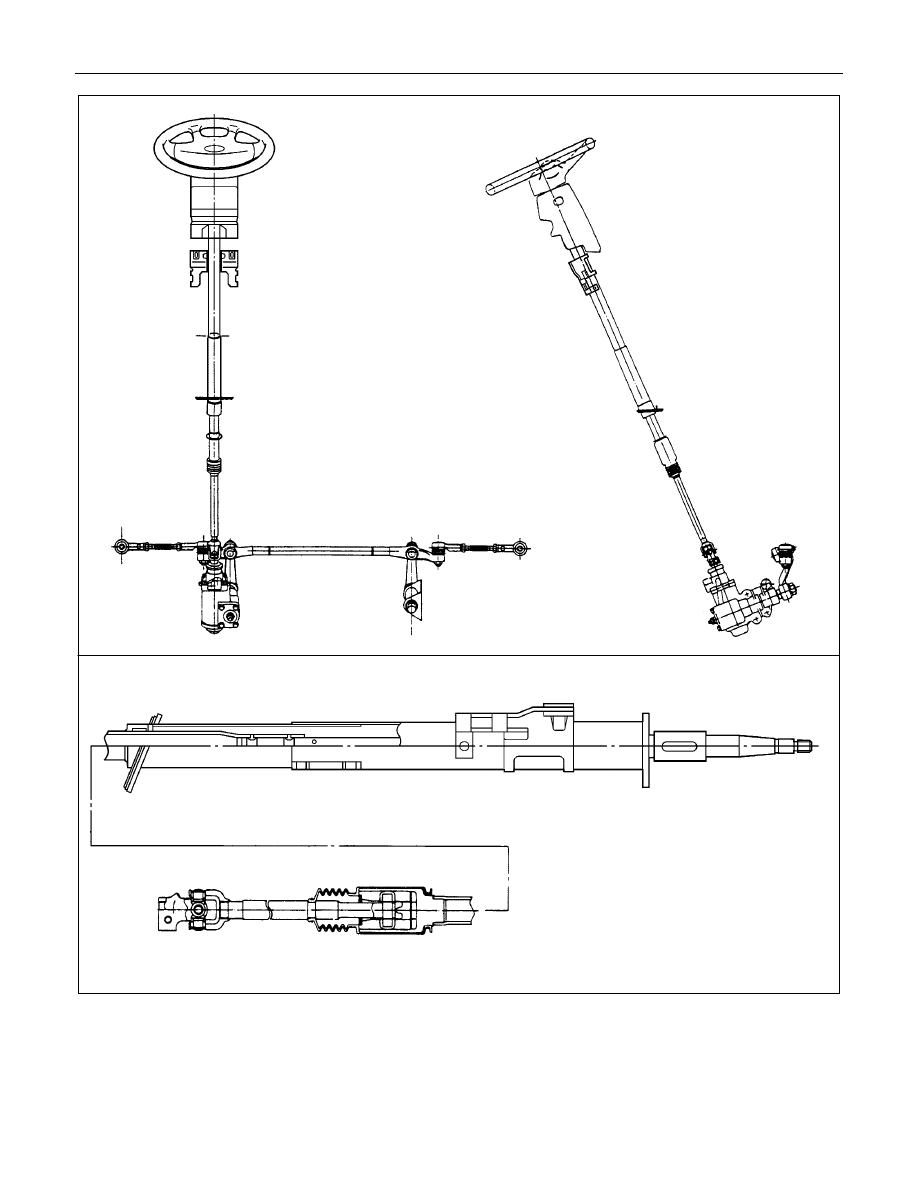

STEERING MECHANISM

GENERAL DESCRIPTION

STEERING MECHANISM

3B-16  STEERING

The steering mechanism comprises a steering wheel, steering column, steering shaft, steering unit, and steering
linkage.
The steering shaft is equipped with slid joints to prevent vehicle vibration from transferring to the steering wheel.

STEERING  3B-17

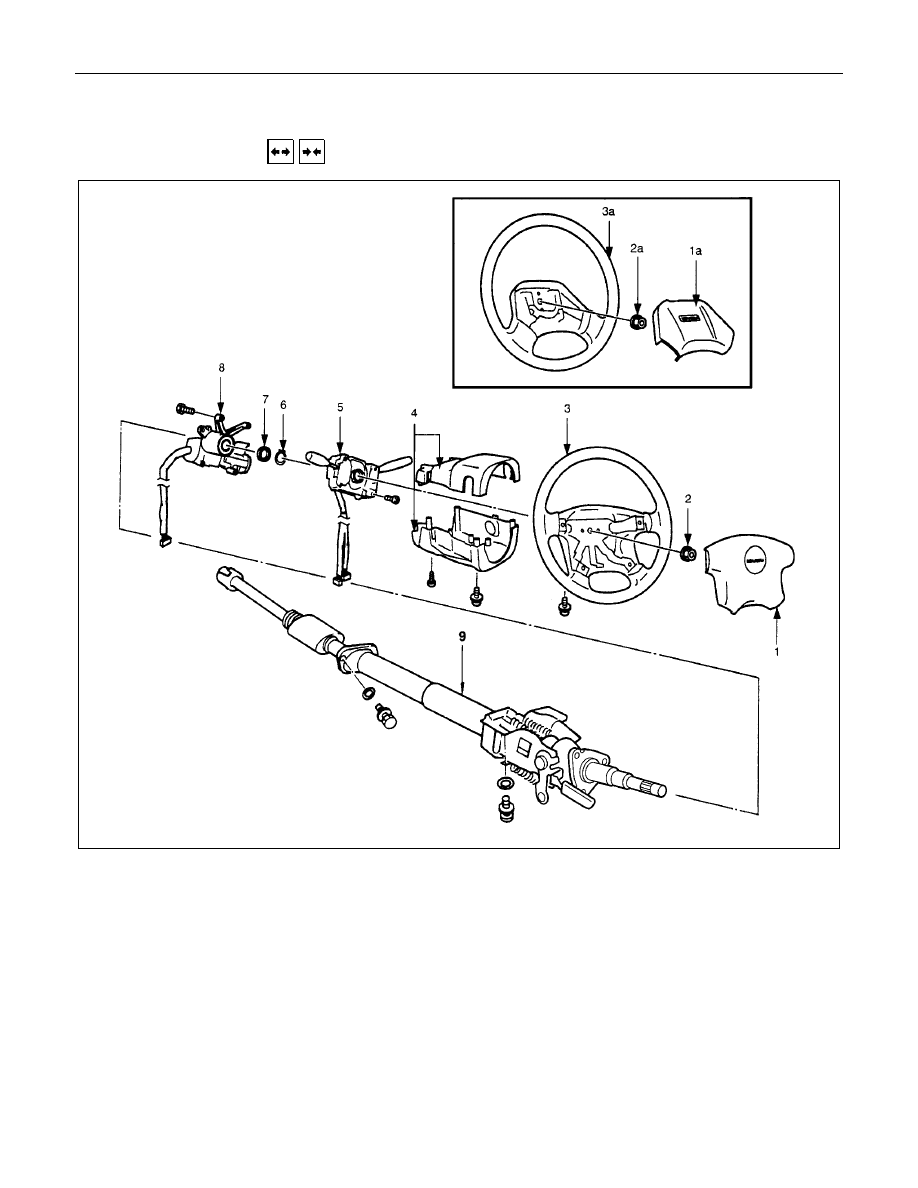

STEERING COLUMN



  REMOVAL AND INSTALLATION

Removal Steps

V

1., 1a. Horn shroud
2., 2a. Nut

V

3., 3a.Steering wheel
4. Steering cowl
5. Combination switch
6. Snap ring
7. Bushing

V

8. Steering lock and bearing

V

9. Steering column assembly

Installation Steps

V

9. Steering column assembly

V

8. Steering lock and bearing
7. Bushing
6. Snap ring
5. Combination switch
4. Steering cowl

V

3., 3a. Steering wheel

V

2., 2a. Nut

V

1., 1a. Horn shroud
