WHEELS AND TIRES  3E-13

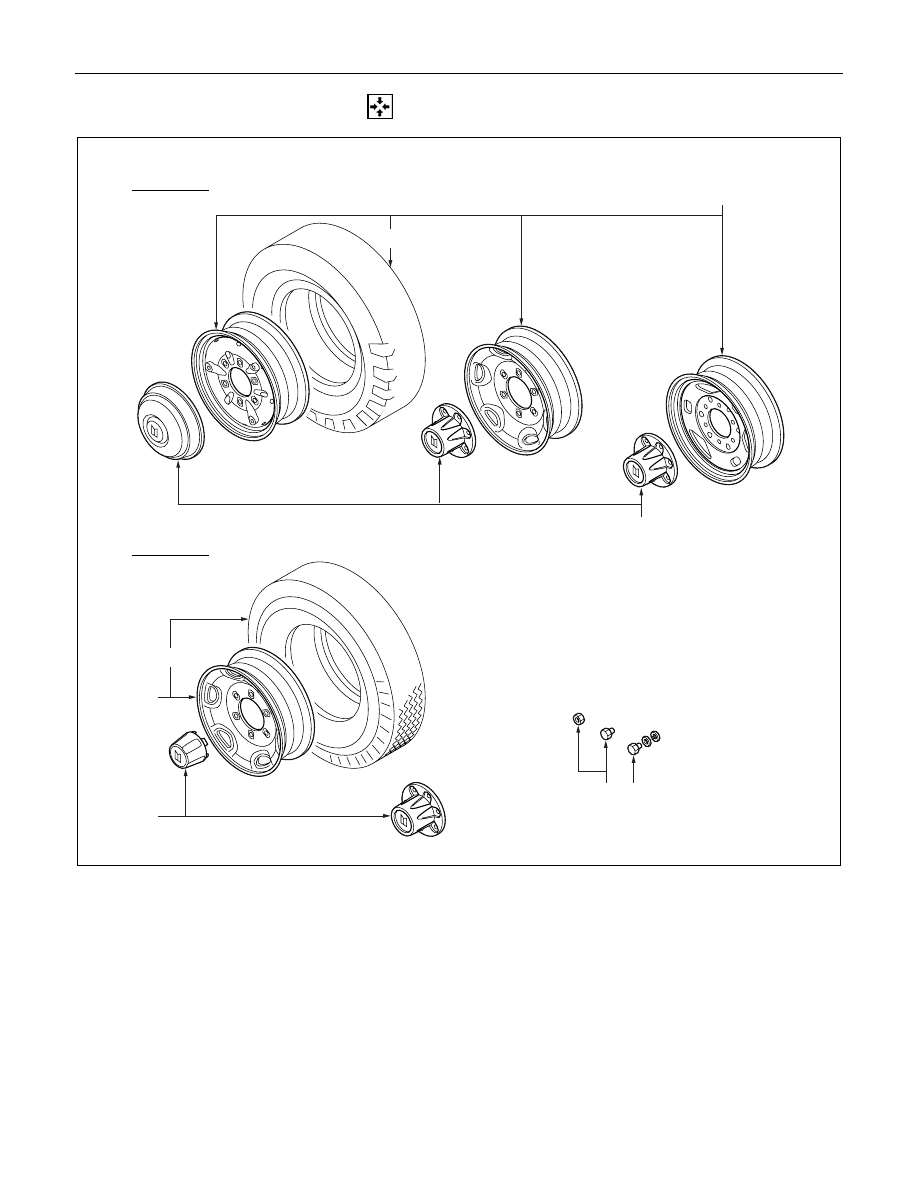

  DISASSEMBLY

C22, C20 Series Engine Model

4 x 4 model

4 x 2 model

1

3

2

1a

2a

4

3a

4a

3E-14  WHEELS AND TIRES

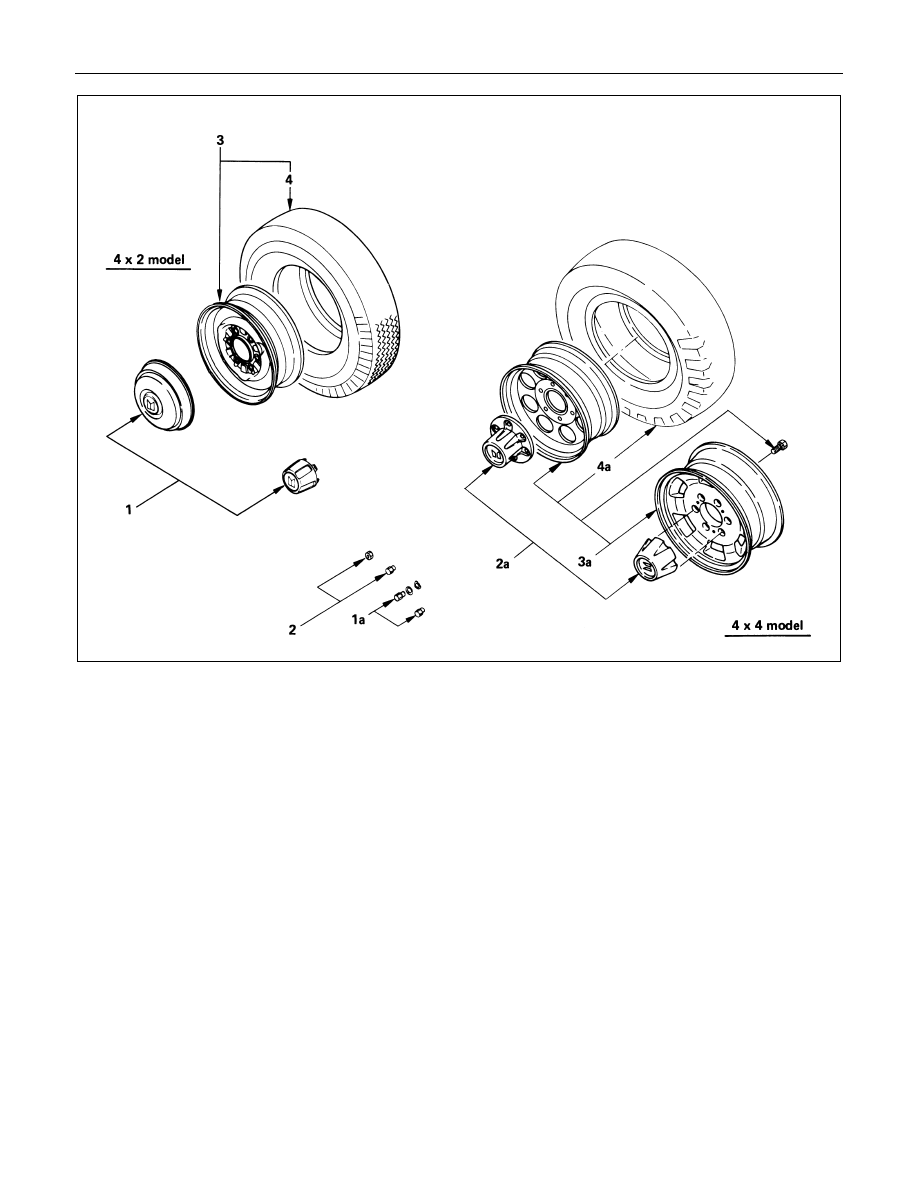

4J Series, 6VD1 Engine Model

Disassembly Steps

(for 4

×××× 2 model)

1. Wheel cap
2. Wheel nut
3. Wheel and tire assembly
4. Tire assembly

(for 4

×××× 4 model)

1a. Wheel nut
2a. Center cap
3a. Wheel and tire assembly
4a. Tire assembly

WHEELS AND TIRES  3E-15

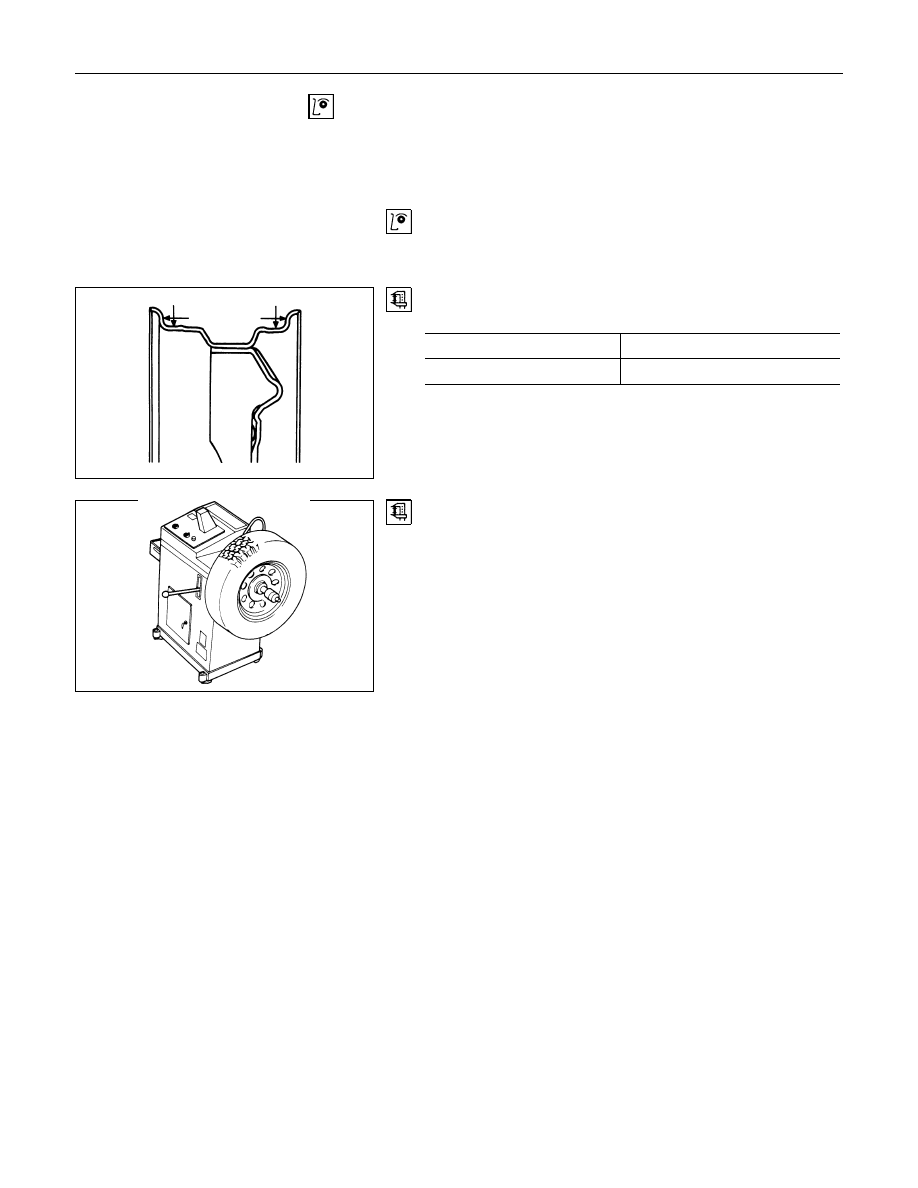

  INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.

Visual Check

Inspect all disassembled parts for wear, damage or other
abnormal conditions.

Measure Wheel Runout

mm(in)

14 inch

Less than 1.2 (0.047)

15 inch, 16inch

Less than 1.5 (0.059)

If the measured value exceed the specified limit, the wheel
must be replaced.

Measure Wheel Unbalance

Using a wheel balancing equipment.
Install on the side rim of the wheel a balance weight to offset
unbalance.
Balance weight for the wheel should not exceed 170g in total,
and 140g is the maximum amount for either side.

3E-16  WHEELS AND TIRES

  REASSEMBLY

C22, C20 Series Engine Model

4 x 4 model

4 x 2 model

4

2

3

4a

3a

1

2a

1a
