WHEELS AND TIRES  3E-9

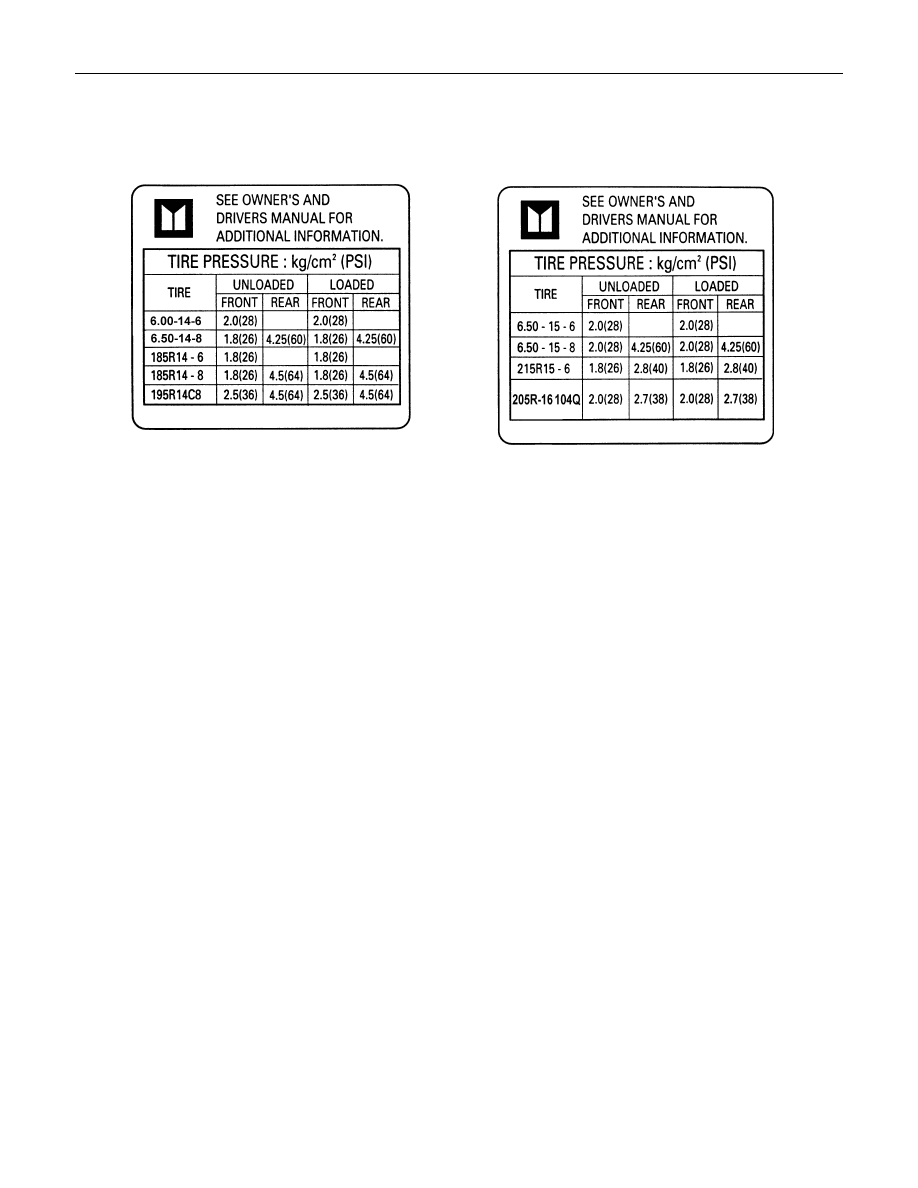

TIRE PRESSURE LABEL (LOCATION : DRIVERS DOOR OR FRAME OF DRIVERS DOOR)
C22, C20 Series Engine Model

2WD

4WD

Note :
•••• The air pressure of the  tire  should  be  maintained  as  indicated  in  the  label  instruction  on  the  driver's

door or frame of driver's door.

Lower pressure can cause burst and adverse vehicle handling.

On the other hand, higher pressure can cause shock-burst and reduce gripping effect.

3E-10  WHEELS AND TIRES

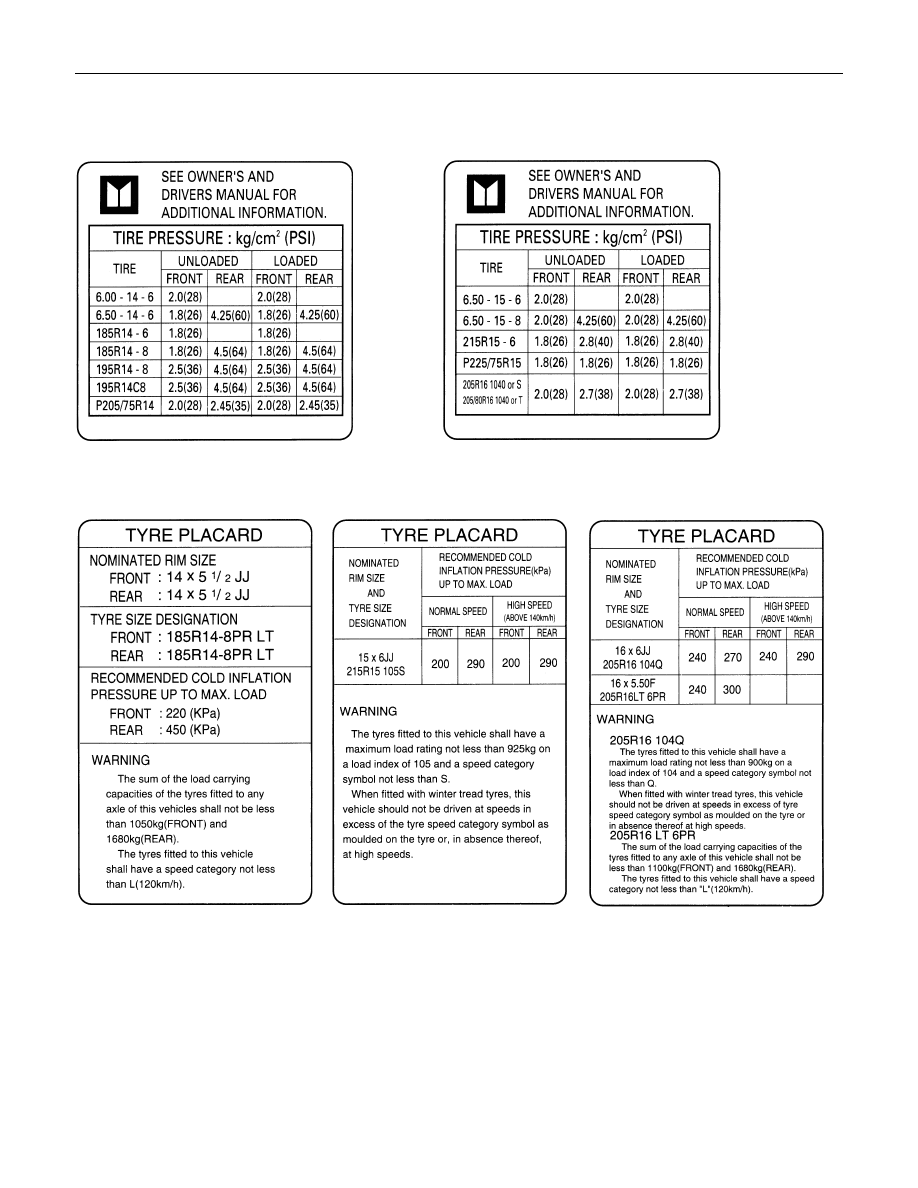

4J Series, 6VD1 Engine Model

2WD (except TFR25)

4WD and TFR25

For Australia (2WD)

For Australia (4WD)

Note :
•••• The air pressure of the  tire  should  be  maintained  as  indicated  in  the  label  instruction  on  the  driver's

door or frame of driver's door.

Lower pressure can cause burst and adverse vehicle handling.

On the other hand, higher pressure can cause shock-burst and reduce gripping effect.

WHEELS AND TIRES  3E-11

SERVICING

Servicing refers to general maintenance procedures to be performed by qualified service personnel.

WHEEL NUT TORQUES

Wheel Nut Torque

N

⋅m(kgf⋅m/lb⋅ft)

117.7

± 9.8 (12.0 ± 1.0 / 86.8 ± 7.2)

TIRE ROTATION

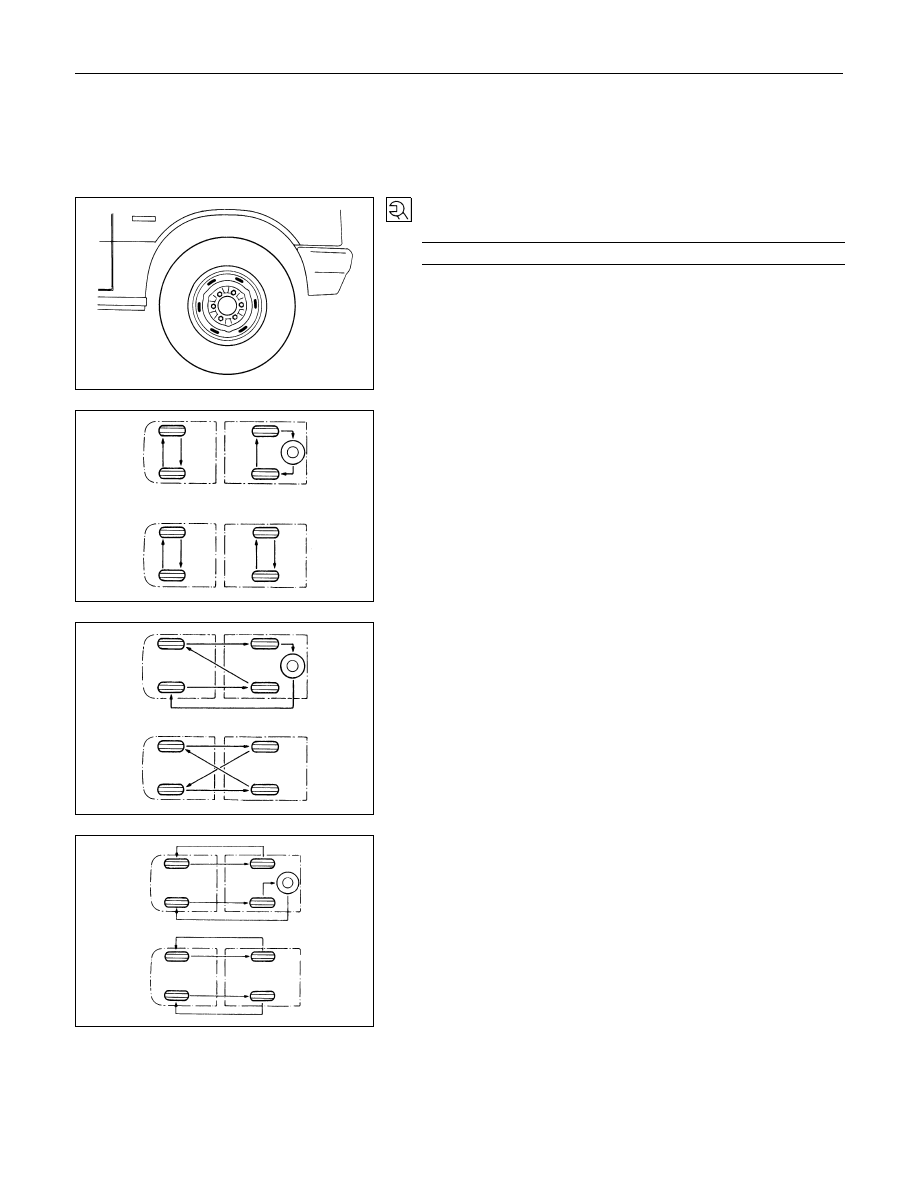

When the front tire size and the rear size are different,
interchange front wheels and rotate the rear wheels as shown
in the figure.

When the front and rear tires are the same size, rotate the
wheels as shown in the figure.

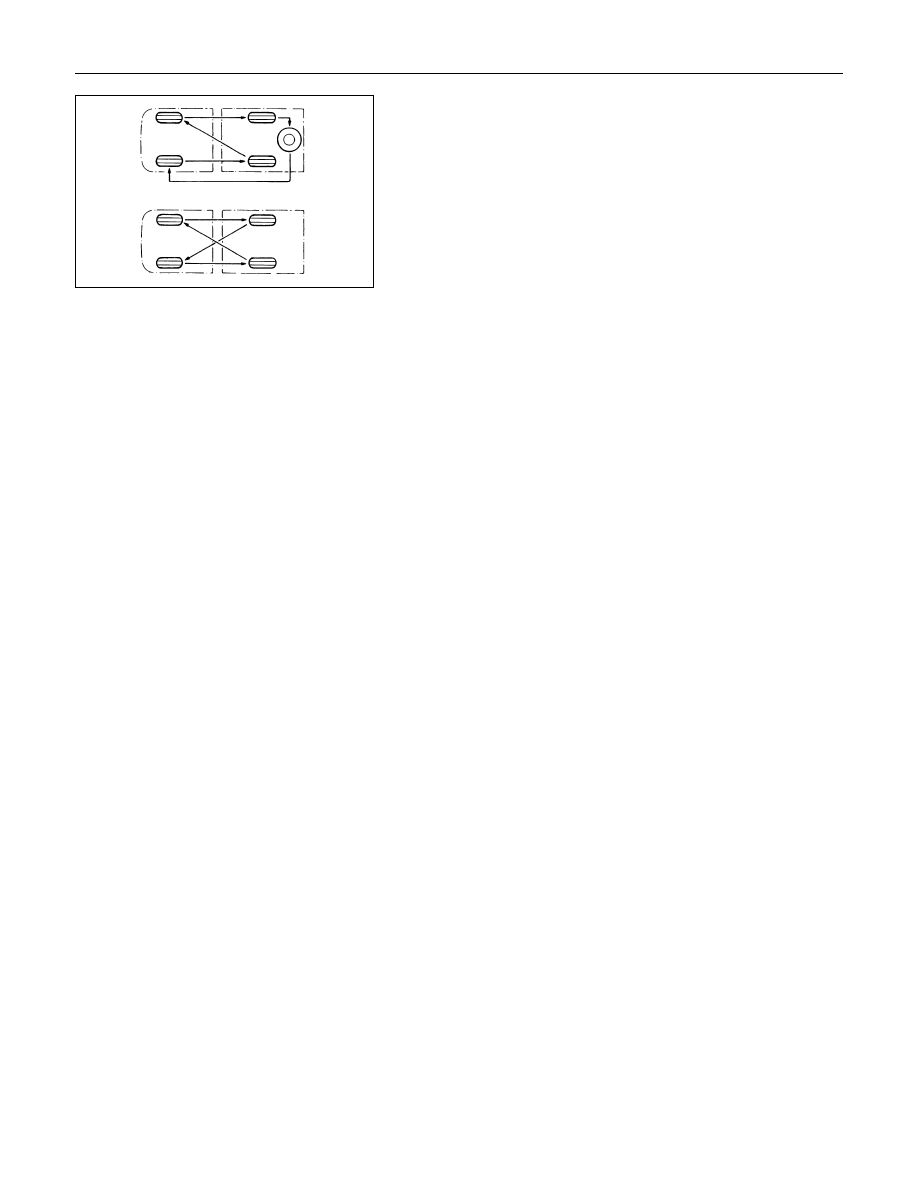

For of radial tires, interchange the front and the rear wheels on
the same side as shown in the figure.

3E-12  WHEELS AND TIRES

If one-sided tire wear appears on radial tires, rotate the wheels
as shown in the figure.
Note:
After rotation, adjust the front and rear tire pressure and
be sure to check wheel nut tightness.
