STEERING  3B-15

STEERING MECHANISM

GENERAL DESCRIPTION

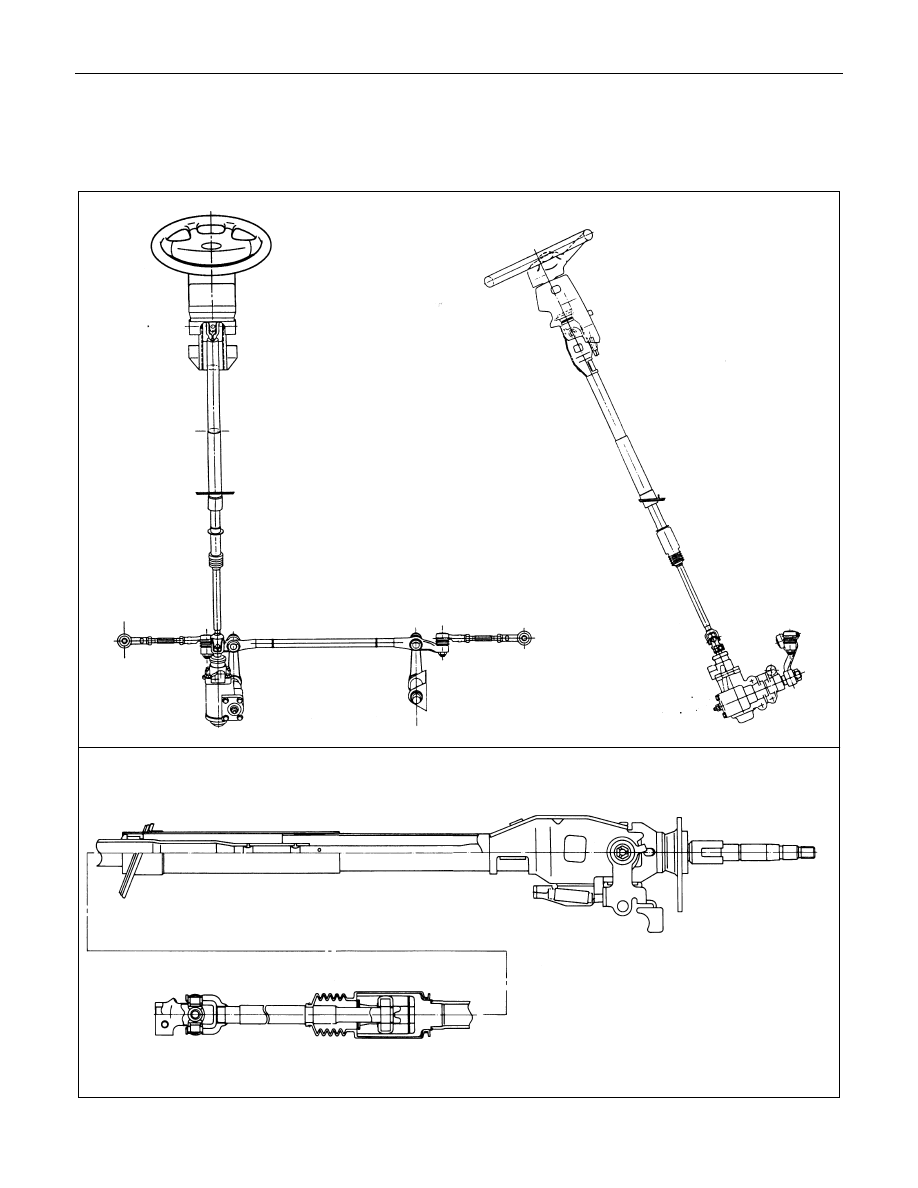

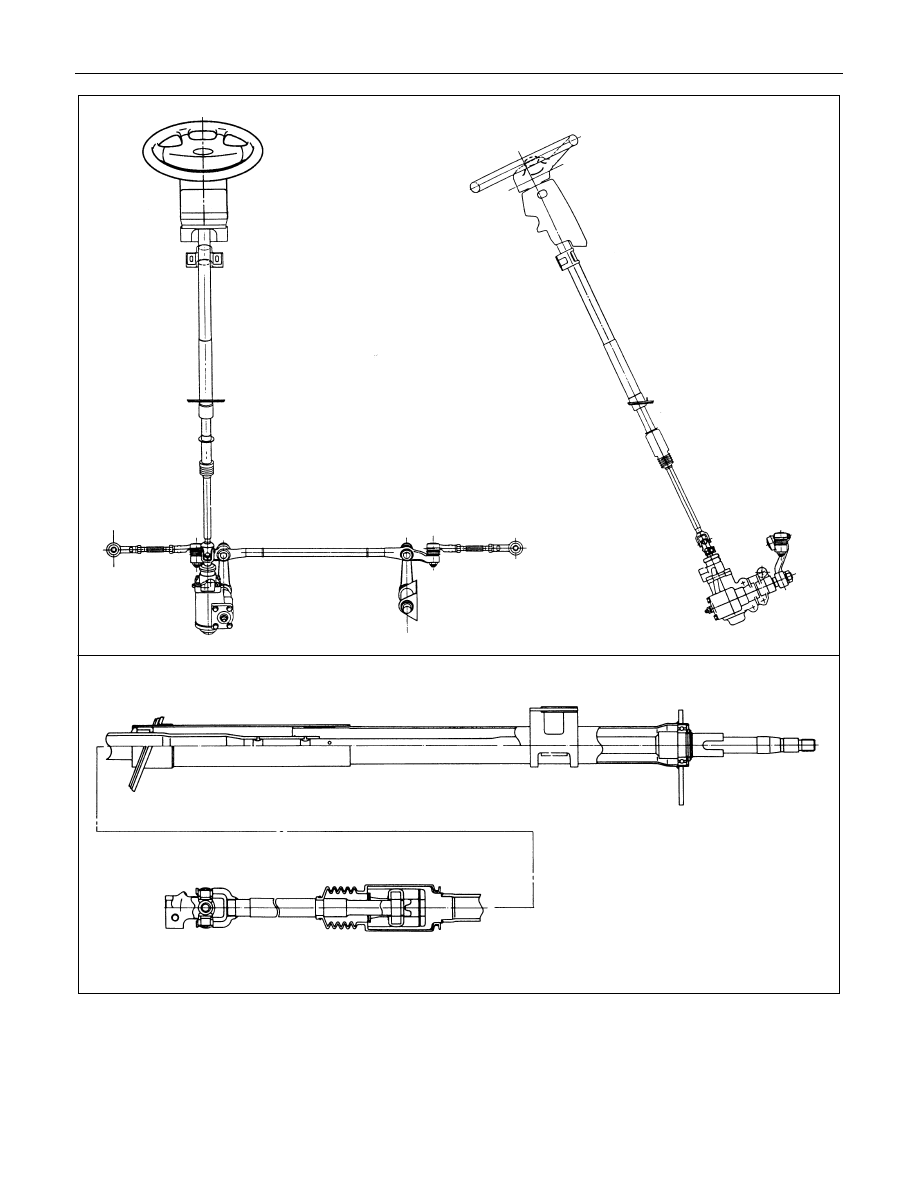

STEERING MECHANISM

3B-16  STEERING

The steering mechanism comprises a steering wheel, steering column, steering shaft, steering unit, and steering
linkage.
The steering shaft is equipped with slid joints to prevent vehicle vibration from transferring to the steering wheel.

STEERING  3B-17

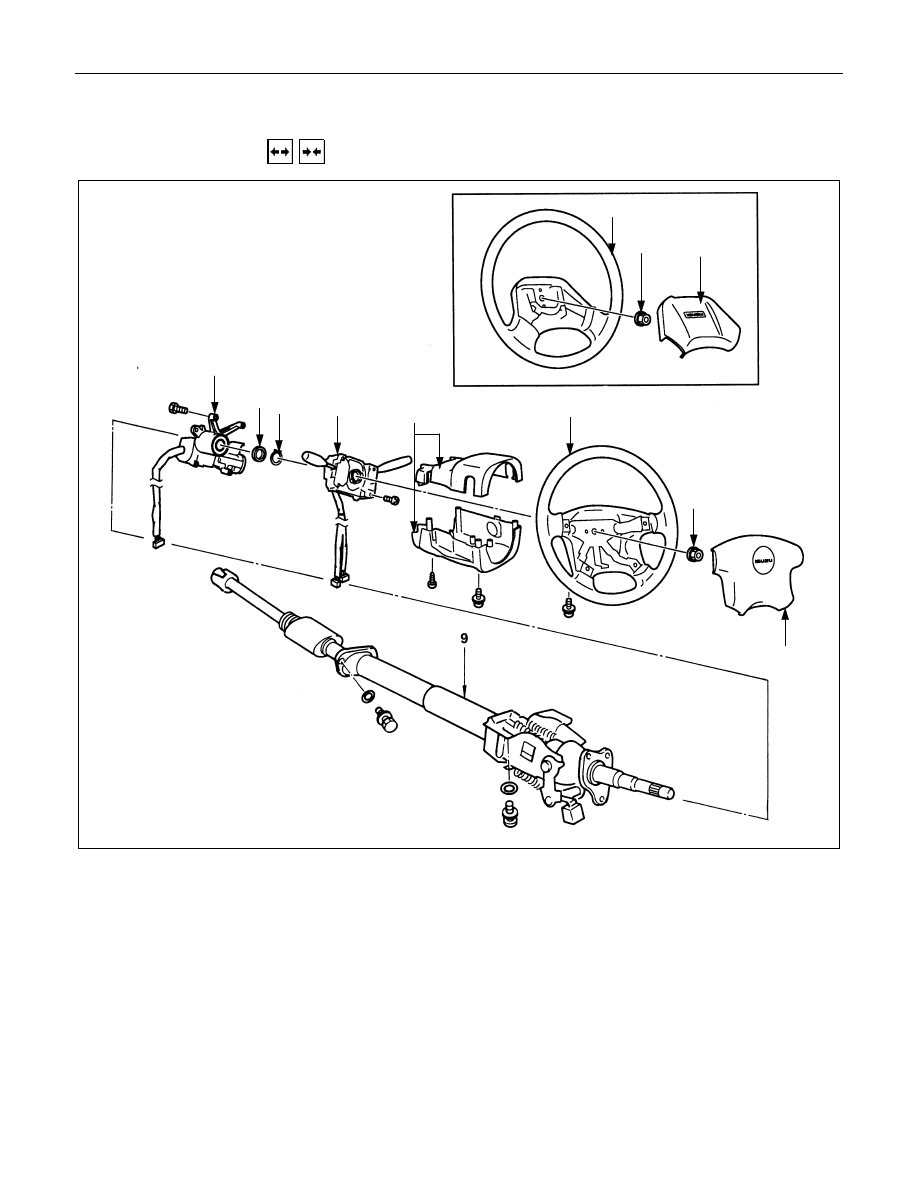

STEERING COLUMN



  REMOVAL AND INSTALLATION

8

3a

2a

1a

7

6

5

4

3

2

1

Removal Steps

! 1., 1a. Horn shroud

2., 2a. Nut

! 3., 3a.Steering wheel

4. Steering cowl
5. Combination switch
6. Snap ring
7. Bushing

! 8. Steering lock and bearing
! 9. Steering column assembly

Installation Steps

! 9. Steering column assembly
! 8. Steering lock and bearing

7. Bushing
6. Snap ring
5. Combination switch
4. Steering cowl

! 3., 3a. Steering wheel
! 2., 2a. Nut
! 1., 1a. Horn shroud

3B-18  STEERING

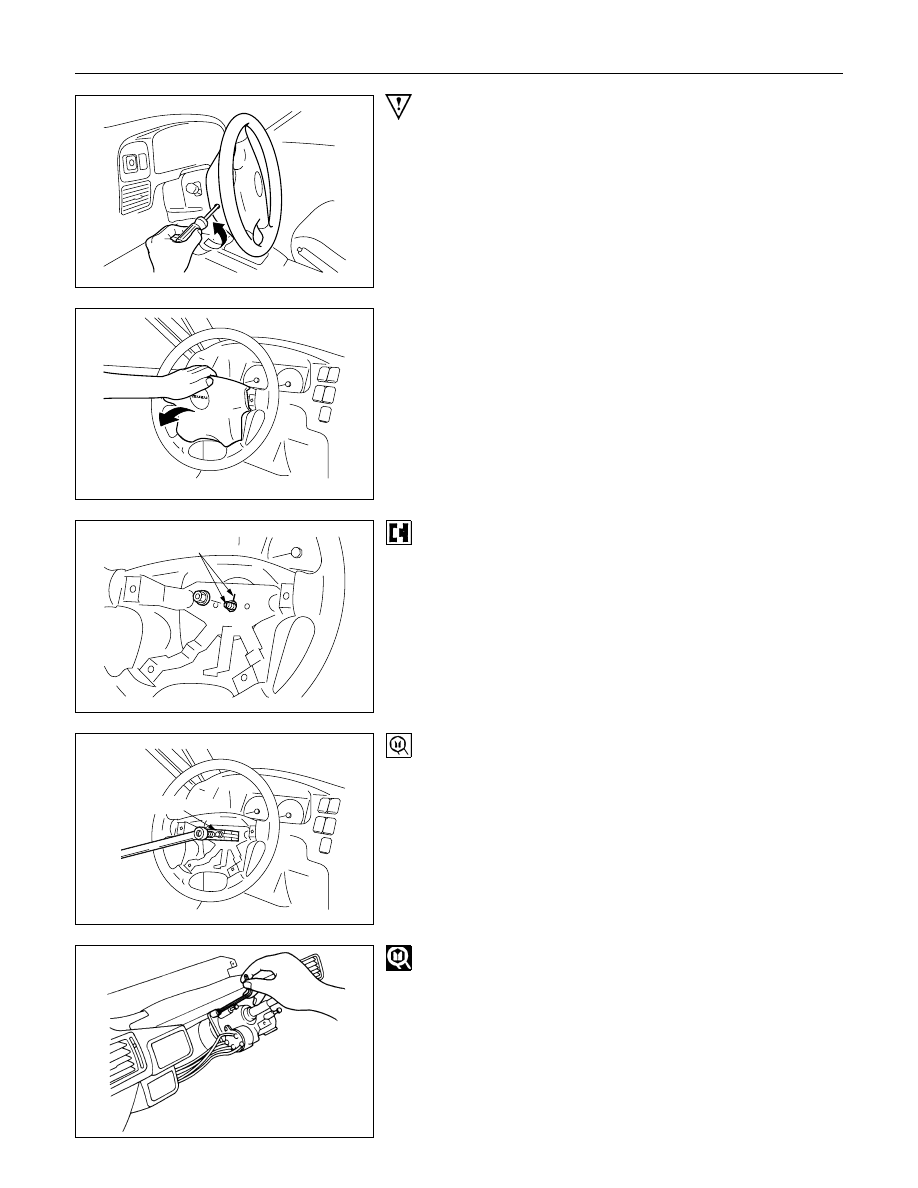

Important Operations - Removal

1., 1a. Horn Shroud

(1) Remove the arrowed screw at the rear  side  of  the  steering

wheel.

(2) Pull  up  the  pad  along  the  direction  shown  in  the  left  figure

and remove from the steering wheel.

Setting mark

3., 3a. Steering Wheel

(1) Apply a setting mark across the steering wheel and shaft so

parts can be reassembled in their original position.

5-8521-0016-0

(2) Steering Wheel Puller : 5-8521-0016-0

(J-29752)

Note :
Never apply blow to the setting wheel in direction of the
shaft by using a hammer or other impact tools in an
attempt to remove the steering wheel, the setting shaft is
designed as an energy absorbing unit.

8. Steering Lock and Bearing
Remove the steering lock assembly using the inner hex
wrench.
