STEERING  3B-7

POWER STEERING HYDRAULIC LINE

N

⋅m (kgf⋅m/Ib⋅ft)

C22, C20 Series Engine Model

This illustration is based on the LHD model.

19.6 3.9 (2.0 0.4/14.5 2.9)

37.3 8.8 (3.8 0.9/27.5 6.9)

44.1 4.9 (4.5 0.5/32.5 3.6)

78.5 9.8

(8.0 0.1/57.9 7.2)

44.1 4.9

(4.5 0.5/32.5 3.6)

3B-8  STEERING

N

⋅m (kgf⋅m/Ib⋅ft)

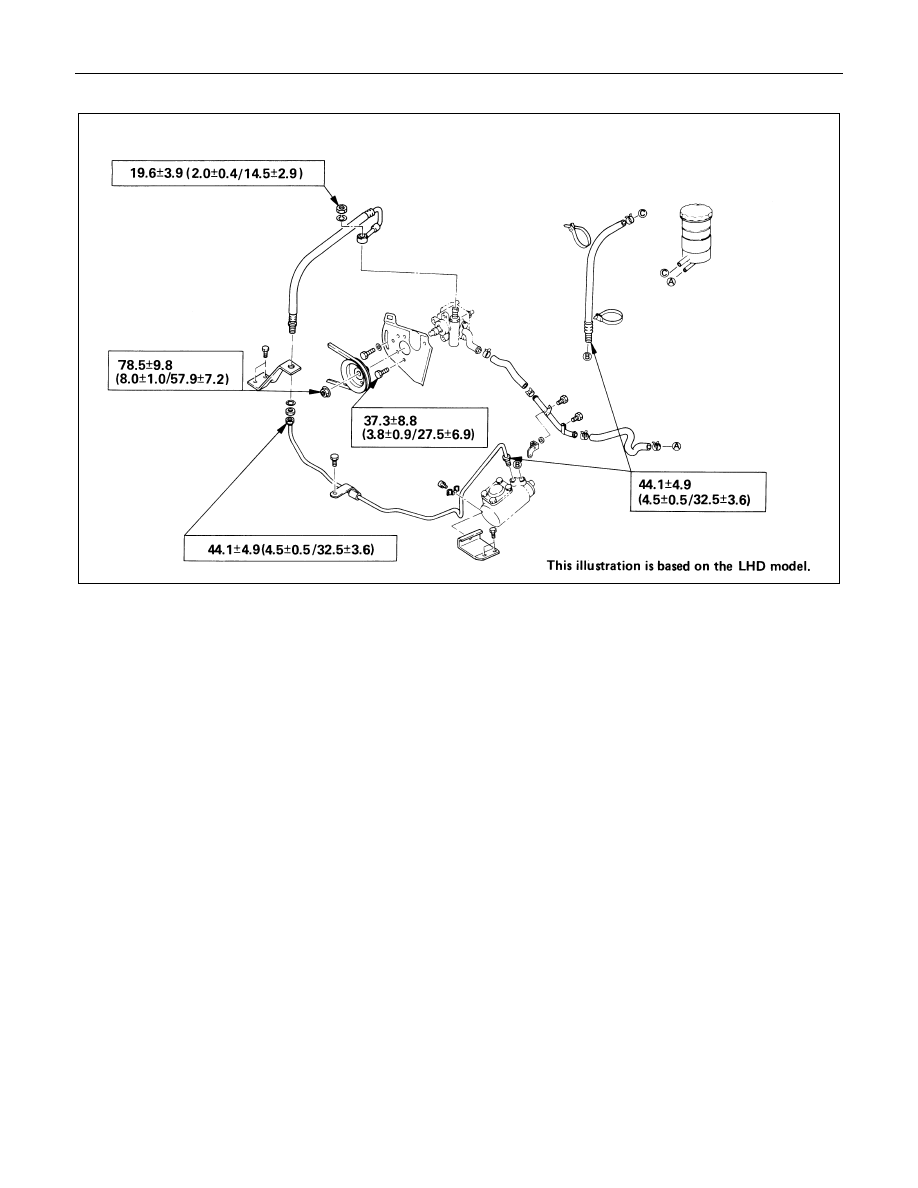

4J Series Engine Model

STEERING  3B-9

STEERING LINKAGE

N

⋅m (kgf⋅m/Ib⋅ft)

117.7

±9.8 (12.0±1.0/86.8±7.2)

98.1

±9.8

(10.0

±1.0/72.3±7.2)

58.8

±7.8 (6.0±1.0/43.4±7.2)

215.8

±19.6 (22±2/159.1±14.5)

98.1

±9.8 (10.0±1.0/72.3±7.2)

98.1

±9.8 (10.0±1.0/72.3±7.2)

117.7

±19.6 (12±2/86.8±14.5)

98.1

±9.8 (10.0±1.0/72.3±7.2)

44.7

±4.9 (4.5±0.5/32.5±3.6)

98.1

±9.8 (10.0±1.0/72.3±7.2)

3B-10  STEERING

SERVICING

C22, C20 Series Engine Model

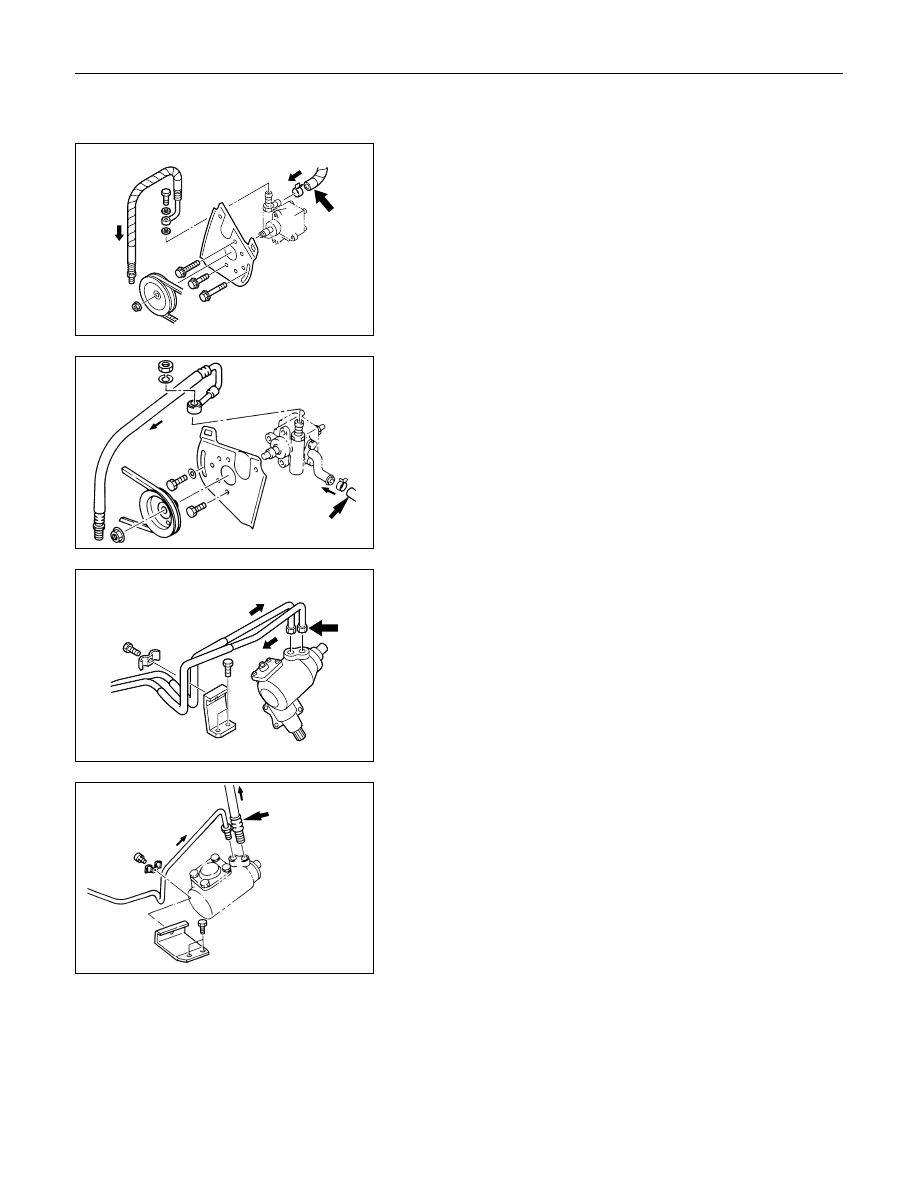

POWER STEERING FLUID
Draining

1. Jack up the front wheels until they are clear of the ground.

2. Disconnect the fluid pipes between the steering unit and the

fluid reservoir, and the fluid hose between the pump and the

fluid reservoir.

3. When  draining  is  completed,  remove  remaining  fluid  within

hydraulic  system  by  turning  the  steering  wheel  to  stop  in

both directions several times.

4J Series Engine Model

C22, C20 Series Engine Model

4J Series Engine Model
