4C2-28  FRONT DRIVING AXLE

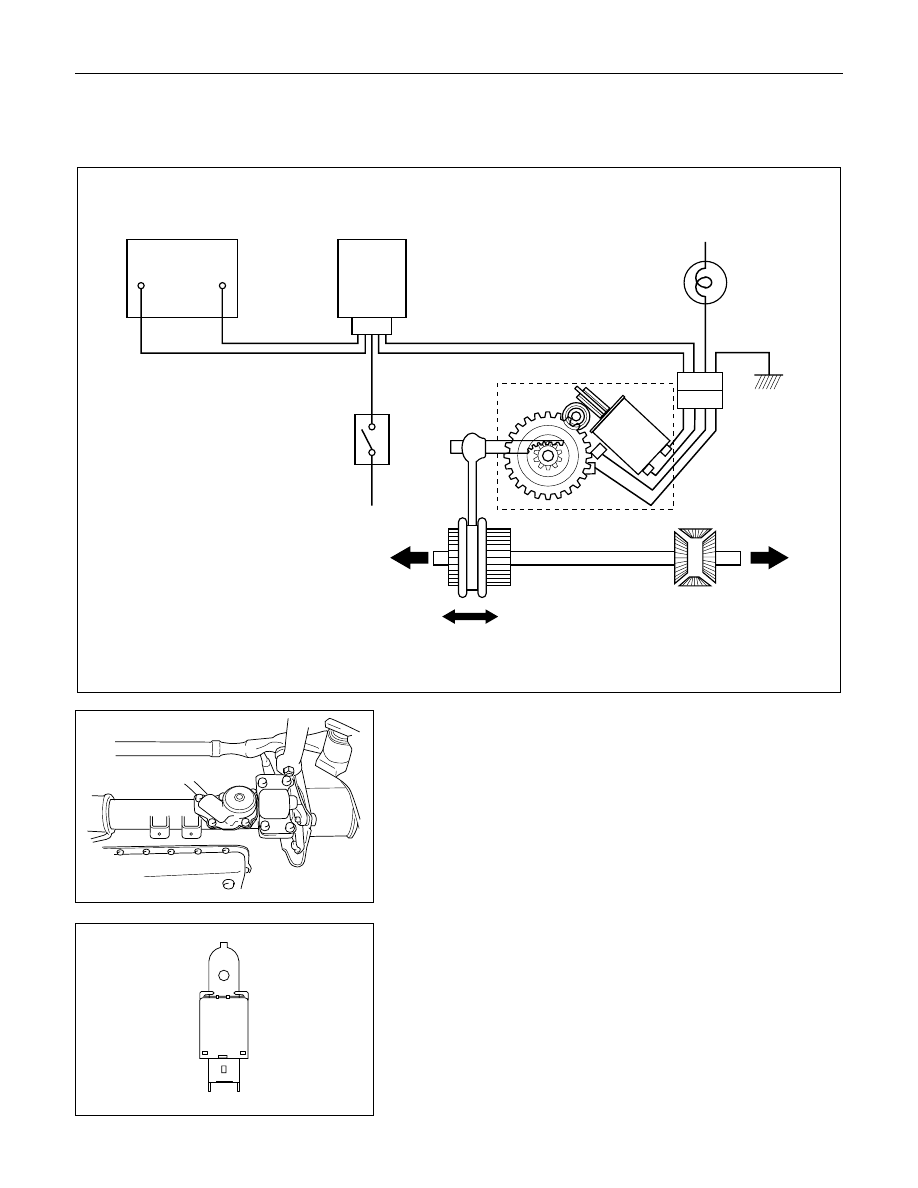

SHIFT ON THE FLY SYSTEM ELECTRIC EQUIPMENT

DIAGRAM

LH

RH

Battery

Axle Disconnect
Controller

4WD
Indicator

Axle Motor
Actuator

4x4

4WD

SW

4x2

ACTUATOR ASSEMBLY

Axle Disconnect Controller

FRONT DRIVING AXLE  4C2-29

2

6 5

4 3

1

Terminal Arrangement
of Connector

Out signal

Input signal

GND

12V

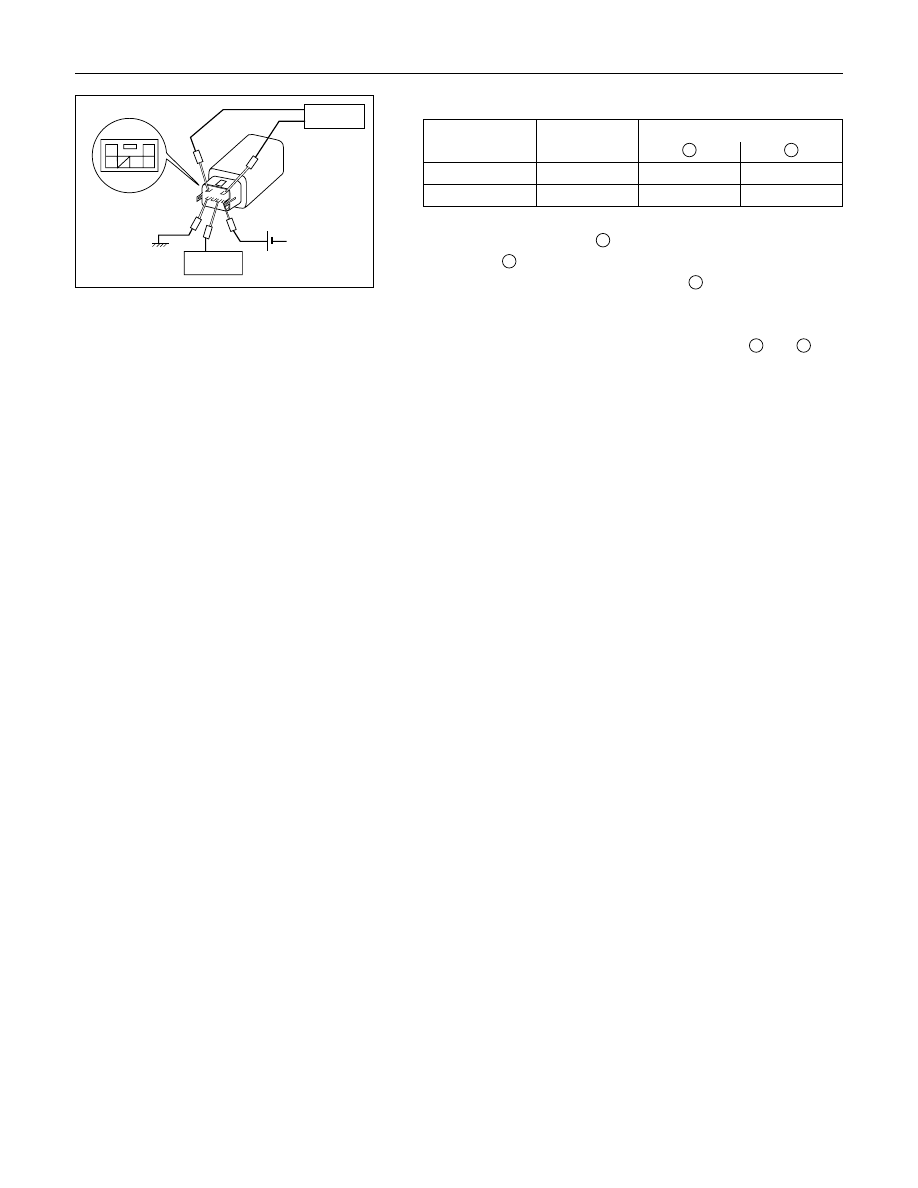

Checking procedure for the controller’s trouble.

Input signal

1

2

2WD

→4WD

Hi

0V

12V

4WD

→2WD

Lo

12V

0V

Output signal

1. Connect  the  terminal

3

  to  the  12V  pin,  and  connect  the

terminal

6

 to the ground (GND).

2. Apply the input signal to the terminal

4

.

2WD

→4WD

More than 9.0V

4WD

→2WD

Less than 1.5V

3. Make sure the output signal from the terminal

1

 and

2

.

(The output signal is outputted for 2 seconds.)
