4C2-8  SERVICE INFORMATION

Shift On The Fly System

N

⋅⋅⋅⋅m (kg⋅⋅⋅⋅m/lb⋅⋅⋅⋅ft)

SERVICE INFORMATION  4C2-9

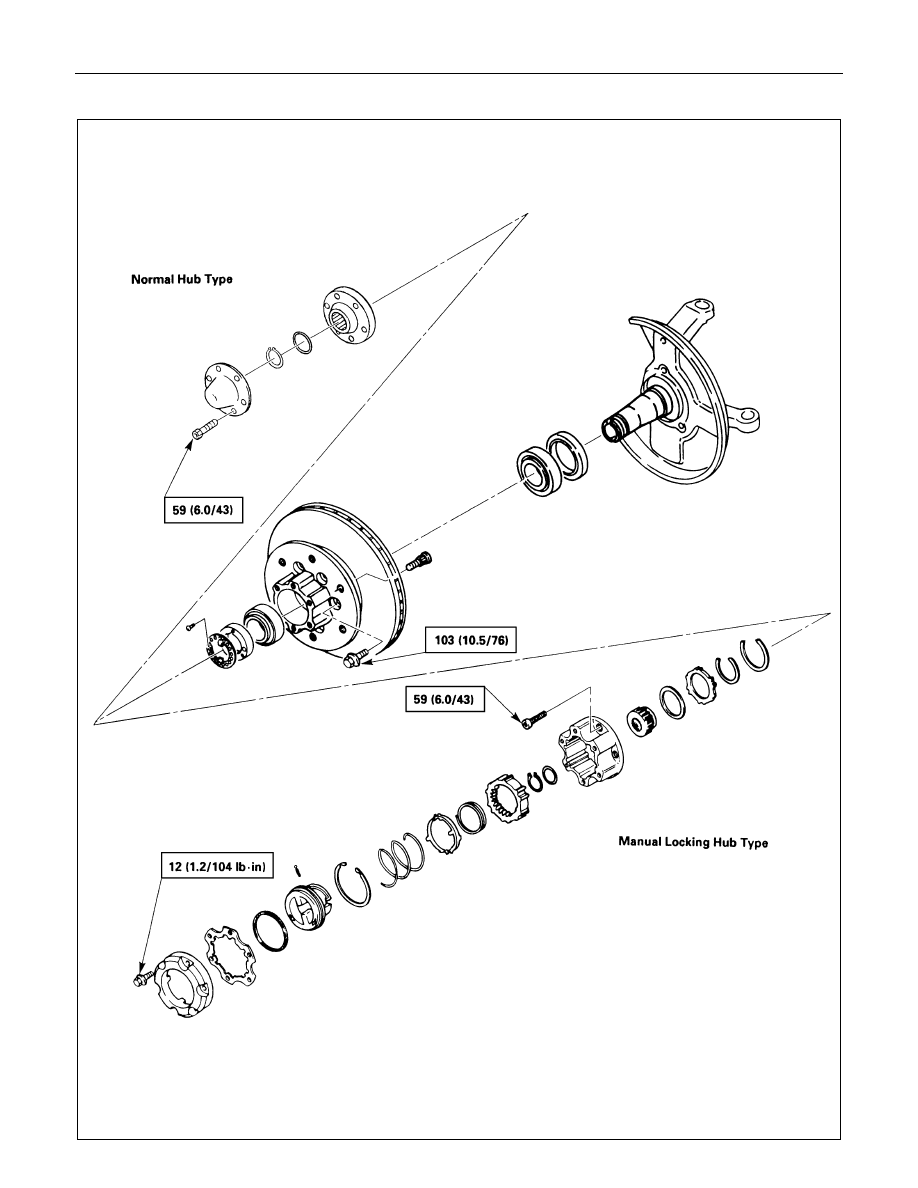

Fixing Torque

N

⋅⋅⋅⋅

m (kg

⋅⋅⋅⋅

m/lb

⋅⋅⋅⋅

ft)

4C2-10  SERVICE INFORMATION

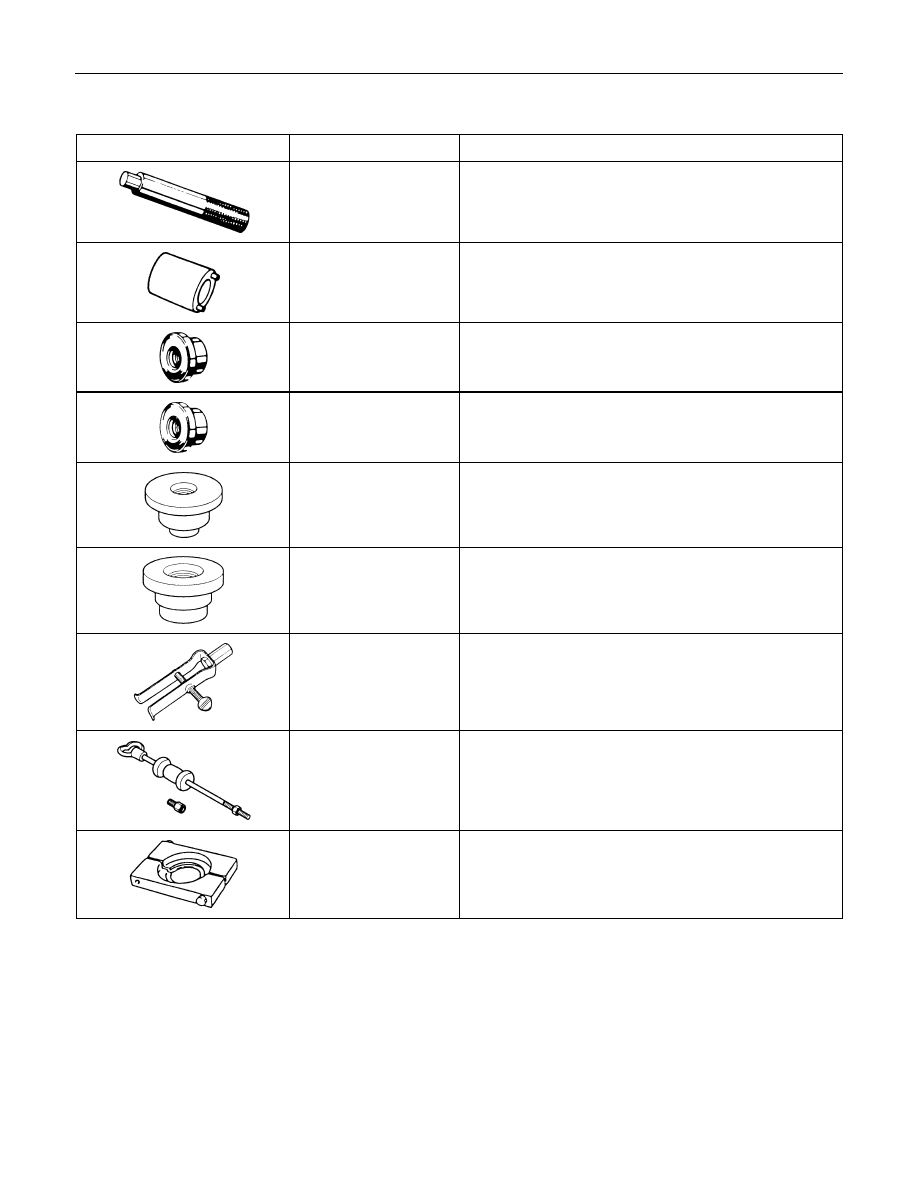

SPECIAL TOOLS

ILLUSTRATION

PARTS NO.PARTS NAME

5-8840-0007-0

(J-8092)

Grip

5-8840-2117-0

(J-36827)

Wrench: Hub nut

5-8840-2119-0

(J-36829)

Installer: Inner bearing outer race

5-8522-0054-0

(J-29015)

Installer: Outer bearing outer race

5-8840-2407-0

(J-41693)

Installer: Oil seal

5-8840-2408-0

(J-41694)

Installer: Bearing needle

5-8840-0027-0

(J-26941)

Remover: Bearing needle

5-8840-0084-0

(J-2619-01)

Hammer: Sliding

5-8840-2197-0

(J-37452)

Remover: Bearing inner shaft

FRONT DRIVING AXLE  4C2-11

UNIT REPAIR

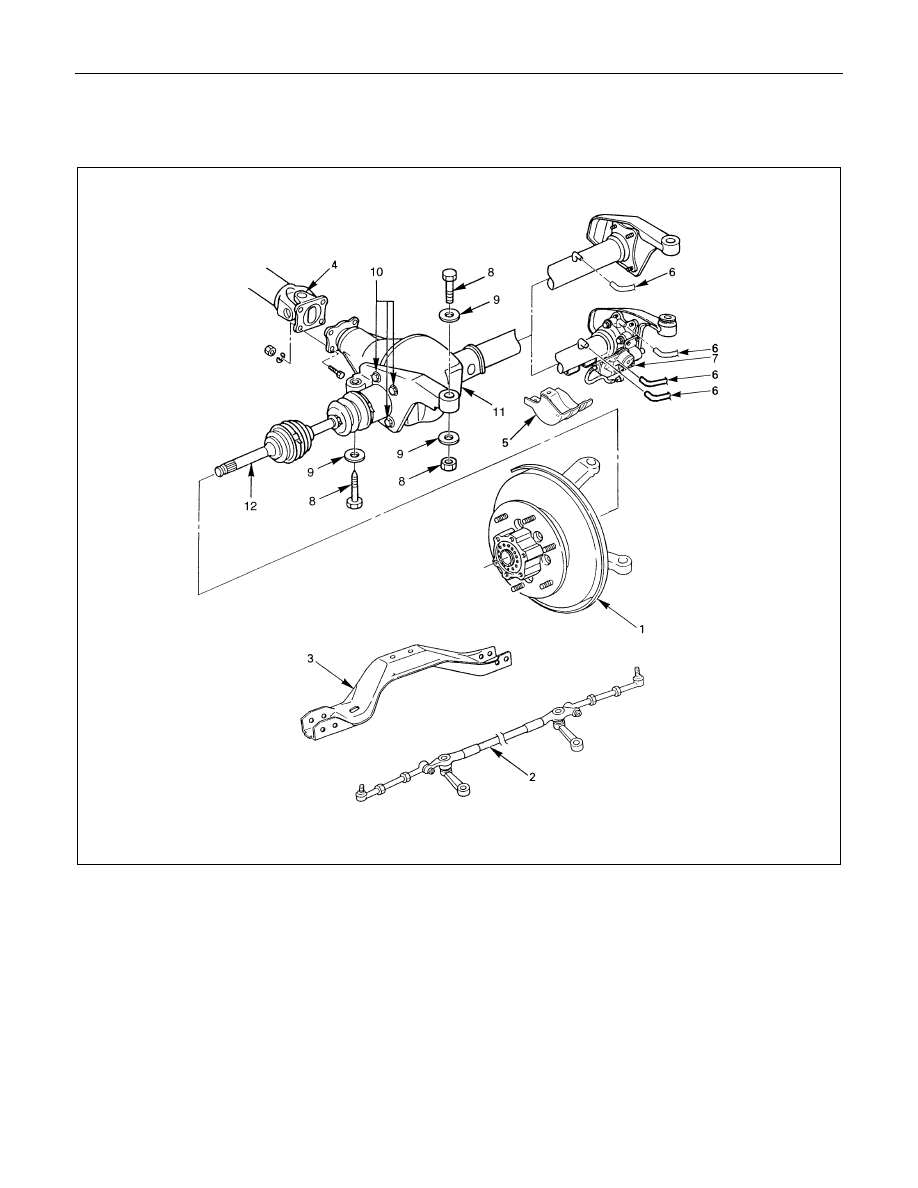

FRONT DRIVE AXLE ASSEMBLY

Disassembly Steps

1. Hub assembly (Disc, back plate and knuckle)

2. Steering link and arm assembly

3. Suspension crossmember

4. Propeller shaft

5. Protector (w/shift on the fly system)

6. Breather hose

7. Actuator connector (w/shift on the fly system)

8. Mounting bolt and nut

9. Washer and spacer

10.Bolt

11.Front  axle  case  assembly  and  front  drive  shaft

assembly (LH side)

12.Front drive shaft assembly (RH side)

Reassembly Steps

To reassemble, follow the disassembly steps in the
reverse order.
