MUA MODEL  7B1 – 57

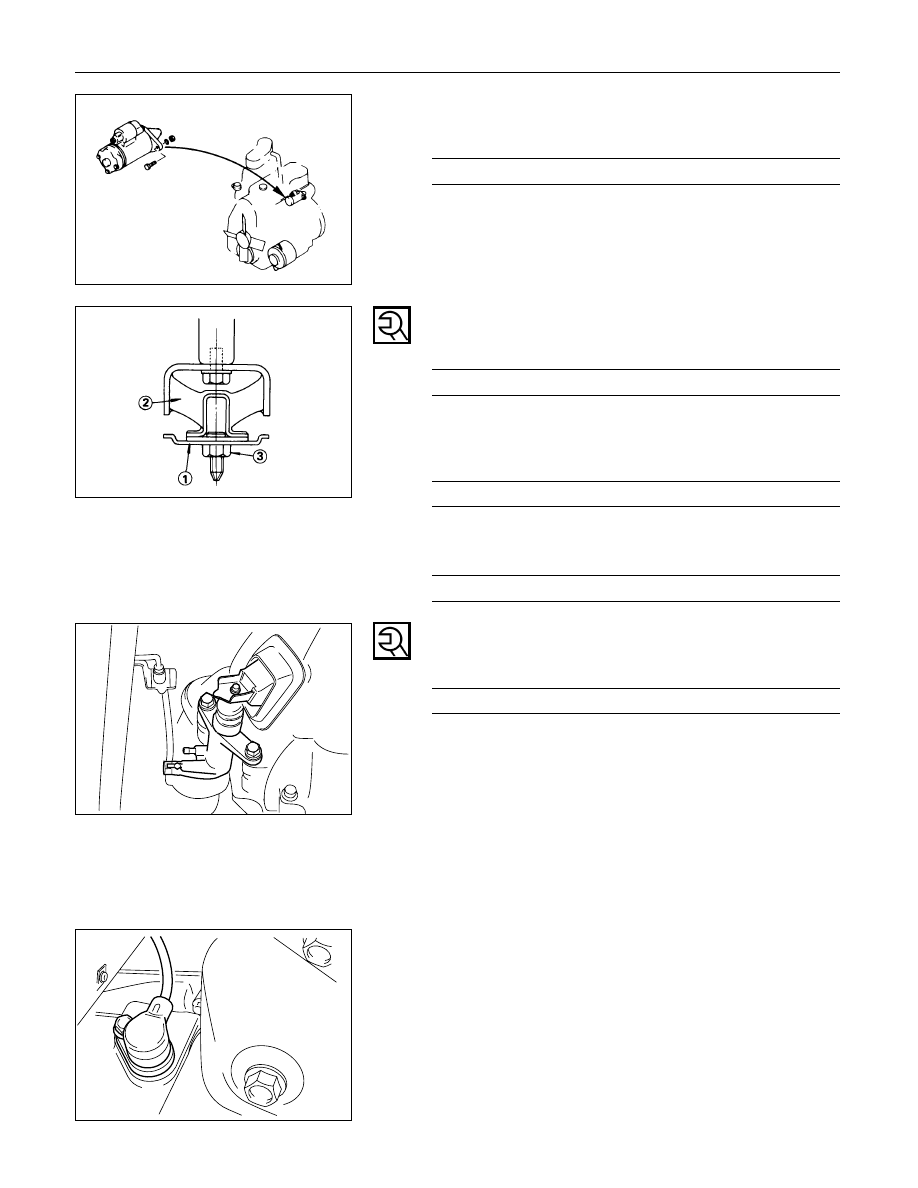

Starter Motor

1. Install the starter motor to the engine rear plate.

Starter Motor Bolt Torque

kg·m (lb·ft/N·m)

8.0 ± 1.6 (58 ± 12/78 ± 16)

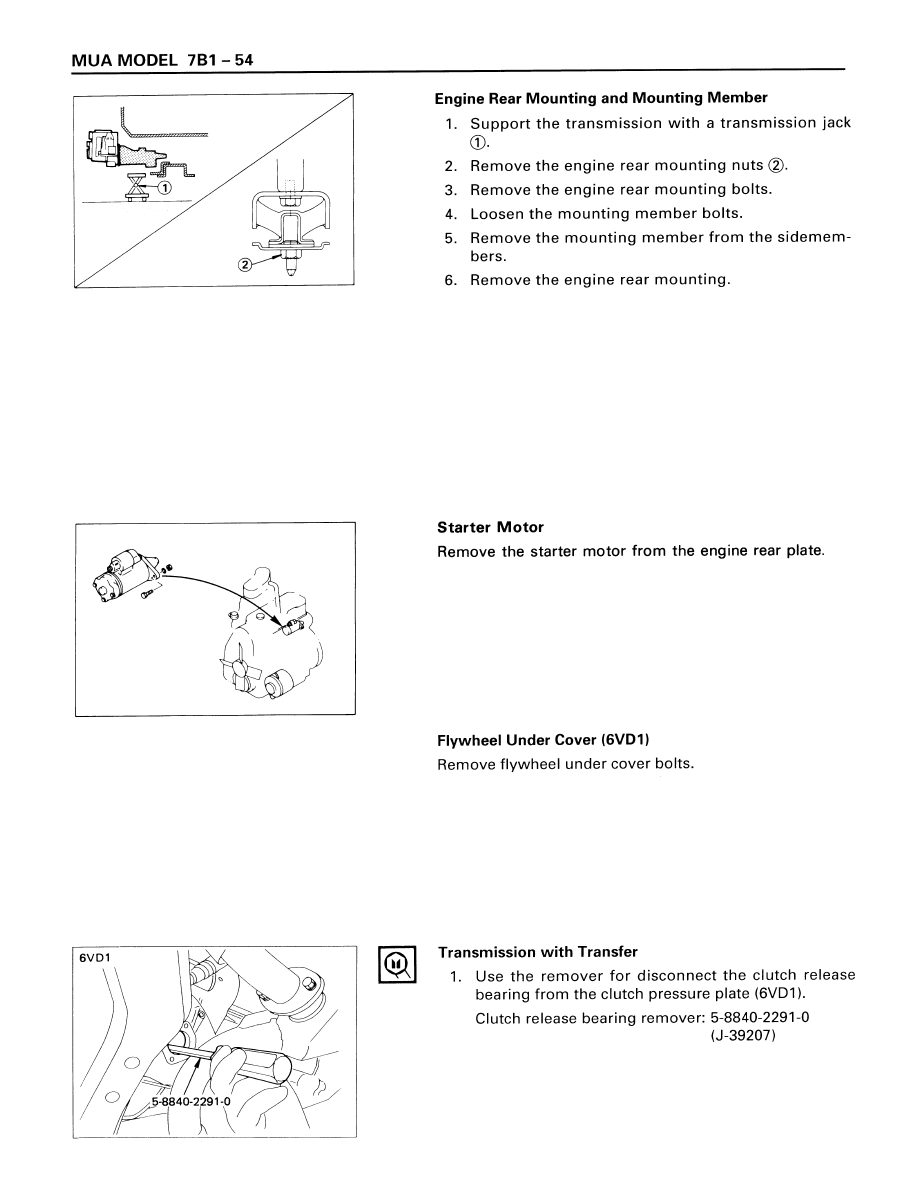

Engine Rear Mounting and Mounting Member

1. Install the engine rear mounting to the transmission.

Rear Mounting Bolt Torque

kg·m (lb·ft/N·m)

4.2 ± 0.5 (30 ± 3.6/41 ± 4.9)

2. Install the mounting member 1 to the mounting

rubber 2.

Mounting Rubber Nut Torque

kg·m (lb·ft/N·m)

5.1 ± 0.6 (37 ± 4.3/50 ± 6)

3. Install the mounting member to the sidemembers.

Mounting Member Bolt Torque

kg·m (lb·ft/N·m)

5.1 ± 0.6 (37 ± 4.3/50 ± 6)

Slave Cylinder

Install the slave cylinder to the transmission case.

Slave Cylinder Bolt Torque

kg·m (lb·ft/N·m)

4.1 ± 1.0 (30 ± 7.2/40 ± 10)

Harness Connector

Disconnect the 4WD switch connectors back up light
switch connector and speedometer sensor connector.

220LV019

TDC Sensor (4JA1TC Model)

Connect the TDC sensor from the transmission housing.

220R200001
