7A2-60  DIAGNOSIS



Reference:
When the low clutch duty solenoid is operated, following signal is outputs.
Measurement terminal: B9 (C95) and B22 (C95)
-AC range by circuit tester: Approximately 6.8V




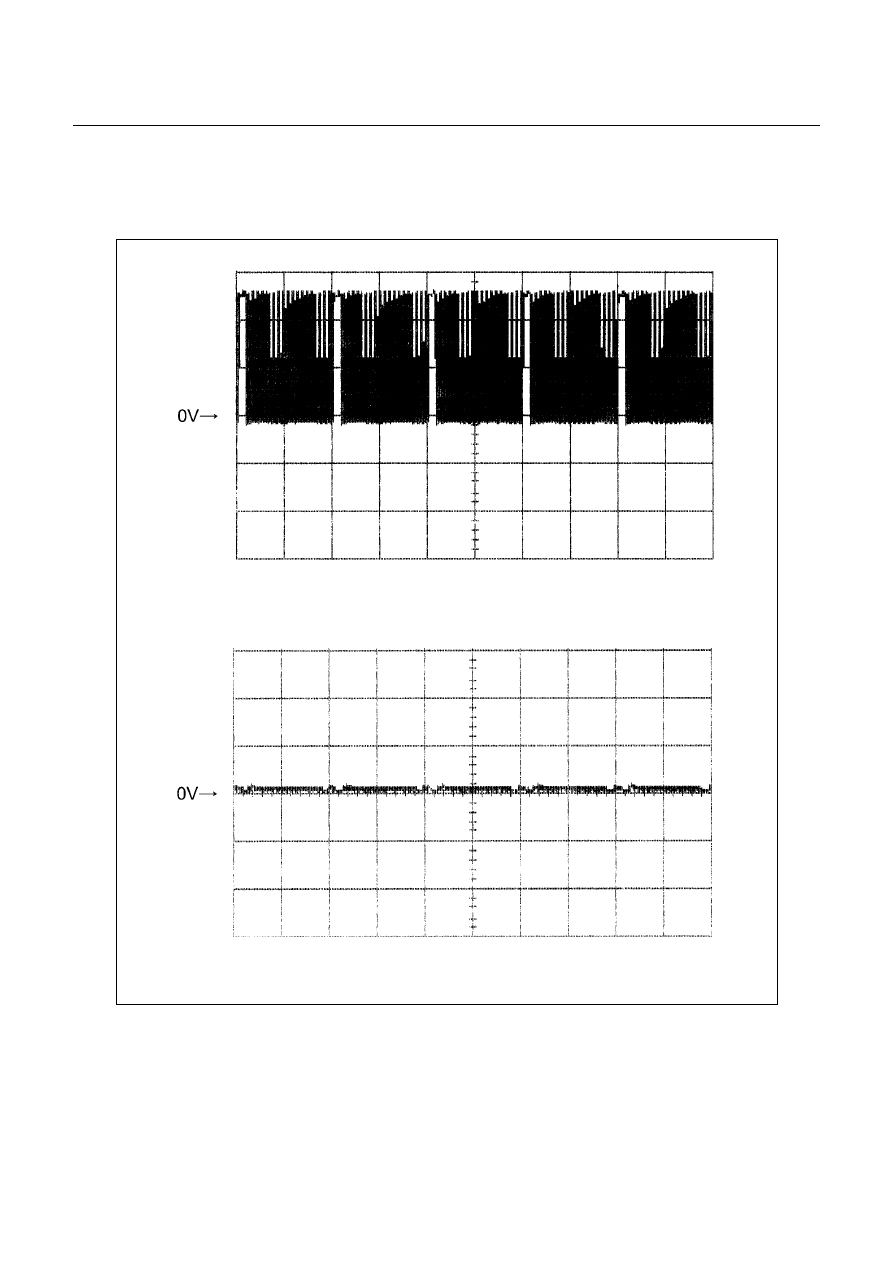

Low Clutch Duty Solenoid Reference Wave Form



Measurement Terminal: B9 (+)

B22 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: D range 4th gear




Measurement Terminal: B9 (+)

B22 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: P, N range in idle










DIAGNOSIS  7A2-61



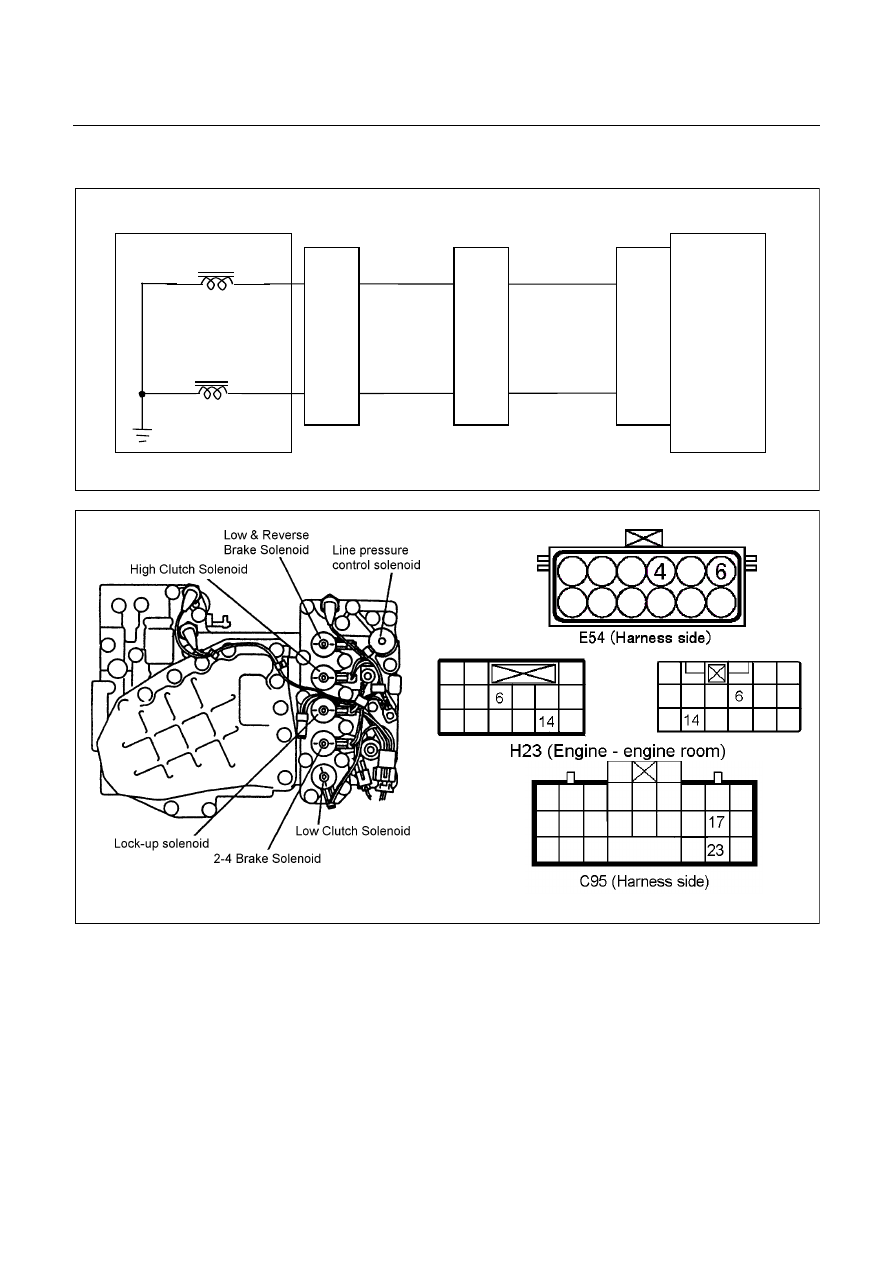

DTC P0748 (Flash Code 35) Line Pressure Solenoid Failure









Control Valve




TCM

B17

B23

BLK

Lock-up Solenoid



Terminal

Assembly

VIO

Line Pressure Solenoid



E54

(4)

(6)

H23

(14)

(6)

C95

(17)

(23)

 BLK

VIO













Setting Condition:

•

  The line pressure solenoid signal is open circuit or short circuit.



(The voltage different from the output ON/OFF signals was detected while the TCM monitors the solenoid output

voltage.)


Fail Safe:

•

  The operation of the line pressure solenoid is stopped (OFF).


Possible Cause:

•

  Line pressure solenoid malfunction.

•

  Line pressure solenoid harness open (Off) circuit or short (On) circuit.

7A2-62  DIAGNOSIS



•

  Open circuit, short circuit to battery or short circuit to ground between line pressure solenoid terminal 6 and TCM

terminal B23 (C95).

•

  Insufficient ground condition of the line pressure solenoid.

•

  Poor connection of each connector.


Reference:
When the line pressure solenoid is operated, following signal is outputted.
Measurement terminal: B23 (C95) and B22 (C95)
-At N rage: Battery voltage
-At D range: Less than 1V




DIAGNOSIS  7A2-63



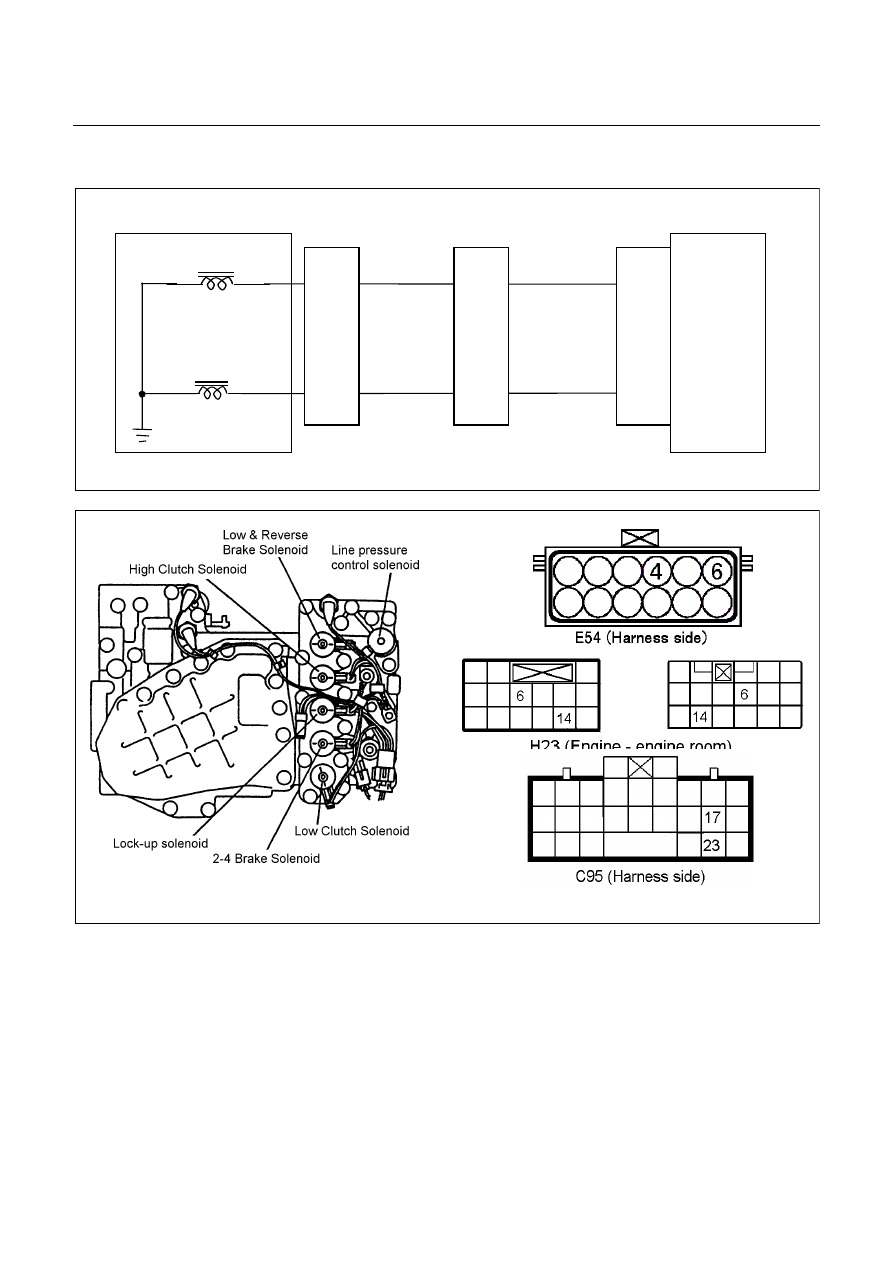

DTC P1860 (Flash Code 36) Lock-up Duty Solenoid Failure









Control Valve




TCM

B17

B23

B

Lock-up Solenoid



Terminal

Assembly

V

Line Pressure Solenoid



E54

(4)

(6)

H23

(14)

(6)

C95

(17)

(23)

  B

V













Setting Condition:

•

  The lock-up duty solenoid signal is open circuit or short circuit.



(The voltage different from the output ON/OFF signals was detected while the TCM monitors the solenoid output

voltage.)


Fail Safe:

•

  The lock-up is inhibited.


Possible Cause:

•

  Lock-up duty solenoid malfunction.

•

  Open (Off) circuit or short (On) circuit of the lock-up duty solenoid.
