6G-6  ENGINE LUBRICATION

Oil Pan

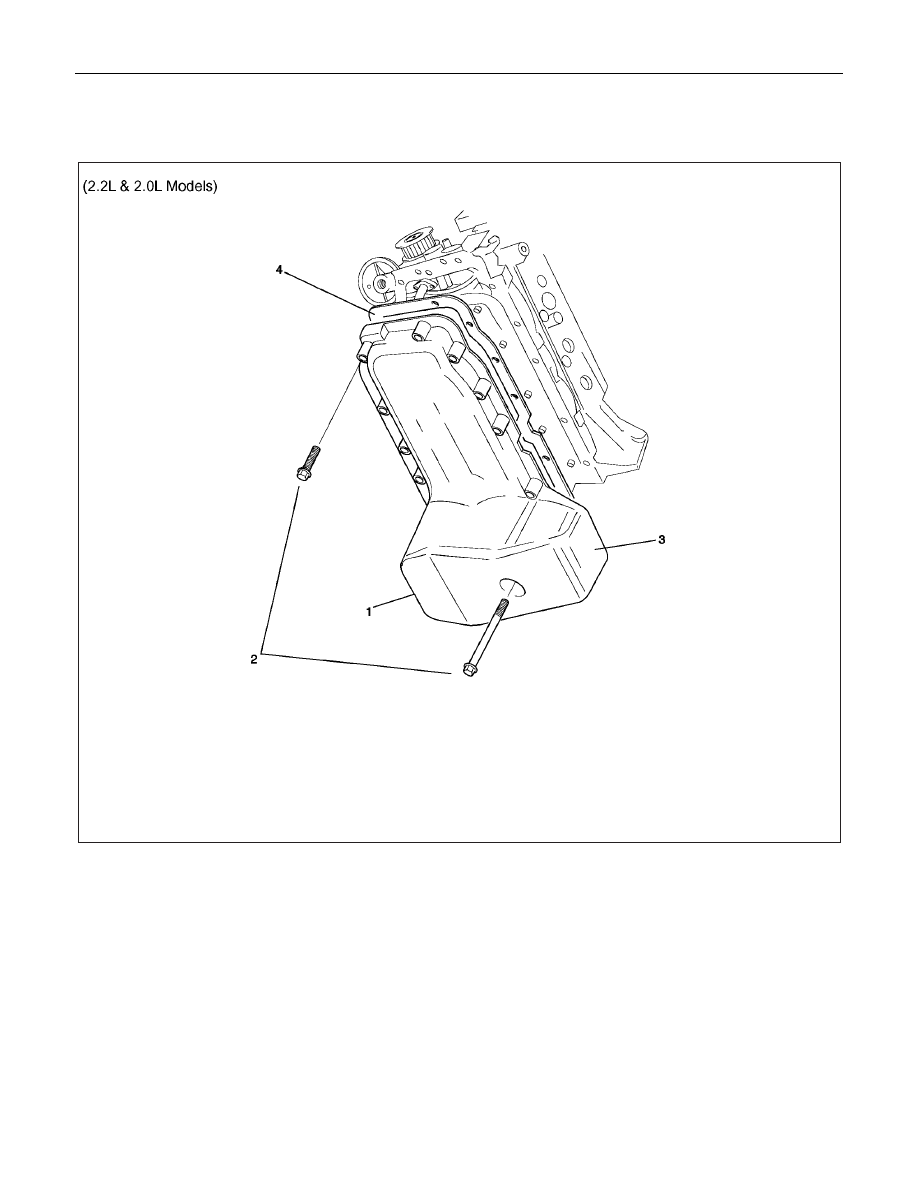

Oil Pan and Associated Parts

Legend

1 Drain Plug

2 Bolts

3 Oil Pan

4 Oil Pan Gasket

ENGINE LUBRICATION  6G-7

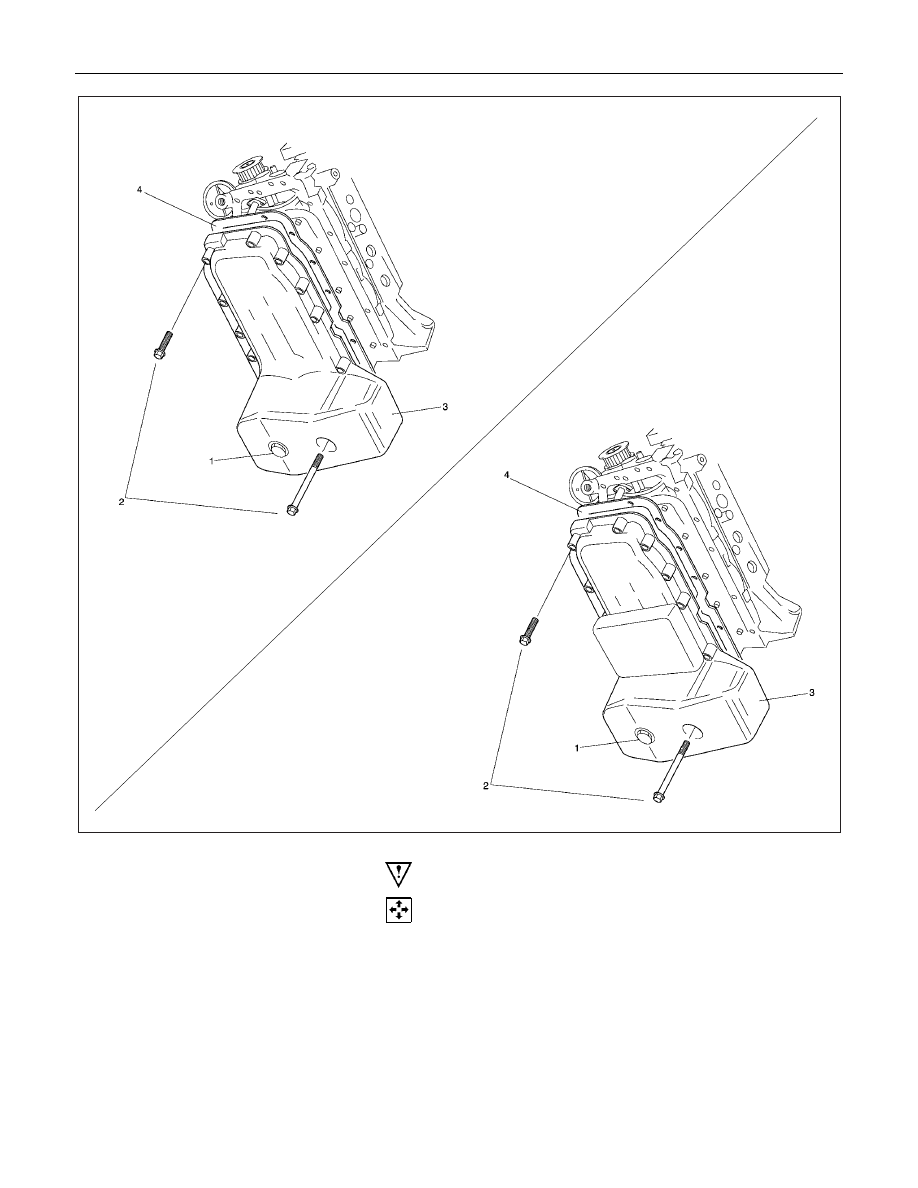

(2.4L 4

×4 Model)

(2.4L 4

×2 Model)

Important

Disassembly

1. Loosen a drain plug to drain oil.

2. Remove engine hood.

3. Remove engine rear mounting.

4. Remove transmission assembly.

5. Remove engine front mounting.

6. Raise the vehicle and support with switch stands, and then

remove engine.

7. Remove oil pan.

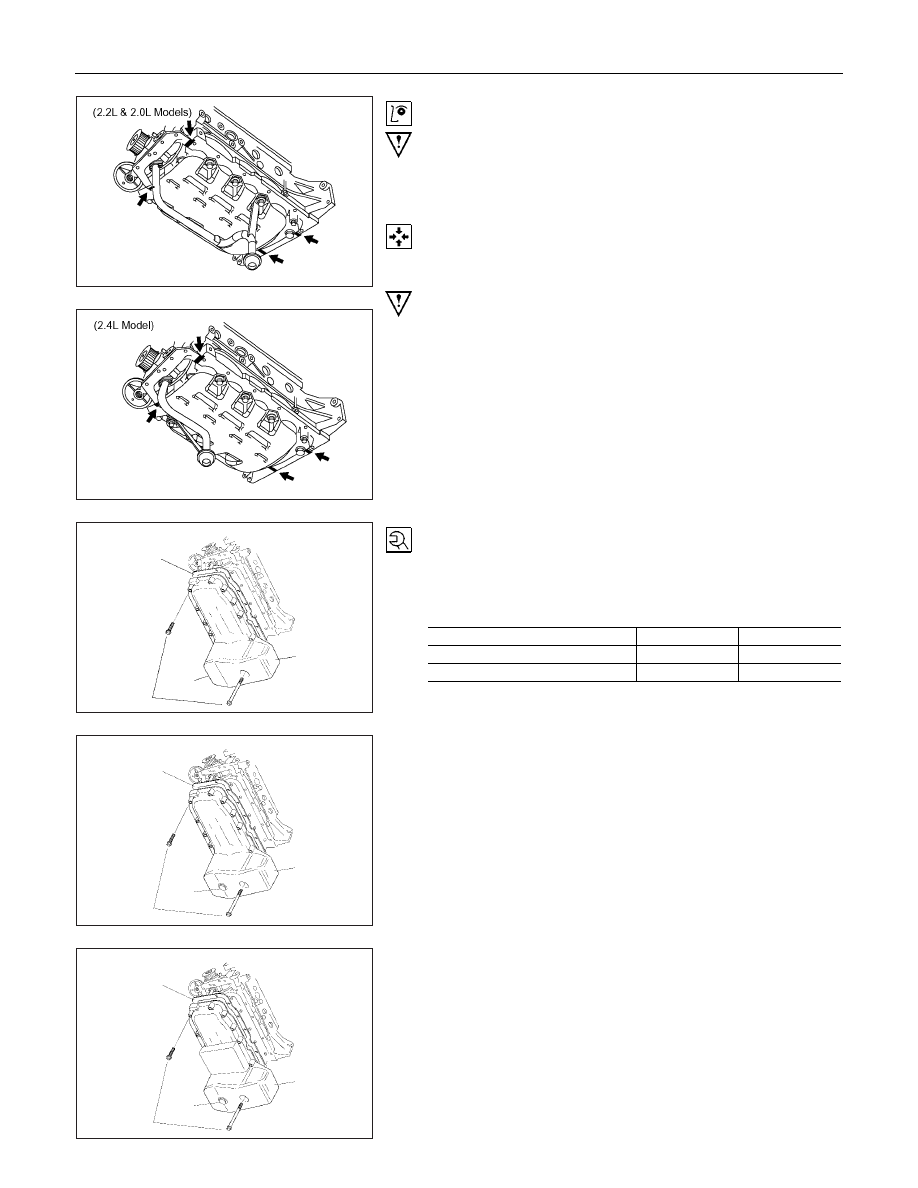

6G-8  ENGINE LUBRICATION

Inspection and Repair

CAUTION: Make necessary correction or parts

replacement if wear, damage or any other
abnormal conditions are found through
inspection.

Reassembly

To install, follows the disassembly steps in the reverse order.

Important
Sealer - Apply silicon into groove in oil pan lugs prior to fitment

of oil pan to block, remove excess sealer after oil pan
is bolted to block.

(2.2L & 2.0L Models)

4

3

1

2

Torque

Bolts - Tighten bolts to the specified torque.
Torque : 20 N

!m (2.0 kgf!m)

Engine oil - Refill engine oil to the oil pan.

(Lit)

Replacement Oil Fill Volume

2.2L & 2.0L

2.4L

Without filter change

4.25

4.00

With filter change

4.50

4.25

(2.4L 4

×4 Model)

4

3

1

2

(2.4L 4

×2 Model)

4

3

1

2

ENGINE SPEED CONTROL SYSTEM  6H-1

SECTION 6H

ENGINE SPEED CONTROL SYSTEM

CONTENTS

PAGE

Service Precaution ......................................................................................................... 6H- 2

Accelerator Pedal Control Cable................................................................................... 6H- 2

Removal...................................................................................................................... 6H- 2

Inspection................................................................................................................... 6H- 2

Installation.................................................................................................................. 6H- 2

Accelerator Pedal ........................................................................................................... 6H- 3

Accelerator pedal and Associated Parts ................................................................. 6H- 3

Removal...................................................................................................................... 6H- 3

Installation.................................................................................................................. 6H- 3

Adjustment ................................................................................................................. 6H- 3
