1-54  HEATING AND AIR CONDITIONING

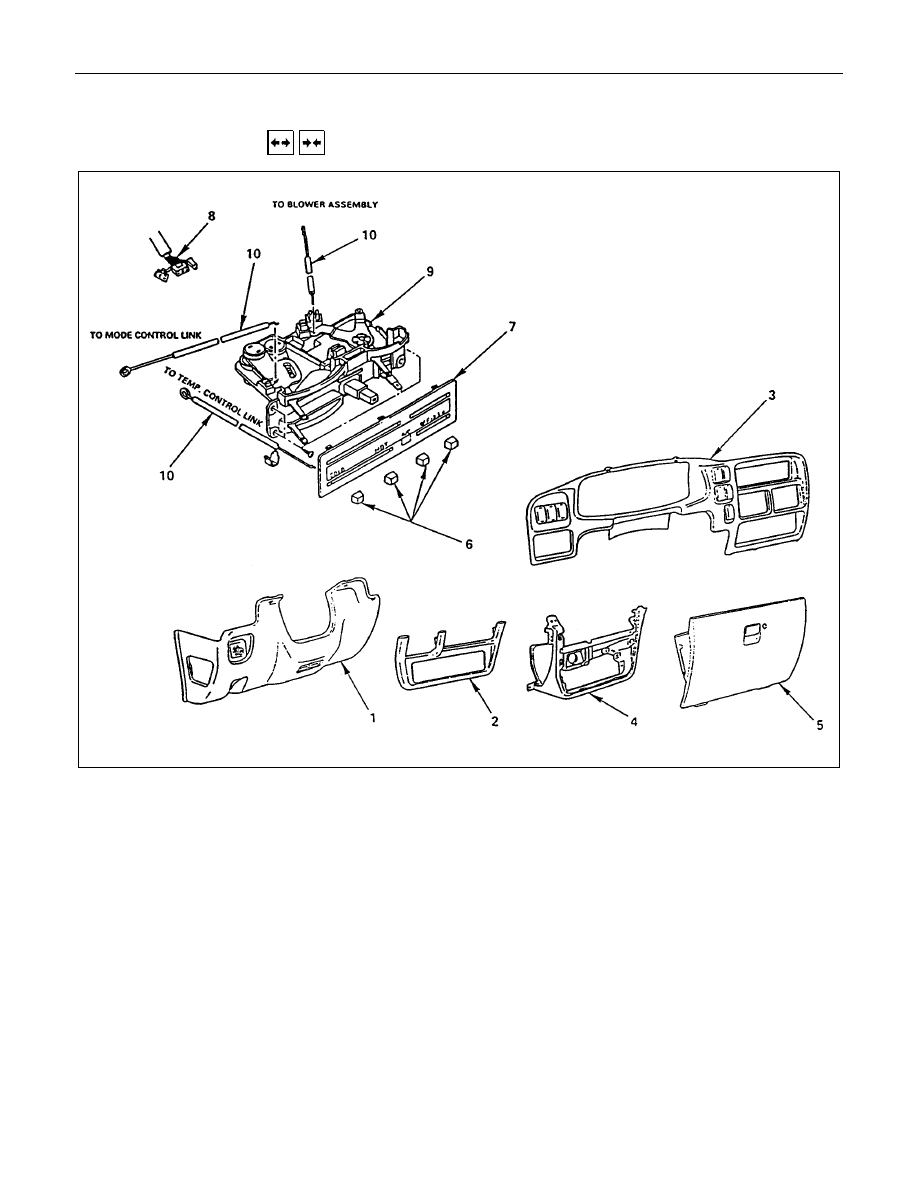

CONTROL LEVER ASSEMBLY



  REMOVAL AND INSTALLATION

Removal Steps

1. Instrument panel driver lower
2. Lower cluster assembly
3. Meter cluster assembly
4. Instrument panel lower center cover

assembly

5. Glove box
6. Knobs

▲

7. Heater bezel

▲

8. Fan control lever and / or A/C switch

connector

9. Control lever assembly

▲

10. Cables

cover assembly

Installation Steps

10. Cables

9. Control lever assembly
8. Fan control lever and / or A/C switch connector
7. Heater bezel

▲

6. Knobs
5. Glove box
4. Instrument panel lower center cover assembly
3. Meter cluster assembly
2. Lower cluster assembly
1. Instrument panel driver lower

HEATING AND AIR CONDITIONING  1-55

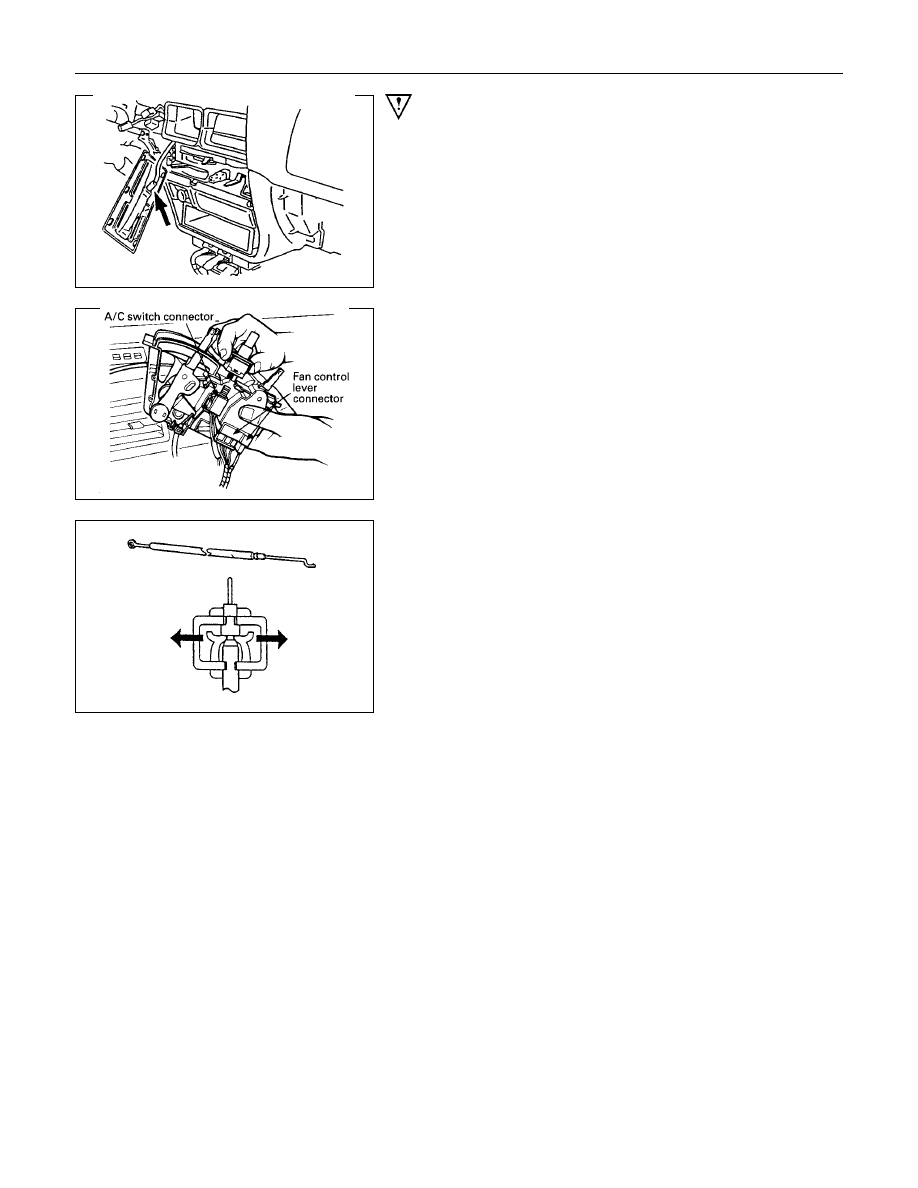

Important Operation - Removal

7. Heater Bezel

8. Fan and A/C Switch Connector

Pull the control lever assembly out and disconnect the

connectors.

10.Cables

1-56  HEATING AND AIR CONDITIONING

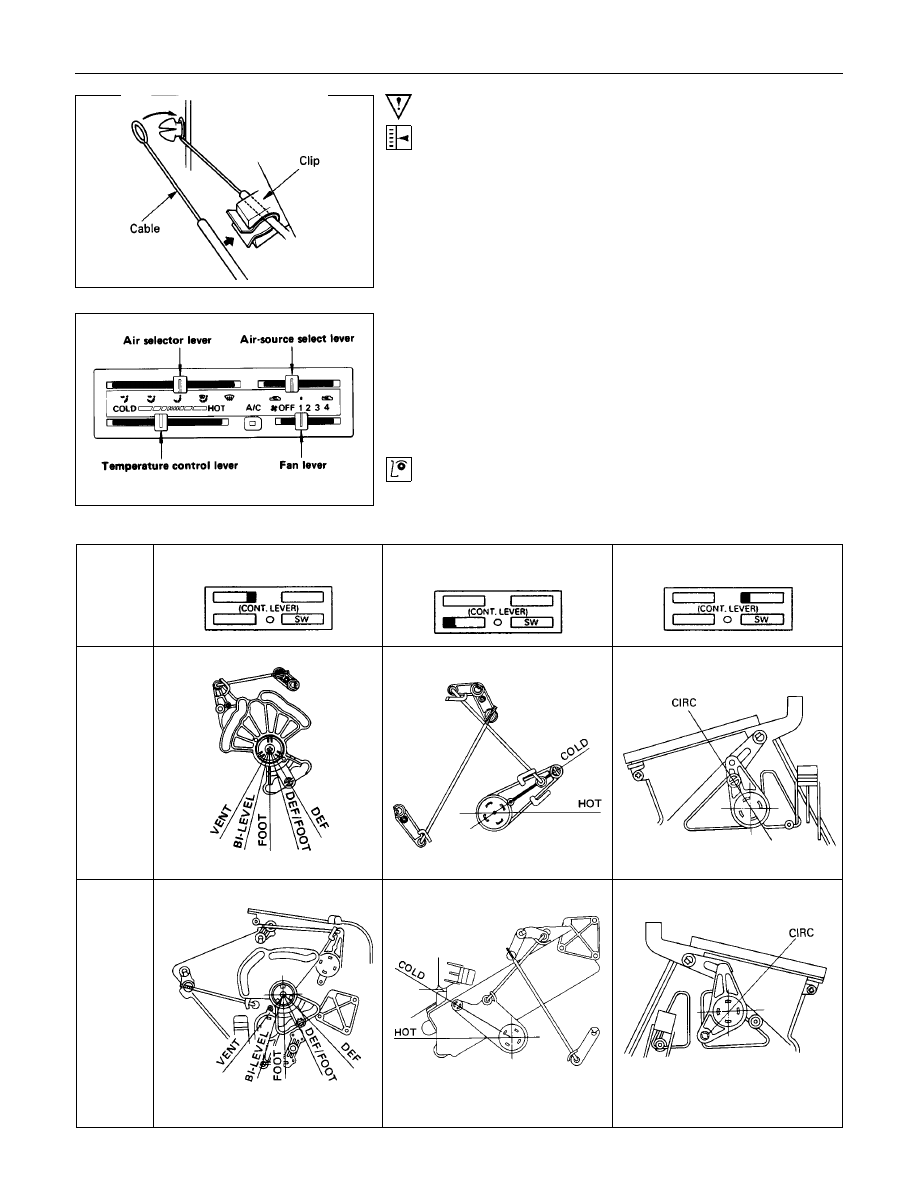

Important Operation - Installation

6. Control Lever Assembly

Adjust the control cables.

Air source control cable (Blower unit)

(1) Slide the control lever to the left.

(2) Connect the control cable at the "CIRC" position and fix it

with the clip.

Temperature control cable (Heater unit)
(1) Slide the control lever to the left.

(2) Connect the control cable at the "COLD" position and fix it

with the clip.

Air select control cable (Heater unit)

(1) Slide the control lever to the right.

(2) Connect the control cable at the "DEFROST" position and

fix it with the clip.

Check operation.

BEZEL

(AIR SELECTOR CABLE)

(TEMPERATURE CONTROL
CABLE)

(AIR SOURCE SELECT CABLE)

LHD

RHD

HEATING AND AIR CONDITIONING  1-57

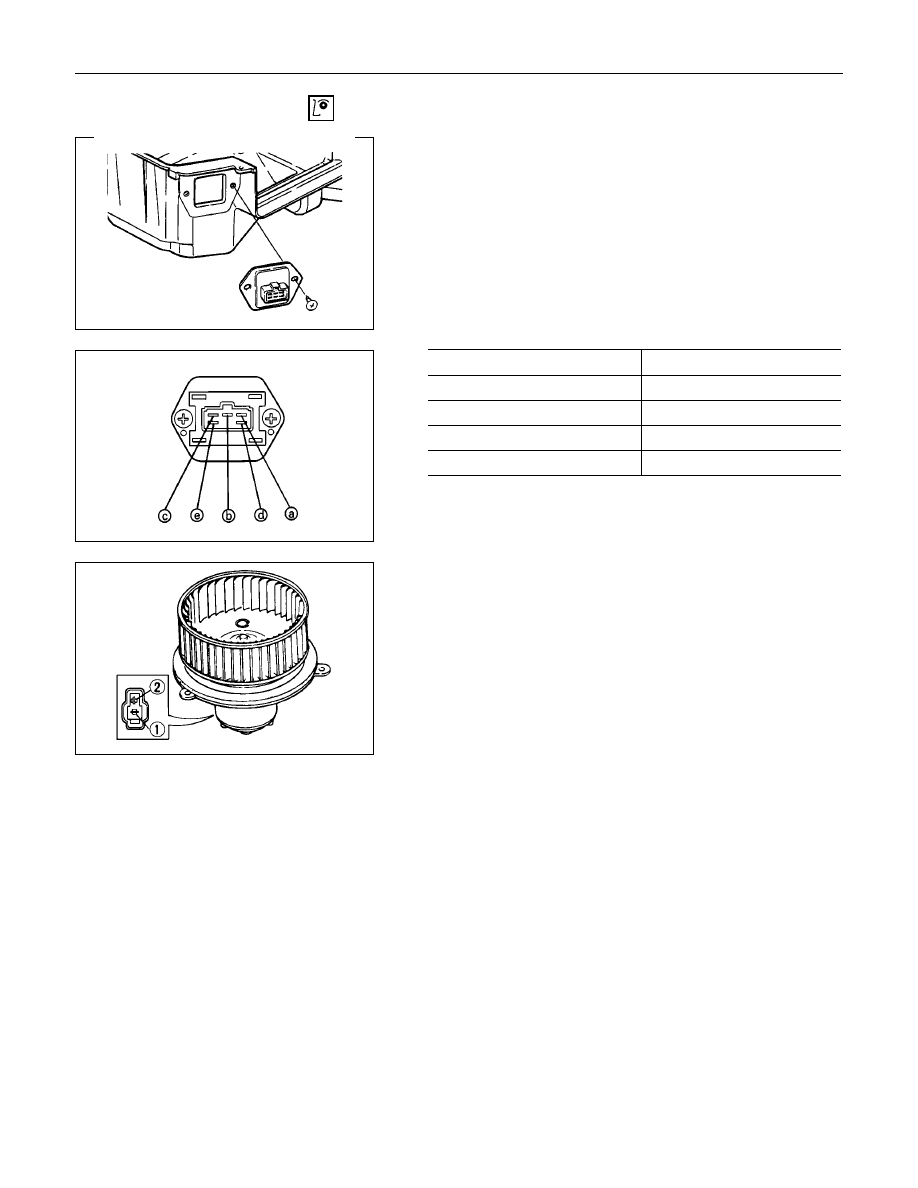

  INSPECTION AND REPAIR

Resistor

As for air-conditioning model, fixed on right side of the

evaporator unit.

As for heater only model, fixed on right side of the duct placed

between blower unit and heater unit.

Replace the resistor with a new on if the coil is found to be

open or if the resistance value deviates from the specified

range.

Terminal

Resistance

a - b

2.40

Ω

b - d

0.90

Ω

b - e

0.28

Ω

b - c

-

Blower motor

Check blower motor for smooth rotation.
Connect the battery positive terminal to the No.1 (No.2: RHD)

terminal of the blower motor and negative to the No.2 (No.1:

RHD).

Be sure to check to see if the blower motor operates correctly.
