1-50  HEATING AND AIR CONDITIONING

Important Operation -Reassembly

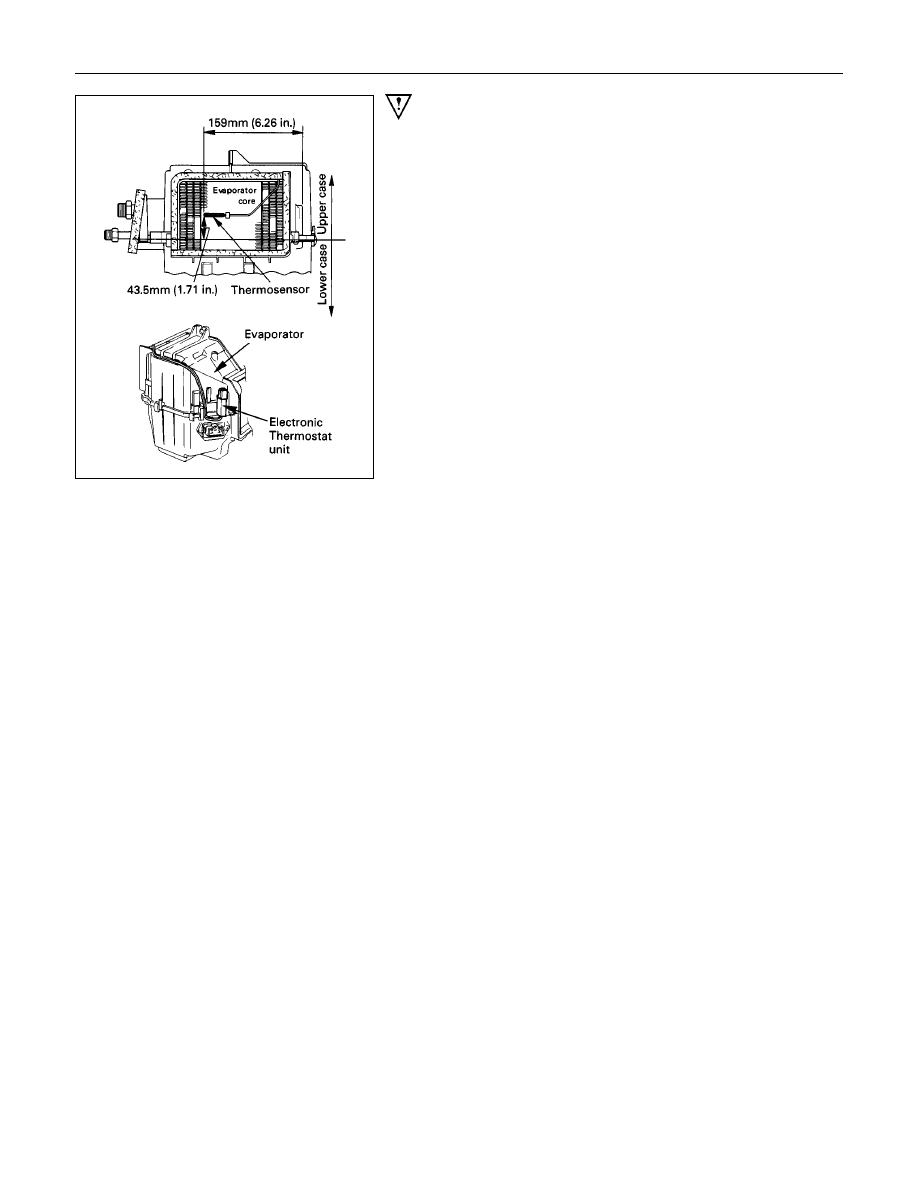

2. Electronic Thermostat (Clip type)

1) Install the electronic thermostat to the evaporator core

specified position with the clip.

2) Thermostat sensor must not interfere with the evaporator

core.

HEATING AND AIR CONDITIONING  1-51

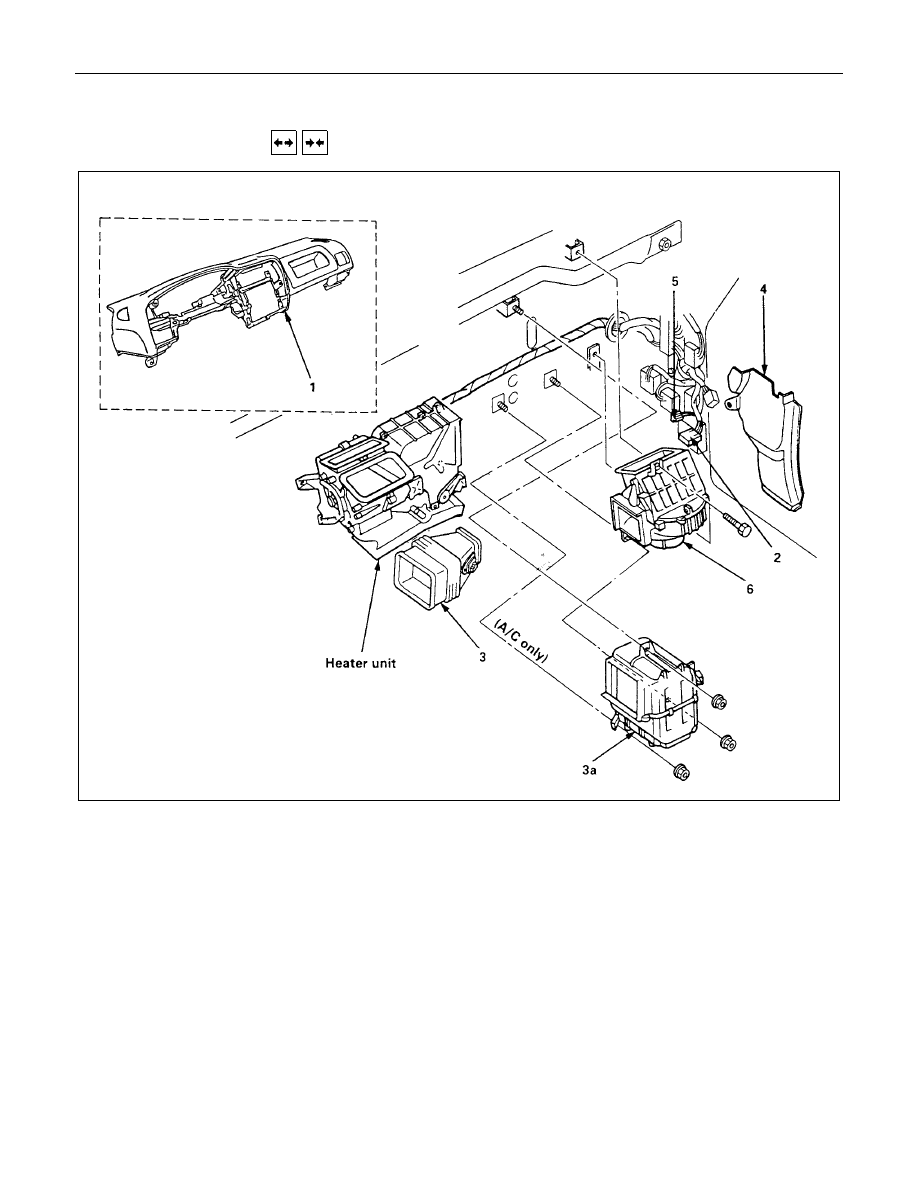

BLOWER UNIT ASSEMBLY



 REMOVAL AND INSTALLATION

This illustration is based on LHD model.

Removal Steps

1. Instrument panel assembly
2. Resistor connector
3. Duct

3a. Evaporator (A/C only)

4. Dash side trim panel
5. Blower motor connector
6. Blower unit assembly

Installation Steps

6. Blower unit assembly
5. Blower motor connector
4. Dash side trim panel

3a. Evaporator (A/C only)

3. Duct
2. Resistor connector

▲

1. Instrument panel assembly

1-52  HEATING AND AIR CONDITIONING

Important Operation - Installation

1. Instrument Panel Assembly

Adjust the blower control cable.

Refer to "CONTROL LEVER ASSEMBLY" in this section.

HEATING AND AIR CONDITIONING  1-53

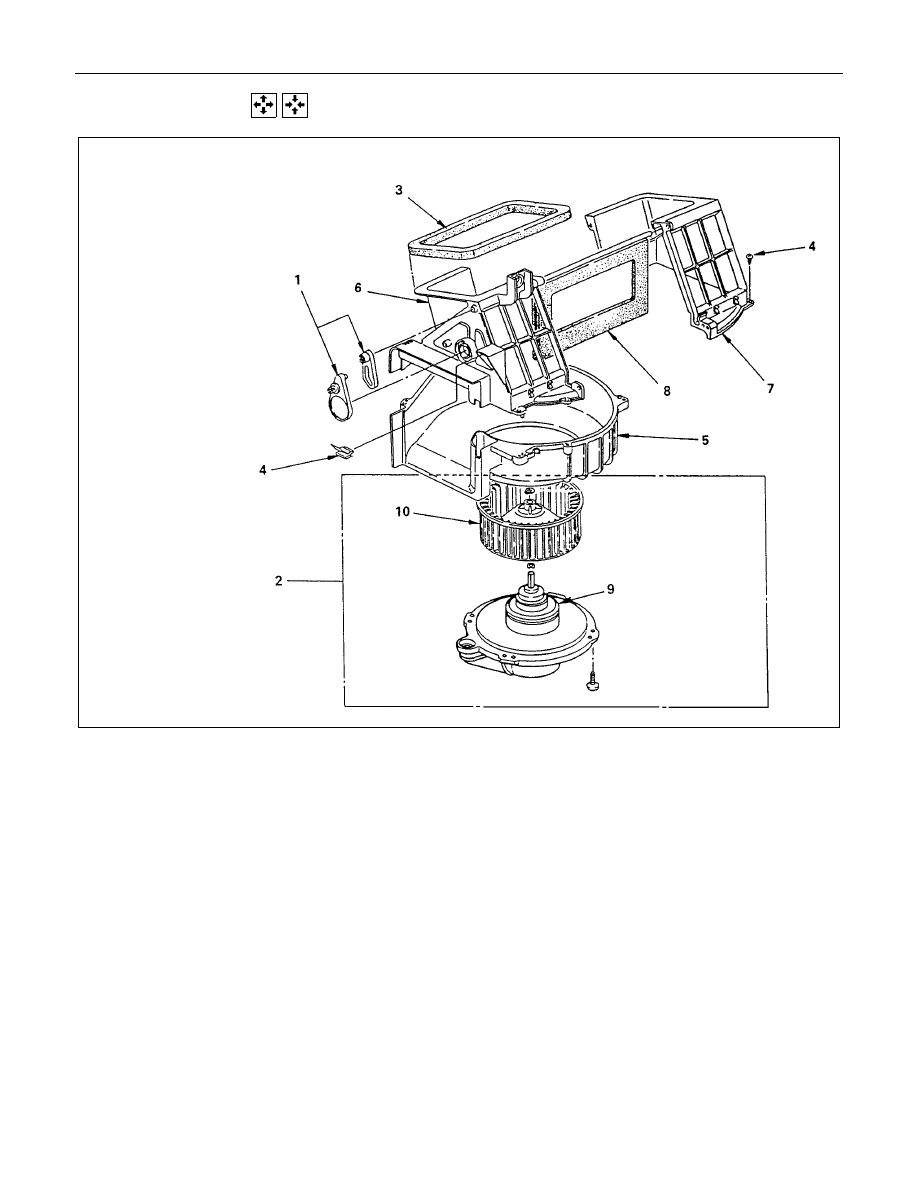

 DISASSEMBLY AND REASSEMBLY

This illustration is
based on LHD model.

Disassembly Steps

1. Lever; door
2. Blower motor assembly
3. Seal
4. Attaching parts
5. Case; lower
6. Case; LH
7. Case; RH
8. Door, blower unit
9. Fan; blower motor

10. Blower motor

Reassembly Steps

10. Blower motor

9. Fan; blower motor
8. Door, blower unit
7. Case; RH
6. Case; LH
5. Case; lower
4. Attaching parts
3. Seal
2. Blower motor assembly
1. Lever; door
