1-26  HEATING AND AIR CONDITIONING

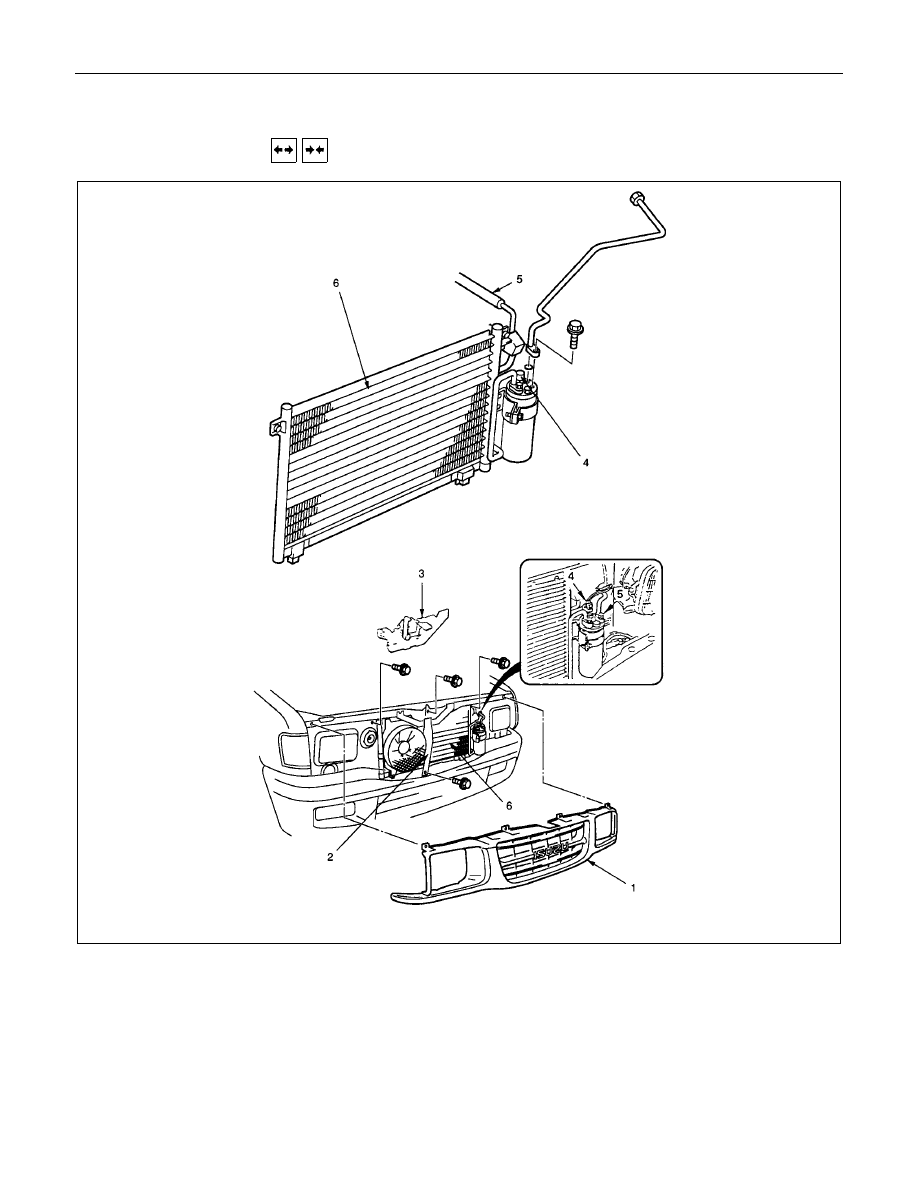

CONDENSER



 REMOVAL AND INSTALLATION

Removal Steps

1. Radiator grille

2. Engine hood front end stay

3. Engine hood lock

4. Pressure switch connector

5. Refrigerant line

6. Condenser

Installation Steps

To install, follow the removal procedure in
reverse order.

HEATING AND AIR CONDITIONING  1-27

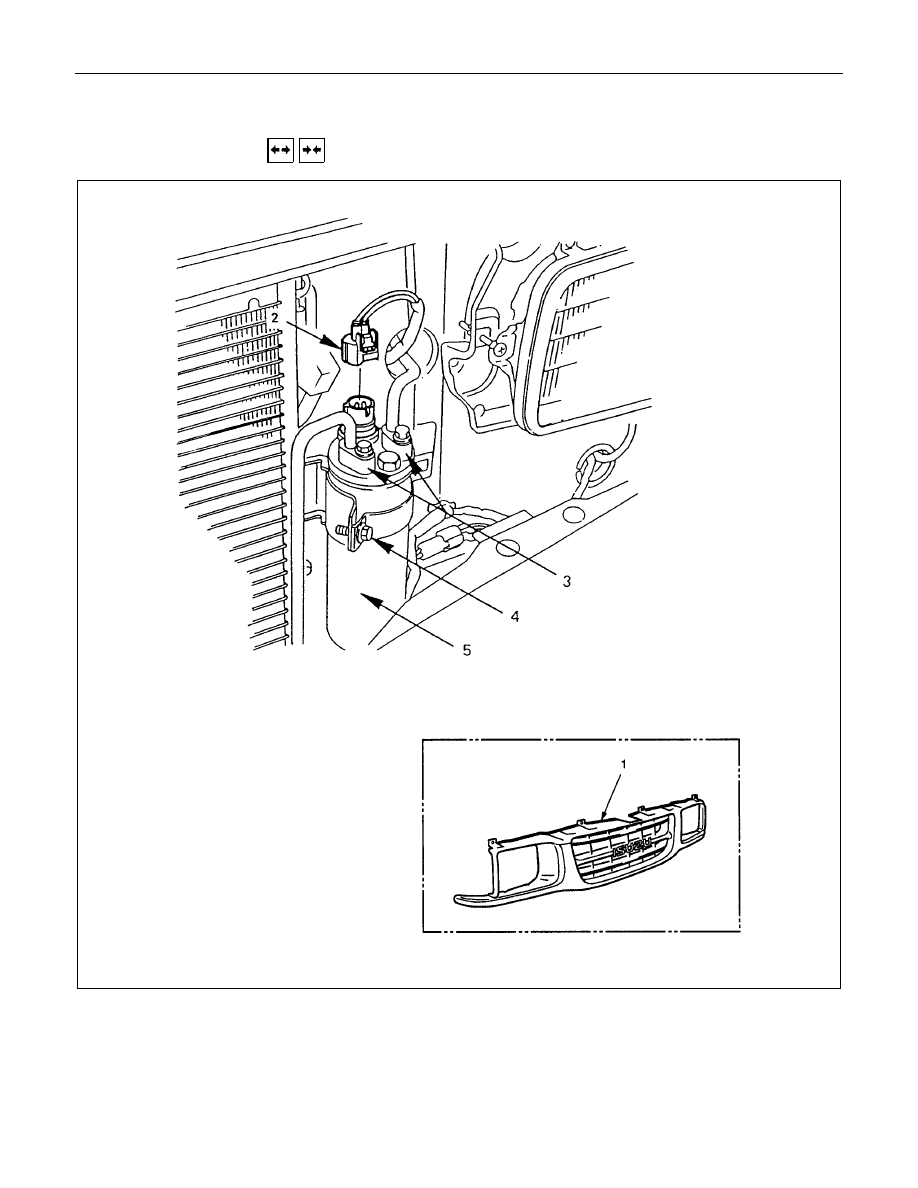

RECEIVER DEHYDRATOR



  REMOVAL AND INSTALLATION

Removal Steps

1. Radiator grille

2. Dual pressure switch connector

3. Refrigerant line

4. Bracket bolt

5. Receiver dehydrator

Installation Steps

To install, follow the removal procedure in
reverse order.

1-28  HEATING AND AIR CONDITIONING

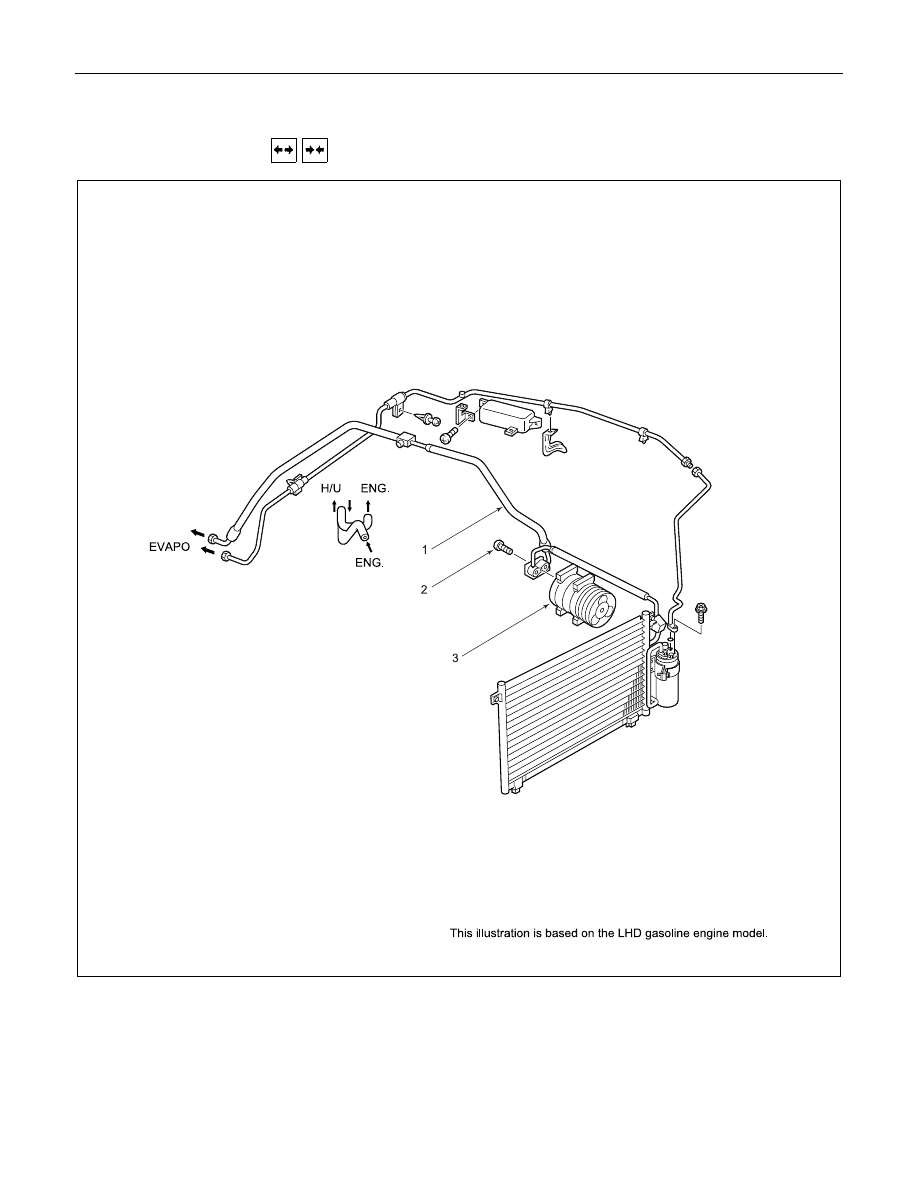

COMPRESSOR



 REMOVAL AND INSTALLATION

Removal Steps

1. Compressor flex/hose

2. Bolt; compressor to bracket

3. Compressor assembly

Installation Steps

3. Compressor assembly

▲

2. Bolt; compressor to bracket

▲

1. Compressor flex/hose

HEATING AND AIR CONDITIONING  1-29

Important Operations - Installation

2. Bolt; Compressor to Bracket

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

Torque

54-64 (5.5-6.5/40-47)

1. Compressor Flex/Hose

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

Torque

27-34 (2.8-3.5/20-25)

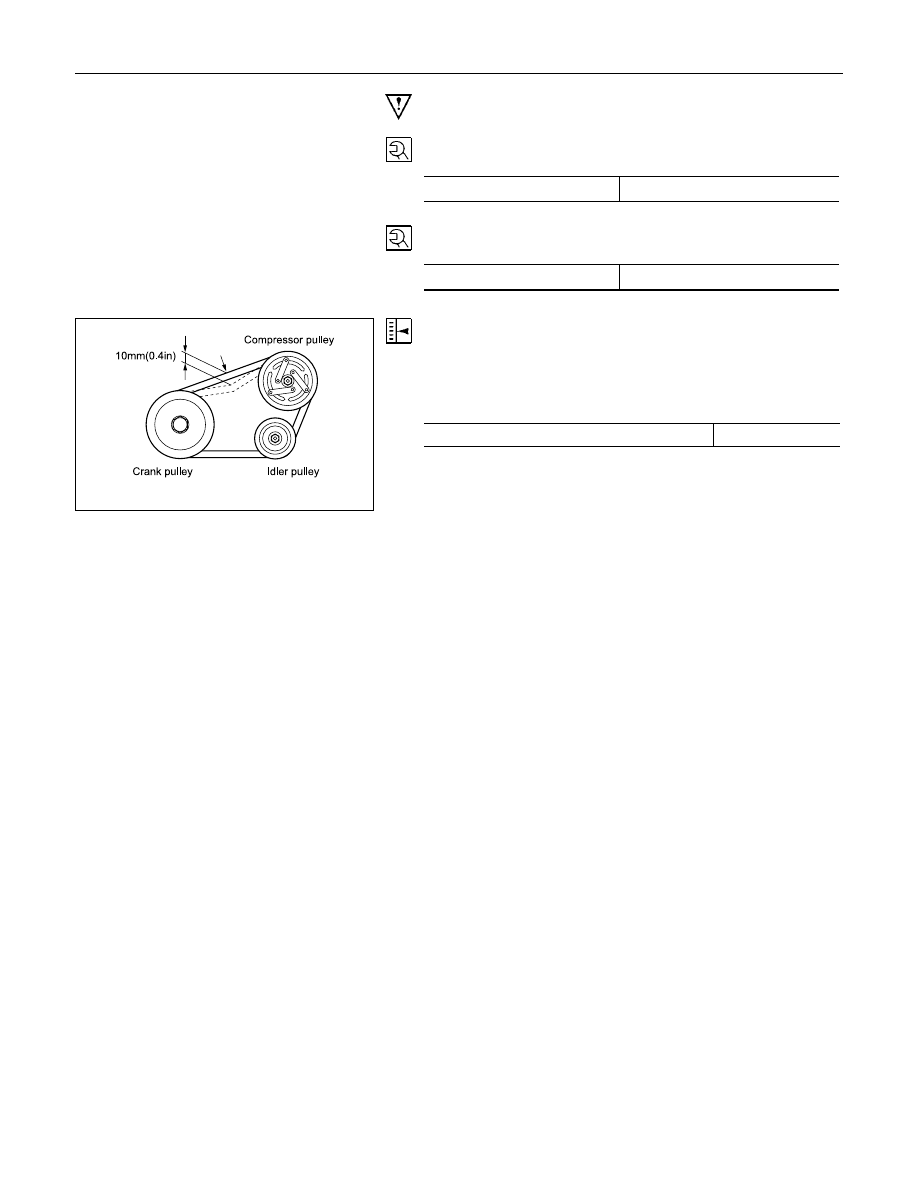

Compressor Belt

Check the drive belt tension.

Depress the drive belt mid-portion with a 98N (10kg/22Ib)

force.

Gasoline Engine

mm(in.)

Standard deflection

10 (0.4)
