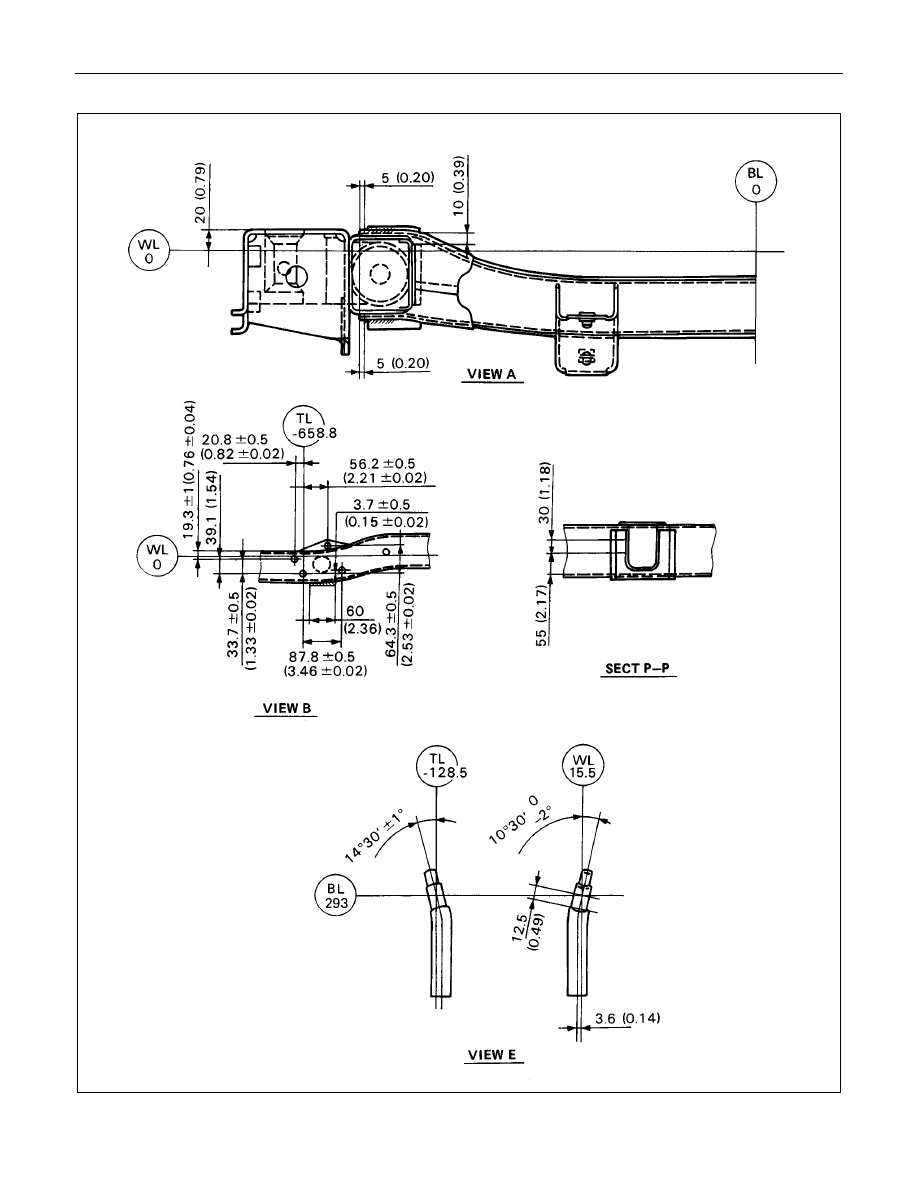

FRAME AND BUMPER  2A-7

FRAME DIMENSIONS

(4

×

4, SHORT WHEEL BASE MODEL)

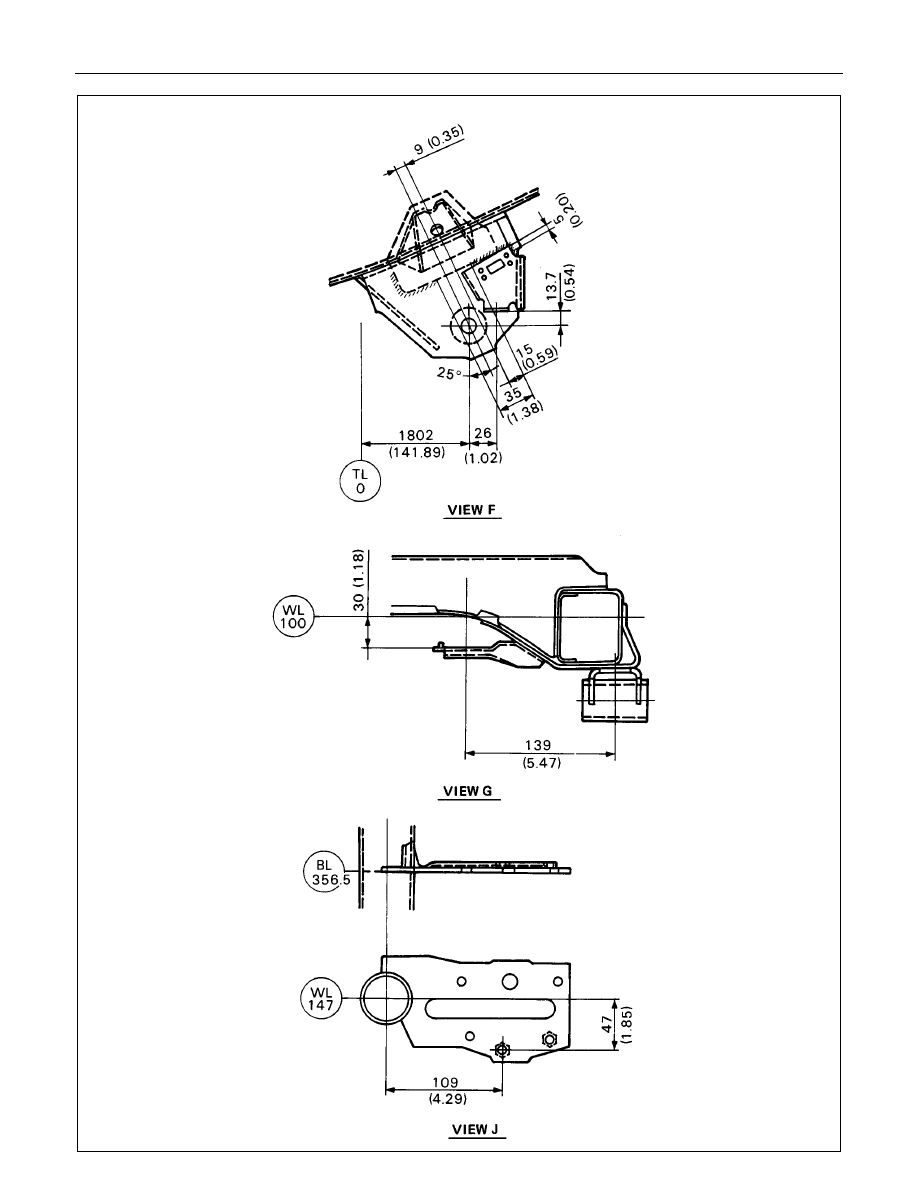

FRAME AND BUMPER  2A-9

mm (in)

2A-10  FRAME AND BUMPER

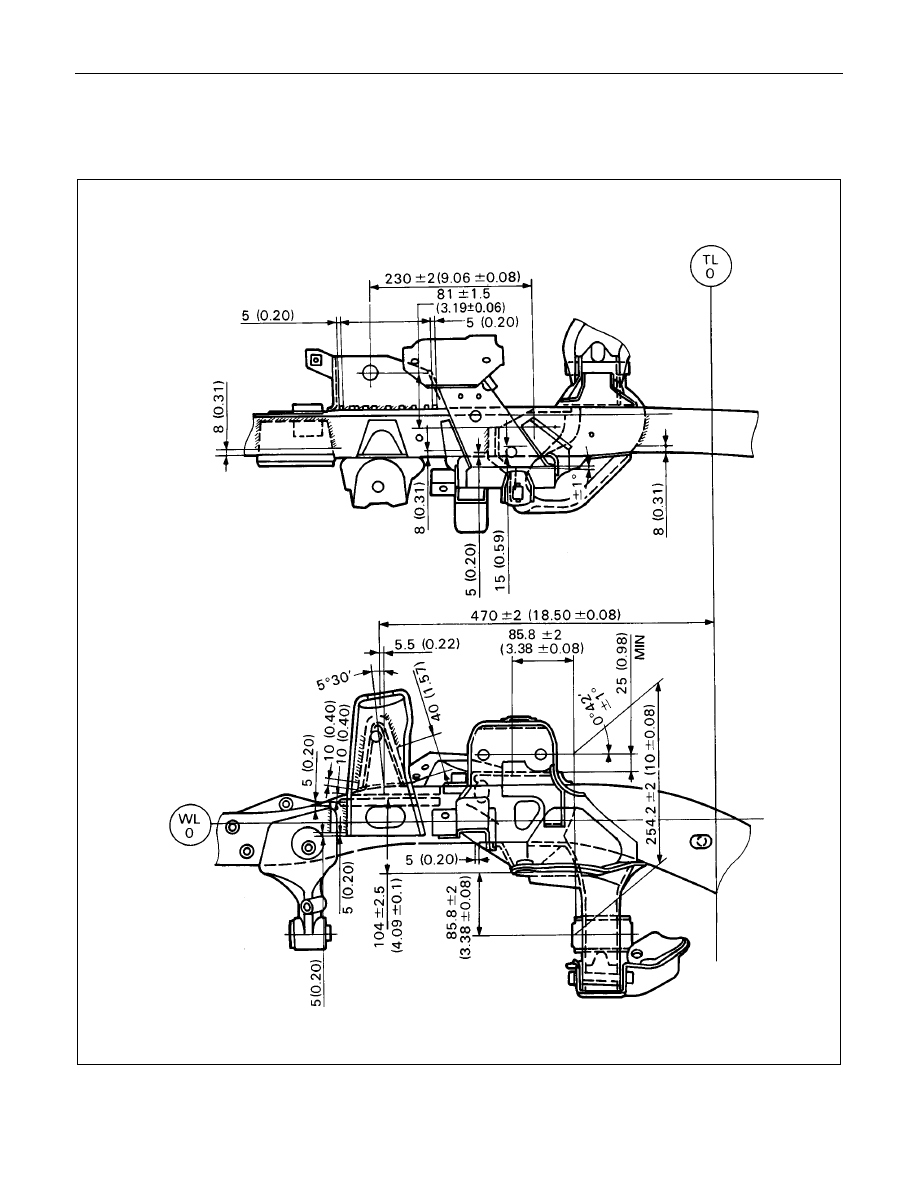

FRAME AND BUMPER  2A-11

FRONT SUSPENSION DETAILS

mm (in)
