FRAME AND BUMPER  2A-3

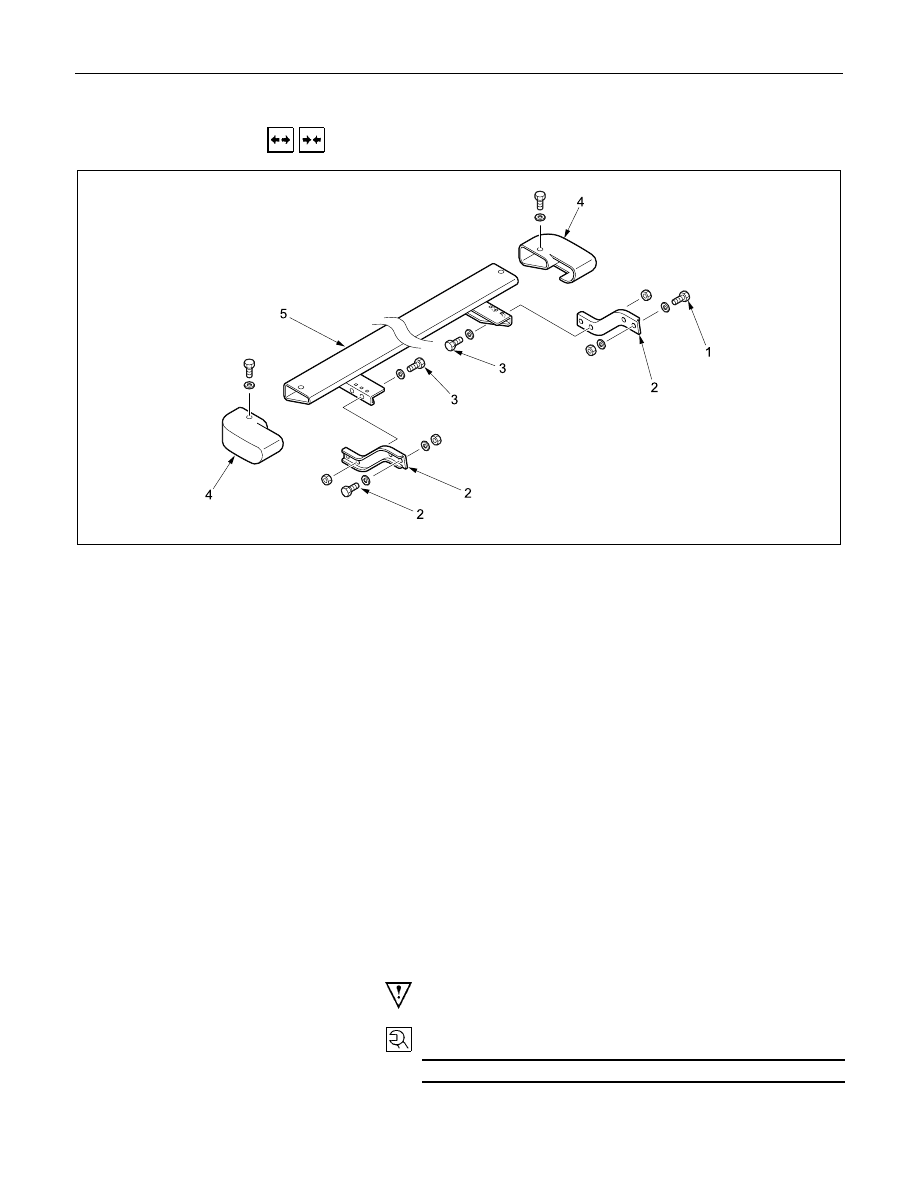

REAR BUMPER



  REMOVAL AND INSTALLATION

Removal Steps

1. Bolt; back bar to frame
2. Back bar
3. Bolt; back bar to rear bumper
4. Cap; rear bumper
5. Rear bumper

Installation Steps

5. Rear bumper
4. Cap; rear bumper

▲

3. Bolt; back bar to rear bumper
2. Back bar
1. Bolt; back bar to frame

Important Operation - Installation

3. Bolt; Back Bar to Rear Bumper
Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

103

±

9.8 (10.5

±

1 / 75.9

±

7.2)

2A-4  FRAME AND BUMPER

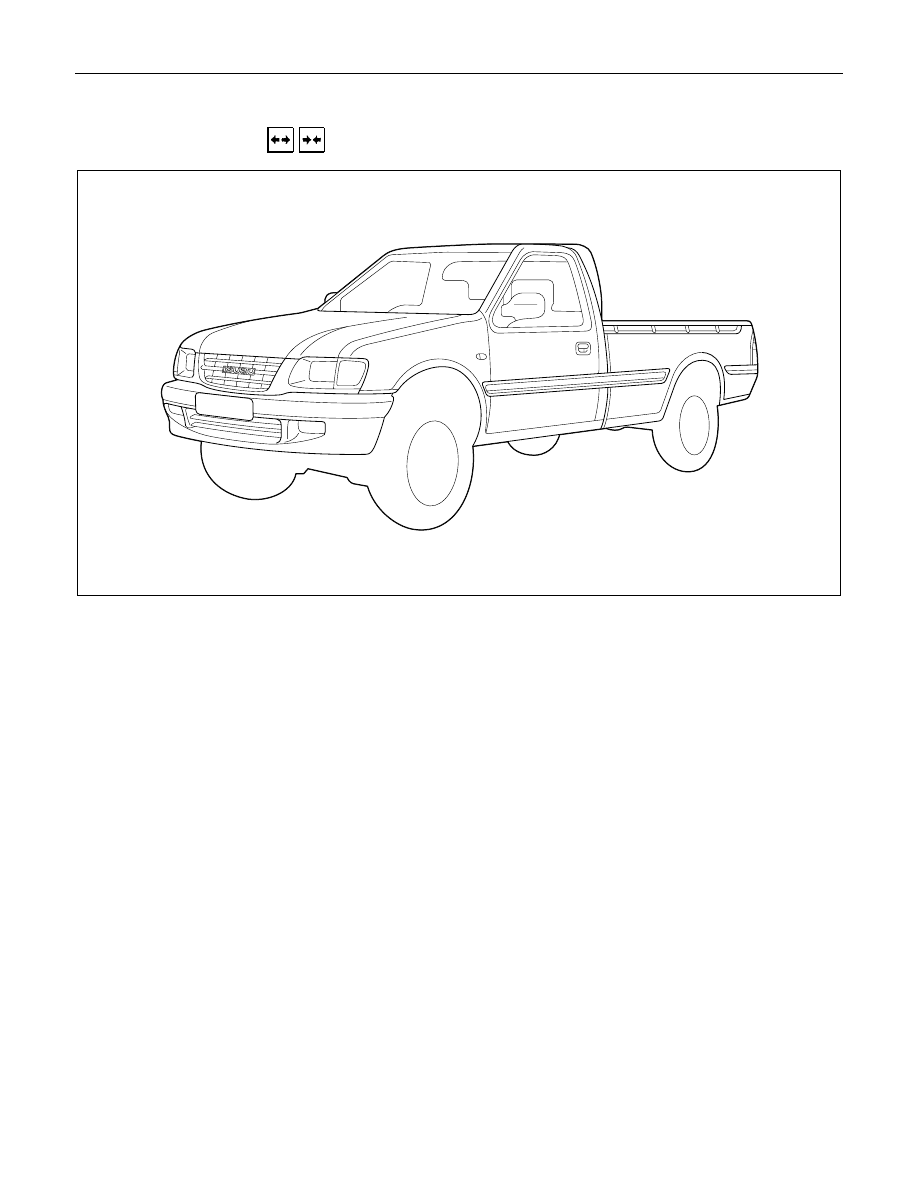

REAR BODY



  REMOVAL AND INSTALLATION

Removal Steps

1. Battery ground cable
2. Rear combination lamp harness

▲

3. Fuel filler pipe and evaporator hose
4. Spare tire
5. Bolt; frame to rear body

▲

6. Rear body assembly

Installation Steps

6. Rear body assembly

▲

5. Bolt; frame to rear body
4. Spare tire
3. Fuel filler pipe and evaporator hose
2. Rear combination lamp harness
1. Battery ground cable

NOTE:
The rear body must be empty before removal.

FRAME AND BUMPER  2A-5

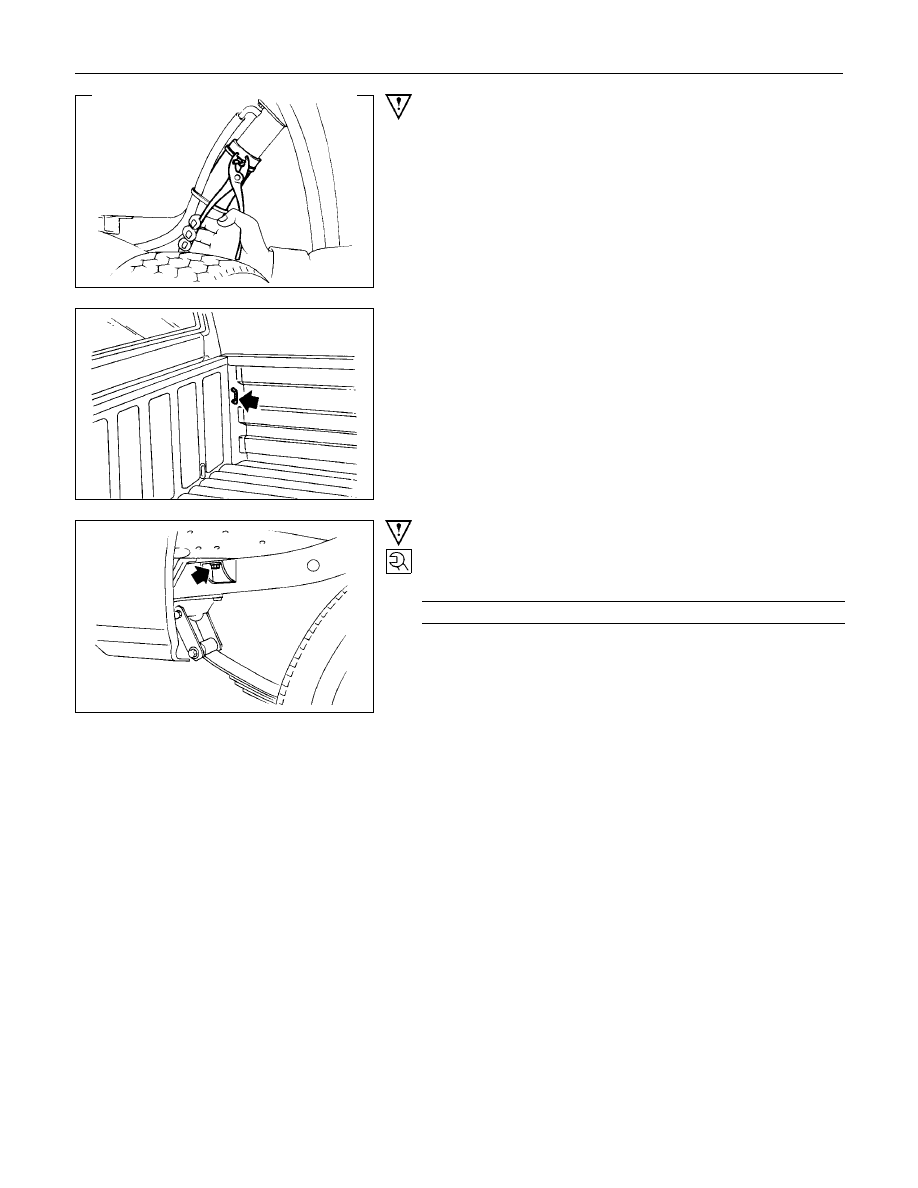

Important Operation - Removal

3. Fuel Filler Pipe and Evaporator Hose
Disconnect the fuel filler pipe and evaporator hose.

6. Rear Body Assembly
Attach lifting wires to the rear body and raise the rear body.

Note:
In lifting up rear body, take care not to dash it against cab
body.

Important Operation - Installation

5. Bolt; Frame to Body

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

63.8

±

14.7 (6.5

±

1.5 / 47

±

10.8)

2A-6  FRAME AND BUMPER

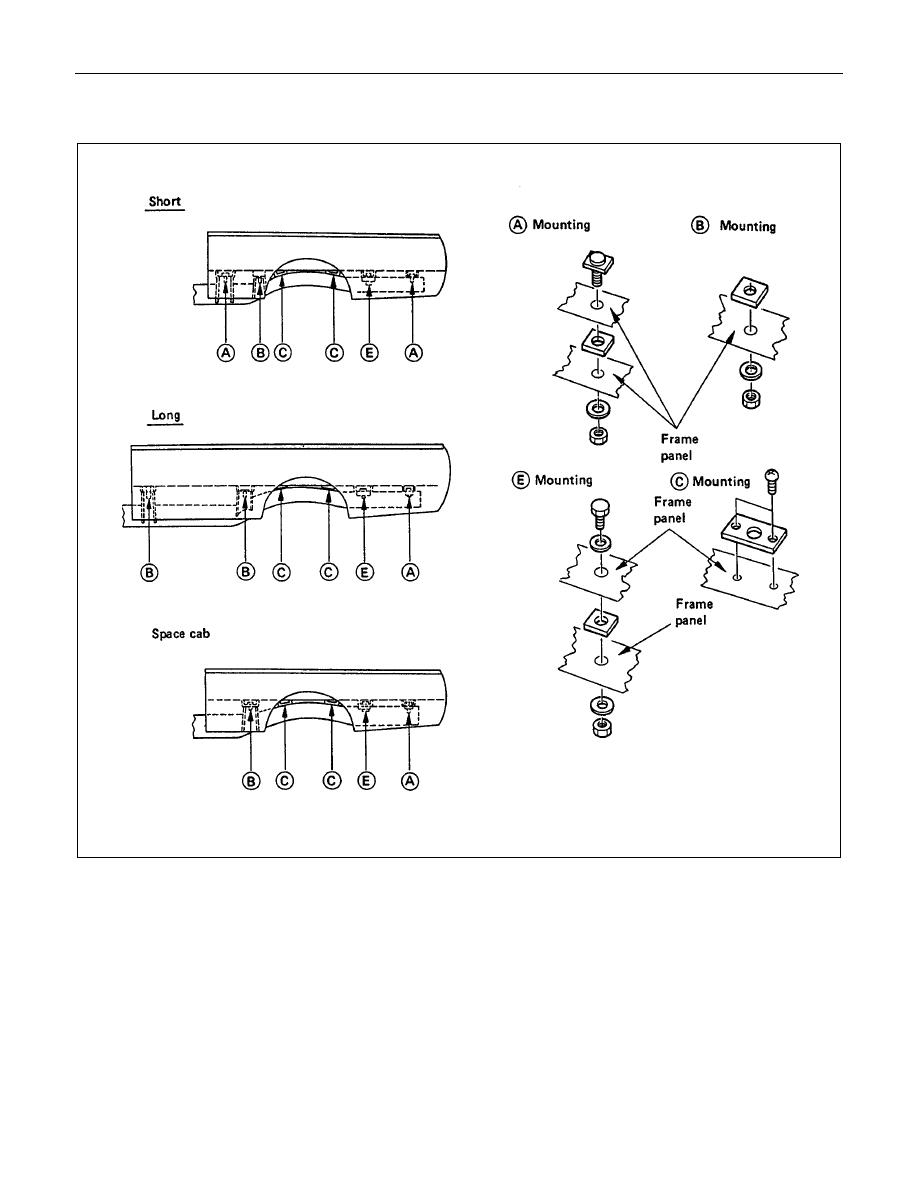

BODY MOUNTING
