8-316  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION

AUDIO

Refer to Section 9 “ACCESSORIES” for details.

CIGARETTE LIGHTER

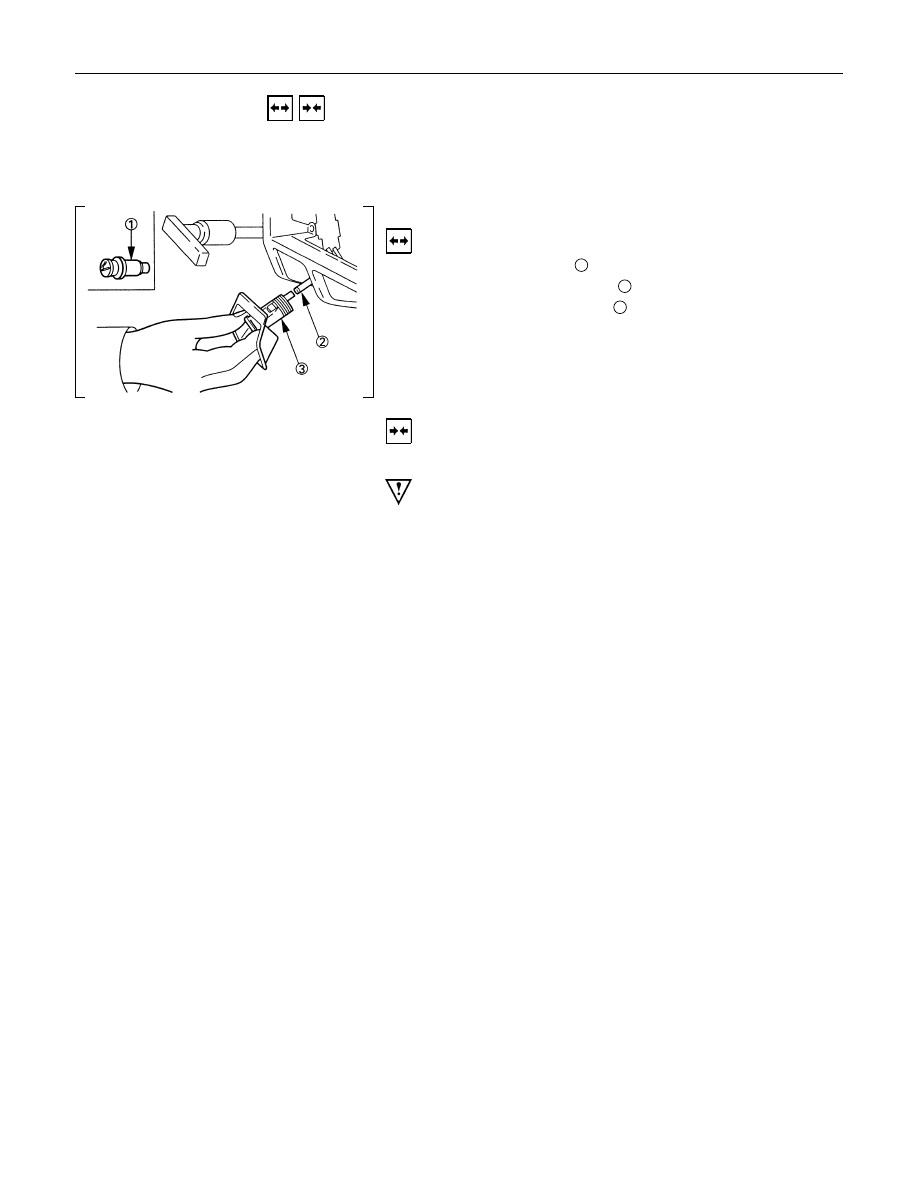

Removal

1. Remove the lighter

1

.

2. Disconnect the connector

2

.

3. Loosen the lighter holder

3

 nut at the back side.

4. Remove the holder from the bezel.

Installation

Follow the removal procedure in the reverse order to install the
lighter.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the lighter connector is securely
connected.
This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS  8-317

POWER DOOR MIRROR

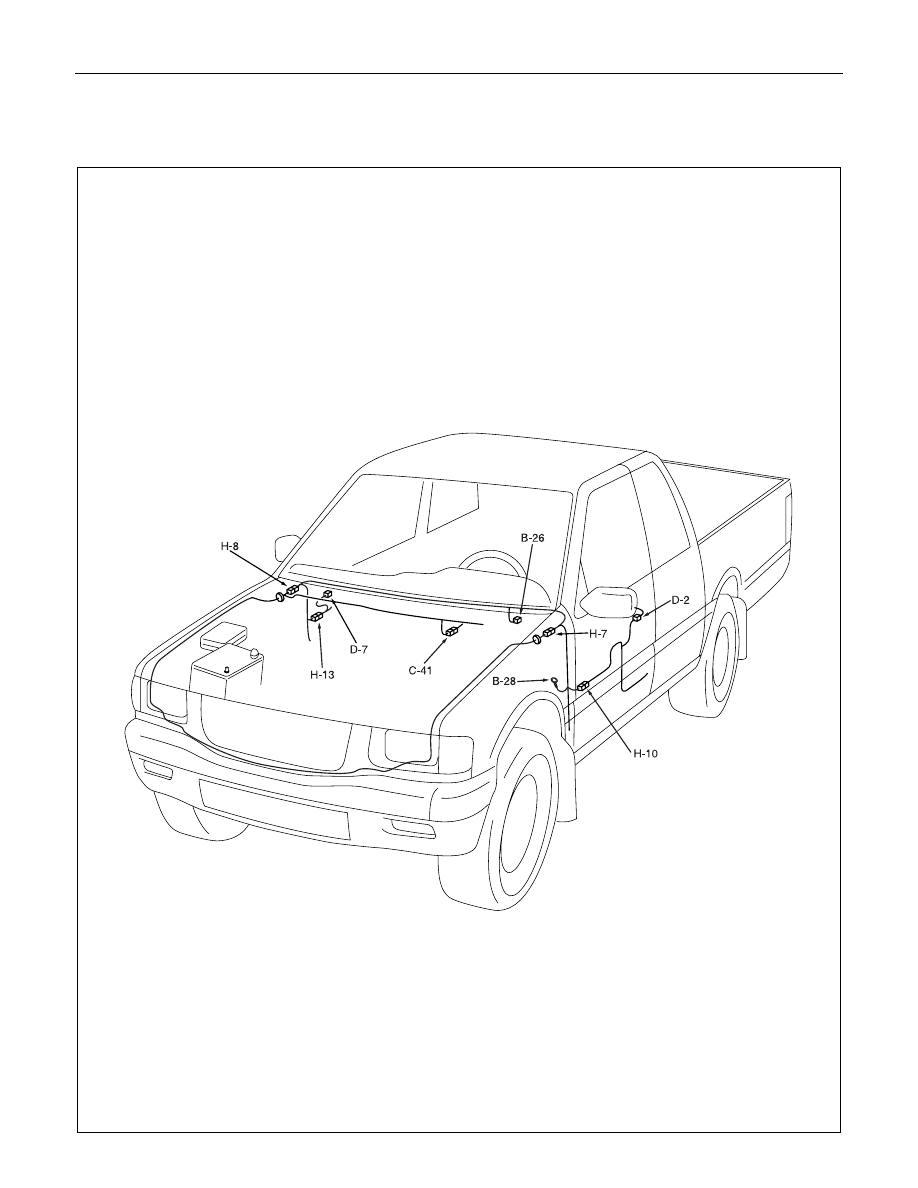

PARTS LOCATION (LHD)

8-318  ELECTRICAL-BODY AND CHASSIS

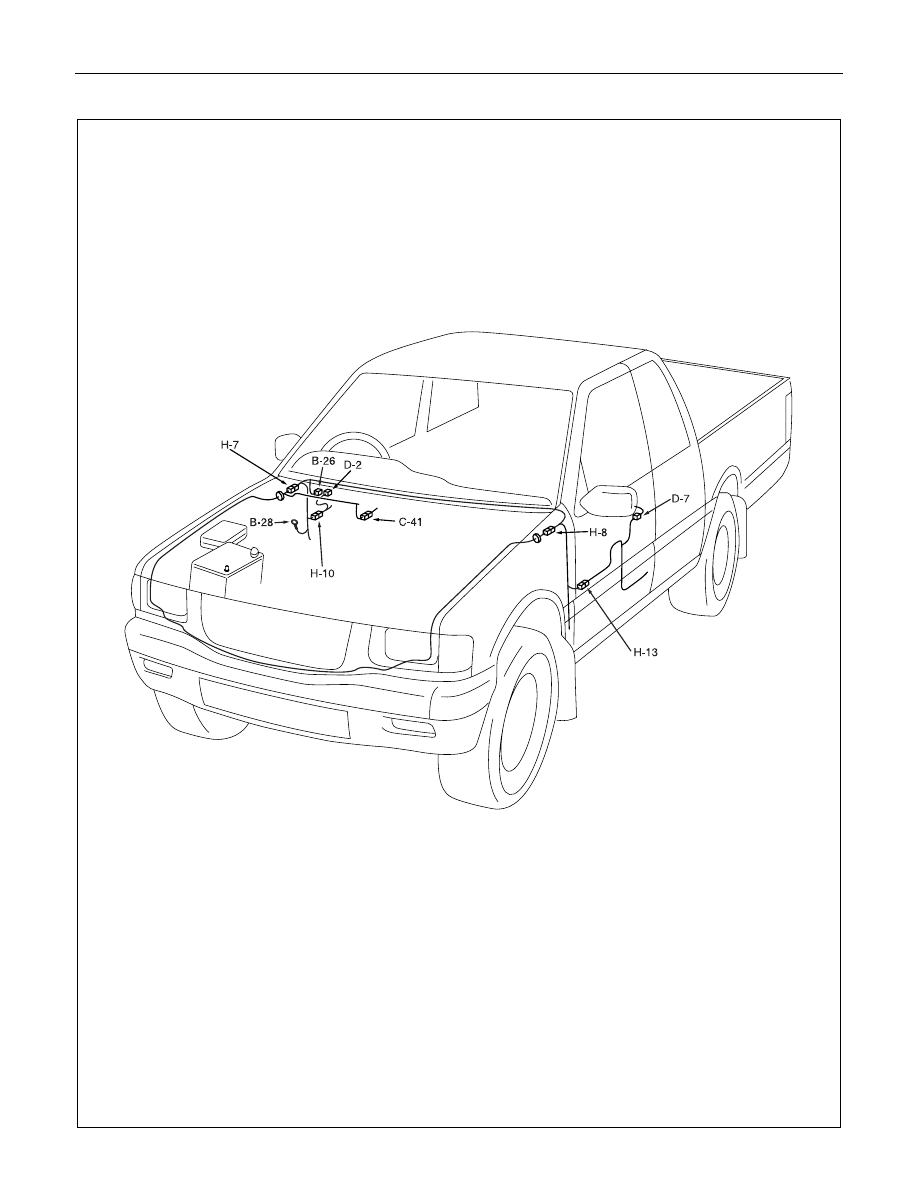

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-319

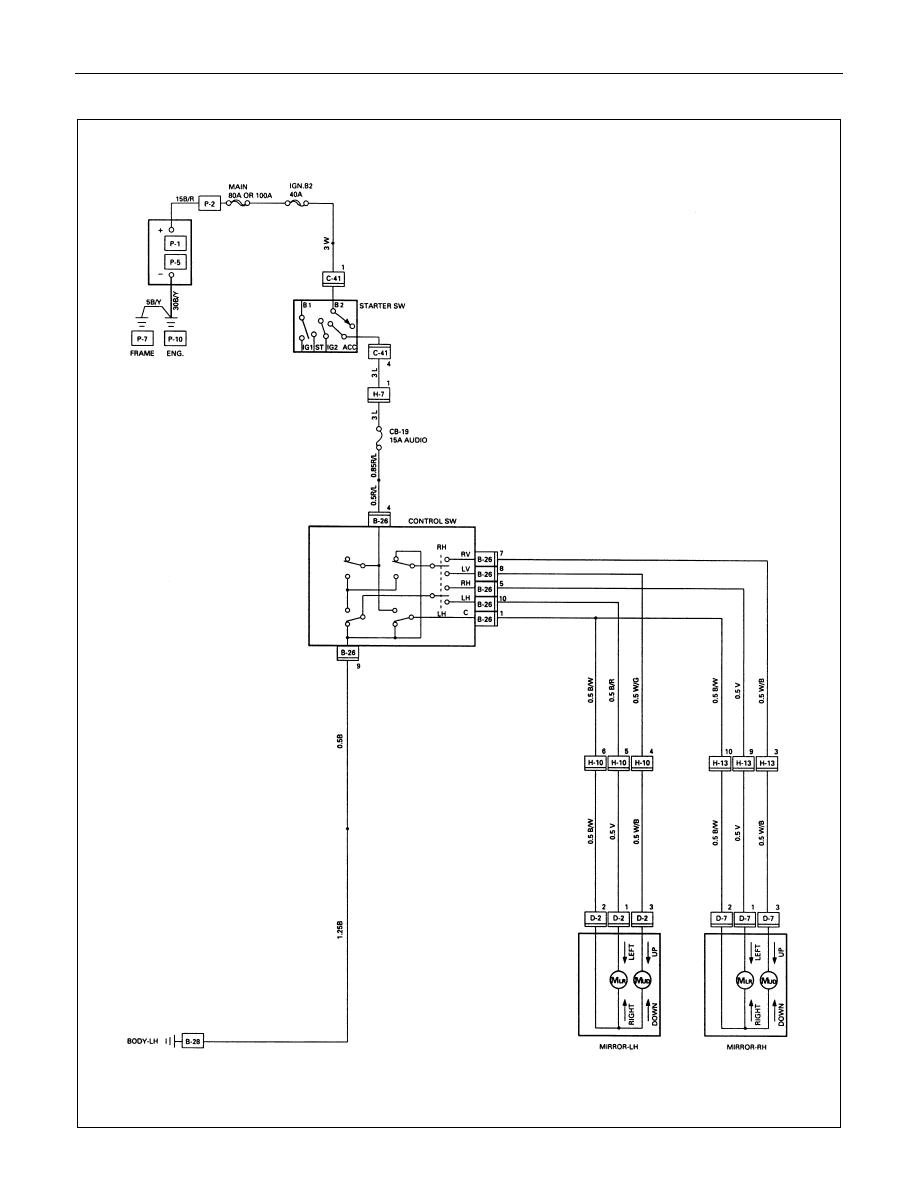

CIRCUIT DIAGRAM (LHD)
