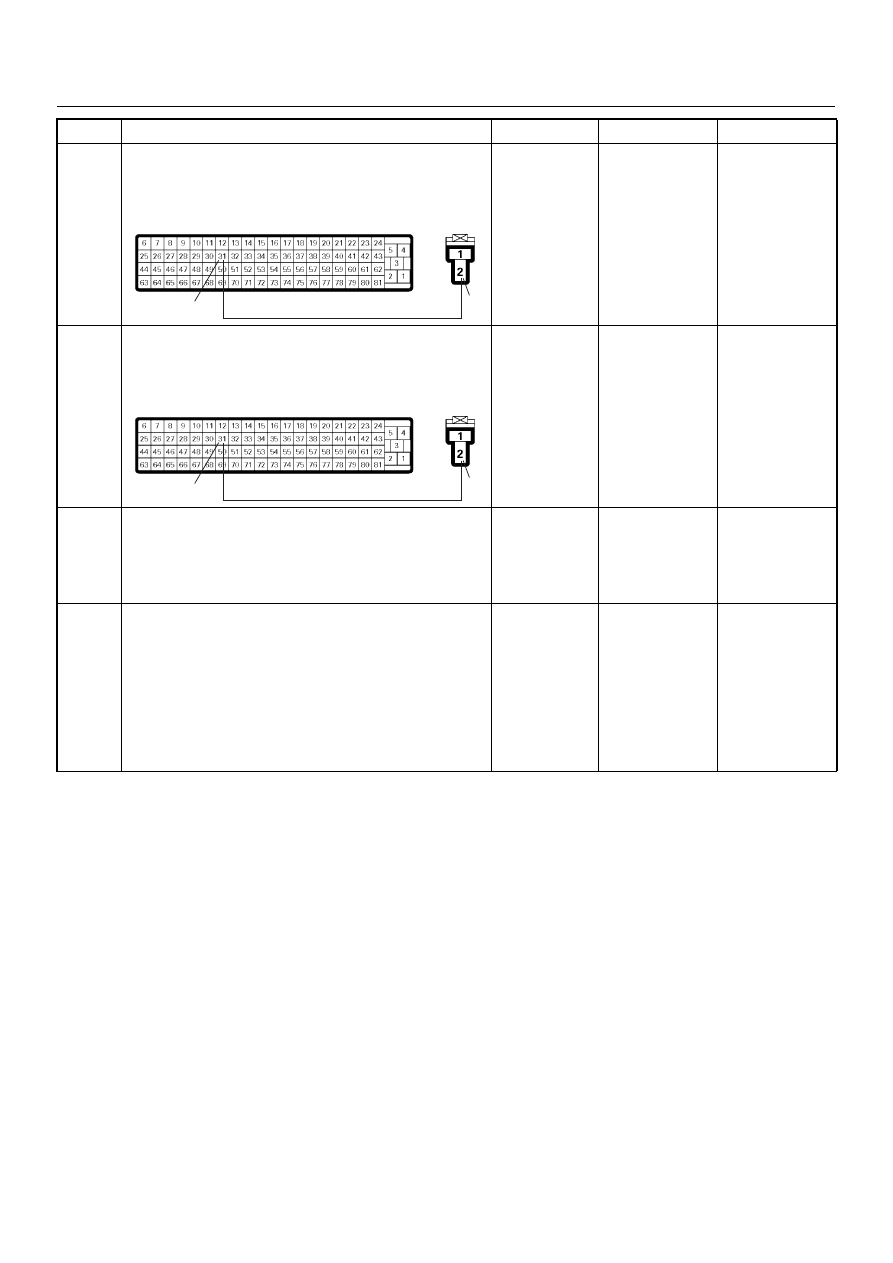

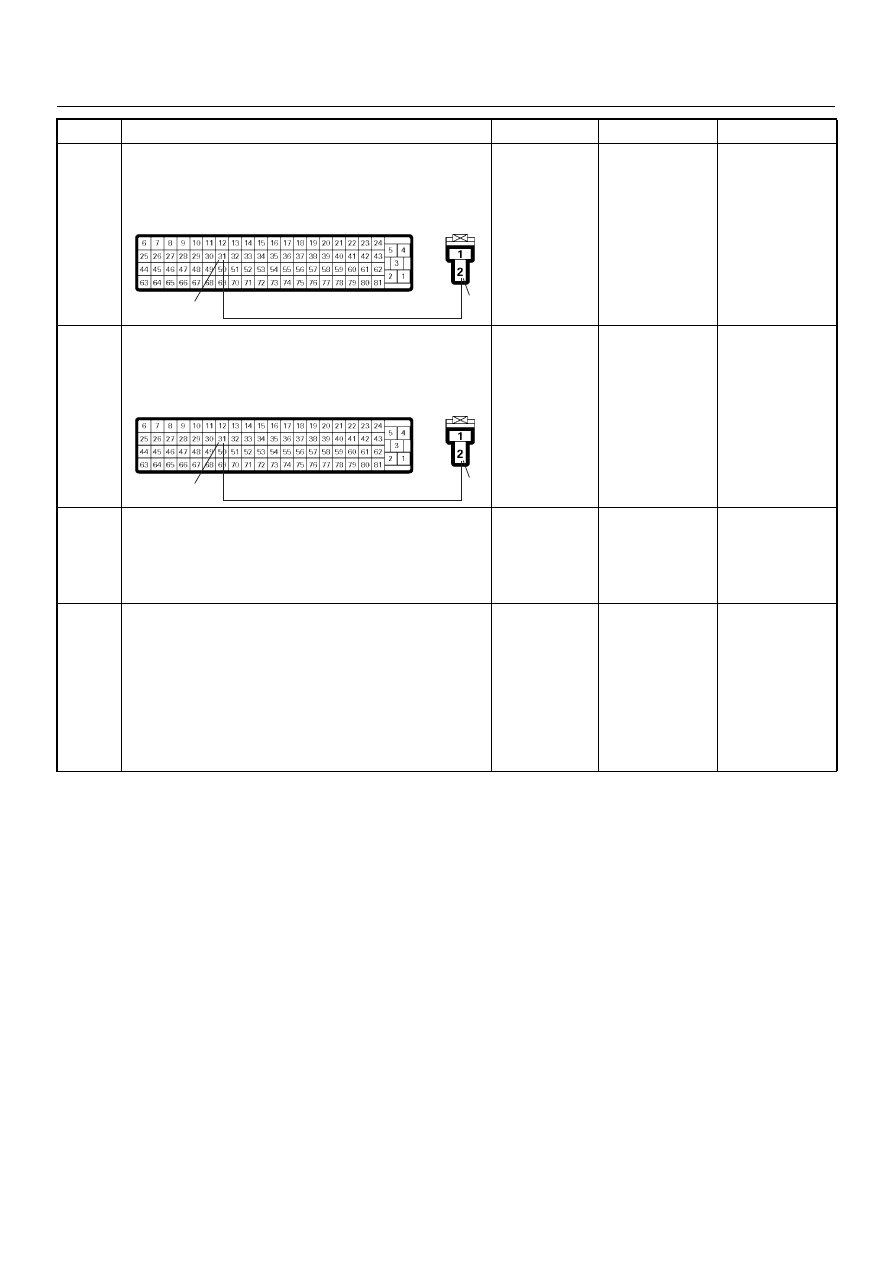

6E–224 4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6 Using the DVM and check the clutch switch power 1. Ignition “On”, engine “Off”. 2. Remove the clutch switch connector from the clutch switch. 3. Check the circuit for open circuit. Was the DVM indicated specified value? Battery Go to Step 8 Go to Step 7 7 Repair the open circuit between the “ECM fuse (10A)” — Verify repair — 8 Using the DVM and check the clutch switch circuit. 1. Ignition “Off”, engine “Off”. 2. Install the breaker box as type B. (ECM connected) Ref. Page 6E-73 3. Ignition “On”, engine “Off”. 4. Check the circuit for open or short to voltage circuit. Was the DVM indicated specified value? Breaker box is not available: 1. Ignition “On”, engine “Off”. 2. Back probe the DVM to the clutch switch and check the circuit for open or short to voltage Was the problem found? Pedal is not stepped on: Battery Pedal stepped on: Less than 1V Go to Step 11 Fixed at battery voltage: Go to Step 9 Fixed at less than 1V: Go to Step 10 Step Action Value(s) Yes No V 1 2 C-77 31 V V 2 C-77 |
