8-276  ELECTRICAL-BODY AND CHASSIS

POWER DOOR LOCK

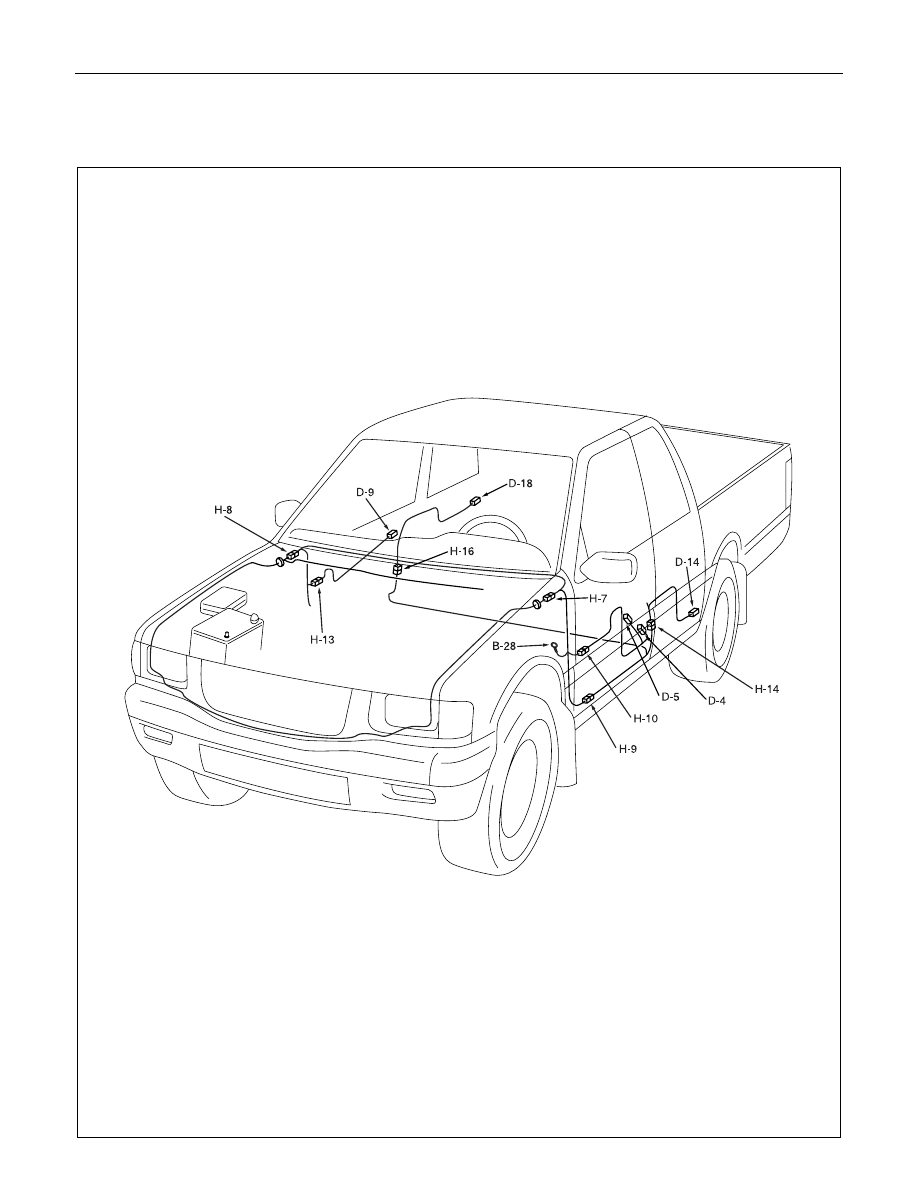

PARTS LOCATION (LHD)

ELECTRICAL-BODY AND CHASSIS  8-277

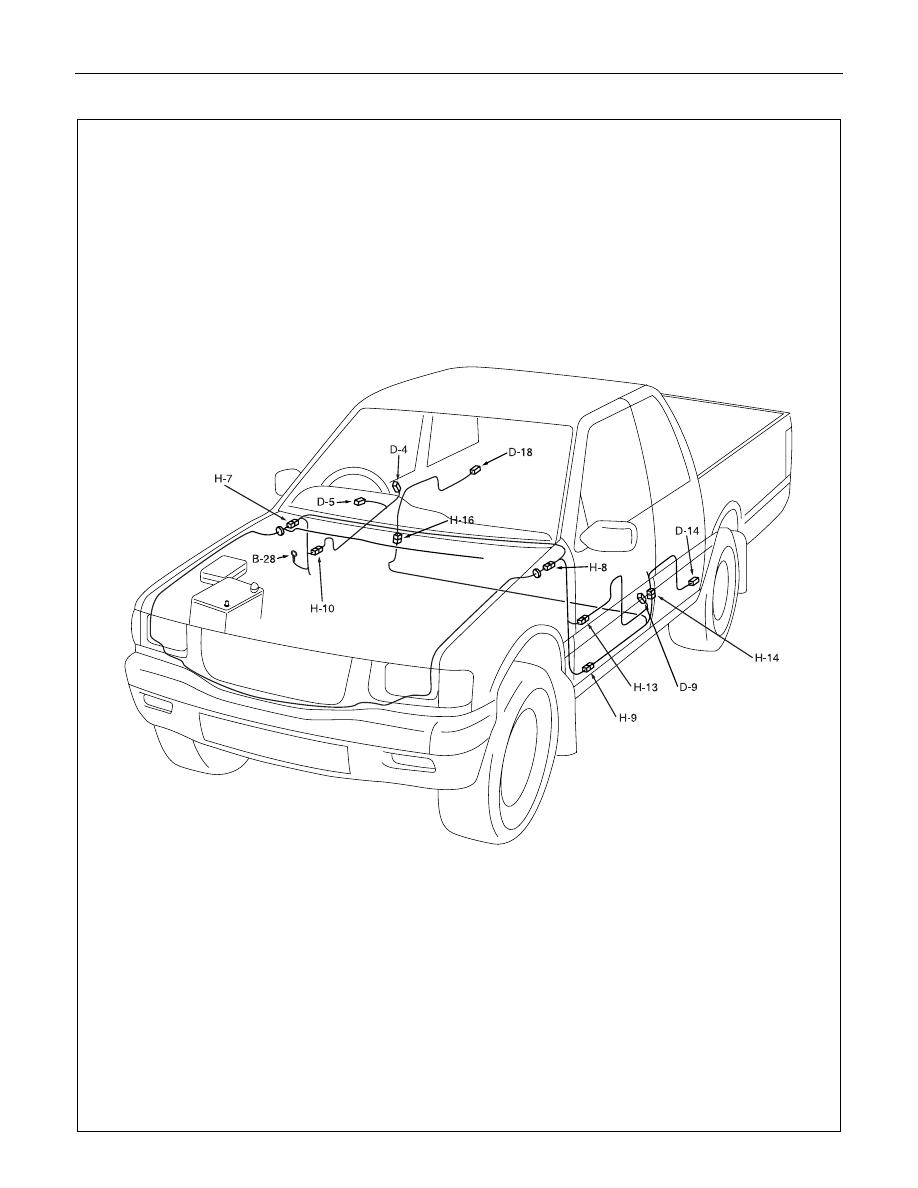

PARTS LOCATION (RHD)

8-278  ELECTRICAL-BODY AND CHASSIS

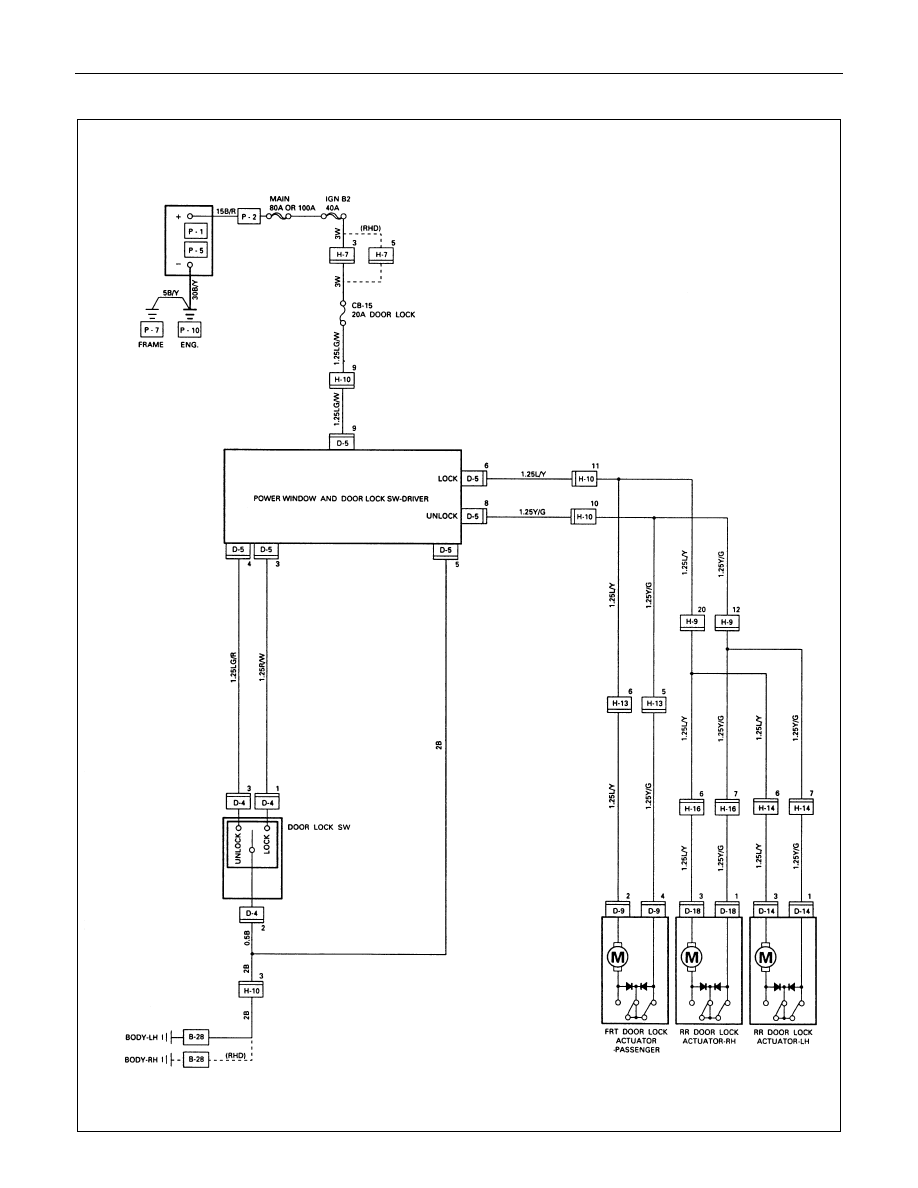

CIRCUIT DIAGRAM

ELECTRICAL-BODY AND CHASSIS  8-279

TROUBLE SHOOTING

QUICK CHART FOR CHECK POINTS

Check Points

Fuse

CB-15

Power Window

& Door Lock

Switch

Door Lock

Switch

Door Lock Actuator

Cable

Trouble Mode

(20A)

Driver’s

side

Driver’s

side

Passenger’

s side

RR-RH

RR-LH

Harness

1. All the doors do not lock

and unlock

2. All the doors do not get

locked (or unlocked)

3. Driver’s side door does not

get locked (or unlocked)

4. FRT passenger’s side door

does not get locked (or

unlocked)

5. RR door-RH does not get

locked (or unlocked)

6. RR door-LH does not get

locked (or unlocked)

7. Door lock does not operate

when operating from the

driver’s seat side
