Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1510

8-140  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-141

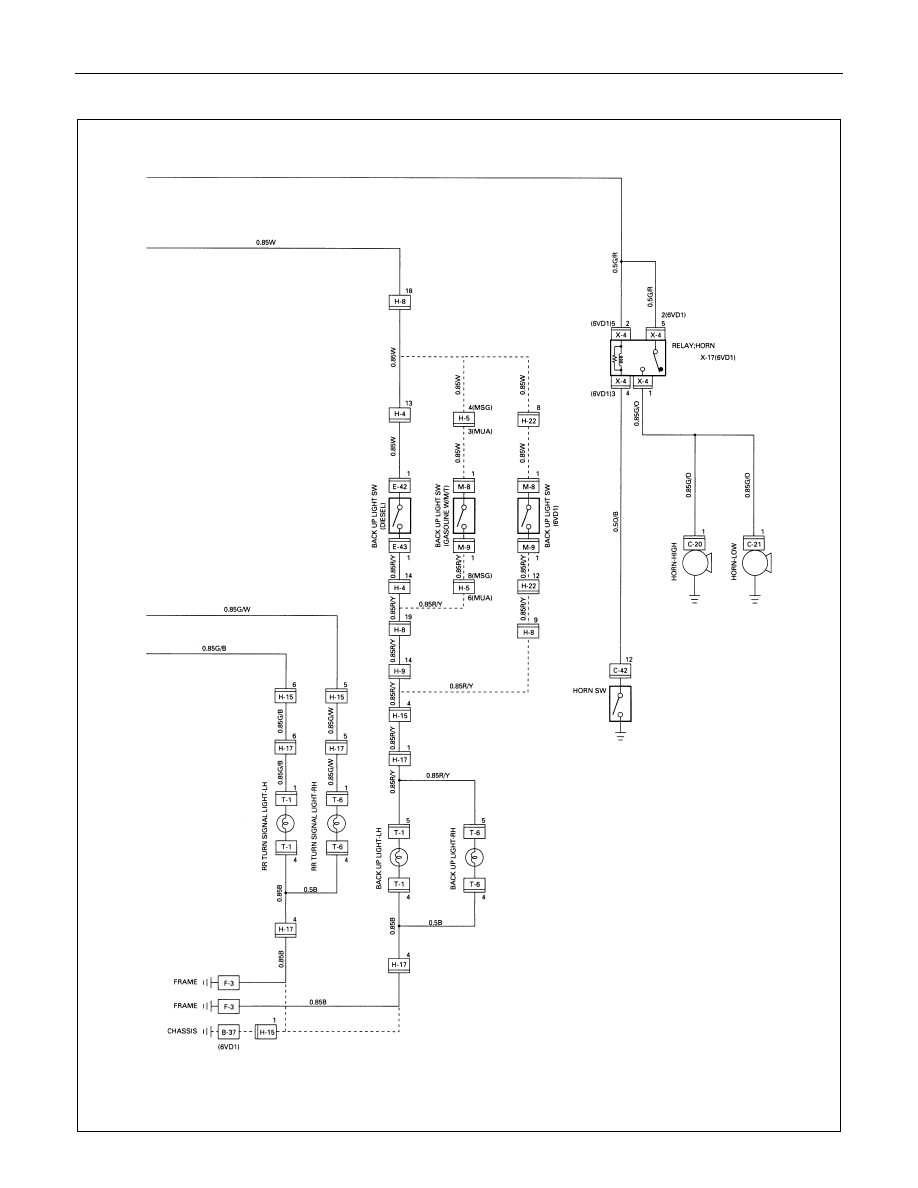

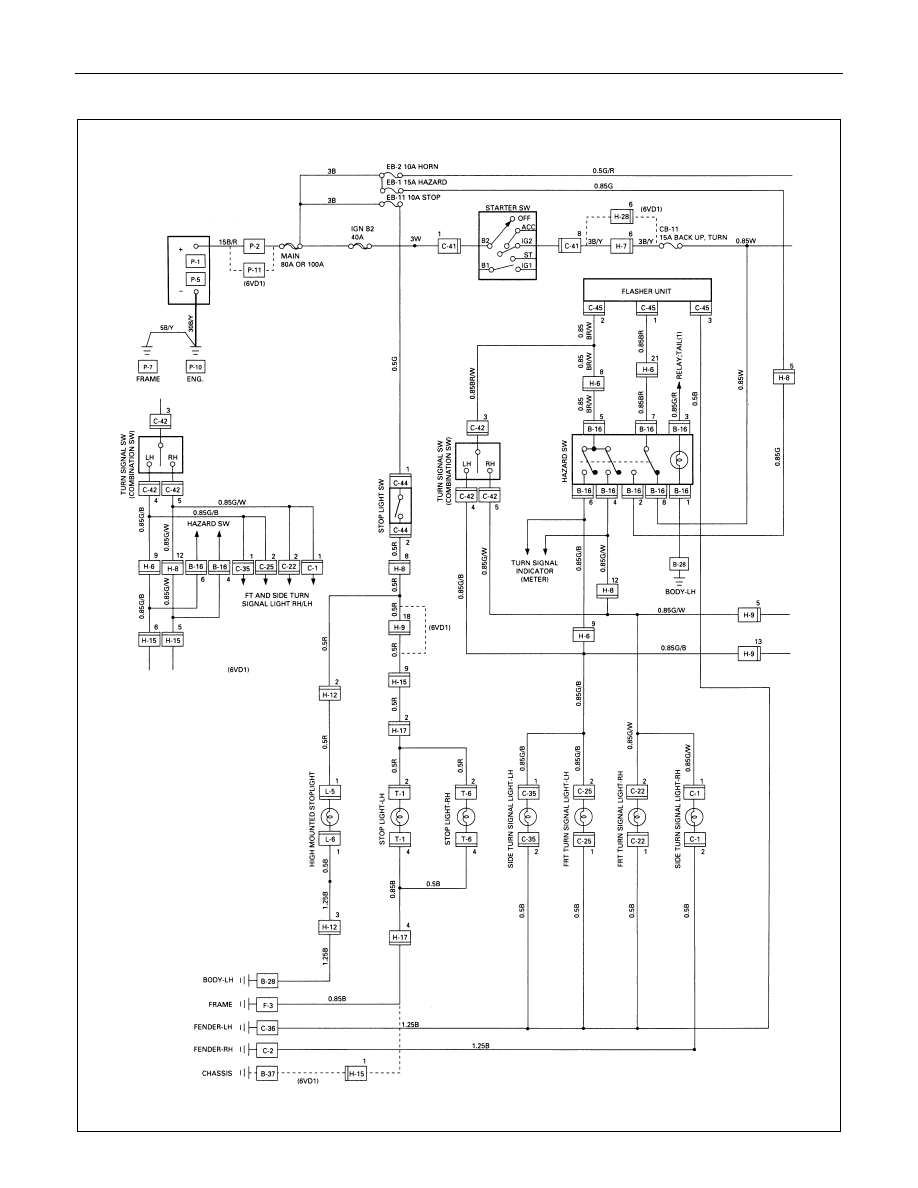

CIRCUIT DIAGRAM (6VD1-LHD)

8-142  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-143

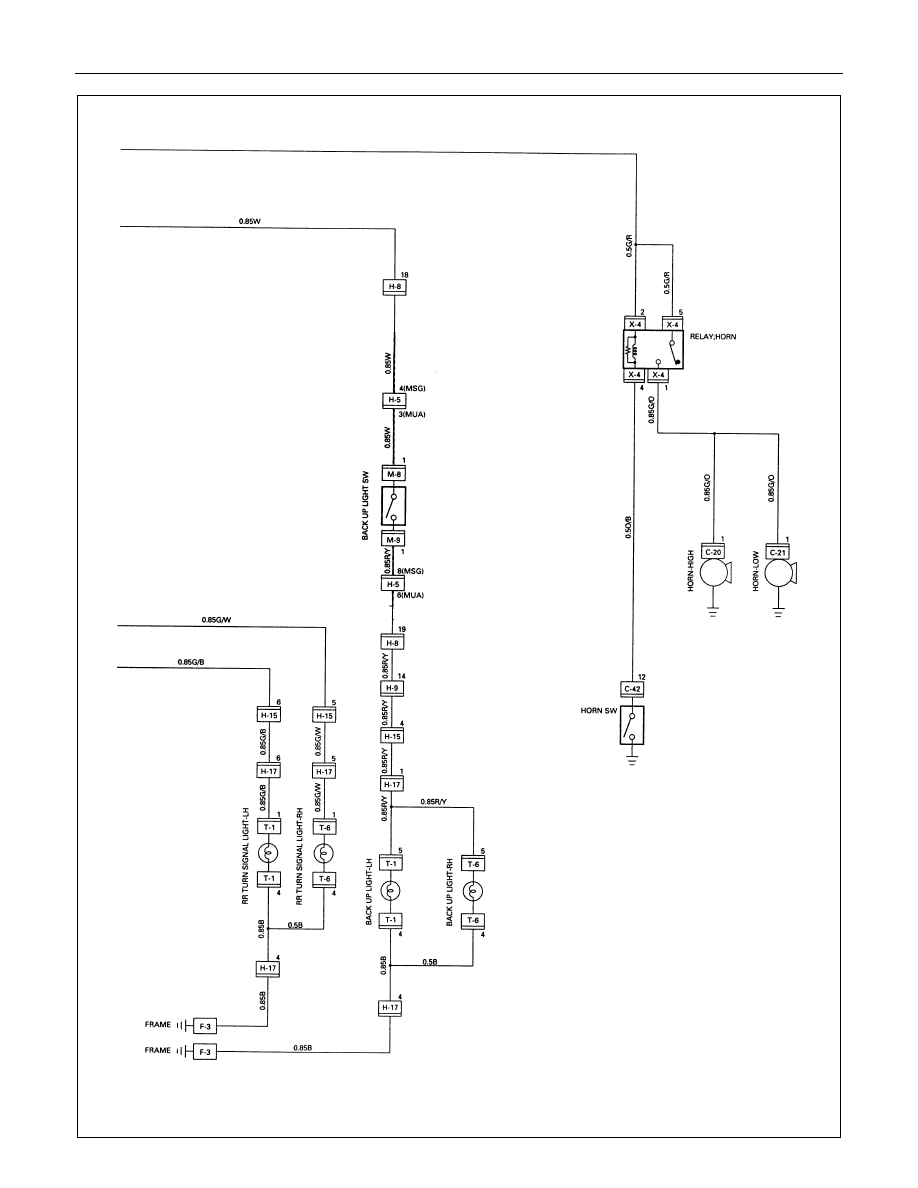

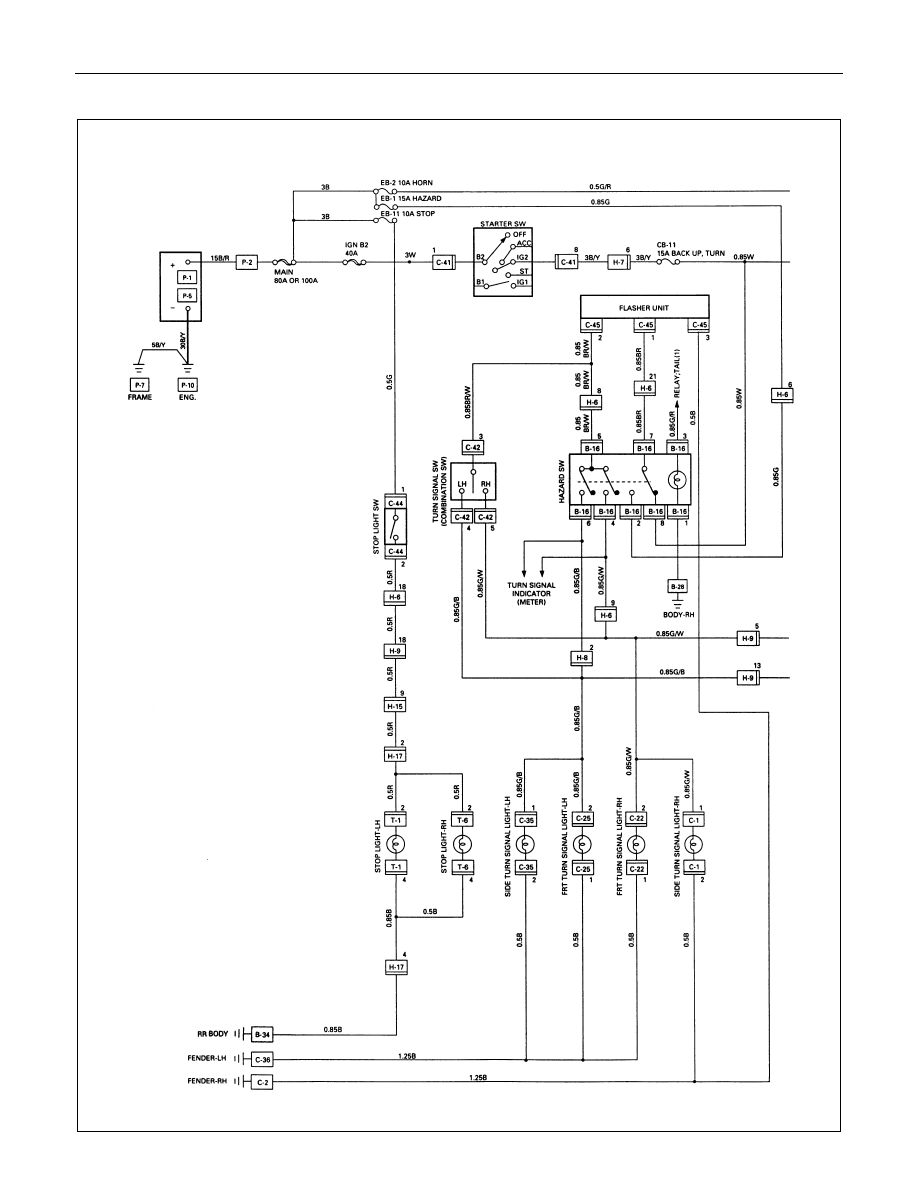

CIRCUIT DIAGRAM (RHD EXCEPT UK)
