Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1509





8-136  ELECTRICAL-BODY AND CHASSIS

HAZARD WARNING FLASHER, TURN SIGNAL LIGHT, BACK UP

LIGHT, HORN AND STOP LIGHT

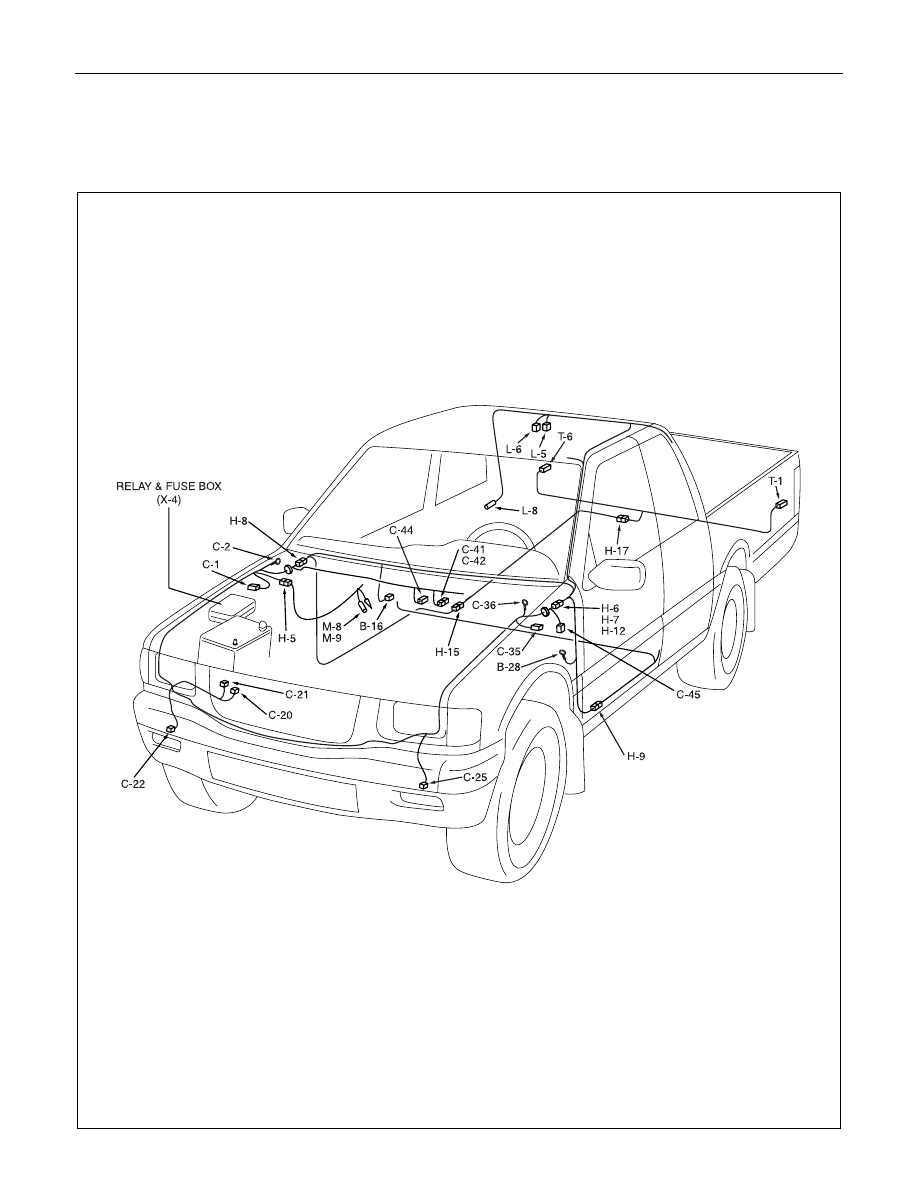

PARTS LOCATION (LHD)

ELECTRICAL-BODY AND CHASSIS  8-137

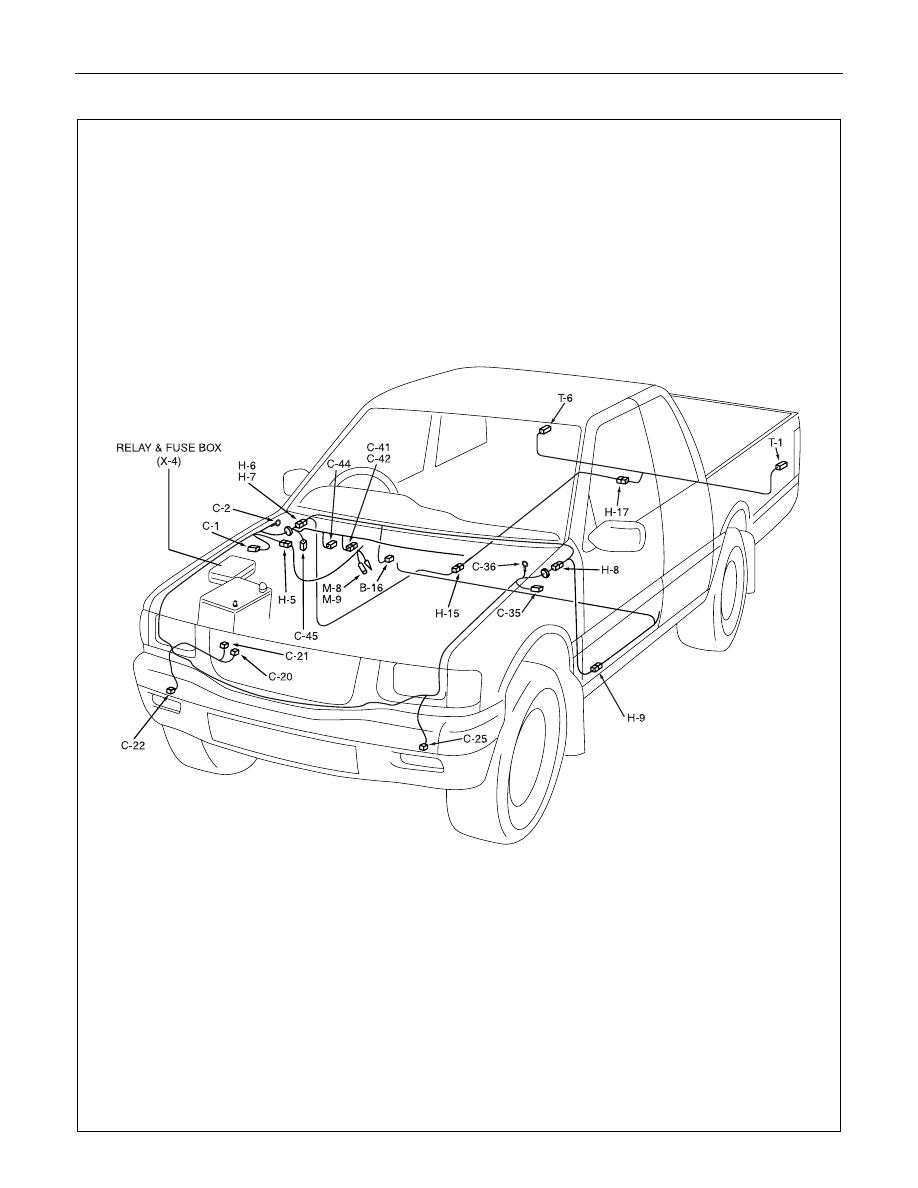

PARTS LOCATION (RHD)

8-138  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-139

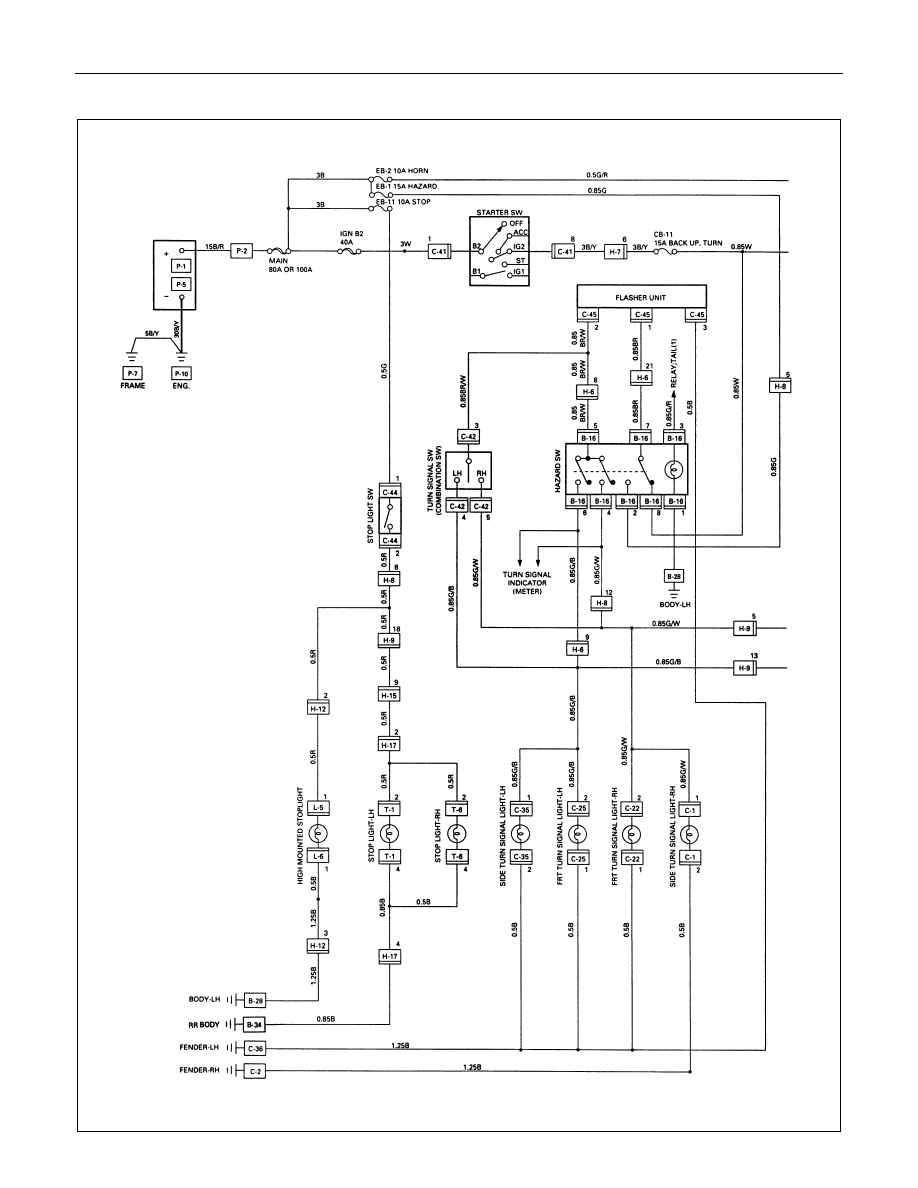

CIRCUIT DIAGRAM (LHD EXCEPT EC)
