8-48  ELECTRICAL-BODY AND CHASSIS

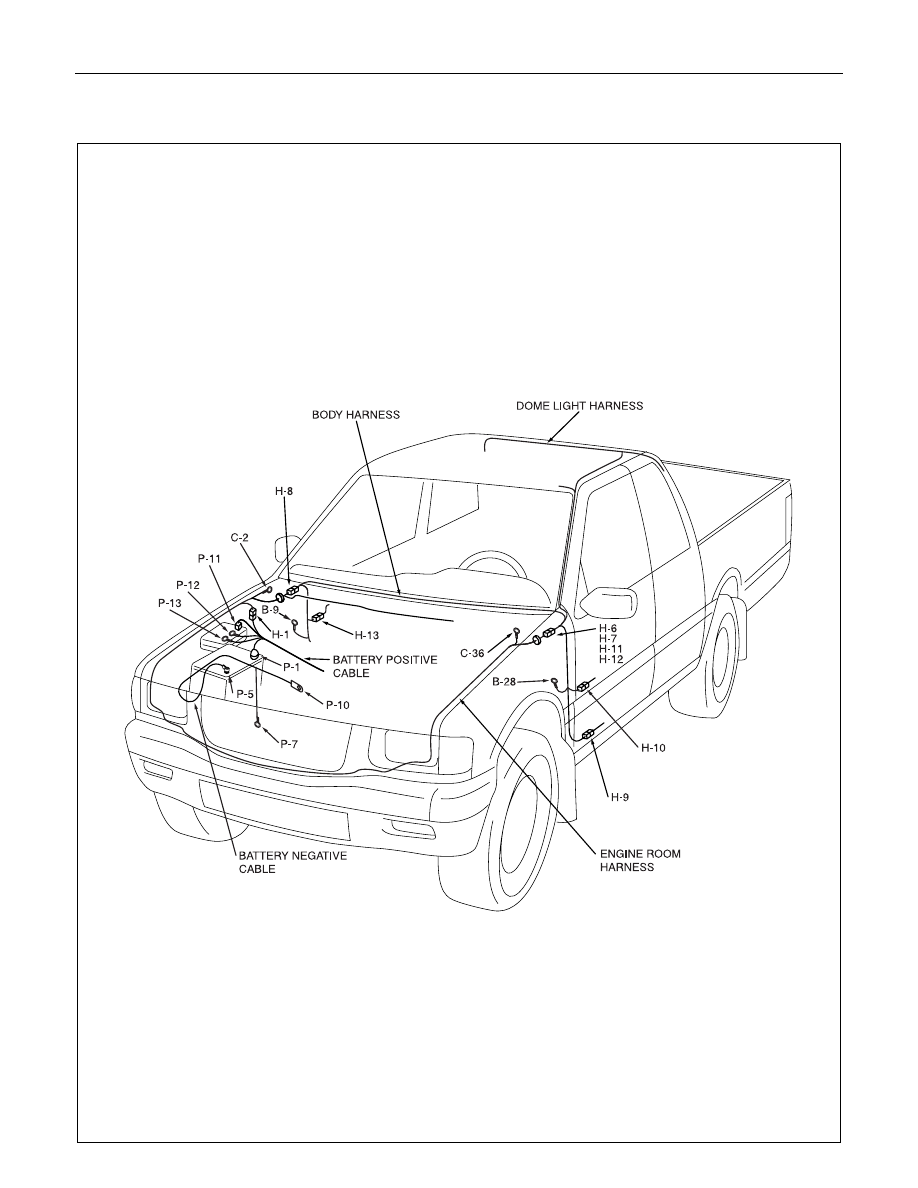

MAIN CABLE HARNESS ROUTING

(HEC ENGINE-LHD)

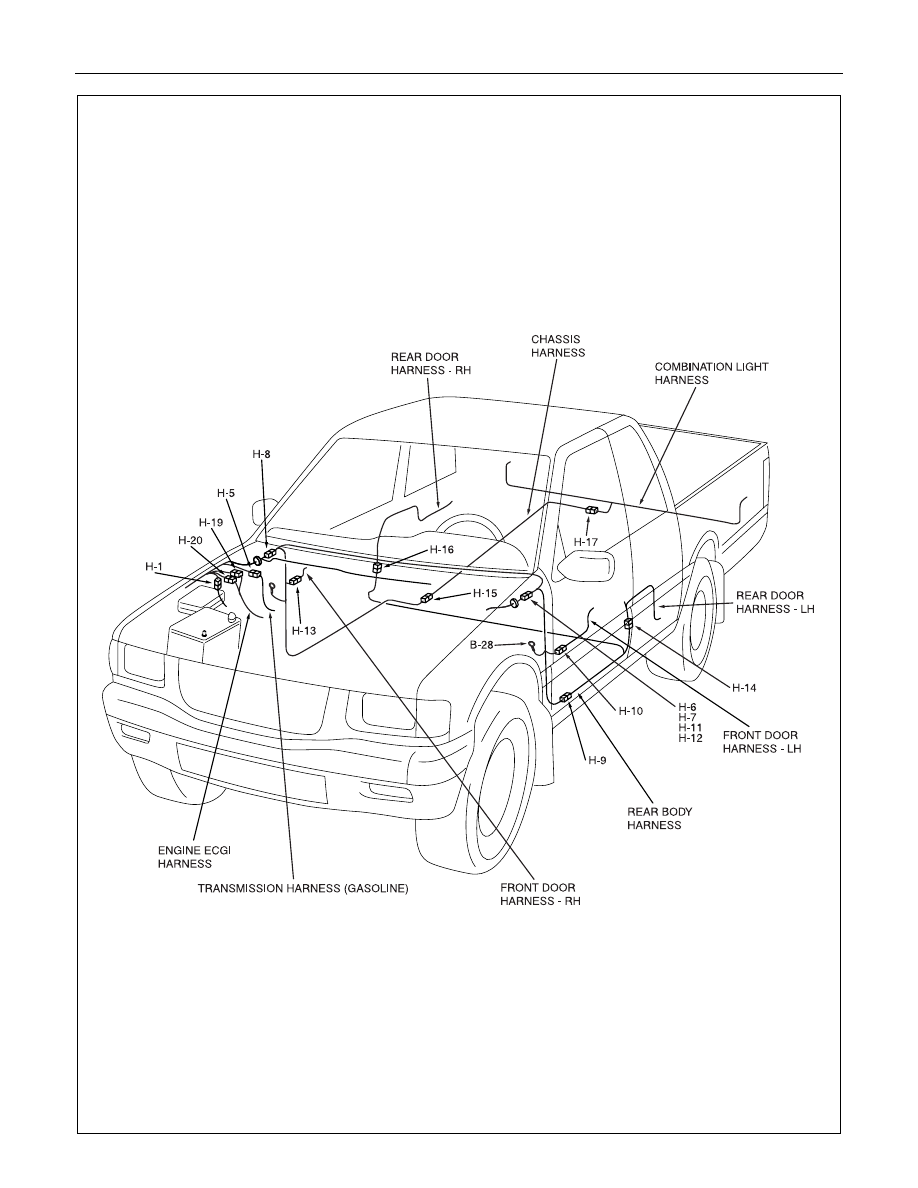

ELECTRICAL-BODY AND CHASSIS  8-49

(HEC ENGINE-LHD)

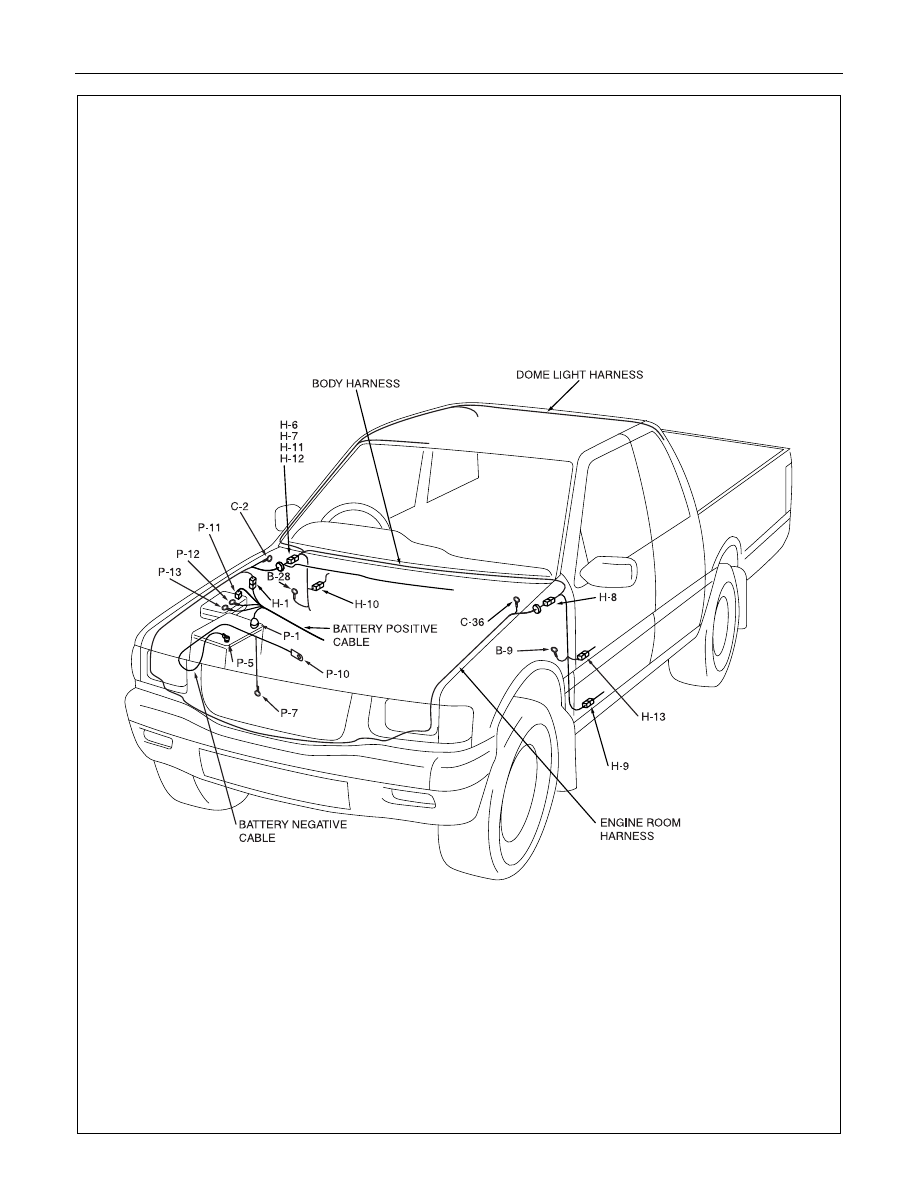

8-50  ELECTRICAL-BODY AND CHASSIS

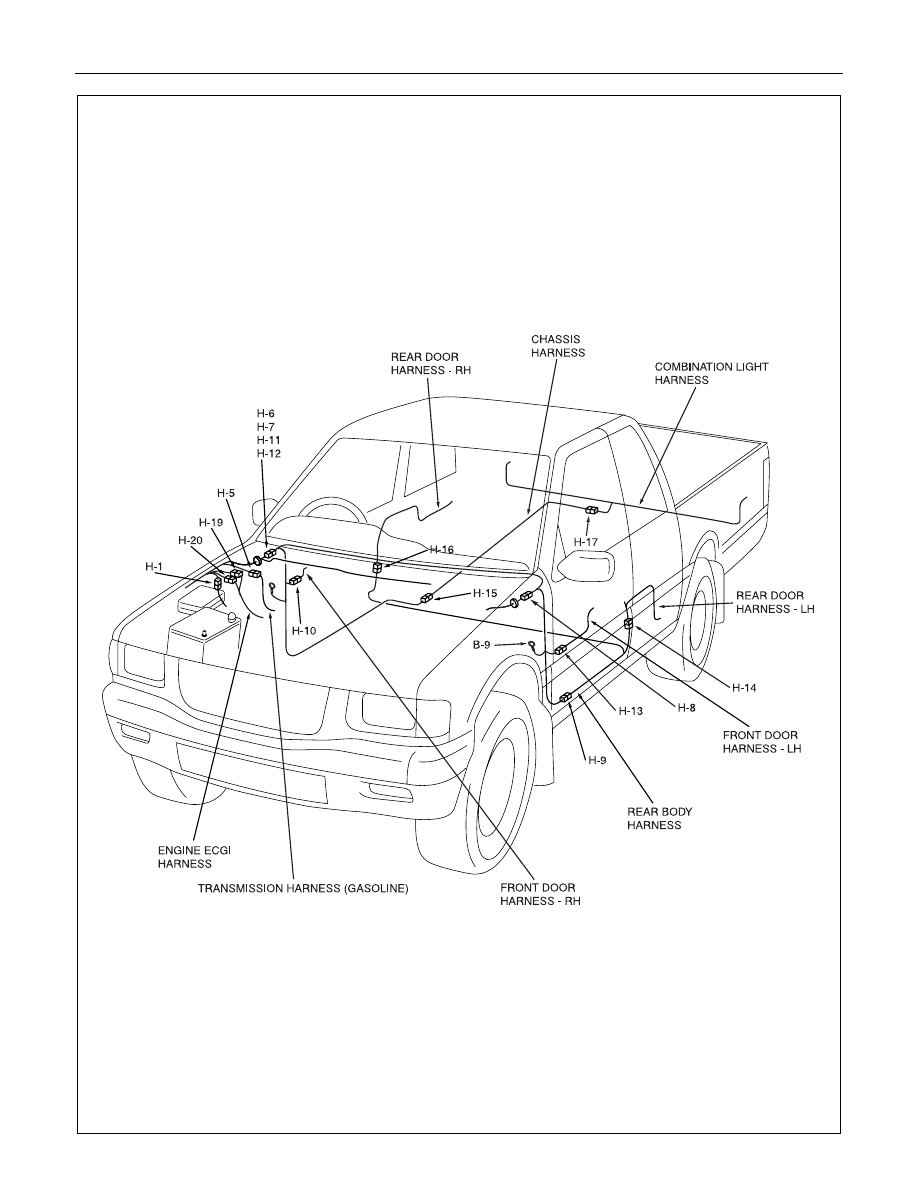

(HEC ENGINE-RHD)

ELECTRICAL-BODY AND CHASSIS  8-51

(HEC ENGINE-RHD)
