8-44 ELECTRICAL-BODY AND CHASSIS

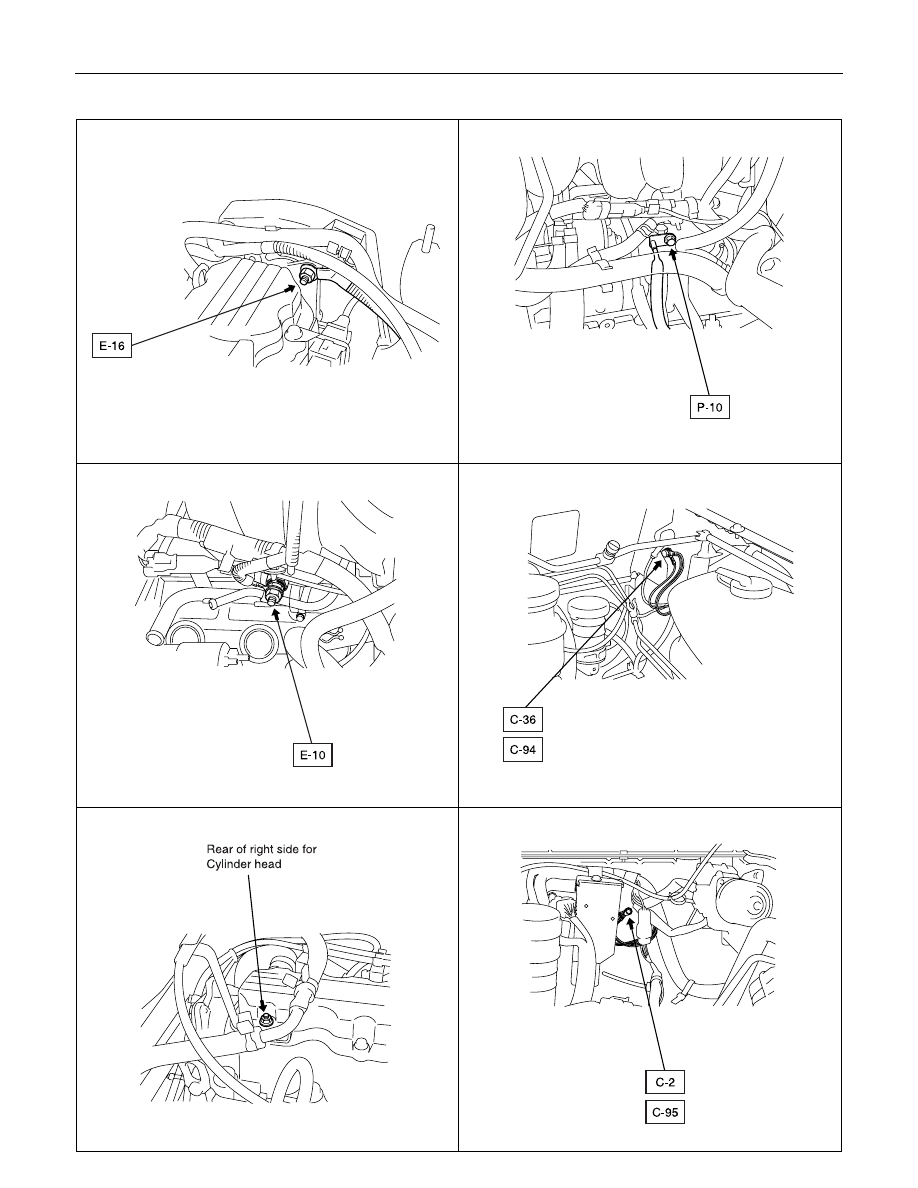

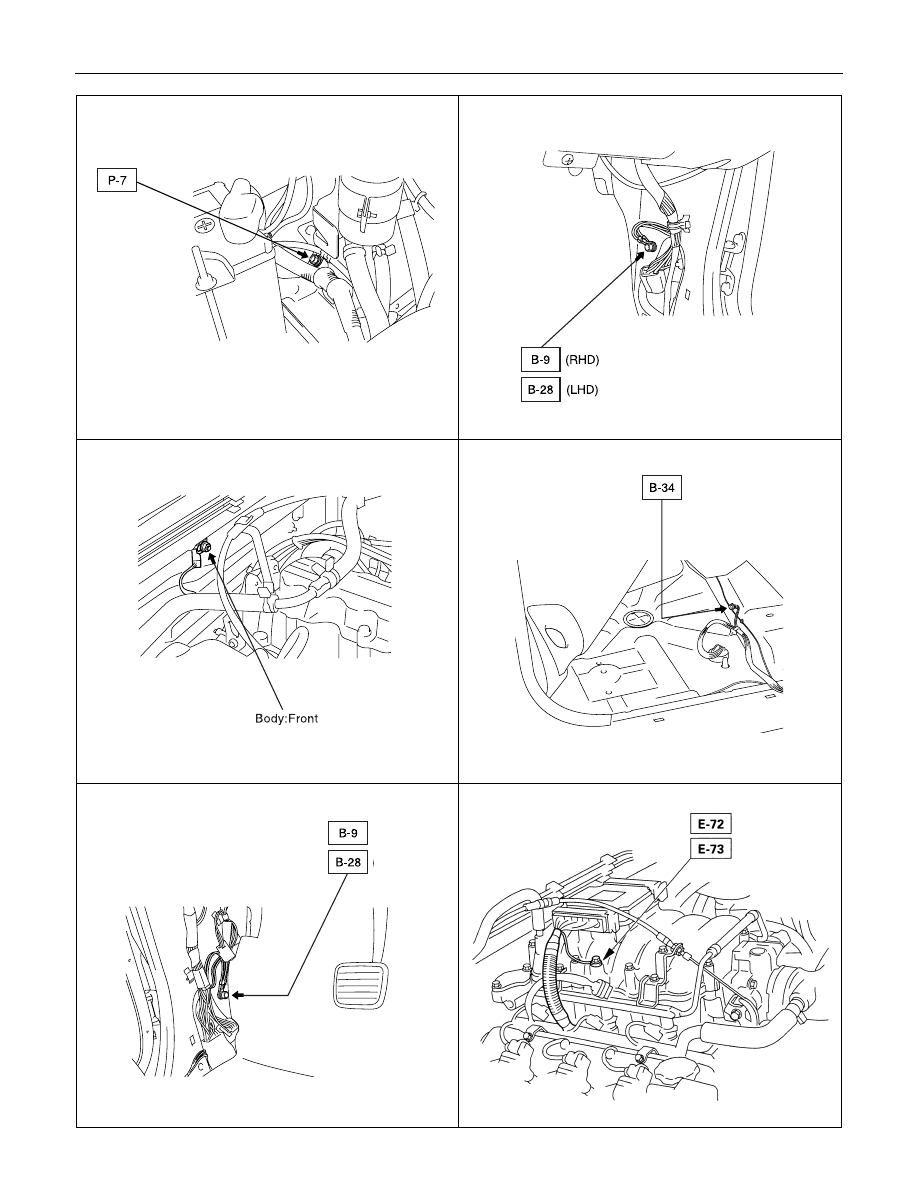

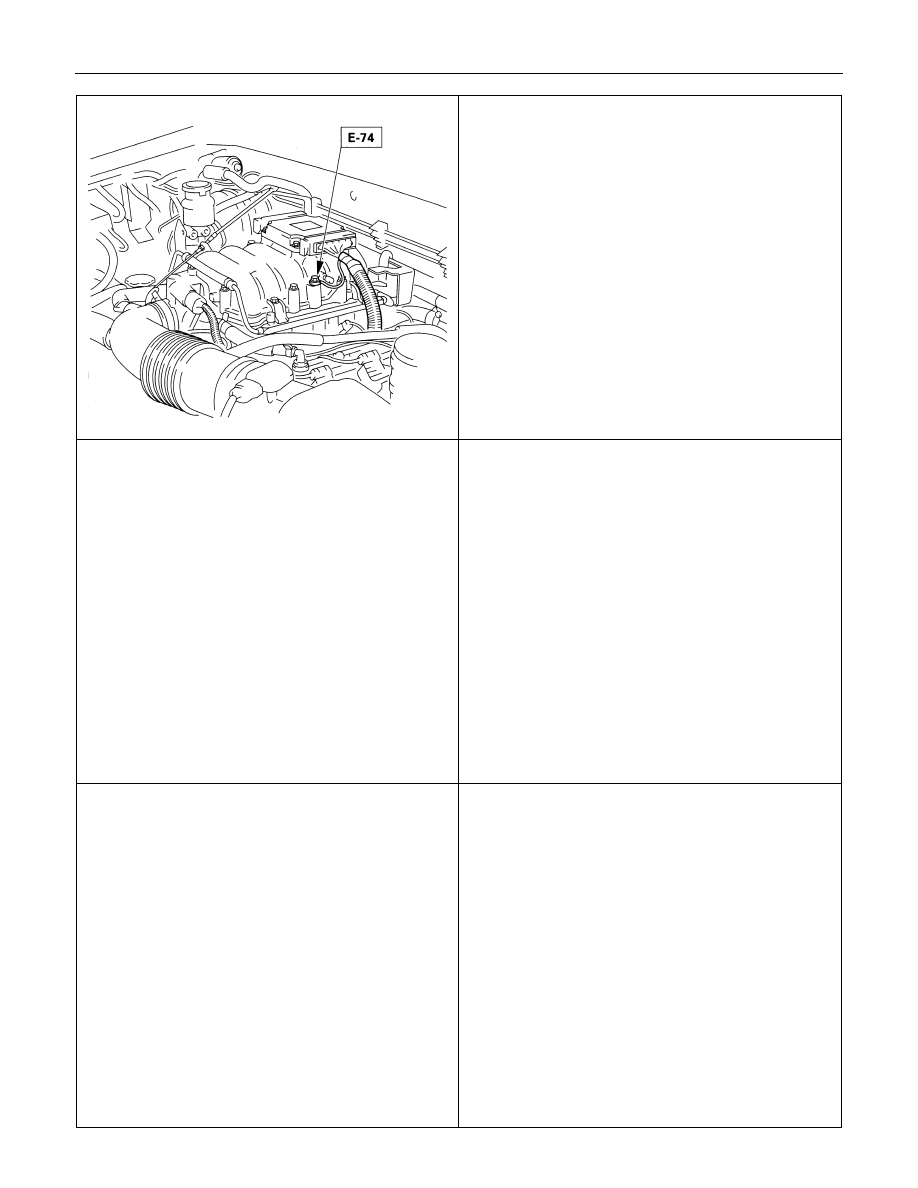

GROUNDING POINT
REFERENCE TABLE
(RHD)
Connector No.
Cable harness
Location
Parts (Load)
B-9
Body-LH
Fan SW, FRT power window & door lock SW-
passenger side, RR power window SW, Key, light &
seat belt remind buzzer (SOUTH AFRICA)
B-28
Body harness
Body-RH
Illumination light (meter, Heater & A/C control panel,
Cigarette lighter, Ashtray, RR defogger SW, Audio,
Hazard SW), Turn signal indicator light, FRT power
window & door lock SW-driver side, Power window
relay, Door mirror control SW, RR defogger, RR
defogger SW, Door lock SW-driver side, Audio, Clock,
Cigarette lighter
B-34
RR Body-RH
Fuel tank unit, Tail light, License plate light, Fuel pump,
Stop light, RR turn signal light, Back up light
C-2
Fender-RH
Vehicle speed sensor, 4WD SW, Brake fluid level SW,
Heater relay, Dimmer
⋅passing SW, Lighter SW, Starter
relay, Windshield intermittent relay, Windshield wiper
motor, Flasher unit, Side turn signal light-RH,
Condenser fan relay
C-36
Engine room
harness
Fender-LH
Clearance light, Seat belt SW (SOUTH AFRICA),
Windshield washer motor, Side turn signal light-LH,
FRT turn signal light
C-95
Engine-RH
Condenser fan
C-94
Engine-LH
Speedometer, Tachometor (W/Tachometer), Engine
coolant temperature gauge (W/Tachometer), Fuel
gauge
E-10
Under the Intake manifold
E-16
Head of cylinder head
E-72
Data link connector, ECM, Crank angle sensor
E-73
Engine harness
Ignition coil, ECM
E-74
Common
character: LH
Ignition coil, ECM, MAF sensor shield, Cam angle
sensor shield, Throttle position sensor shield
P-7
Body-RH
Right side of body
P-10
Body-RH
Right side of Engine
Battery harness
Engine harness
Engine
Common
character: RH
