Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 140





6E–164

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

• Rubbed through wire insulation.

• Broken wire inside the insulation.
Check for the following conditions:

• Poor connection at ECM-Inspect harness connectors

for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and

poor terminal to wire connection.

• Damaged harness-Inspect the wiring harness for

damage. If the harness appears to be OK, observe
the DTC P0381 display on the Tech2 while moving
connectors and wiring harnesses. A change in the
display will indicate the location of the fault.

Diagnostic Trouble Code (DTC) P0381 (Symptom Code 4) (Flash Code 67)

Glow Plug Indicator Circuit Voltage Low

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0381 (Symptom Code 4) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0381 (Symptom Code 4) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

1. Ignition “On”, engine “Off”.

2. Check the glow plug indicator lamp.

Does the lamp turn “On”?

Go to Step 5

Go to Step 6

5

1. Ignition “On”, engine “Off”.

2. Check the glow plug indicator lamp.

Does the lamp turn “Off”?

Go to Step 9

Go to Step 7

6

Check the glow plug indicator lamp bulb.
If the bulb is burnt out, repair as necessary.
Was the problem found?

Verify repair

Go to Step 7

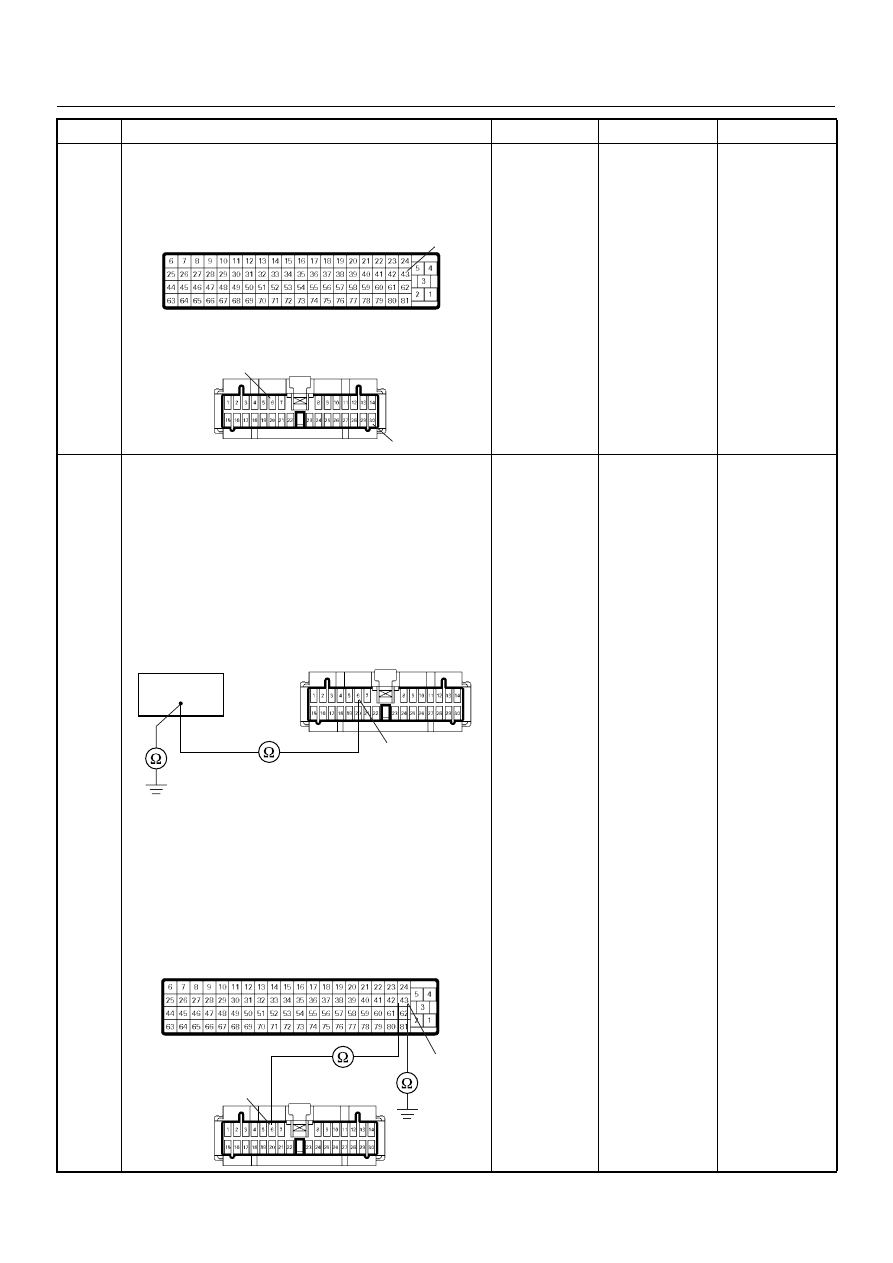

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–165

7

Check for poor/faulty connection at the meter
connector and ECM connector. If a poor/faulty
connection is found, repair as necessary.
Was the problem found?

Verify repair

Go to Step 8

8

Using the DVM and check the glow time telltale circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. Page 6E-73

3. Remove the meter connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECM connector.

3. Remove the meter connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Repair faulty
harness and

verify repair

Go to Step 9

Step

Action

Value(s)

Yes

No

43

6

30

B-24

C-56

43

6

B-24

43

6

B-24

C-56

6E–166

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

9

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

Verify repair

Go to Step 10

10

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

Verify repair

Step

Action

Value(s)

Yes

No

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–167

Diagnostic Trouble Code (DTC) P0381 (Symptom Code 8) (Flash Code 67)

Glow Plug Indicator Circuit Voltage High

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0381 (Symptom Code 8) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0381 (Symptom Code 8) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

4

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

Verify repair

Go to Step 5

5

Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

Go to Step 6

6

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

Verify repair
