ELECTRICAL-BODY AND CHASSIS  8-133

8-134  ELECTRICAL-BODY AND CHASSIS

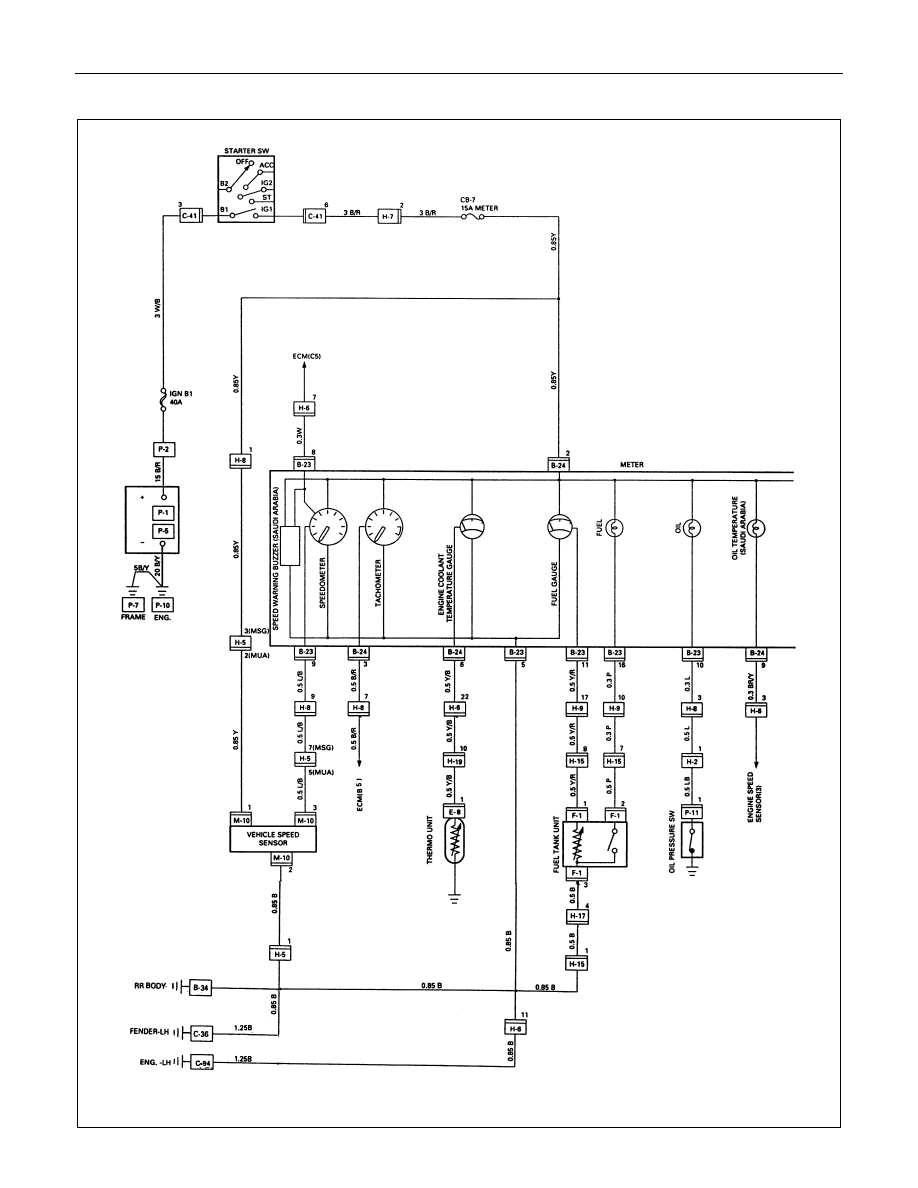

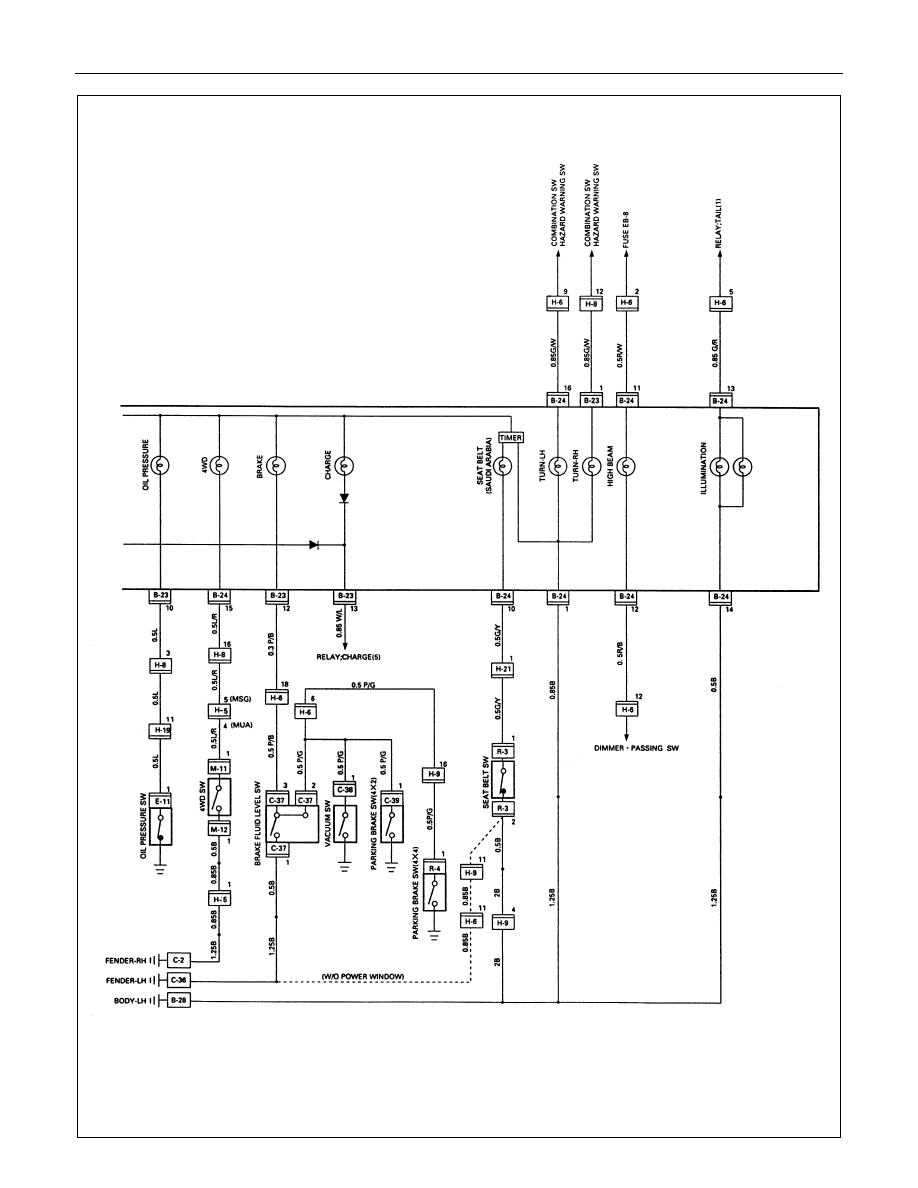

CIRCUIT DIAGRAM (W/O TACHOMETER (RHD))

ELECTRICAL-BODY AND CHASSIS  8-135

8-136  ELECTRICAL-BODY AND CHASSIS

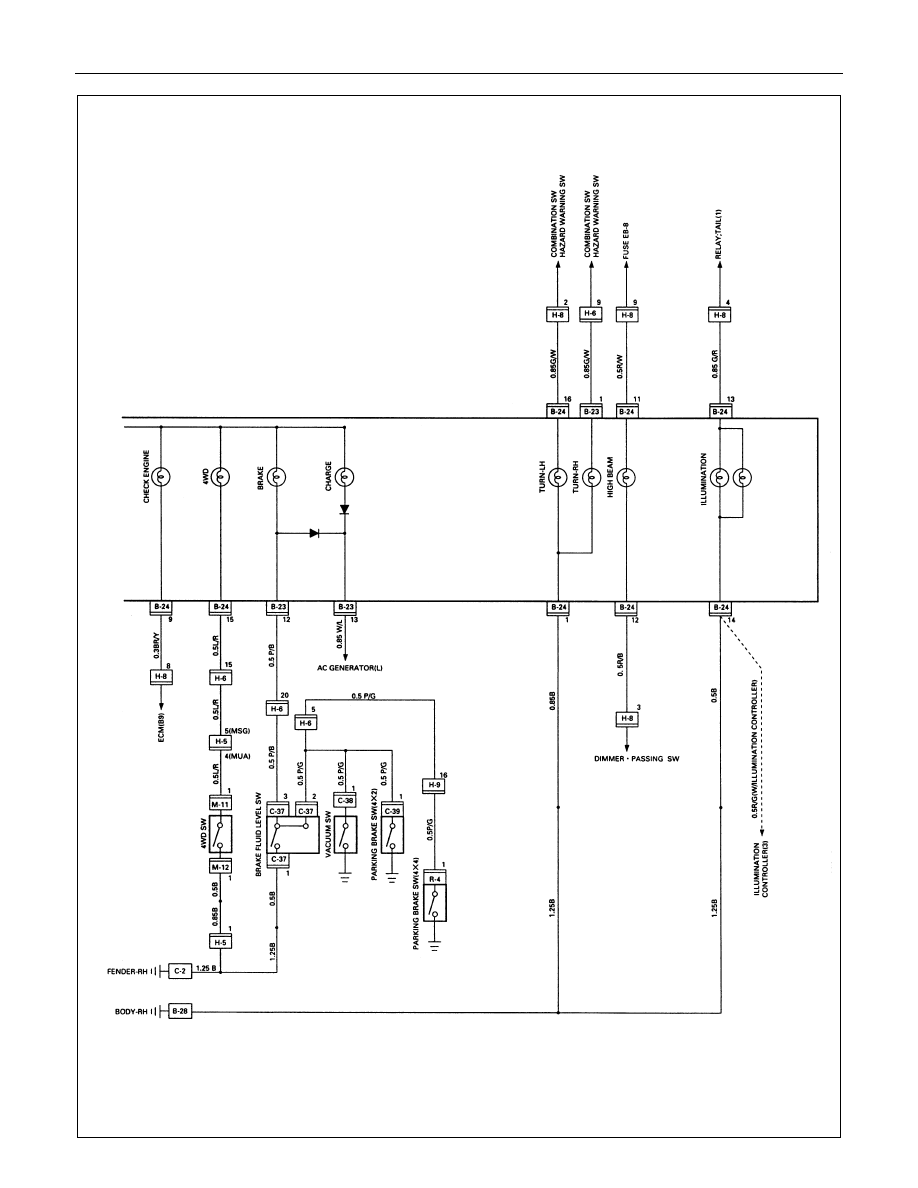

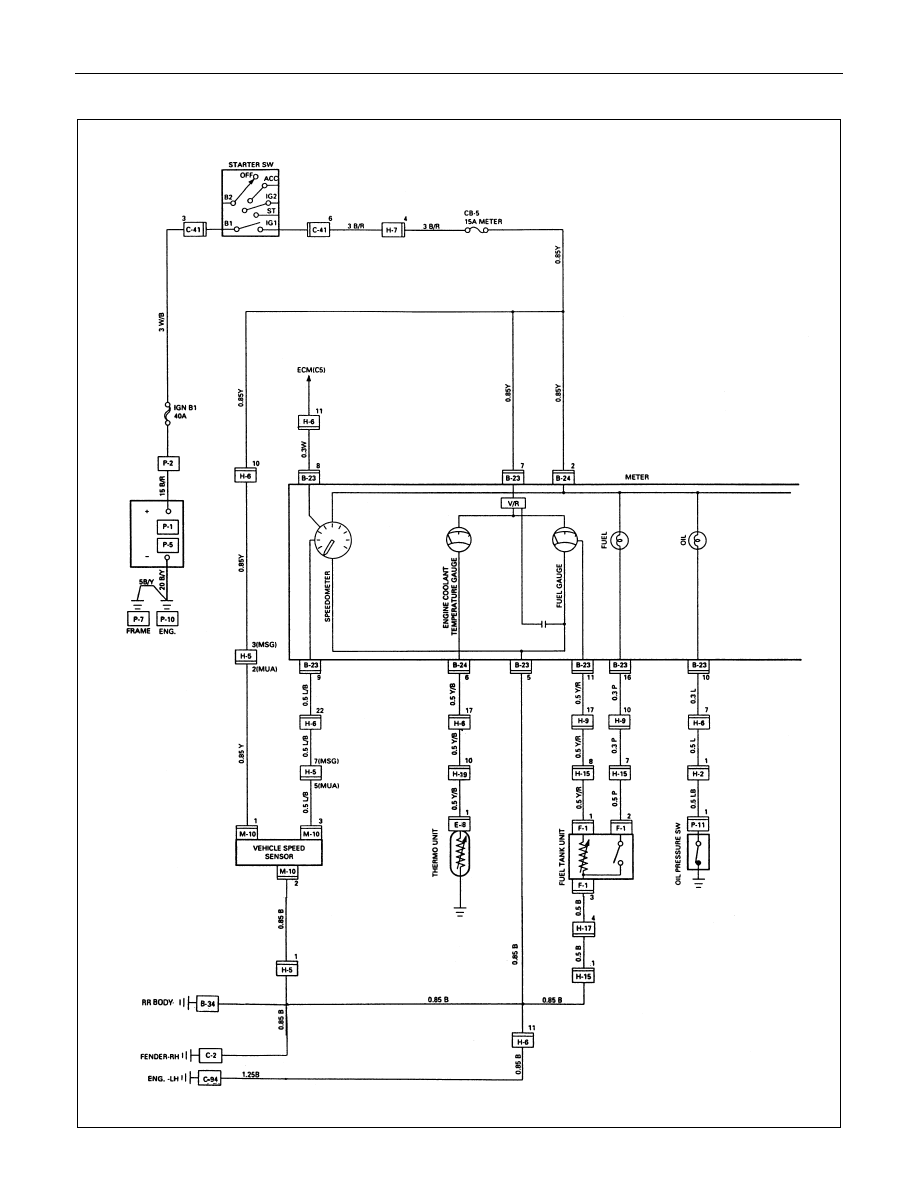

CIRCUIT DIAGRAM (W/ TACHOMETER (LHD))
