8–304 ELECTRICAL-BODY AND CHASSIS

TROUBLE SHOOTING

CIGARETTE LIGHTER

1.

Lighter does not pop out after being pushed in.  It does not become hot.

Checkpoint

Trouble Cause

Countermeasure

Poor Fuse No. CB-20 (15A,
Fuse box) contact or blown

Reinstall or replace the fuse
No. CB-20 (15A)

Audio system (System
should receive power)

Open circuit or poor
connector contact

Replace the lighter

Lighter continuity between
center part and outer area

Open circuit or poor
connector contact

Repair open circuit or
connector contact

Voltage between connector
1  B-21 and the ground at
starter SW. is ACC position
(Should be battery voltage
present)

OK

OK

OK

NG

NG

NG

2.

Lighter pops out prematurely before becoming hot

Deformed lighter or casing

Repair or replace the lighter
and/or casing

Lighter and casing

NG

3.

Lighter becomes too hot

Deformed lighter and
casing

Repair or replace the lighter
and/or casing

Lighter and casing

NG

Open circuit or poor
connector contact

Repair open circuit or
connector contact

Continuity between
connector 1  B-22 and the
ground

NG

ELECTRICAL-BODY AND CHASSIS 8–305

CIGARETTE LIGHTER

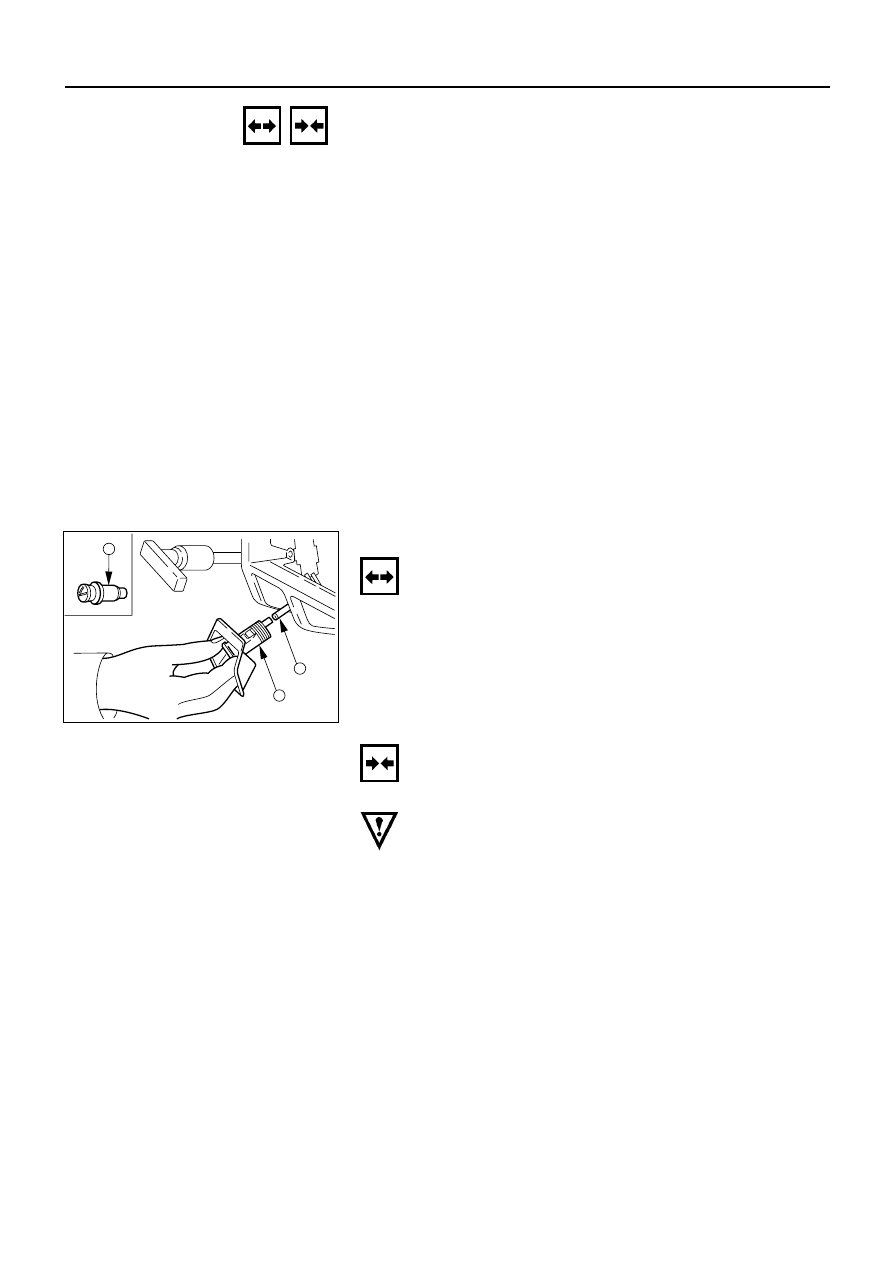

Removal

1. Remove the lighter 1.

2. Disconnect the connector 2.

3. Loosen the lighter holder 3 nut at the back side.

4. Remove the holder from the bezel.

AUDIO

Refer to Section 9 “ACCESSORIES” for details.

1

2

3

D08RV882

Installation

Follow the removal procedure in the reverse order to
install the lighter.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the lighter connector is securely
connected.

This will prevent a poor contact and an open circuit.

REMOVAL AND INSTALLATION

8–306 ELECTRICAL-BODY AND CHASSIS

POWER DOOR MIRROR

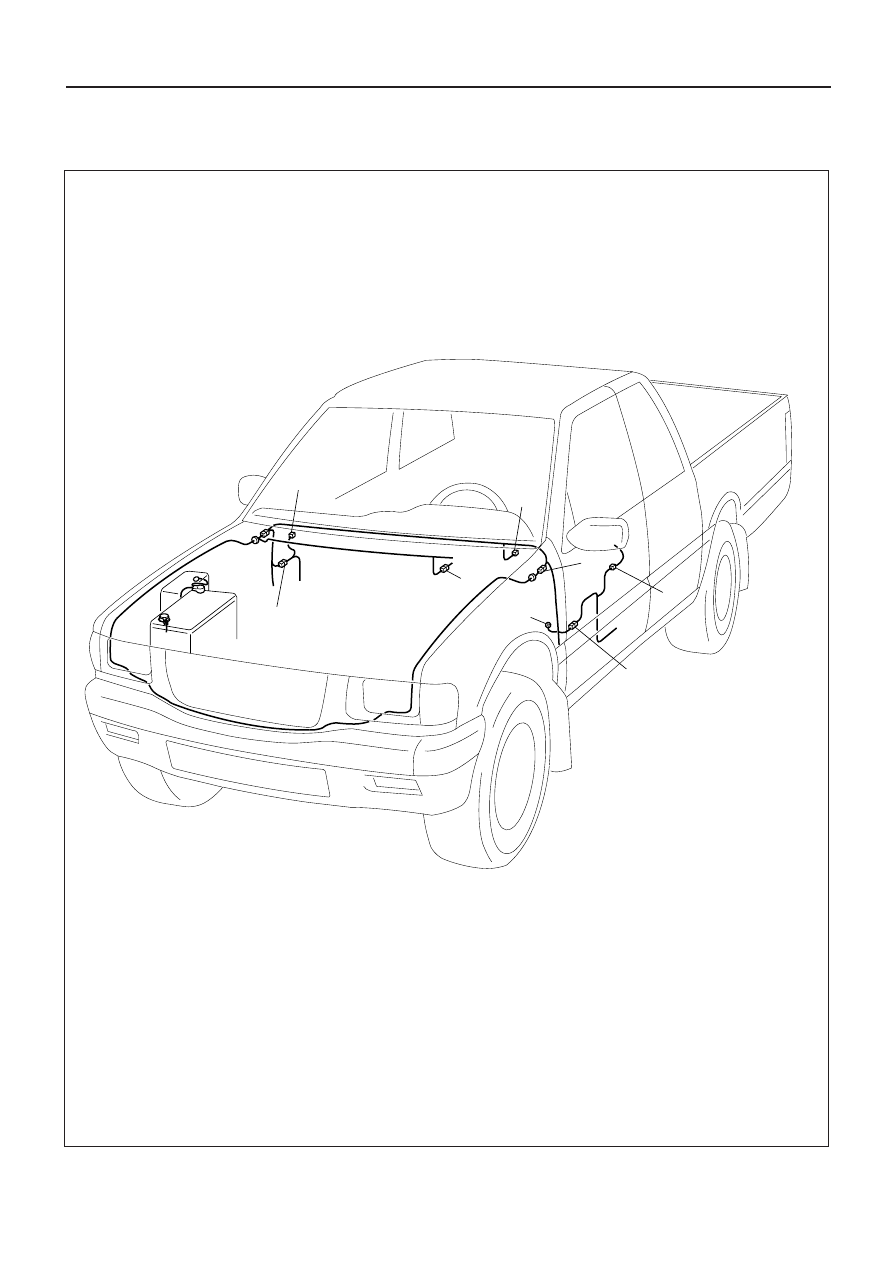

PARTS LOCATION (LHD)

H-10

H-13

B-26

D-7

H-7

D-2

C-41

B-28

D08RVA51

ELECTRICAL-BODY AND CHASSIS 8–307

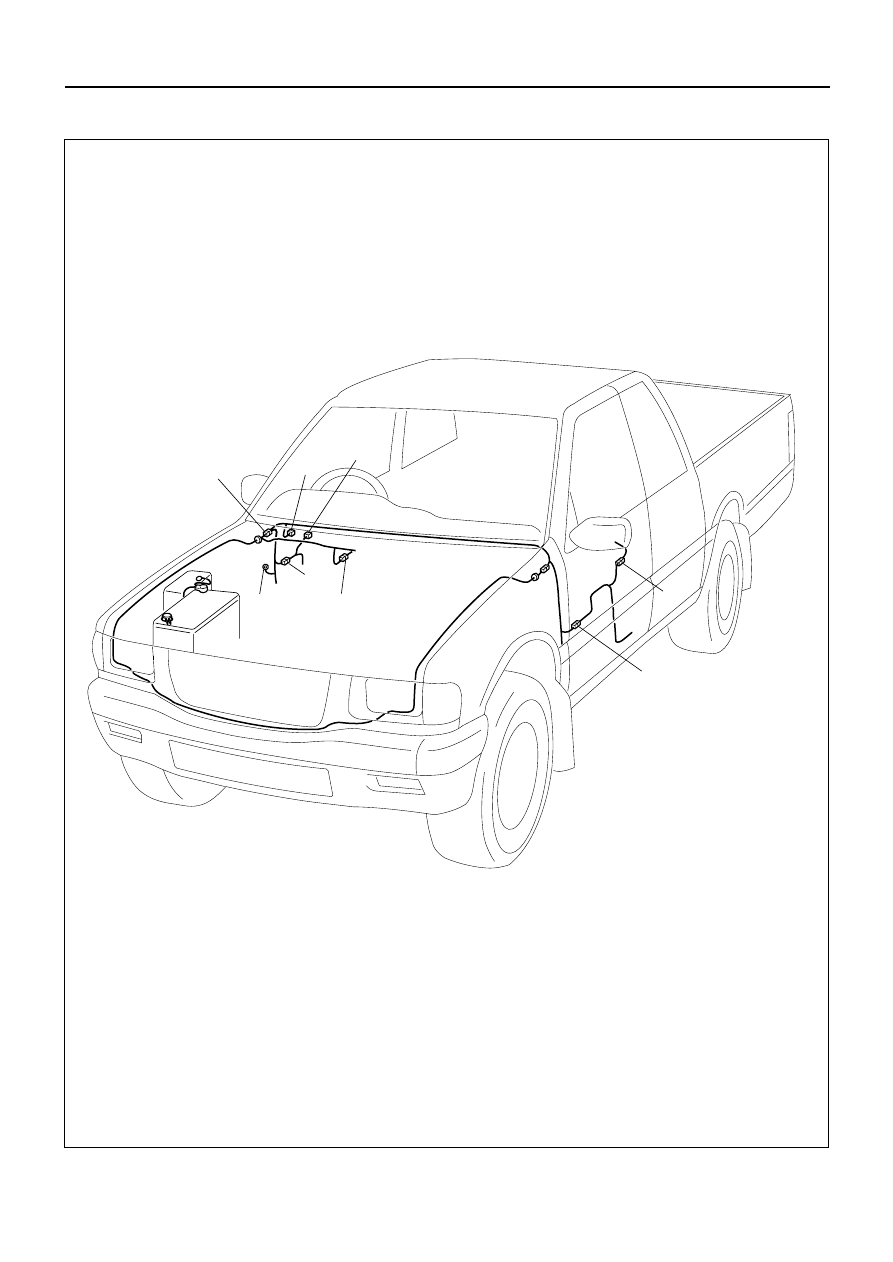

PARTS LOCATION (RHD)

C-41

D-7

H-13

H-10

B-28

B-26

D-2

H-7

D08RVA49
