8–276 ELECTRICAL-BODY AND CHASSIS

2. Switch Side Connector Circuit

Remove the switch connector, and check continuity
and voltage between the switch connector terminals.

(Connect the (+) terminal of the battery to 9 D-5 and
the (–) terminal to 5  D-5 .)

5  D-5 - 6  D-5 . . . .  Continuity

5  D-5 - 8  D-5 . . . .  Continuity

(Then, ground 3  D-5 .)

6  D-5 . . . .  Current flow for approx. 1 second

(Disconnect the ground of 3  D-5 , and ground
4 D-5 .)

8  D-5 . . . .  Current flow for approx. 1 second

10 9 8 7 6 5

4 3

2 1

632RV002

3. Door Lock Operation Test

After confirming that there is continuity between the
switch harness side connector terminals 6  D-5 and
8 D-5 , apply the battery voltage to each of the
terminals to conduct the operation test.

When the door lock will not operate, check the door
lock actuator for any trouble.

10

9

8

7

6

5

4

3

2

1

060RS009

Switch side

D-5

Harness side

D-5

Connecting terminals

Operation

8 (Y/G)

6 (L/Y)

+

–

Unlock

–

+

Lock

ELECTRICAL-BODY AND CHASSIS 8–277

Driver’s Side Door Lock Switch

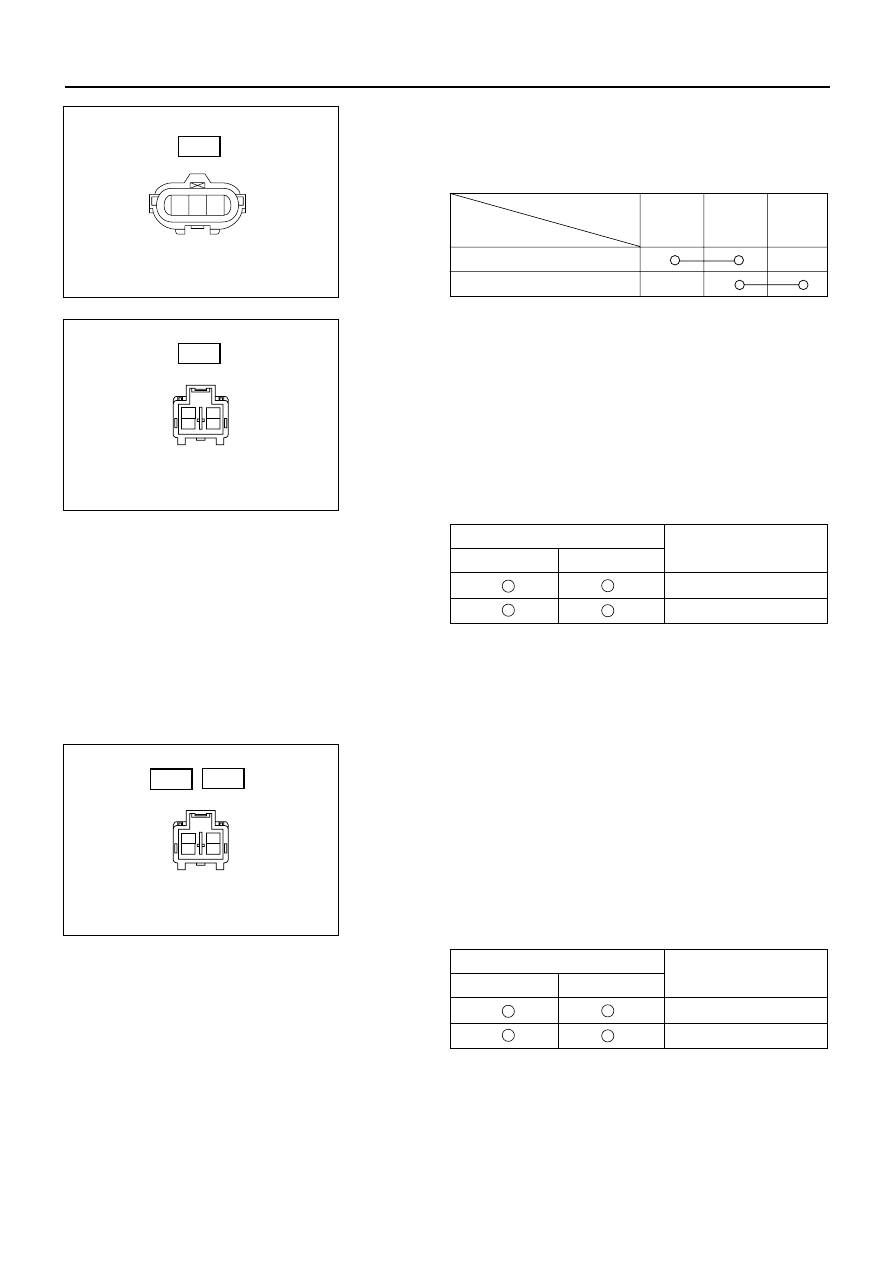

1. Switch Side Connector Circuit

Check continuity between the switch connector
terminals

3

2

1

Front Passenger’s Side Door Lock Actuator

1. Actuator Side Connector Circuit

Apply the battery voltage to the actuator connector
terminals to check the operation.

When the door lock actuator is checked on the
vehicle and there is no continuity, and when the door
lock actuator itself is checked and no trouble is
found, check the circuit between the door lock
actuator and the driver seat side power window &
door lock switch for any failure.

2
4

1
3

Connecting terminals

Operation

2

4

+

–

Lock

–

+

Unlock

Switch side

D-4

Actuator side

D-9

Rear Door Lock Actuator -LH & RH

1. Actuator Side Connector Circuit

Apply the battery voltage to the actuator connector
terminals to check the operation.

When the door lock actuator is checked on the
vehicle and there is no continuity, and when the door
lock actuator itself is checked and no trouble is
found, check the circuit between the door lock
actuator and the driver seat side power window &
door lock switch for any failure.

2
4

1
3

Connecting terminals

Operation

1

3

–

+

Lock

+

–

Unlock

Actuator side

D-14

D-18

Terminal No.

SW

1

2

3

position

Lock

Unlock

8–278 ELECTRICAL-BODY AND CHASSIS

POWER WINDOW

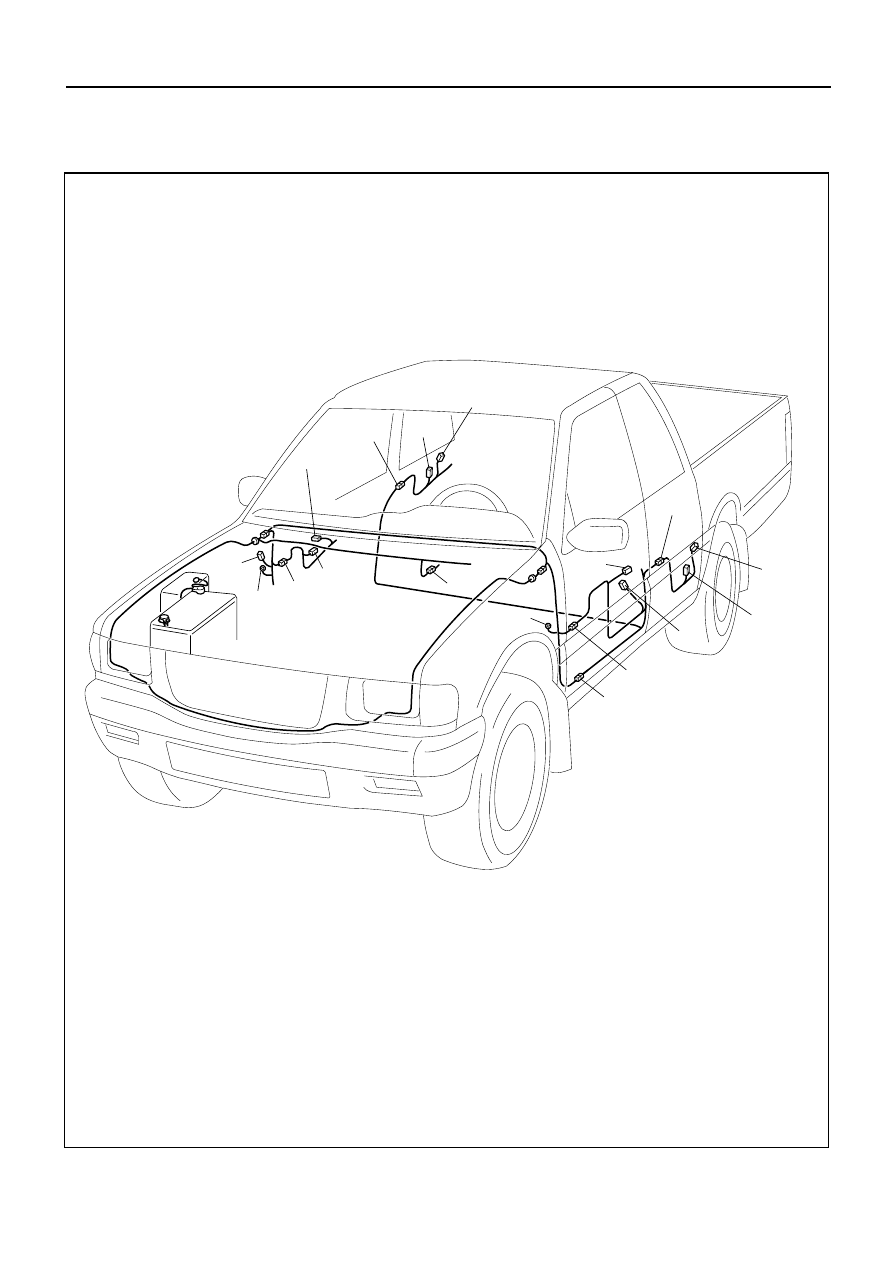

PARTS LOCATION (LHD)

B-9

B-8

C-41

H-13

D-6

D-10

H-9

H-10

B-28

D-5

D-1

H-16

H-14

D-11

D-12

D-16

D-15

D08RVA40

ELECTRICAL-BODY AND CHASSIS 8–279

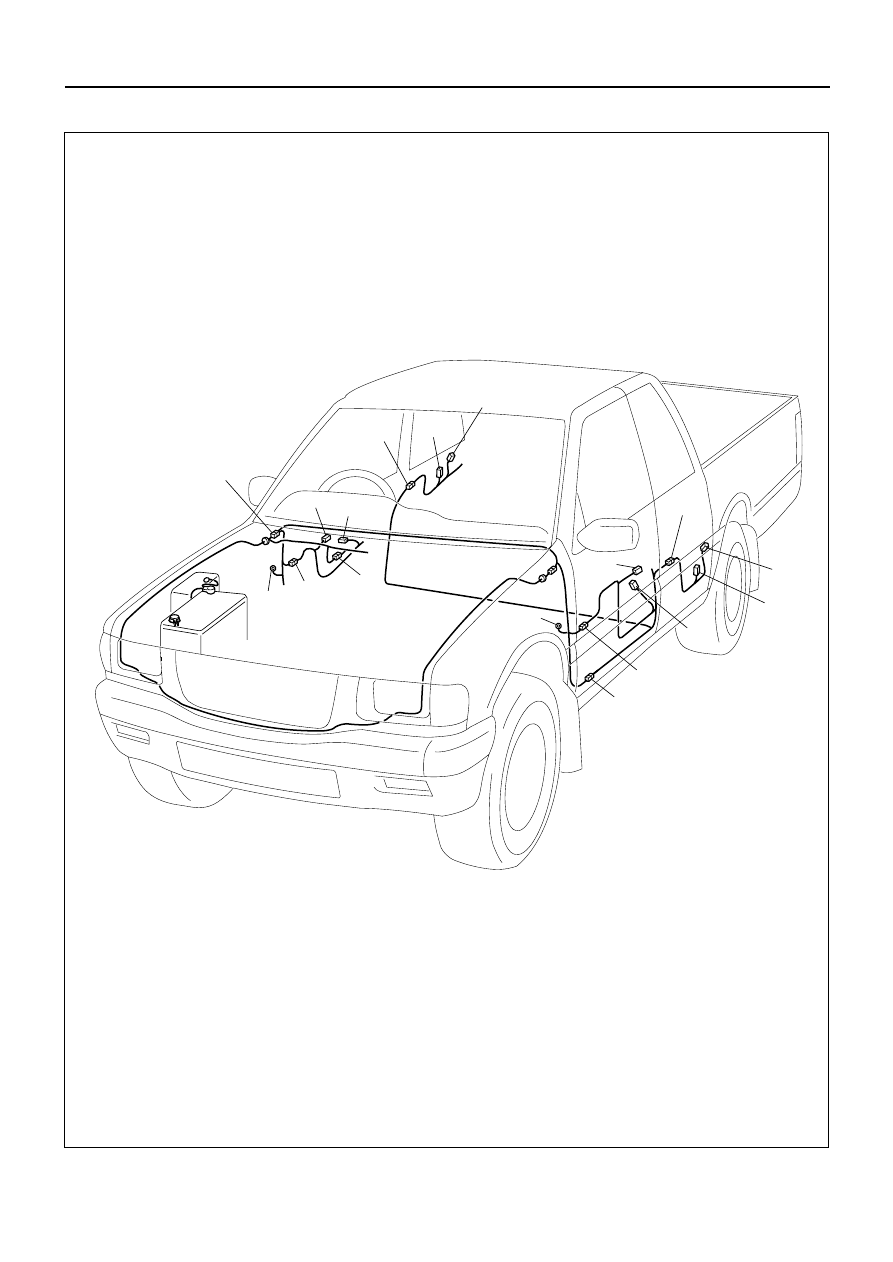

PARTS LOCATION (RHD)

H-7

B-28

C-41

H-10

D-1

D-5

H-9

H-13

B-9

D-6

D-10

H-16

H-14

D-11

D-12

D-16

D-15

D08RVA41
