8–256 ELECTRICAL-BODY AND CHASSIS

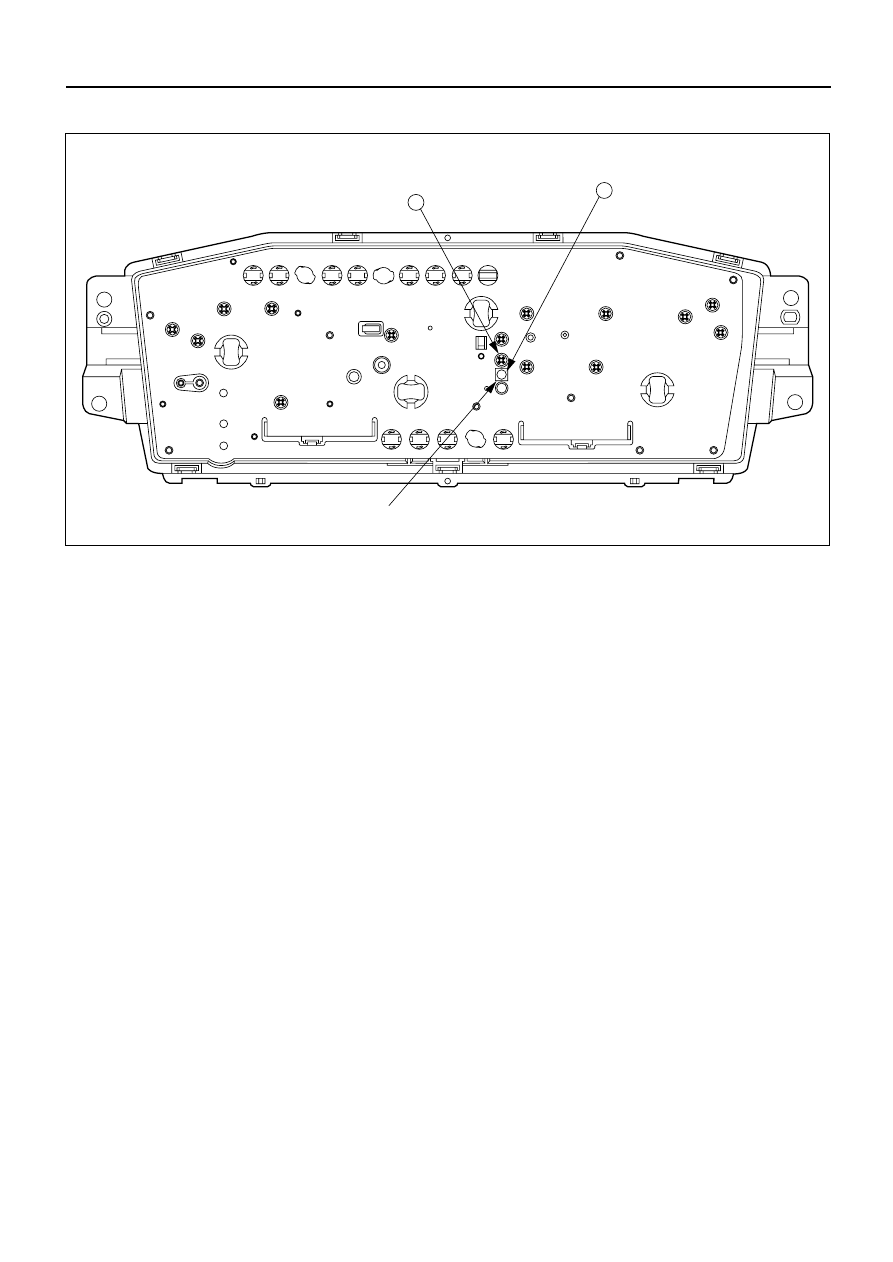

Timing Belt Indicator Light Reset Procedure (4JA1-T Diesel Engine - RHD)

Masking tape

W/Tachometer

A

B

821RV120

Timing belt must be replaced after 100,000 km of vehicle operation.

When the odometer reading reaches 100,000 km, the timing belt indicator light will turn on to remind the
driver to change the timing belt.

After replacing the timing belt, the timing belt indicator light must be reset to remind the driver to replace
the timing belt after the next 100,000 km.

Timing Belt Indicator Light Reset Procedure

1. Remove the masking tape from the hole

B.

2. Remove the screw from the hole A and install it to

the hole B.

3. Apply new masking tape to the hole A.

Note:

The above procedure assumes that the timing belt is
being replaced for the first time (after 100,000 km).

For subsequent reset procedure (at next 100,000 km),
hole positions will be the opposite of the above
procedure.

ELECTRICAL-BODY AND CHASSIS 8–257

HEATER AND AIR CONDITIONING

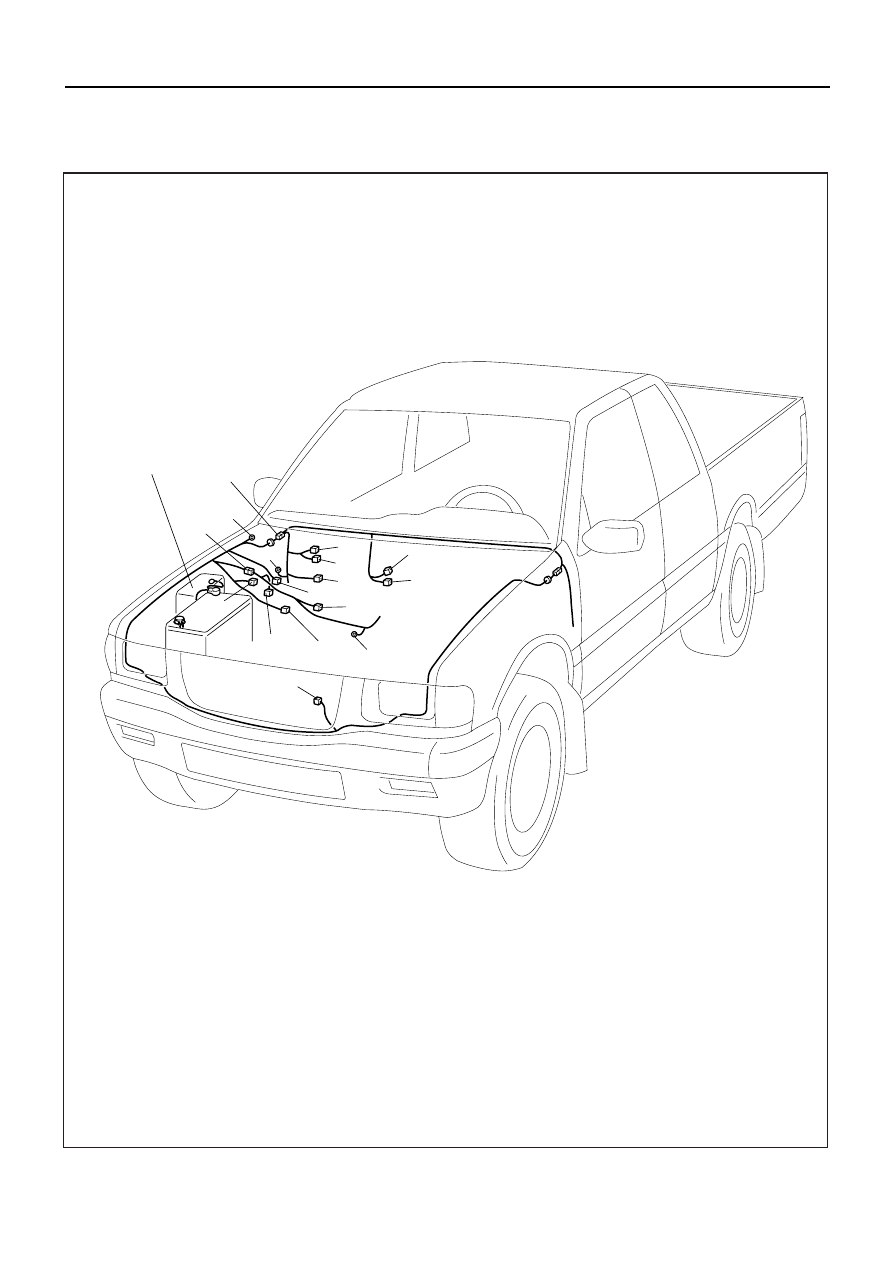

PARTS LOCATION (LHD)

RELAY & FUSE BOX

(X-3,X-7,X-12)

H-8

H-20

B-13

B-12

E-5

E-2

C-65

C-49

C-15

E-1

B-2

B-1

B-9

B-3

C-2

C-24

D08RVA45

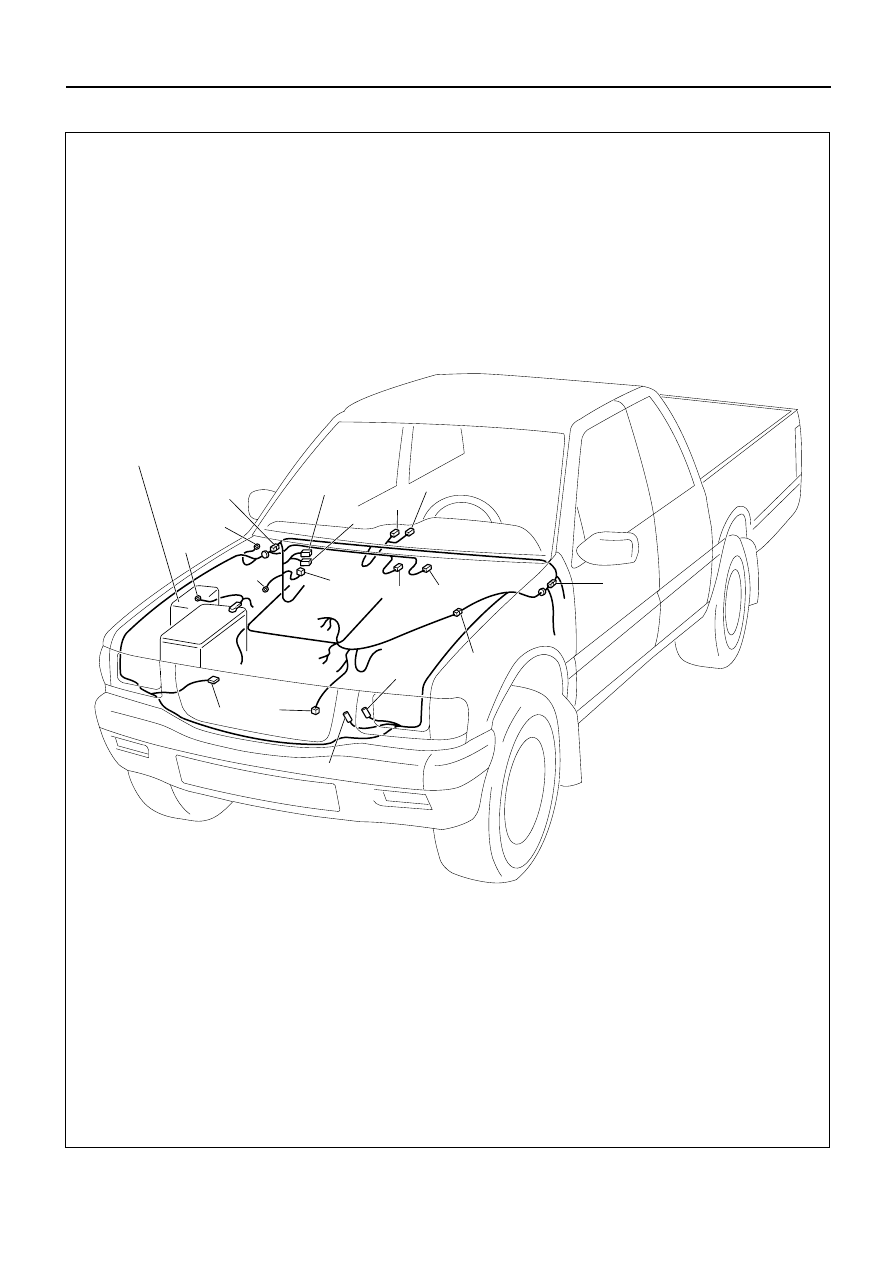

PARTS LOCATION (6VD1 – LHD)

C-93

E-2

C-24

C-101

H-20

B-12

B-2

B-1

H-8

C-2

P-11

B-9

B-3

C-41

C-28

B-13

H-6

RELAY & FUSE BOX

(X-15,X-16,X-22,X-25)

D08RW549

8–258 ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS 8–259

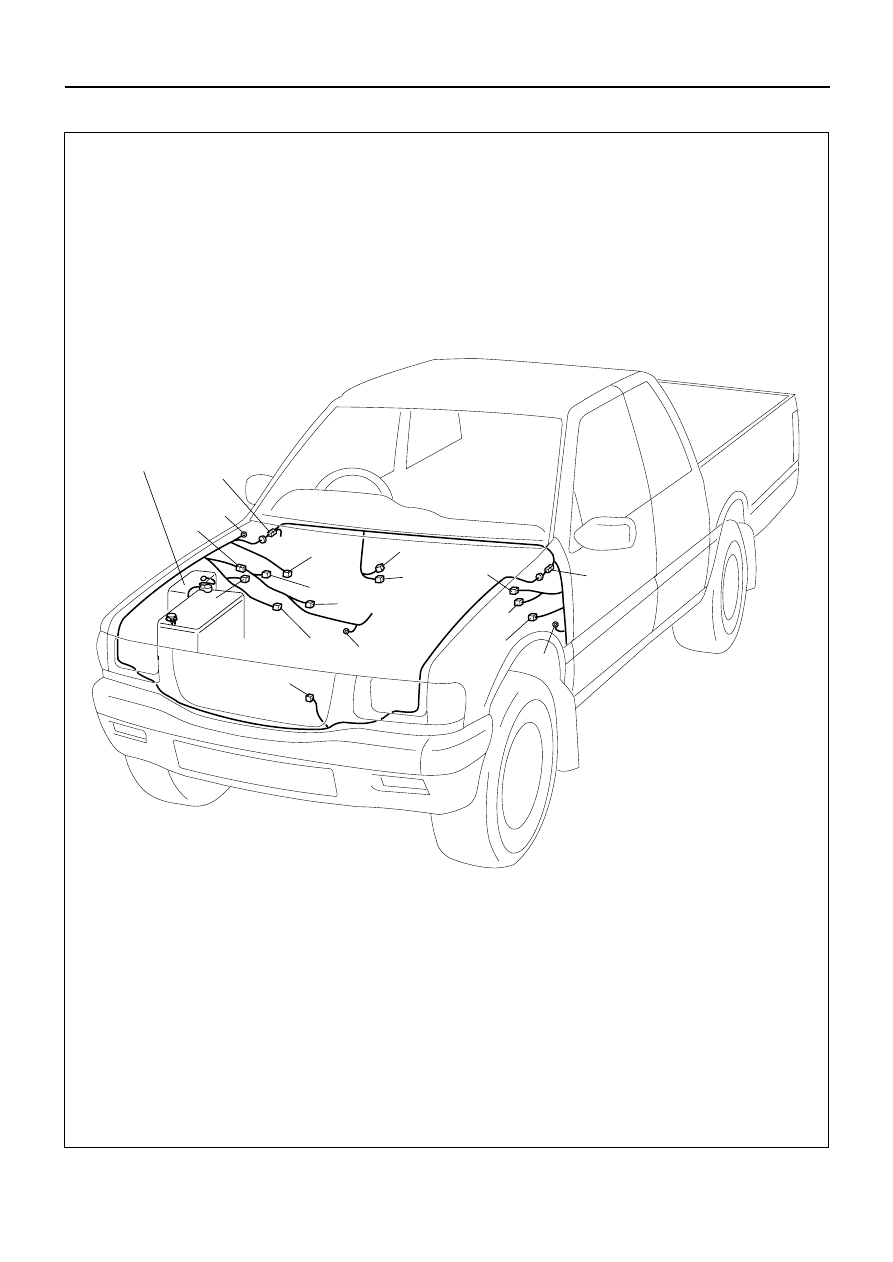

PARTS LOCATION (RHD)

RELAY & FUSE BOX

(X-3,X-7,X-12)

E-5

E-2

C-65

C-49

C-15

E-1

C-24

B-13

B-12

C-2

H-20

B-9

B-3

H-8

B-2

B-1

H-7

D08RVA48
