Installation

To Install, follow the removal steps in the reverse order.

FUEL TANK UNIT

Removal

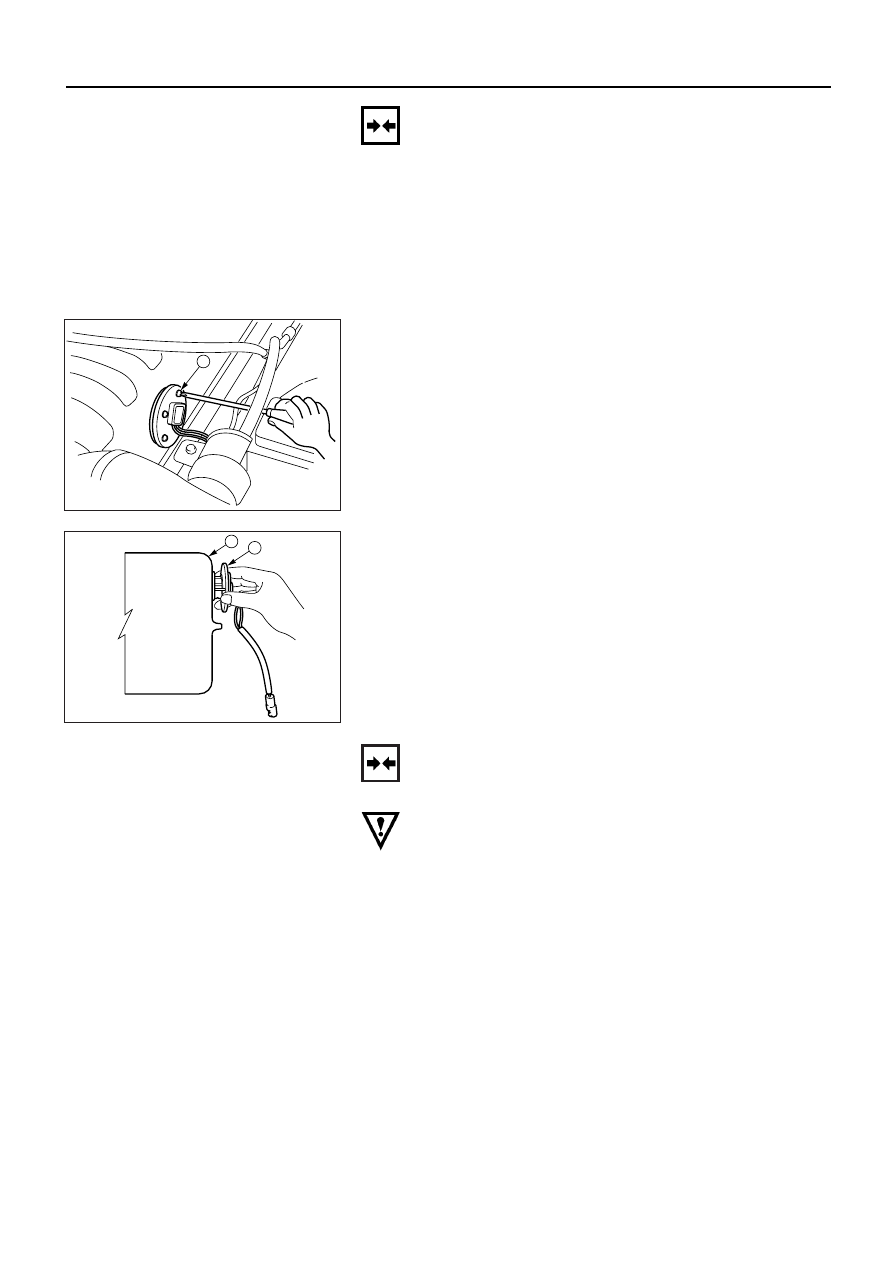

1. Disconnect the fuel tank unit connector.

2. Loosen the screws

1.

1

140RV008

3. Remove the fuel tank unit 2 from the fuel tank 3.

3

2

140RV009

Installation

Follow the removal procedure in the reverse order to
install the fuel tank unit.

Pay close attention to the important points mentioned in
the following paragraphs.

Rubber Seal

Be absolutely sure that the fuel tank unit rubber seal is
correctly seated.

Connector

Be absolutely sure that the fuel tank unit connector is
securely connected.

This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–237

VEHICLE SPEED SENSOR (INSTALLED ON THE
TRANSMISSION)

Removal

1. Disconnect the connector.

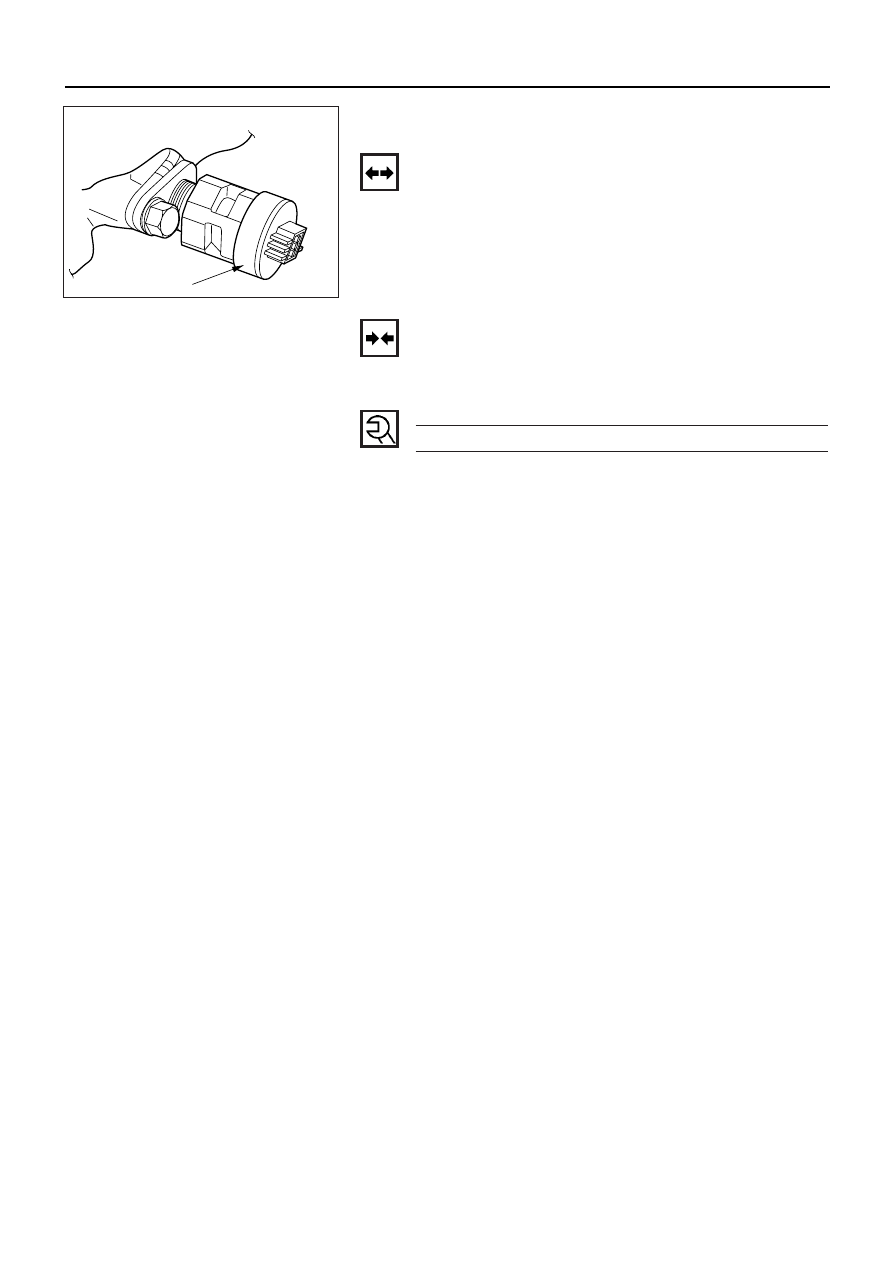

2. Remove the vehicle speed sensor body by rotating it.

Speed sensor

This illustration is based on MUA T/M

826RV043

Installation

To Install, follow the removal steps in the reverse order,
noting the following point.

Tighten the vehicle speed sensor to the specified torque.

Vehicle Speed Sensor Tightening Torque  kg·m (lb·ft/N·m)

2.5 ± 0.5 (18 ± 3.6 / 25 ± 4.9)

8–238 ELECTRICAL-BODY AND CHASSIS

INSPECTION AND REPAIR

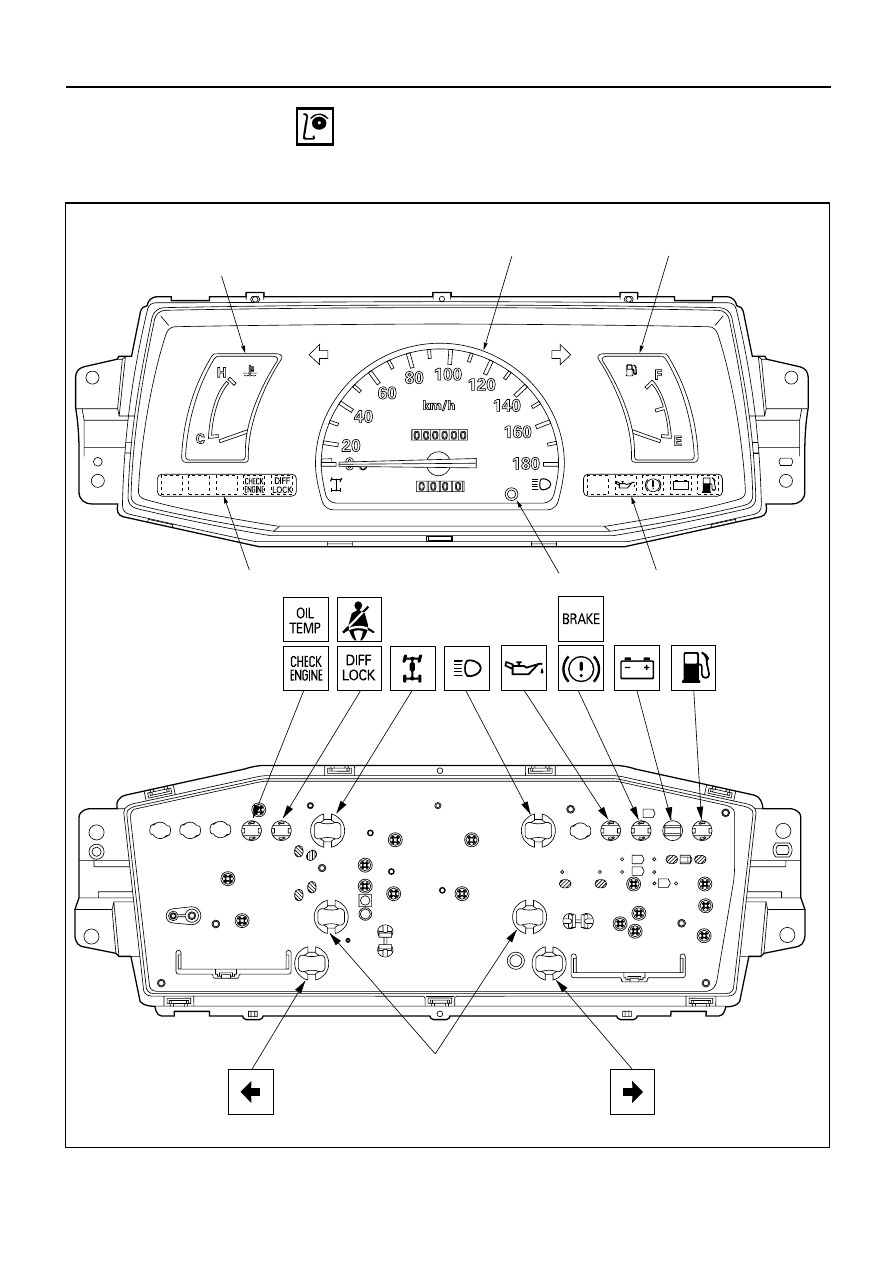

Warning, indicator and illumination light position
W/O Tachometer (Gasoline engine)

Illumination light

Reset  knob

Engine  coolant
temperature  gauge

Fuel  gauge

Speedometer

Warning  light  lens

Warning  light  lens

+

-

826RV035

(This illustration is based on the Km/h meter)

ELECTRICAL-BODY AND CHASSIS 8–239

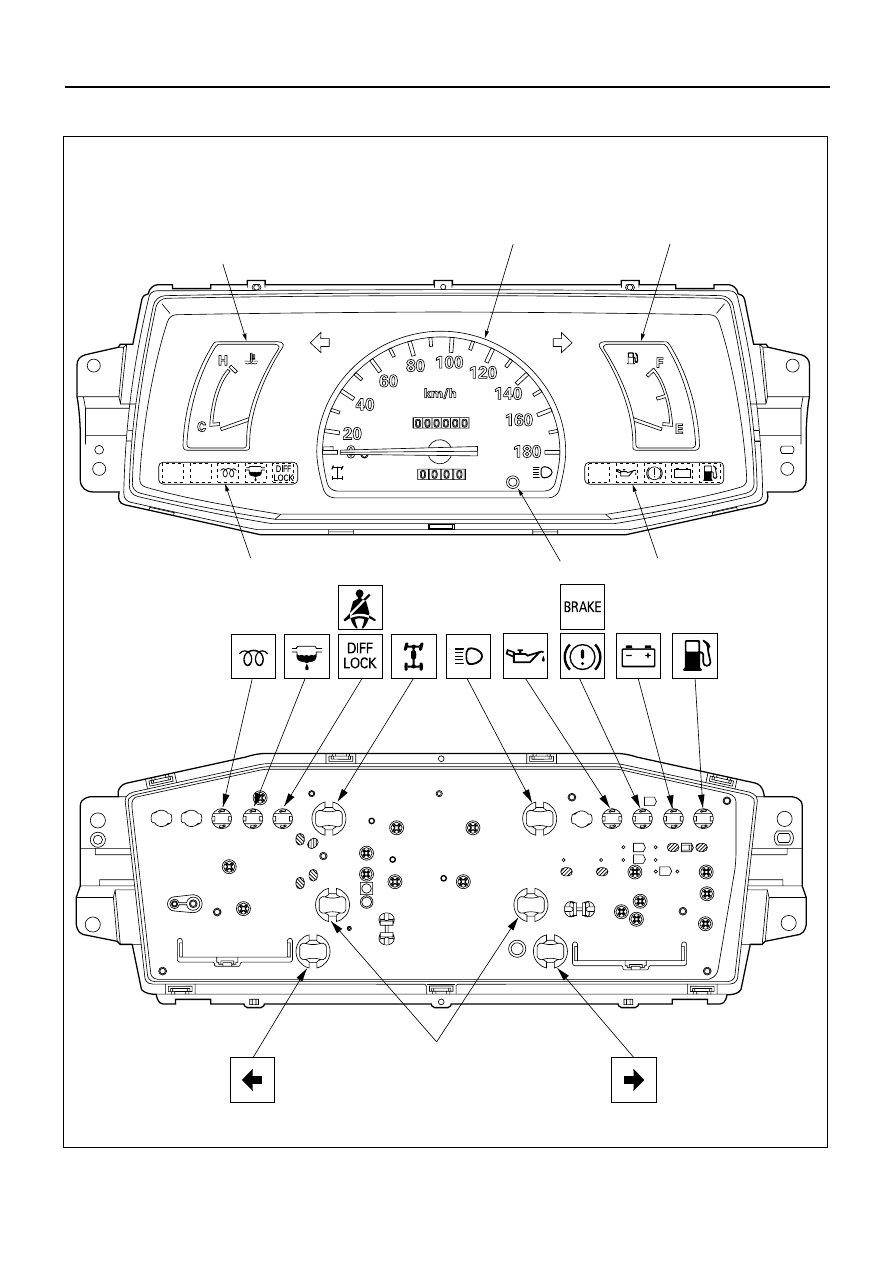

W/O Tachometer (Diesel engine)

Illumination light

Reset  knob

Engine  coolant
temperature  gauge

Fuel  gauge

Speedometer

Warning  light  lens

Warning  light  lens

+

-

826RV036

(This illustration is based on the Km/h meter)
