Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 132





6E–132

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P0215 (Symptom Code D) (Flash Code 52) Fuel

Cutoff Solenoid Valve Malfunction

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0215 (Symptom Code D) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0215 (Symptom Code D) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

4

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

Verify repair

Go to Step 5

5

Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

Go to Step 6

Go to Step 7

6

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

Verify repair

7

Replace the injection pump assembly.
Is the action complete?

Verify repair

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–133

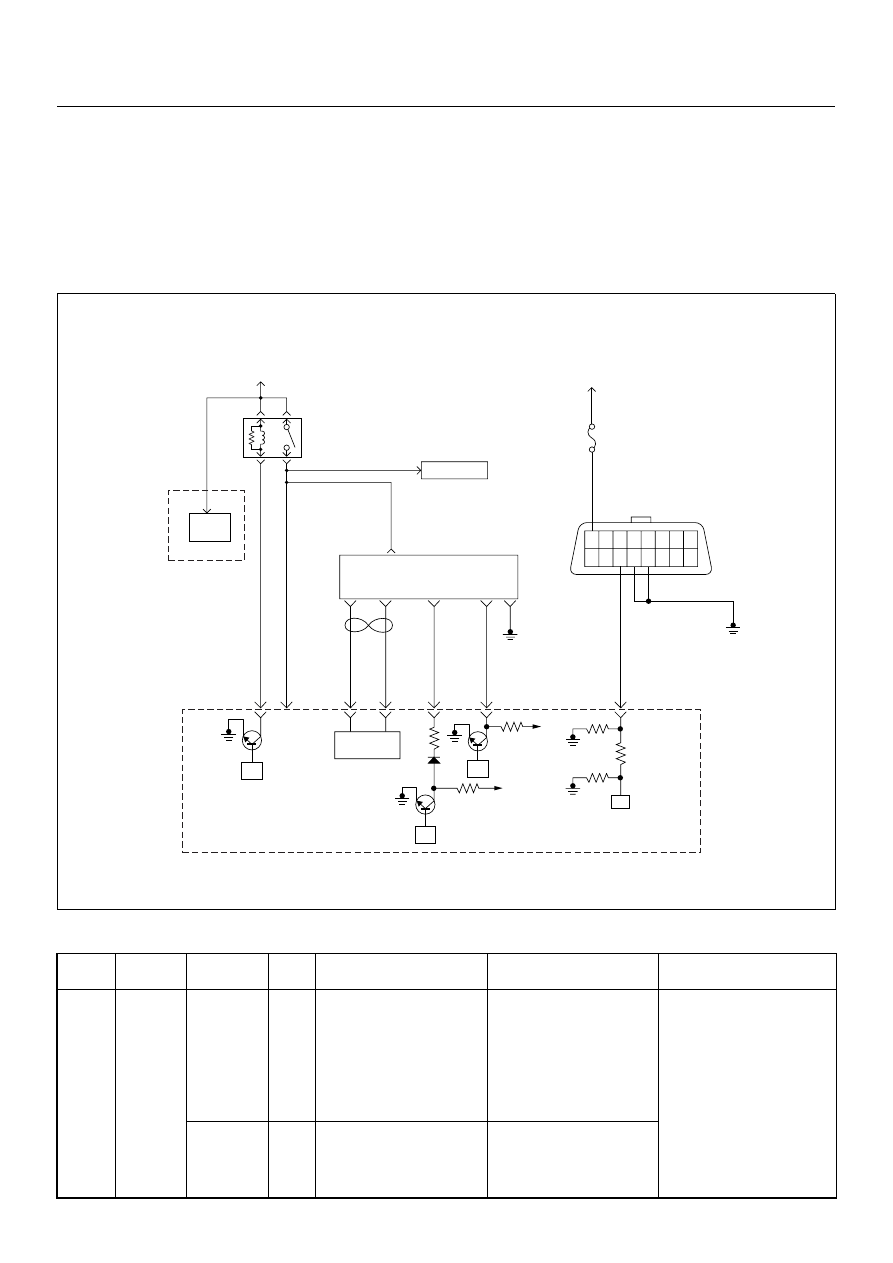

DIAGNOSTIC TROUBLE CODE (DTC) P0216 (SYMPTOM CODE A)

(FLASH CODE 54) INJECTION TIMING CONTROL CIRCUIT MALFUNCTION

(TIMER DEVIATION)

DIAGNOSTIC TROUBLE CODE (DTC) P0216 (SYMPTOM CODE B)

(FLASH CODE 54) INJECTION TIMING CONTROL CIRCUIT MALFUNCTION

(TIMER FLUCTUATION)

Condition for setting the DTC and action taken when the DTC sets

Flash

Code

Code

Symptom

Code

MIL

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

54

P0216

A

ON

Injection Timing Control Cir-
cuit Malfunction (Timer Devia-
tion)

1. Engine speed is more than

700rpm.

2. Fuel injection quantity is

more than 4mg/stk.

3. Deviation of actual injection

timing and desired injec-
tion timing is more than
+3°CA or  -6°CA for 8 sec-
onds.

Fuel injection quantity is
reduced.

B

ON

Injection Timing Control Cir-
cuit Malfunction (Timer Fluc-
tuation)

1. Engine speed is more than

2014rpm.

2. Fluctuation of actual injec-

tion timing is more than
±5.2°CA.

45

16 15 14 13 12 11 10 9

8 7 6 5 4 3 2 1

Battery
Voltage

Battery
Voltage

0.5
RED/
YEL

2.0
BLU/
RED

7

TCM

A / T

ECM Fuse

PSG(Pump Control Unit)

Injection
Pump

2

1

5

8

0.5
WHT

2.0
BLU/
RED

0.5
BLU/
BLK

0.5
RED

0.5
ORG

100

3

58

99

105

91

0.5
PNK

6

2.0
BLK

µP

CAN
Controller

Batt

Batt

IC

µP

0.5
BLU

Meter
10A

1.25
BLK

µP

Engine
Control
Module
(ECM)

ECM
Main Relay

6E–134

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

Circuit Description

The ECM is calculates an injection quantity and an
injection timing using the various sensors (crankshaft
position sensor, camshaft position sensor, engine
coolant temperature sensor, etc.). The timing control
valve (TCV) operation performs an injection timing
decision.
The TCV performs as a variable throttle, using the rapid
opening and closing cycle of the valve needle in the
TCV.
The TCV is assembled in the injection pump. The signal
of desired injection timing and actual injection timing are
exchanged via the CAN-bus between the PSG and
ECM.
If the timer position is out of tolerance (deviation or
fluctuation), DTC P0216 will be stored.

Diagnostic Aids

An intermittent may be caused by the following:

• Poor connections.

• Misrouted harness.

• Rubbed through wire insulation.

• Broken wire inside the insulation.

• Insufficient air bleeding of fuel line.
Check for the following conditions:

• Insufficient air bleeding of fuel line inside, clogged

fuel filter or pinched fuel pipe/hose may cause the
DTC store or improper engine performance.

• Poor connection at ECM and PSG-Inspect harness

connectors for backed out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal to wire connection.

• Damaged harness-Inspect the wiring harness for

damage. If the harness appears to be OK, observe
the “Actual Injection Start” display on the Tech2 while
moving connectors and wiring harness related to the
sensor.

Diagnostic Trouble Code (DTC) P0216 (Symptom Code A) (Flash Code 54)

Injection Timing Control Circuit Malfunction (Timer Deviation)

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0216 (Symptom Code A) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0216 (Symptom Code A) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

4

Replace the injection pump assembly.
Is the action complete?

Verify repair

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–135

Diagnostic Trouble Code (DTC) P0216 (Symptom Code B) (Flash Code 54)

Injection Timing Control Circuit Malfunction (Timer Fluctuation)

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0216 (Symptom Code B) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0216 (Symptom Code B) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Perform the air bleeding in the fuel line sufficiently.

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0216 (Symptom Code B) restored in
this ignition cycle?

Go to Step 5

Verify repair

5

Visually/physically inspect for the following conditions.

• Restrict fuel supply system. Check for a pinched

fuel hose/pipe.

• Check for a condition that causes fuel waxing or

icing, such as the customer is using an incorrect
fuel type in winter season or water mixed with the
fuel.

If a problem is found, repair as necessary.
Was a problem found?

Verify repair

Go to Step 6

6

Replace the fuel filter.
Was the problem solved?

Verify repair

Go to Step 7
